Compact Excavators EC27D

Stage V / Tier 4f Emission Standards
2,730 kg Operating weight
15.6 kW Gross power
0.03 - 0.12 m³ Bucket capacity

Count on the Volvo EC27D compact excavator for best-in-class performance. With impressive lifting capacities and excellent digging forces, this rock-solid machine can handle a variety of jobs. Combining durability and ease of operation with serviceability and versatility, the EC27D is designed to... Read more

Download the EC27D brochure, with all the details and specifications. (PDF, 1.1MB)

More specifications and competitor comparison

Do more, everywhere

Technical specifications for EC27D

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Engine	Volvo D1.1A
Gross power	15.6 kW
...at engine speed	2,400 rpm
Net power	14.8 kW
Operating weight	2,730 kg
Operating weight, canopy version	2,640 kg
Bucket capacity	0.03 - 0.12 m³
Travel speed, low / high	2.6 / 4.8 km/h
Slewing speed	9.4 rpm
Breakout force	24.6 kN
Tear out force (arm breakout force)	18.1 kN
Overall width	1,550 mm
Overall length	3,933 mm
Main hydraulic pump max. flow	65 l/min
Boom swing angle, left / right	72.5 / 53 °

Operating weight with 75kg operator, 300mm rubber track, short arm and 500mm direct fit bucket.

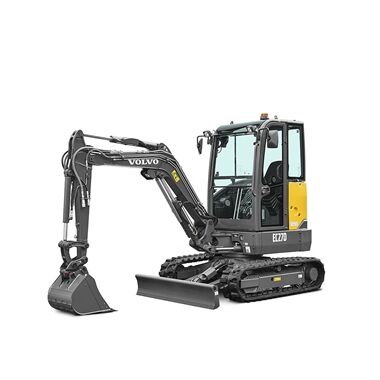

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the EC27D brochure, with all the details and specifications. (PDF, 1.1MB)

Features & Benefits

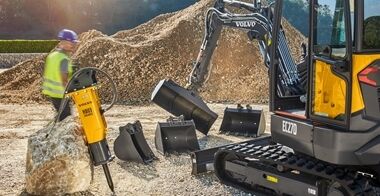

The EC27D is a perfect match with Volvo attachments for increased versatility, performance and profitability.

All work, all the time

Built to work for you, the EC27D is an industry-leader. Optimize machine performance, productivity and versatility with Volvo’s range of durable attachments and Customer Solutions. Tailored to your business and operations - just like your EC27D - our unique, global dealer support network is built around you. Protect your profits with a long-term partnership and benefit from an array of services using Genuine Volvo Parts, delivered by passionate people.

Experience best-in-class performance with over 42 kN of combined forces, superior lift capacity and wide working range.

Ultimate performance

Stretch further, dig deeper and reach higher with the EC27D. Based on a proven design, this compact excavator is built to perform and boost profitability. Combining intuitive operation and operator comfort with simple serviceability, this machine provides all the strength and versatility you need – because big jobs demand big performance.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
