Compact Excavators ECR18E

Stage IV / Tier 4f Emission Standards
3,748 lbs Operating weight
16.1 hp Gross power
0.02 - 0.07 yd³ Bucket capacity

The ECR18E short-swing compact excavator is a 1.8 ton class machine that can squeeze into the tightest of spaces, and thanks to its ultra-short tail design – the shortest radius in the Volvo range – it can work close to obstacles and fit in spaces as narrow as 39 inches.

Download the ECR18E brochure, with all the details and specifications. (PDF, 624.4KB)

More specifications and competitor comparison

Short swing, big performance

Technical specifications for ECR18E

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Engine	Volvo D0.9A
Gross power	16.1 hp
Net power	15.8 hp
…at engine speed	2,300 rpm
Operating weight	3,748 lbs
Operating weight, canopy version	3,748 lbs
Bucket capacity	0.02 - 0.07 yd³
Travel speed, low / high	1.12 / 2.17 mph
Slewing speed	9.5 rpm
Breakout force	2,900 lbf
Tear out force (arm breakout force)	1,787.2 lbf
Overall width	3′ 3.2″ ft in
Overall length	11′ 3.1″ ft in
Main hydraulic pump max. flow	9 gal/min

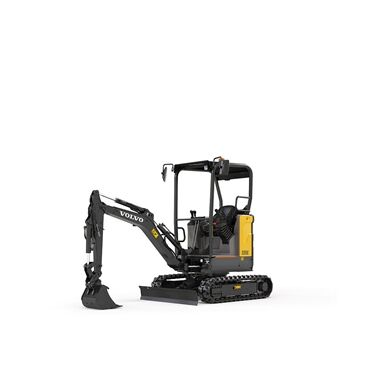

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the ECR18E brochure, with all the details and specifications. (PDF, 624.4KB)

Features & Benefits

The ultra-short swing radius ECR18E is the perfect choice for working in tight conditions. Easy to transport and easy to operate, this 1.8t excavator will make light work of tough jobs. With a robust design, combined with best-in-class service access, you can be sure this is a machine designed to promote low operating costs.

Compact by design

For superior versatility when working in confined spaces, the ECR18E features an ultra-short tail radius. The machine design ensures that the frame corner, swing post and cylinder stay within the tracks when digging alongside obstacles. The result is maximum visibility and a reduced risk of machine damage when working in tight conditions.

Small but tough

The unique high-profile counterweight design is made from three strong pieces of cast iron which wrap around the rear of the machine, protecting all vital components. All-around steel panels, recessed 0.4” from the counterweight, offer further protection.

Safe and easy operation

The roomy and uncluttered operator environment of the machine is designed to keep you safe and focused while at work, including simple layout of the controls, fingertip control and large travels pedals. Safety is built-in to the machine with a ROPS/TOPS/FOPS canopy, a large entrance including high visibility step, and an orange seatbelt as standard for easy checks by site managers.

Best-in-class serviceability

Complete maintenance tasks with speed thanks to the hinged fuel tank which enables an impressive ease of access to the engine compartment, and easy to locate daily check points. A 50-hour greasing interval further contributes towards the best-in-class serviceability of this machine.

Transport with ease

Transportation of the machine is safe and secure, thanks to its light weight and convenient design. With automatic slew lock and four easily accessed large tie-down points on the upper frame, the machine can be safely transported on a small trailer with up to three buckets and a hydraulic breaker, while maintaining a total transport weight of less than 2t.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
