Current financing offers
Rates as low as 0% for 60 months on new Volvo excavators
EW65
Compact Excavator EW65
-
Stage V / Tier 4f
Emission Standards -
13,490 - 16,320 lbs
Operating weight -
67 hp
Gross power -
0.09 - 0.35 yd³
Bucket capacity
When a compact wheeled excavator is the right choice for your operation, count on the EW65 to deliver big results. Featuring a...
More

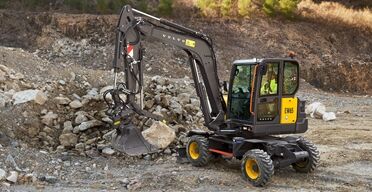

Drive productivity to a new level
When a compact wheeled excavator is the right choice for your operation, count on the EW65 to deliver big results. Featuring a range of performance upgrades, including 5.8% more engine power, improved swing performance and 9% more boom lifting force, get ready to achieve optimum results across utilities, building, agriculture, landscaping, forestry and more. With a new 8" HD intuitive touchscreen display, enhanced controls and a range of comfort improvements, the EW65 continues the proud Volvo tradition of providing class-leading operator environments to the market. Engineered for maximum uptime, this machine features easy servicing, longer service intervals, and a larger fuel tank – so you can work harder for longer.
Features and benefits for EW65
Explore what sets the EW65 apart
More power to perform
Achieve optimum results thanks to a range of performance upgrades across the EW65, including more engine power, lifting force and swing performance. Discover more.
EW65
More power to perform
Dig powerfully, load efficiently and swing smoothly in the EW65.With 5.8% more engine power, improved swing performance on the slope, 5% increased swing torque and 9% more boom lifting force, this versatile machine delivers fast, reliable results across a wide range of applications.
Wheeled performance
For better mobility and a top speed up to 30kmph, the EW65 four-wheel drive allows you to travel on and off road with front axle locking when working. Drive the machine easily between locations and access hard to reach job sites, saving time and getting to work without delay.
Parking, work and transport
Select from a choice of three work modes to ensure the optimum machine performance depending on the task at hand: parking mode, travel mode or working mode. Parking mode ensures optimal safety when it parking position, while travel model controls engine speed via travel pedal stroke for low fuel consumption and noise. When at work, select work mode for full hydraulic power for normal working operations, with adjustable engine RPM.
A more comfortable and productive operator
Explore the completely new modern cabin and all-new intuitive touchscreen operator display. The EW65 is designed to keep operators safe, comfortable and performing at their best.
EW65

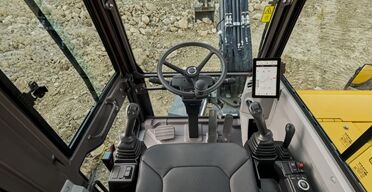

A more comfortable and productive operator
Featuring a new 8” high-definition touchscreen interface, inherited from larger Volvo Excavators, operators can now control all essential machine functions from the convenience of the display. The easy-to-use menu intuitively guides operators through key machine functions including attachment pre-set and selection, rear and side camera view, mobile phone Bluetooth pairing, and serviceability interval adjustments.
New levels of comfort
Comfort is taken to new heights in the EW65 with a wealth of updates to continue the proud Volvo tradition of providing operators with class-leading in-cab environments. The new suspended seat – including optional 3-point seatbelt and air suspension – features new, wider adjustable arm rests which can be moved up or down to suit the operator’s size and preference. Additionally, a new tiltable left-hand console facilitates easy machine entry and
Comfort and convenience
New, conveniently located in-cab storage – including cupholder, document holder, phone holder and glove compartment – add further comfort and convenience to the EC65 in-cab experience. Operators also benefit from a USB socket to charge their smart devices and can also connect their phone to the in-cab display.
Dozer blade control
The EW65 is designed for easy operation with a larger right-hand console enabling the dozer blade lever to be positioned on the right-hand side. The result is improved dozer blade control, featuring integrated high speed travel function and floating mode buttons, allowing the operator to stay in control without moving their right hand from the lever, boosting comfort and efficiency. This is complemented by a new optional electric dozer blade roll switch on the left-hand joystick.
Work harder for longer
Find out more about the easy servicing, extended service intervals, new larger fuel tank capacity and updated CareTrack telematics which all combine to keep uptime to a maximum.
EW65
Work harder for longer

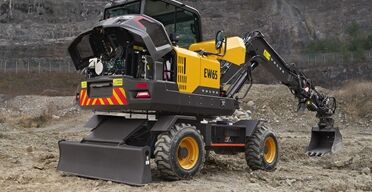

With a wide opening hood, servicing is quick and easy with the EW65. Allowing safe and easy access, all service check points are located under the wide-opening engine hood and are accessed from ground level. Grouped filters ensure regular maintenance is straightforward, helping to maximize uptime.
Longer service intervals
Long service intervals give uptime a boost in the EW65 with DPF cleaning now required only every 8000 hours. Hydraulic return filter changes are also every 1500 hours – 3 times longer than the previous generation – as well as 3000-hour suction filter interval and 6000-hour long life oil interval, an increase of 50% and 20% respectively compared to the previous generation.
Work for longer
Fuel tank capacity has been increased to 120 litres (14% more compared to previous generation) reducing the number of stops and letting you work for longer between refills.
Connected to Uptime 24/7
Maximize machine uptime and reduce repair costs with the updated CareTrack telematics system. Choose to keep track of your machine yourself or let us take care of it with ActiveCare. Our Volvo Uptime Center will provide 24/7 machine monitoring, supplying weekly reports and notifying you should preventive maintenance action be required. Easily connect, locate and monitor your Volvo construction machines anywhere, on any device, using the My Equipment app by Volvo CE.
Future proofed
With the new software architecture, you can adapt to changing needs and seamlessly incorporate future updates. Our new electronic platform is not just an upgrade, it's a future enabler, seamlessly integrating with the latest functions and services, ensuring your equipment stays up-to-date with cutting-edge technology.

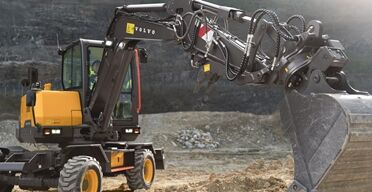

Attachment versatility
With an extensive range of Volvo Attachments and double the auxiliary hydraulic flow, find out how the EW65 is ready to achieve maximum results across a diverse range of projects.
EW65
Attachment versatility
With a range of Volvo Attachments, the EW65 can be equipped to take on a wide array of tasks, and with double the auxiliary hydraulic flow compared to the previous generation, the machine can now handle the most powerful attachments. Whether utilities, building, agriculture, landscaping, forestry and more; Volvo attachments are designed to work in perfect harmony with your Volvo machine to deliver maximum results.
Volvo Buckets
A complete range of buckets from general purpose reinforced buckets to fixed or tilt ditching buckets with reversible bolt-on-edge, allow the machine to work on many job sites for a wide range of applications.
Factory Installed Hydraulic Thumb
With a hydraulic thumb, easily grab, lift, and place logs, rocks, debris, and bulky materials—no need for manual handling or extra equipment. Ideal for landscaping, demolition, and material sorting, it boosts productivity, safety, and precision. With this versatile tool, your EW65 becomes a true multi-tasker on any job site.
Specifications for EW65
Explore key specifications and download the brochure for more detailed information.
| Engine | D2.6H |
|---|---|
| Gross power | 67 hp |
| Net power | 65 hp (met) |
| ...at engine speed | 1,500 rpm |
| Operating weight | 13,490 - 16,320 lbs |
| Bucket capacity | 0.09 - 0.35 yd³ |
| Travel speed, low / high | 18.64 mph |
| Slewing speed | 9.1 rpm |
| Breakout force | 8,470 lbf |
| Tear out force (arm breakout force) | 6,340 lbf |
| Overall width | 6'4" ft in |
| Overall length | 19'3" ft in |
| Main hydraulic pump max. flow | 32 gal/min |
| Max speed | 18.6 mph |
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
Attachments for EW65
Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity.
