EC27D
Compact Excavator EC27D
-
Stage V / Tier 4f
Emission Standards -
6,019 lbs
Operating weight -
20.9 hp
Gross power -
0.04 - 0.16 yd³
Bucket capacity
Count on the Volvo EC27D compact excavator for best-in-class performance. With impressive lifting capacities and excellent digging...
More
Do more, everywhere
Count on the Volvo EC27D compact excavator for best-in-class performance. With impressive lifting capacities and excellent digging forces, this rock-solid machine can handle a variety of jobs. Combining durability and ease of operation with serviceability and versatility, the EC27D is designed to stretch further, dig deeper, and reach higher.
Features and benefits for EC27D
Explore what sets the EC27D apart

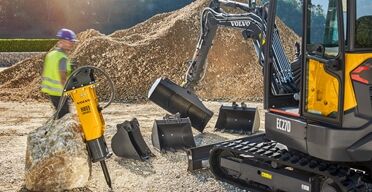

Built ready
The EC27D is a perfect match with Volvo attachments for increased versatility, performance, and profitability.
EC27D
All work, all the time
Built to work for you, the EC27D is an industry leader. Optimize machine performance, productivity, and versatility with Volvo's range of durable attachments and customer solutions. Tailored to your business and operations - just like your EC27D - our unique, global dealer support network is built around you. Protect your profits with a long-term partnership and benefit from an array of services using Genuine Volvo Parts, delivered by passionate people.

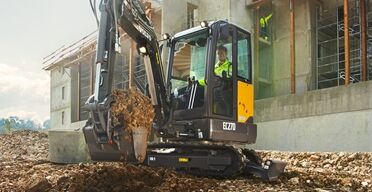

Designed to perform
Experience best-in-class performance with over 42 kN of combined forces, superior lift capacity, and wide working range.
EC27D
Ultimate performance
Stretch further, dig deeper, and reach higher with the EC27D. Based on a proven design, this compact excavator is built to perform and boost profitability. Combining intuitive operation and operator comfort with simple serviceability, this machine provides all the strength and versatility you need – because big jobs demand big performance.
Specifications for EC27D
Explore key specifications and download the brochure for more detailed information.
| Engine | Volvo D1.1A |
|---|---|
| Gross power | 20.9 hp |
| Net power | 19.8 hp |
| ...at engine speed | 2,400 rpm |
| Operating weight | 6,019 lbs |
| Operating weight, canopy version | 5,820 lbs |
| Bucket capacity | 0.04 - 0.16 yd³ |
| Travel speed, low / high | 1.62 / 2.98 mph |
| Slewing speed | 9.4 rpm |
| Breakout force | 5,528 lbf |
| Tear out force (arm breakout force) | 4,060 lbf |
| Overall width | 5′ 1″ ft in |
| Overall length | 12′ 10.8″ ft in |
| Main hydraulic pump max. flow | 17.2 gal/min |
Operating weight with 75 kg operator, 300 mm rubber track, short arm and 500 mm direct-fit bucket.
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
Attachments for EC27D
Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity.
