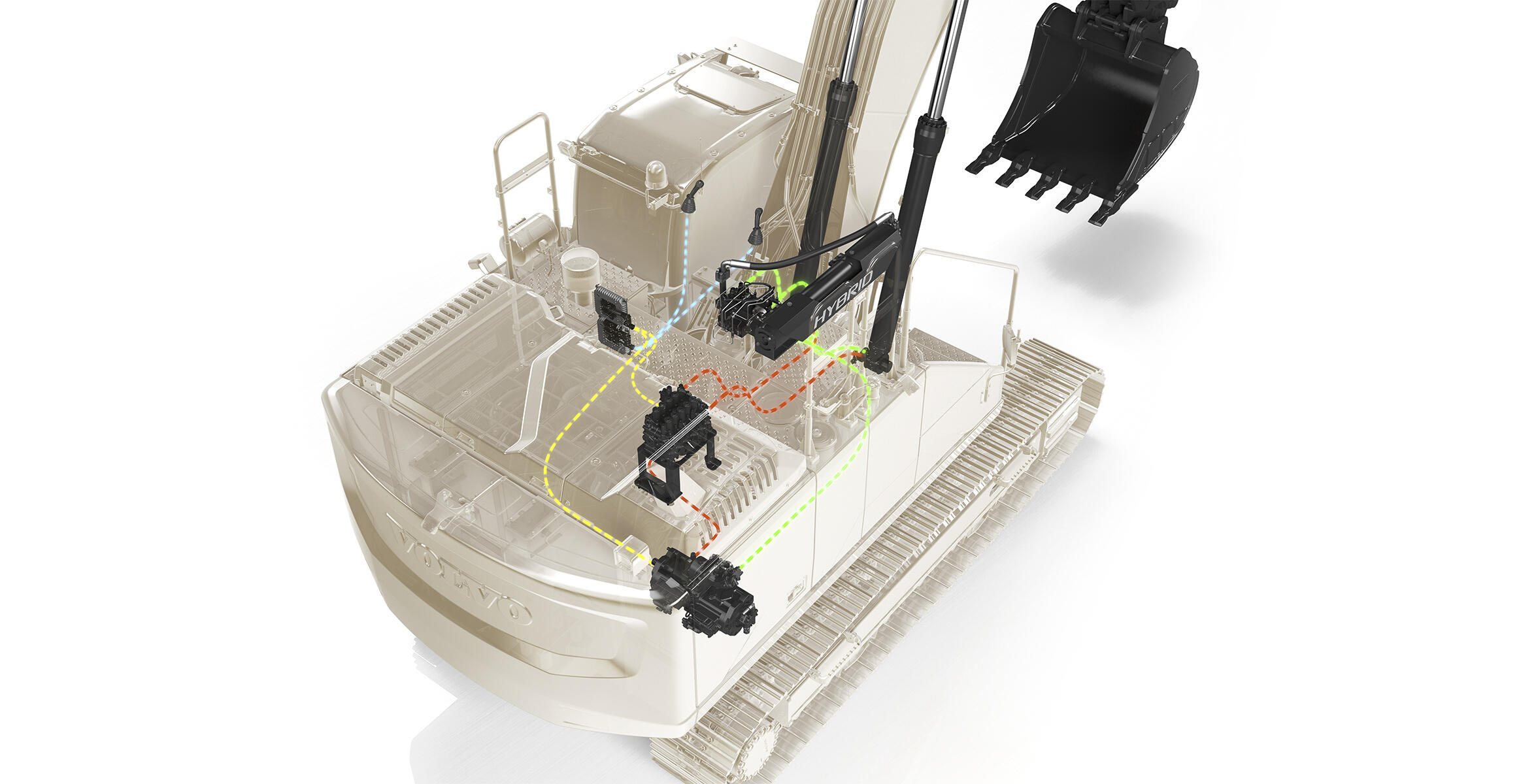

Introducing the new EC300E Hybrid. Featuring unique hydraulic hybrid Volvo technology, the excavator uses the boom down motion to charge an accumulator, with the stored energy driving an assist motor, lowering the torque requirement on the engine. This results in up to 15% lower fuel consumption while delivering all the power and performance you would expect from a conventional EC300E. The result is up to 17% increase in fuel efficiency while delivering all the power and performance you would expect from a conventional EC300E
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
|Operating weight||65,653 - 70,084 lbs|
|Gross power||241 hp|
|...at engine speed||1,800 rpm|
|Bucket capacity||1 - 3 yd³|
|Lifting capacity, along undercarriage||25,133 lbs|
|...at reach / height||20 / 5 ft|
|Max. digging reach||35′ 2″ ft in|
|Max. digging depth||24′ 1″ ft in|
|Breakout force, SAE J1179 (Normal)||37,768 lbf|
|Breakout force, SAE J1179 (Boost)||40,915 lbf|
|Tear out force, SAE J1179 (Normal)||29,675 lbf|
|Tear out force, SAE J1179 (Boost)||32,148 lbf|
|Overall width feet inches||10′ 6″ ft in|
|Tail swing radius||10′ 3″ ft in|
Based on machine configuration: Boom 6.2m/20’4”; Arm 3.05m/10’1”; Shoe 600mm/24”; CWT 5 500kg
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
