Big performance, big efficiency View all images and videos

Large Crawler Excavators EC350E HYBRID

  • 36,260 - 38,290 kg Operating weight
  • 220 kW Gross power
  • 0.87 - 2.33 m³ Bucket capacity
Experience all the power and performance you would expect from a conventional EC350E while improving fuel efficiency by up to 17%. Featuring unique Volvo hybrid technology, the EC350E Hybrid charges the accumulator using the boom down motion – this stored energy is then used to drive the assist... Read more
Contact us

Big performance, big efficiency

Experience all the power and performance you would expect from a conventional EC350E while improving fuel efficiency by up to 17%. Featuring unique Volvo hybrid technology, the EC350E Hybrid charges the accumulator using the boom down motion – this stored energy is then used to drive the assist motor which powers the engine system.

Technical specifications for EC350E Hybrid

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
Operating weight 36,260 - 38,290 kg
Gross power 220 kW
...at engine speed 1,600 rpm
Bucket capacity 0.87 - 2.33
Lifting capacity, along undercarriage 13,470 kg
...at reach / height 6 / 1.5 m
Max. digging reach 11,123 mm
Max. digging depth 7,490 mm
Breakout force, SAE J1179 (Normal) 177 kN
Breakout force, SAE J1179 (Boost) 192 kN
Tear out force, SAE J1179 (Normal) 201 kN
Tear out force, SAE J1179 (Boost) 219 kN
Overall width feet inches 3,190 mm
Tail swing radius 3,600 mm
Based on machine configuration: EC350E L; Boom 6.45 m; Arm 3.2 m
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
More specifications and competitor comparison Download the EC350E Hybrid brochure, with all the details and specifications. (PDF, 940.9KB)

Features & Benefits

Simply reliable
Simply reliable The uncomplicated and reliable hybrid solution is easy to maintain and consists of just a handful of add-on components, meaning no disruption or complication to how the high performing EC350E is engineered.
Simply reliable

Simply reliable

The uncomplicated and reliable hybrid solution is easy to maintain and consists of just a handful of add-on components, meaning no disruption or complication to how the high performing EC350E is engineered.

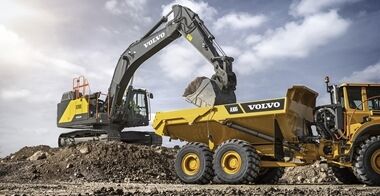

Cleaner and greener
Cleaner and greener The EC350E Hybrid reduces CO₂ emissions by up to 15% making it a more environmentally respectful choice, especially when working in built-up areas.
Cleaner and greener

Cleaner and greener

The EC350E Hybrid reduces CO₂ emissions by up to 15% making it a more environmentally respectful choice, especially when working in built-up areas.

The value of efficiency
The value of efficiency When working in dig and dump applications, the EC350E Hybrid is a straightforward solution with big payback. Save fuel, lower emissions and boost the profitability of your operation.
The value of efficiency

The value of efficiency

When working in dig and dump applications, the EC350E Hybrid is a straightforward solution with big payback. Save fuel, lower emissions and boost the profitability of your operation.

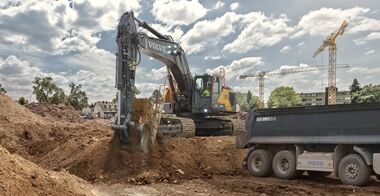

A purpose-built 35-tonner
A purpose-built 35-tonner Introducing the Volvo EC350E Hybrid, a true 35-tonne machine. The new size class excavator features the very latest in engineering excellence, including D8M Volvo engine and electro-hydraulic control system. The EC350E Hybrid is designed to deliver outstanding versatility, efficiency and productivity, making it the perfect partner for general construction projects.
A purpose-built 35-tonner

A purpose-built 35-tonner

In the EC350E Hybrid Volvo has extended its excavator range to offer a 35-tonne machine which combines quality with exceptional value. The result is a machine which delivers performance, efficiency and maximum profitability in general construction applications.

Transport with ease

Transport with ease

When loaded on a trailer, the total height of the vehicle and machine is less than 4-meters, meaning the 35-tonne excavator can be easily transported without the need for dismantling, allowing you to move between jobsites in no time. Just load and go.

Adapt to the job

Adapt to the job

Operators can easily select and adjust a number of functions depending on personal preferences and the task at hand, including Boom/Swing and Boom/Travel priority which enables to prioritize one function over another. Operators can also easily adjust the boom down speed, ideal for precision tasks which require optimum control.

Productivity up, fuel down

Productivity up, fuel down

Count on the EC350E Hybrid to deliver outstanding levels of productivity and fuel efficiency. The next generation electro-hydraulic system provides on-demand flow and reduces internal losses in the hydraulic circuit, while the Volvo D8M engine features a rated power of 1600rpm and delivers impressively high torque at low rpm. Auto-engine idle and auto-engine shutdown further reduce unnecessary fuel consumption.

Do it all

Do it all

Take on any job with a range of factory-delivered attachments, such as Volvo buckets, breakers and quick couplers. Volvo Attachments are perfectly matched to your machine, helping to get the job done with optimum efficiency, productivity and performance.

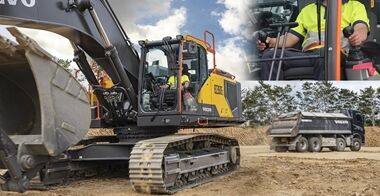

A smoother shift
A smoother shift Operators can work in comfort and control thanks to a host of features designed to boost operator efficiency. Bouncing reduction technology, customizable settings, Dig Assist apps and the best cab on the market all combine to help operators achieve optimum results and a profitable performance.
A smoother shift

A smoother shift

Boom and arm bouncing reduction technology educes machine shock, resulting in a more comfortable and productive operator performance. Optional Comfort Drive Control further helps to reduce fatigue by enabling operators to steer the machine using the L8 joystick rollers instead of the pedals.

How you like it

How you like it

Get ready for the working day in no time with customizable settings, including preferred control patterns and joystick responsiveness easily selected from the monitor. A ‘long push’ function on the joystick allows another shortcut to be set, and with the L8 joystick operators can create a shortcut to hydraulic priority functions.

Industry-renowned cab

Industry-renowned cab

Step inside the best cab on the market, the Volvo Care Cab. With low noise, low vibration and best-in-class visibility, operators will experience the ultimate in comfort and productivity. A convenient cab layout and ergonomic controls add to the unrivalled operator environment, all contributing towards an enhanced operator performance.

More precision

More precision

Unlock the full potential of your machine’s productivity with Dig Assist, powered by the 10” Volvo Co-Pilot display. Gain access to a set of smart apps, including 2D, In-Field Design, 3D software packages, On-Board Weighing and Volvo Active Control, designed to optimize the digging process.

More control

More control

The working day just got easier with Volvo Active Control functions, including automated boom and bucket movements, making the digging process more accurate and twice as fast. Simply set the grade from the Volvo Co-Pilot display, push the button and get to work – all controlled using a single lever.

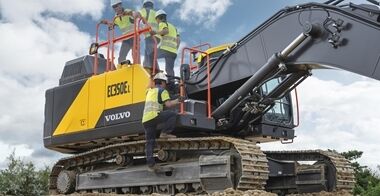

Easy as 1, 2, 3
Easy as 1, 2, 3 Whether working inside or on the machine, features such as unrivalled visibility and 3-point right-hand side access mean you can be sure that the highest levels of safety have been considered in every design detail of the EC350E Hybrid.
Easy as 1, 2, 3

Easy as 1, 2, 3

Reach the upper structure with safety and confidence thanks to 3-point right-hand side access, also providing access to the handily located UREA tank. A splash guard on the UREA tank makes filling quicker and easier, reducing the risk of spillage and subsequent corrosion.

Get around safely

Get around safely

Industry renowned features such as bolted anti-slip plates, high visibility handrails and guardrails ensure the highest levels of safety when negotiating the machine. For further convenience, the optional foldable cab entrance step and side walkways easily fold away to enable easy transportation.

Industry-leading visibility

Industry-leading visibility

The low machine hood design contributes to best-in-class visibility to the side and rear of the machine from the operator’s seat. This direct visibility is complemented by rear and side view cameras.

Volvo Smart View

Volvo Smart View

The optional Volvo Smart View uses front, rear and side cameras to provide a real-time, overhead view of the machine, resulting in safer machine rotation while working, especially in confined spaces.

Know your limits

Know your limits

With Volvo Active Control, operators can easily set swing fence, height limit and depth limit from the Volvo Co-Pilot. This helps to avoid contact with side obstacles, overhead obstacles such as power lines and underground hazards such as pipes and cables.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
