Asphalt CompactorsDD15

  • 3,372 lbs
  • 16.6 hp
  • 35.4 in

The DD15 is a vibratory compactor with stellar performance and unsurpassed value. The DD15 asphalt roller features a drum with 66.7 Hz frequency—the... Read more

Request Machine Information Download the DD15 brochure, with all the details and specifications. (PDF, 209.2KB) More specifications and competitor comparison
Overview

Double up

The DD15 is a vibratory compactor with stellar performance and unsurpassed value. The DD15 asphalt roller features a drum with 66.7 Hz frequency—the same high frequency found in much larger machines—to give you better speed and higher productivity.

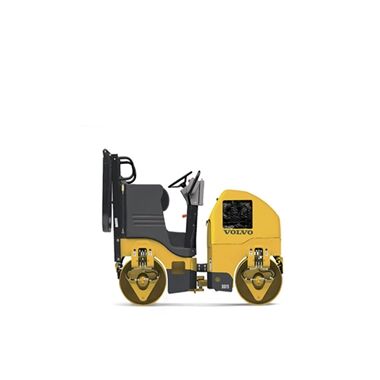

Volvo asphalt roller dd15 t4i
Specifications

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight (with ROPS, fully ballasted) 3,372 lbs
Drum or rolling width 35.4 in
Rated engine power 16.6 hp
Vibration frequency 4,000 v/min
Amplitude 0.015 in
Overall length 6′ 8.1″ ft in
Overall width 3′ 4.1″ ft in
Overall height 88.2 in
Configuration Based on machine configuration with Narrow drum

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Features

Drum performance

The 1000 vpm (66,7 Hz) frequency provides optimal impact spacing at higher rolling speeds and the machine drum surface has chamfered edges to produce a professional quality finish on each job.

Industry-leading water system

Water flows only when the compactor is moving (in automatic mode) and standard pressurized spray system distributes water coverage evenly across each drum.

Operations

Full-day fuel capacity extends operating intervals and the high curb and minimal side clearances allow efficient maneuvering around obstacles. The isolation of the vibratory drum and operator platform enhances operator comfort and safety.

Unobstructed daily checkpoints

It's easy-to-lift engine enclosure and gain ground-level access to engine, radiator, battery, and filters. The color-coded service charts provide detailed checkpoints, service intervals, and lubricant information.

Comfort and safety

Continuous alarm sounds until seat belt is fastened and there is easy access to primary controls. The vibration-isolated and molded skid-resistant platform with kick plates all add to increased safety.
