Home Products Wheel Loaders L50H
Any job, any time View all images and videos

Compact Wheel Loaders L50H

  • 1.6 m³ Bucket capacity
  • 9,500 kg Operating weight
  • 87 kW Engine gross power
More than 60 years in the making, Volvo is proud to introduce the L50H wheel loader. This versatile machine is a powerful asset on every job site in every application.
Contact us

Any job, any time

More than 60 years in the making, Volvo is proud to introduce the L50H wheel loader. This versatile machine is a powerful asset on every job site in every application.
Any job, any time

Technical specifications for L50H

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
Engine Volvo D4J
Engine gross power 87 kW
Max torque ISO 9249, SAE J1349 net 466 Nm
Bucket capacity 1.6
Tipping load (ISO/DIS 14397-1) 5,750 kg
...at full turn 40 degree
Breakout force 69 kN
Hydraulic lifting capacity, max 86 kN
Fork payload 80% 3,840 kg
Operating weight 9,500 kg
Maximum travel speed - Standard 20 km/h
Maximum travel speed - High speed 50 km/h
Based on machine configuration: With 1.4 m3 / 1.83 yd3 general purpose bucket (TPV linkage)
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
More specifications and competitor comparison Download the L50H brochure, with all the details and specifications. (PDF, 653.6KB)

Features & Benefits

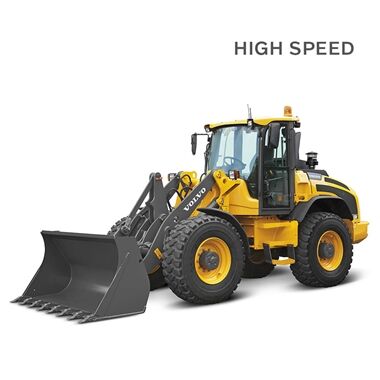

Performance at speed
Performance at speed Travel up to 50km/h* when conditions allow in the high-speed L50H, helping you achieve faster cycle times and speedy travel between jobsites, eliminating expensive trucking.
Performance at speed

Get attached

With both standard and high-speed versions available, you can ensure your Volvo L50H wheel loader matches the speed of your application, resulting in optimum productivity and cycle times according to the demands of your operation.

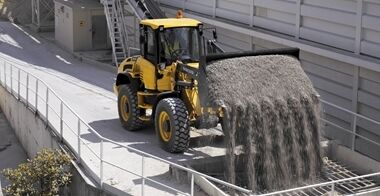

Balanced & compact design
Balanced & compact design The L50H wheel loader from Volvo gives you top performance whether working on smooth or rough terrain.
Balanced & compact design

Solid, strong and stable

The Volvo L50H is a compact and well balanced wheel loader whose solid design gives you the strongest performance in the tightest job sites. Quality is built into every inch of the machine.

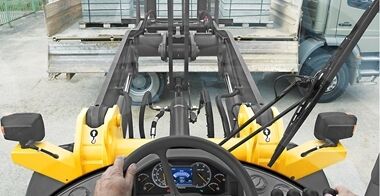

Comfortable cab
Comfortable cab The certified ROPS/FOPS cab features ergonomically placed controls, a superior control system, all-around visibility and low internal noise levels.
Comfortable cab

Your control center

Step into Volvo’s industry-leading cab; your customized control room. Create your perfect working environment by adjusting the seat and steering wheel to fit your needs, then select the easy-to-reach controls. Excellent all-round visibility gives you the best view of your efficient work.

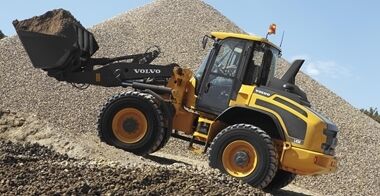

Optimized driveline
Optimized driveline The engine, transmission and axles are all designed to work in perfect harmony with the hydraulics and steering for superb performance and reliability.
Optimized driveline

Tackle every terrain

Whether working on smooth or rough terrain, the Volvo L50H wheel loader gives you top performance. Quality is built into every inch of the machine, from the differential lock that transfers 100% power to all wheels, to the hydrostatic transmission which offers smooth speed increase.

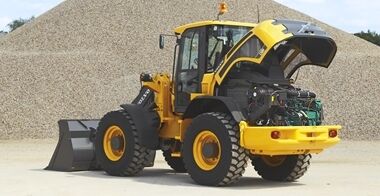

Easy maintenance
Easy maintenance The service friendly design keeps your routine maintenance quick and efficient with a full access to the engine compartment.
Easy maintenance

Compact your service time

Daily service and maintenance checks have never been easier with the L50H wheel loader. Lift the engine hood to quickly access key components from the radiator to the hydraulic filters and use Volvo diagnostic tools to alert when service is required.

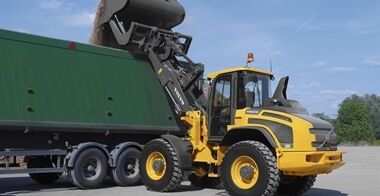

Torque Parallel Linkage
Torque Parallel Linkage Volvo’s unique Torque Parallel (TP) linkage delivers high breakout torque and excellent parallel movement throughout the entire lifting range.
Torque Parallel Linkage

The best all-rounder

More than 60 years in the making, Volvo is proud to introduce the L50H wheel loader. This versatile machine is a powerful asset on every jobsite in every application.

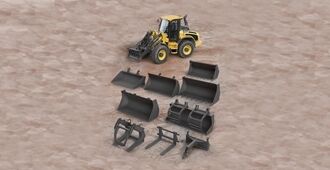

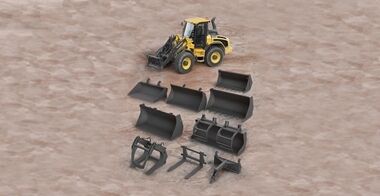

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
