Introducing the upgraded EC380E Hybrid. Featuring unique hydraulic hybrid Volvo technology, the excavator utilizes the boom down motion to charge the... Read moreContact us Download the EC380E Hybrid brochure, with all the details and specifications. (PDF, 872KB)

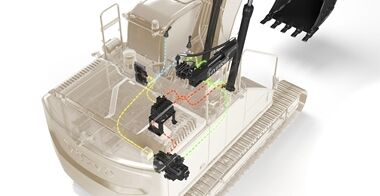

Introducing the upgraded EC380E Hybrid. Featuring unique hydraulic hybrid Volvo technology, the excavator utilizes the boom down motion to charge the accumulator, with the stored energy used to drive the assist motor which powers the engine system. The result is up to 17% increase in fuel efficiency while delivering all the power and performance you would expect from a conventional EC380E.
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
|Operating weight||37,800 - 43,000 kg|
|Gross power||230 kW|
|...at engine speed||1,700 rpm|
|Bucket capacity||0.83 - 2.53 m³|
|Lifting capacity, along undercarriage||15,940 kg|
|...at reach / height||6 / 1.5 m|
|Max. digging reach||10,545 mm|
|Max. digging depth||6,785 mm|
|Breakout force, SAE J1179 (Normal)||198 kN|
|Breakout force, SAE J1179 (Boost)||215 kN|
|Tear out force, SAE J1179 (Normal)||196 kN|
|Tear out force, SAE J1179 (Boost)||213 kN|
|Overall width feet inches||3,540 mm|
|Tail swing radius||3,600 mm|
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
