The Volvo EC220D crawler excavator boasts a 10% improvement in fuel efficiency compared to the previous model. With Volvo’s unique ECO mode, a new... Read moreContact us Download the EC220D brochure, with all the details and specifications. (PDF, 2.1MB) More specifications and competitor comparison

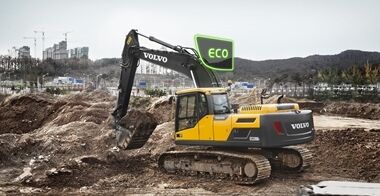

The Volvo EC220D crawler excavator boasts a 10% improvement in fuel efficiency compared to the previous model. With Volvo’s unique ECO mode, a new hydraulic system and a premium Volvo D6 diesel engine, you’ll soon start to reap the benefits of reduced operational costs. Maximize your fuel efficiency with Volvo.
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
|Operating weight||20,900 - 24,400 kg|
|Gross power||123 kW|
|...at engine speed||1,800 rpm|
|Bucket capacity||0.48 - 1.44 m³|
|Lifting capacity, along undercarriage||7,060 kg|
|...at reach / height||6 / 1.5 m|
|Max. digging reach||10,390 mm|
|Max. digging depth||7,330 mm|
|Breakout force, SAE J1179 (Normal)||130 kN|
|Breakout force, SAE J1179 (Boost)||137 kN|
|Tear out force, SAE J1179 (Normal)||93 kN|
|Tear out force, SAE J1179 (Boost)||98 kN|
|Overall width feet inches||2,700 mm|
|Tail swing radius||2,750 mm|
Based on machine configuration: Boom 5.7m; Arm 3.5m; Shoe 600mm”; CWT 4 200kg

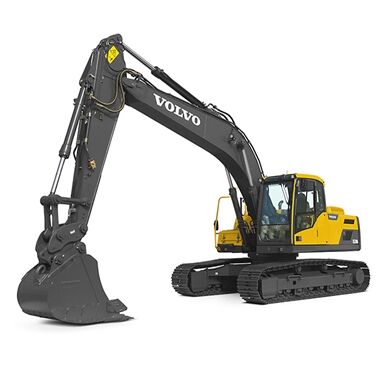

Image illustration only. Production machines may differ in appearance and features vary between markets and models.
Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
