Uptime and convenience-focused makeover

The L110H enjoys all the benefits that have made the Volvo Wheel Loader so popular since 2014, including versatility, productivity, fuel efficiency and reliability. But even the best machines need to move with the times, and so we have given the L110H a comprehensive makeover that focuses on increased uptime and convenience – for operators and technicians.

Technical specifications for L110H

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Metric

Imperial

Static tipping load at full turn	11,890 kg
Bucket capacity	2.6 - 9.5 m³
Log grapples	1.3 - 2.4 m²
Operating weight	18,000 - 20,700 kg
Breakout force	180 kN
Engine	Volvo D8J
Max power at	1,800 rpm
...ISO 14396 gross	191 kW
...ISO 9249, SAE J1349 net	191 kW
Max torque at	1,450 rpm
...ISO 9249, SAE J1349 net	1,250 Nm
Tires	23.5 R25, 750/65 R25

Based on machine configuration: Based on 3.0 m³ (3.9 yd³) STE H T bucket.

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison Download the L110H brochure, with all the details and specifications. (PDF, 861.2KB)

Features & Benefits

What is new with the L110H?

What are the updates that have been made to make the L110H even better? On-the-go engine regeneration, new ignition strategy and longer service intervals, to only name a few.

Fuel efficiency

Move more tons per liter of fuel in the L110H, featuring high torque at low engine speeds, Eco pedal and optional OptiShift.

Load Assist

Optimize load cycles and boost your profits with the Load Assist suite of apps, accessed from the 12” Volvo Co-Pilot display and designed to help you get the most from your Volvo Wheel Loader.

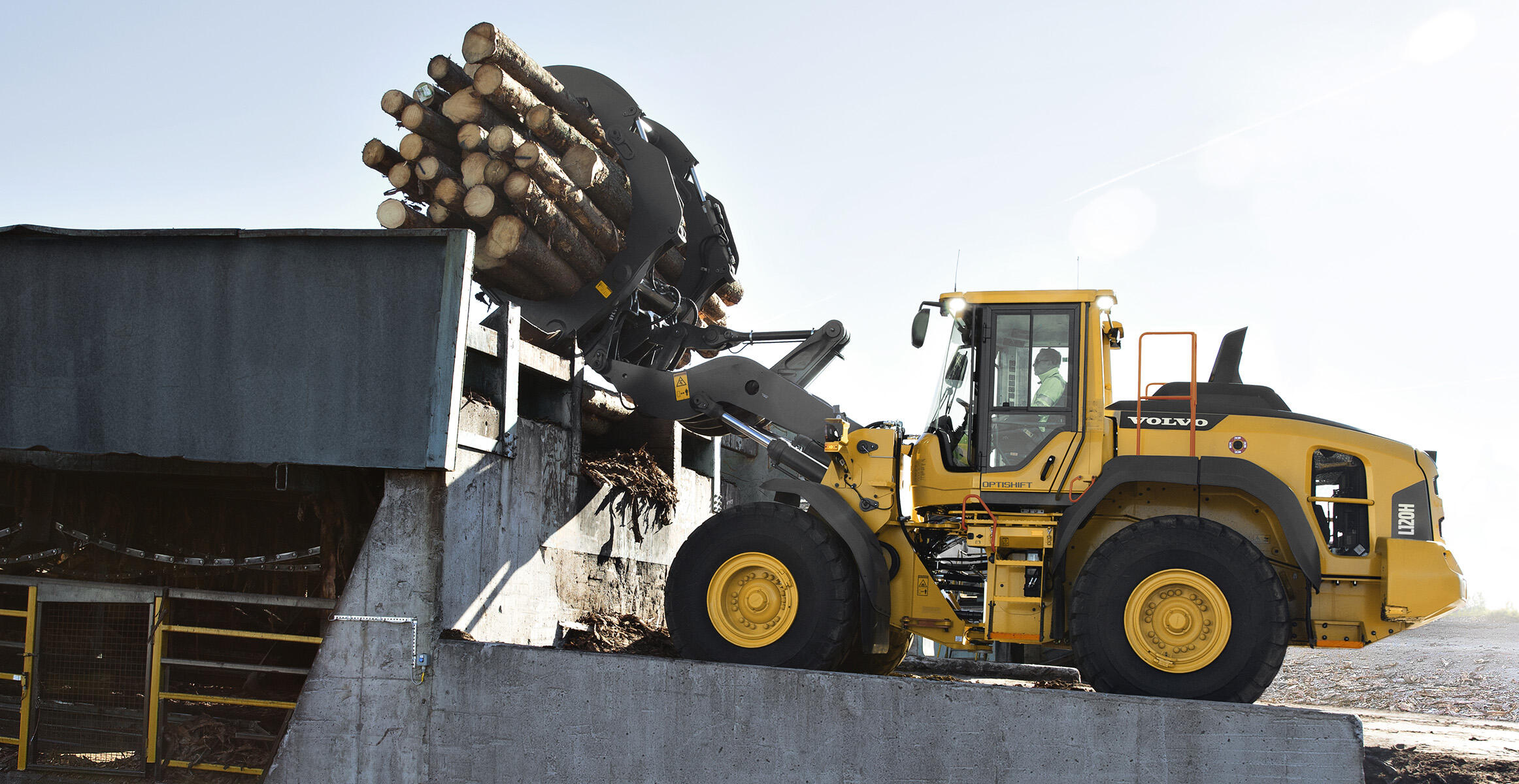

Versatility

With its unique Torque Parallel linkage and purpose-built attachments to choose from, the L110H is ready to tackle a range of applications.

The operator’s choice

The Volvo cab is designed to enhance operator experience, boasting unrivalled visibility, an ergonomic operating station and a set of productivity-enhancing features.

Industry leading serviceability

The strong L110H is built to last yet easy to service, so you can get back to work in no time.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.

Attachment Brackets (1)

Attachment Bracket - VAB-STD

Buckets (15)

Rehandling bucket – Straight edge Rehandling Flat Floor bucket General purpose bucket - Standard General purpose bucket - Heavy duty General purpose bucket - Flat floor Grading bucket Rock bucket - Spade Nose Rock bucket - Straight edge Light material bucket - Low density Light material bucket - Very low density High tip bucket - Center cylinders High-tip bucket – Side-mounted cylinders Refuse bucket Refuse Tamping Refuse bucket - Tamping with clamp arms
