Get productive with Volvo’s EC380D crawler excavator. Featuring increased engine power and improved hydraulics, these machines perform with greater... Read moreContact us Download the EC380D brochure, with all the details and specifications. (PDF, 2MB)
Get productive with Volvo’s EC380D crawler excavator. Featuring increased engine power and improved hydraulics, these machines perform with greater digging force and shorter cycle times. Sustain optimum power and productivity day in and day out with Volvo.
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
|Operating weight||37,800 - 41,100 kg|
|Gross power||215 kW|
|...at engine speed||1,700 rpm|
|Bucket capacity||1.35 - 3 m³|
|Lifting capacity, along undercarriage||14,540 kg|
|...at reach / height||6 / 1.5 m|
|Max. digging reach||11,720 mm|
|Max. digging depth||8,150 mm|
|Breakout force, SAE J1179 (Normal)||198 kN|
|Breakout force, SAE J1179 (Boost)||215 kN|
|Tear out force, SAE J1179 (Normal)||141 kN|
|Tear out force, SAE J1179 (Boost)||154 kN|
|Overall width feet inches||3,340 mm|
|Tail swing radius||3,800 mm|
Based on machine configuration: Boom 6.45m; Arm 3.9m; Shoe 600mm; CWT 6 500kg

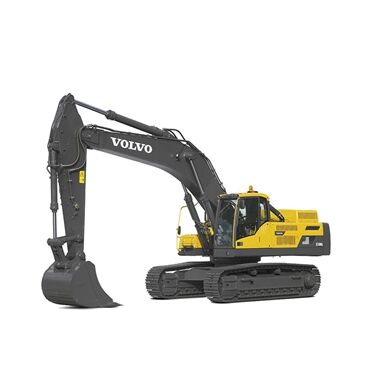

Image illustration only. Production machines may differ in appearance and features vary between markets and models.
Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
