Powerful performance View all images and videos

Medium Crawler Excavators EC250D

  • 24,600 - 28,000 kg Operating weight
  • 138 kW Gross power
  • 0.48 - 1.85 m³ Bucket capacity
With faster cycle times and greater productivity, the Volvo EC250D crawler excavator will help you to get the job done faster. Whether you work in the quarry, road construction, site preparation or any other application, you'll experience high performance from these powerful machines.
Contact us

Powerful performance

With faster cycle times and greater productivity, the Volvo EC250D crawler excavator will help you to get the job done faster. Whether you work in the quarry, road construction, site preparation or any other application, you'll experience high performance from these powerful machines.

Technical specifications for EC250D

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
Operating weight 24,600 - 28,000 kg
Gross power 138 kW
...at engine speed 1,800 rpm
Bucket capacity 0.48 - 1.85
Lifting capacity, along undercarriage 8,260 kg
...at reach / height 6 / 1.5 m
Max. digging reach 10,260 mm
Max. digging depth 6,980 mm
Breakout force, SAE J1179 (Normal) 152 kN
Breakout force, SAE J1179 (Boost) 166 kN
Tear out force, SAE J1179 (Normal) 115 kN
Tear out force, SAE J1179 (Boost) 125 kN
Overall width feet inches 2,990 mm
Tail swing radius 3,070 mm
Based on machine configuration: Boom 6.0m; Arm 2.97m; Shoe 600mm; CWT 4 950kg
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
More specifications and competitor comparison Download the EC250D brochure, with all the details and specifications. (PDF, 2MB)

Features & Benefits

Customer solutions
Customer solutions Volvo provides the right solutions throughout the entire life cycle of your machine to lower total cost of ownership.
Customer solutions

adding value to your business

Being a Volvo customer means having a complete set of services at your fingertips. Volvo can offer you a long-term partnership, protect your revenue and provide a full range of customer solutions using high quality parts, delivered by passionate people. Volvo is committed to the positive return of your investment.

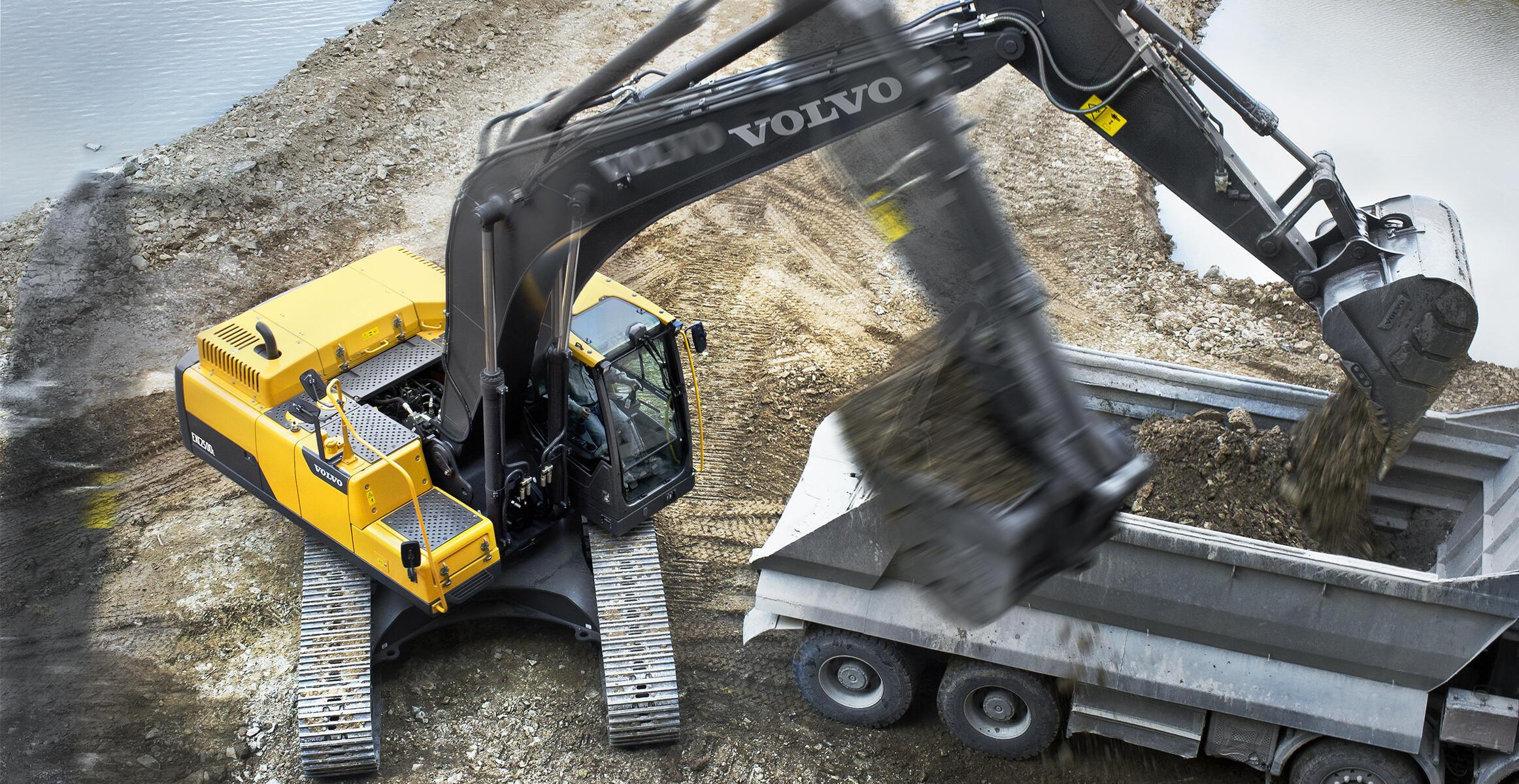

Increased power
Increased power Benefit from increased power, digging force and faster cycle times for more productivity.
Increased power

Powerful performance

Operate with increased power and digging force in Volvo's EC250D and EC300D. With faster cycle times and greater productivity, these machines will help you to get the job done faster. Whether you work in the quarry, road construction, site preparation or any other application, you'll experience high performance from these powerful machines.

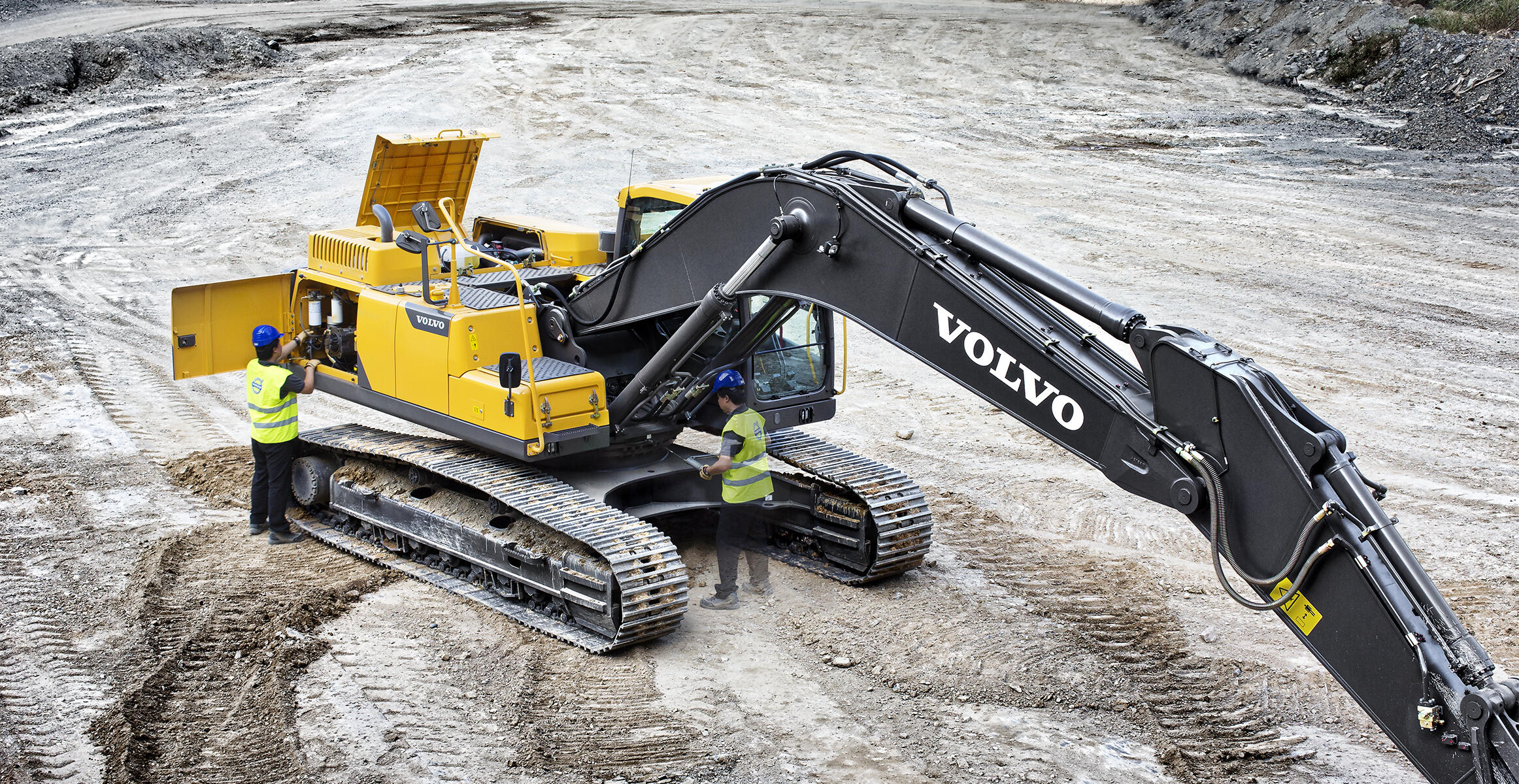

Service access
Service access Large doors and engine hood provide easy service access. Centralized filters and greasing points allow regular checks to be done faster.
Service access

Straightforward servicing

With built in serviceability, the EC250D and EC300D help you to get the most out of each working day. Volvo engineers have designed these machines to make maintenance easy – with safe and easy access to centralized filters and grouped greasing points.

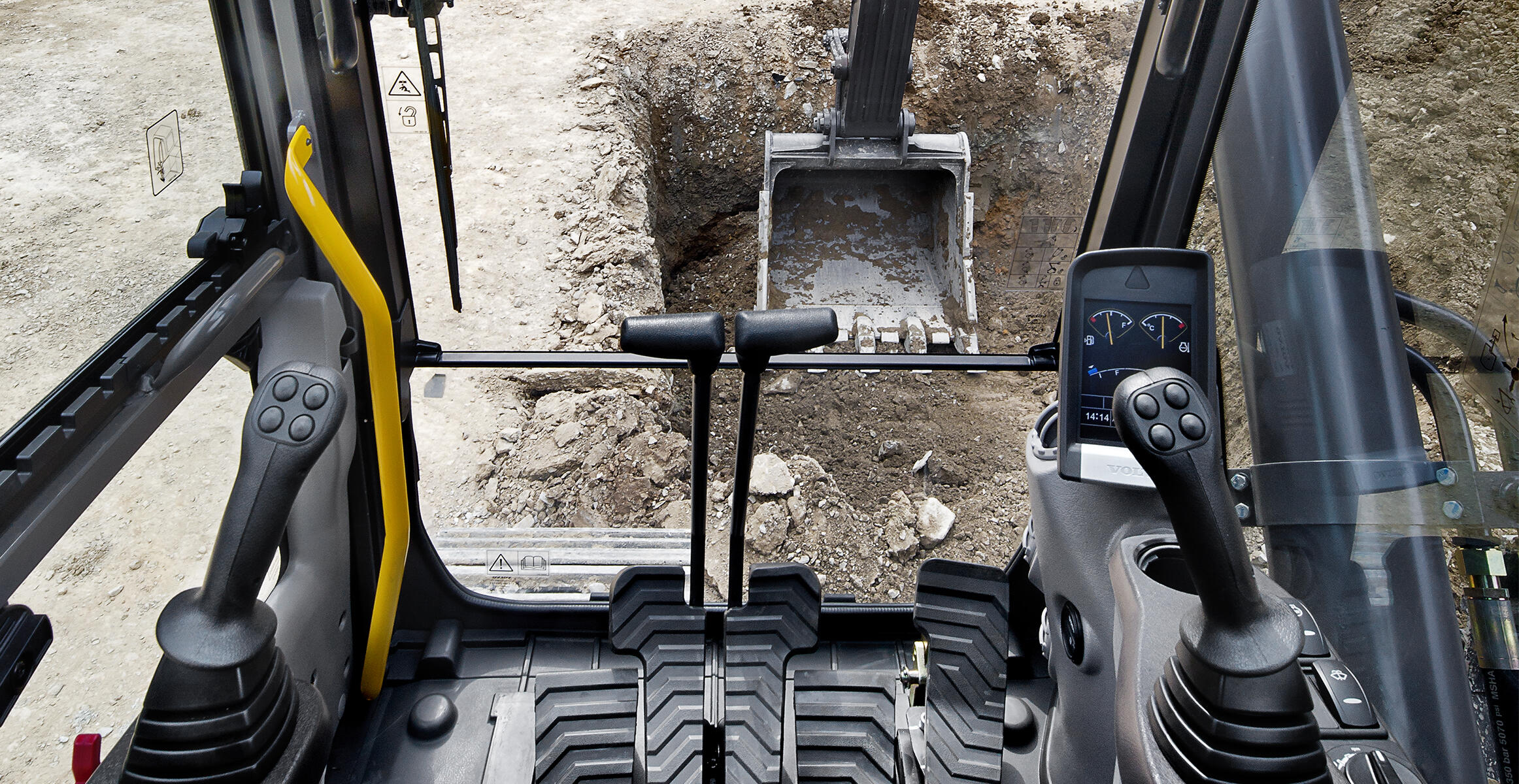

Cab design
Cab design All-around visibility, safety, comfort and easy to access controls are at the center of Volvo's operator environment.
Cab design

The Volvo experience

At Volvo we know that when operators are comfortable they experience less fatigue and work more productively. That's why the new, modern styling of the D-series cab provides superior visibility, a safe and spacious working environment and easy to access controls – right where you'd want them. Trust Volvo to think of everything and increase your productivity.

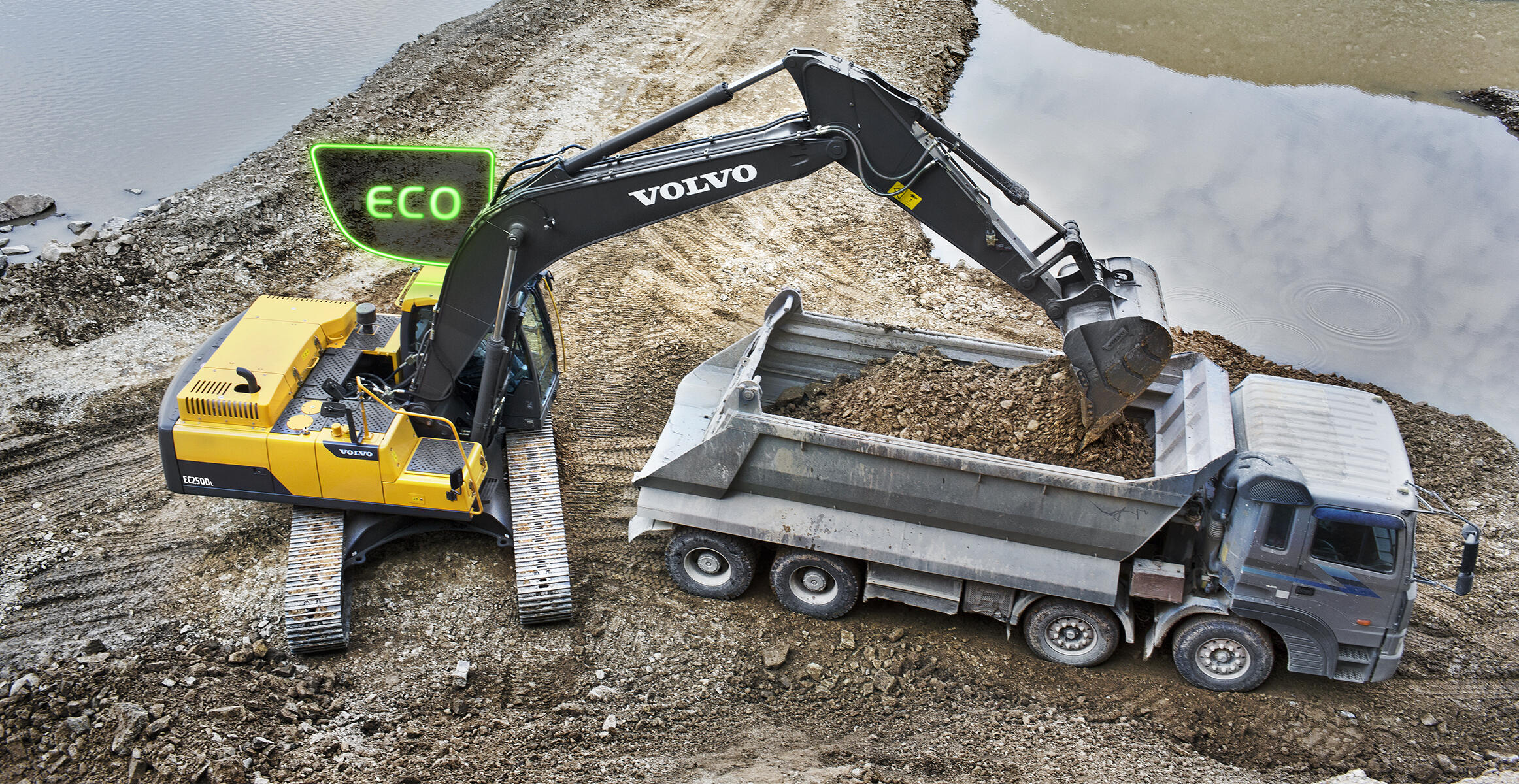

ECO mode
ECO mode Volvo's unique ECO mode contributes to up to 5% of the machine's total improved fuel efficiency without any loss of performance.
ECO mode

Save fuel with Volvo

If you're looking for a fuel efficient and productive machine that will increase your competitive edge look no further than Volvo's latest offering. With proven, advanced technology the EC250D and EC300D offer customers a 7% - 10% increase in fuel efficiency compared to the previous model. Increase production, reduce fuel consumption and reach new levels of efficiency with Volvo.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
