Large Crawler Excavators EC350D

34,300 - 38,700 kg Operating weight
210 kW Gross power
1 - 2.53 m³ Bucket capacity

Introducing the EC350D crawler excavator from Volvo – a powerful production machine designed to boost performance. State-of-the-art technology including Volvo’s unique ECO mode, new electro-hydraulic system and fuel efficient D8 engine ensures this machine delivers fast cycle times, high digging... Read more

Download the EC350D brochure, with all the details and specifications. (PDF, 834.1KB)

More specifications and competitor comparison

The best machine for the job

Technical specifications for EC350D

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight	34,300 - 38,700 kg
Gross power	210 kW
...at engine speed	1,800 rpm
Bucket capacity	1 - 2.53 m³
Lifting capacity, along undercarriage	12,480 kg
...at reach / height	6 / 1.5 m
Max. digging reach	11,110 mm
Max. digging depth	7,480 mm
Breakout force, SAE J1179 (Normal)	177 kN
Breakout force, SAE J1179 (Boost)	193 kN
Tear out force, SAE J1179 (Normal)	156 kN
Tear out force, SAE J1179 (Boost)	170 kN
Overall width feet inches	3,190 mm
Tail swing radius	3,560 mm

Based on machine configuration: Boom 6.45m; Arm 3.2m; Shoe 600mm; CWT 5 100kg

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the EC350D brochure, with all the details and specifications. (PDF, 834.1KB)

Features & Benefits

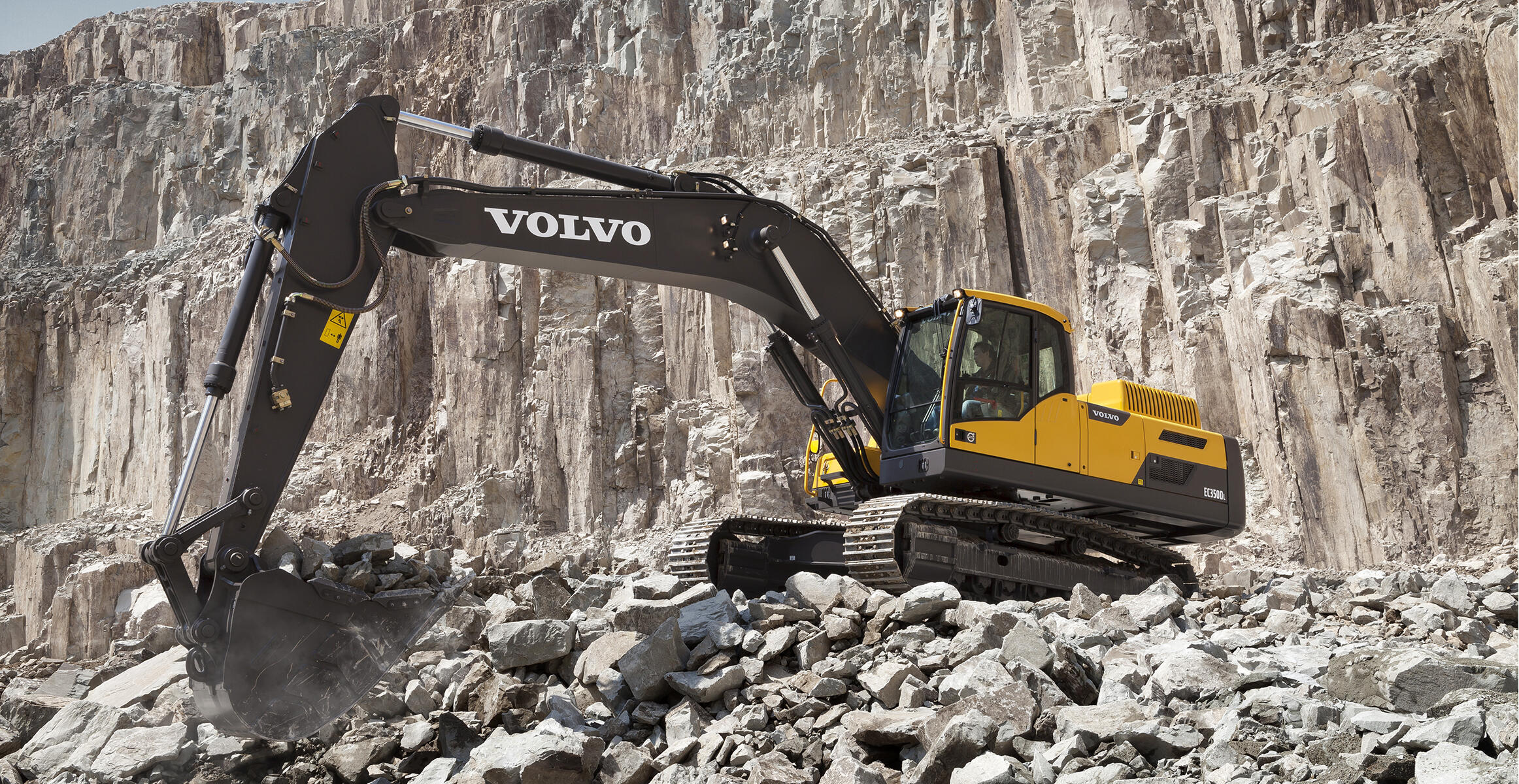

Strong and durable structure with a reinforced boom and arm allow the machine to work in the most severe, heavy-duty applications.

The definition of strength

If you’re looking for a strong and durable excavator to handle the most severe, heavy-duty applications then look no further than the EC350D. Whether you’re working on a quarry, in construction or any other application, this robust, reliable machine excels in demanding conditions and won’t let you down.

Volvo Customer Support Agreements (CSA) offer service and maintenance with maximum cost control and minimum downtime.

Adding value to your business

Being a Volvo customer means having a complete set of services at your fingertips. Volvo can offer you a long-term partnership, protect your revenue and provide a full range of customer solutions using high quality parts, delivered by passionate people. Volvo is committed to the positive return of your investment.

Spacious and safe operator environment with all-around visibility, an adjustable seat and easy to access controls.

Productivity unleashed

At Volvo we know that a safe, comfortable operator is a productive worker. That’s why the EC350D cab has been built strong and designed to facilitate efficient performance all day long. Step inside and experience the difference a premium working environment has on productivity.

Volvo’s unique ECO mode improves fuel efficiency without any loss of performance in most operating conditions.

More power, greater efficiency

Introducing the EC350D from Volvo – a powerful production machine designed to boost performance. State-of-the-art technology including Volvo’s unique ECO mode, new electro-hydraulic system and fuel efficient D8 engine ensures this machine delivers fast cycle times, high digging power and low fuel consumption.

The powerful, new Volvo D8 engine delivers the ultimate combination of high performance and low fuel consumption.

Keep working, keep earning

The EC350D makes maintenance easy – allowing you to get the most out of each working day. With helpful features including grouped filters and greasing points and anti-slip plates for safe maintenance access, checks can be carried out faster and machine uptime will increase.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
