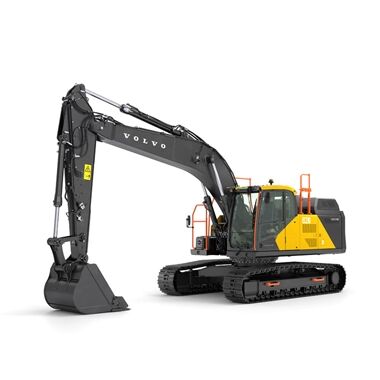

EC230 Electric
-
23,780 - 24,500 kg Operating weight -
6,823 mm Max. digging depth -
422 kWh Battery capacity -
GB/T Connector Type
Technical specifications for EC230 Electric
| Operating weight | 23,780 - 24,500 kg |
|---|---|
| Gross power | 422 kW |
| ...at engine speed | 1,600 rpm |
| Bucket capacity | 0.46 - 1.44 m³ |
| Lifting capacity, along undercarriage | 4,680 kg |
| ...at reach / height | 6 m |
| Max. digging reach | 9,965 mm |
| Max. digging depth | 6,823 mm |
| Breakout force, SAE J1179 (Normal) | 125 kN |
| Breakout force, SAE J1179 (Boost) | 132 kN |
| Tear out force, SAE J1179 (Normal) | 101 kN |
| Tear out force, SAE J1179 (Boost) | 107 kN |
| Overall width | 3,090 mm |
| Tail swing radius | 3,060 mm |
| Battery voltage | 155 V |
| Battery capacity | 422 kWh |
| Indicative runtime (depending on application) | up to 8 |
| Connector Type | GB/T |
Features & Benefits
Clean and comfortable
Experience a better place to work, both in-cab and on site, due to the significant reduction in noise, dust, vibration and heat. The EC230 Electric is a more responsive machine and being electric means an absence of exhaust fumes. These factors are helping operators and site workers to remain alert and productive throughout the working day.
Cut costs
A move to an electric machine can reduce energy-related costs thanks to the more cost-effective nature of electricity as a power source compared to fuel. What’s more, the electric motor is around 99% efficient and no energy is used when the machine is not moving and working, saving on energy consumption and wear.
At home in the city
The noise levels offered by the EC230 Electric enable work anytime, anywhere – even at night in populated areas. It also makes the work environment more pleasant for you and your colleagues, with whom you can now communicate clearly during work, so that they can guide you while maintaining a safe working distance from the machine.
A sustainable solution
Our industry needs to adapt to a more sustainable way of working and it cannot happen fast enough. With the EC230 Electric we are fulfilling the market appetite for more sustainable solutions and providing a solution ready to fit into your work site today. The EC230 Electric is delivering the same performance but with the upside of doing so emission free.
Serviceability
Lower your maintenance costs and give uptime a boost with the maintenance-free electric motor, and absence of any engine-related components.
Get the complete solution
No need to refuel, boasting outstanding levels of operator comfort and lower maintenance costs compared to a diesel alternative – this is a machine designed to have an electric impact on your bottom line. Customers can get the same productivity or even better than with the EC230 diesel machine.
Flexibility with standard connector
The EC230 Electric is equipped with GBT connector and CCS2 connector which are the most popular connector. It gives you the flexibility to connect and use the EC230 Electric anywhere and use all available chargers on the market.
A full working day
With a typical stop-start working pattern, the EC230 Electric can be operated for seven to eight hours with a single charge, depending on the type of job (application and intensity of the work cycle). You might do a full eight-hour workday without charging during lunch break. Featuring industry-leading battery technology, the EC230 Electric comes with solutions to help you manage the charging process more efficiently. It can be recharged in as little as in 60 minutes with maximum charging power (up to 80%).
Charging solutions
You can use a DC fast charger with GBT interface and CCS2 interface, which takes about 90 minutes from empty to full. If you are using a 40kW portable charger it takes 9-10 hours from empty to full.
Power unit charger
Using a power unit for power peak shaving, allowing fast charging of big electric machines also at sites with poor grid connection. Input is up to 125A/400V AC (32A or 64A AC connector) and output is up to 150kW.
-
