Home Products Compactors SD110B
Ultimate comfort and productivity View all images and videos

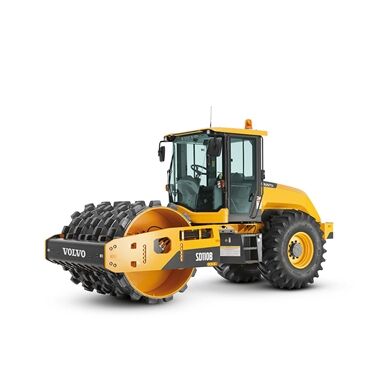

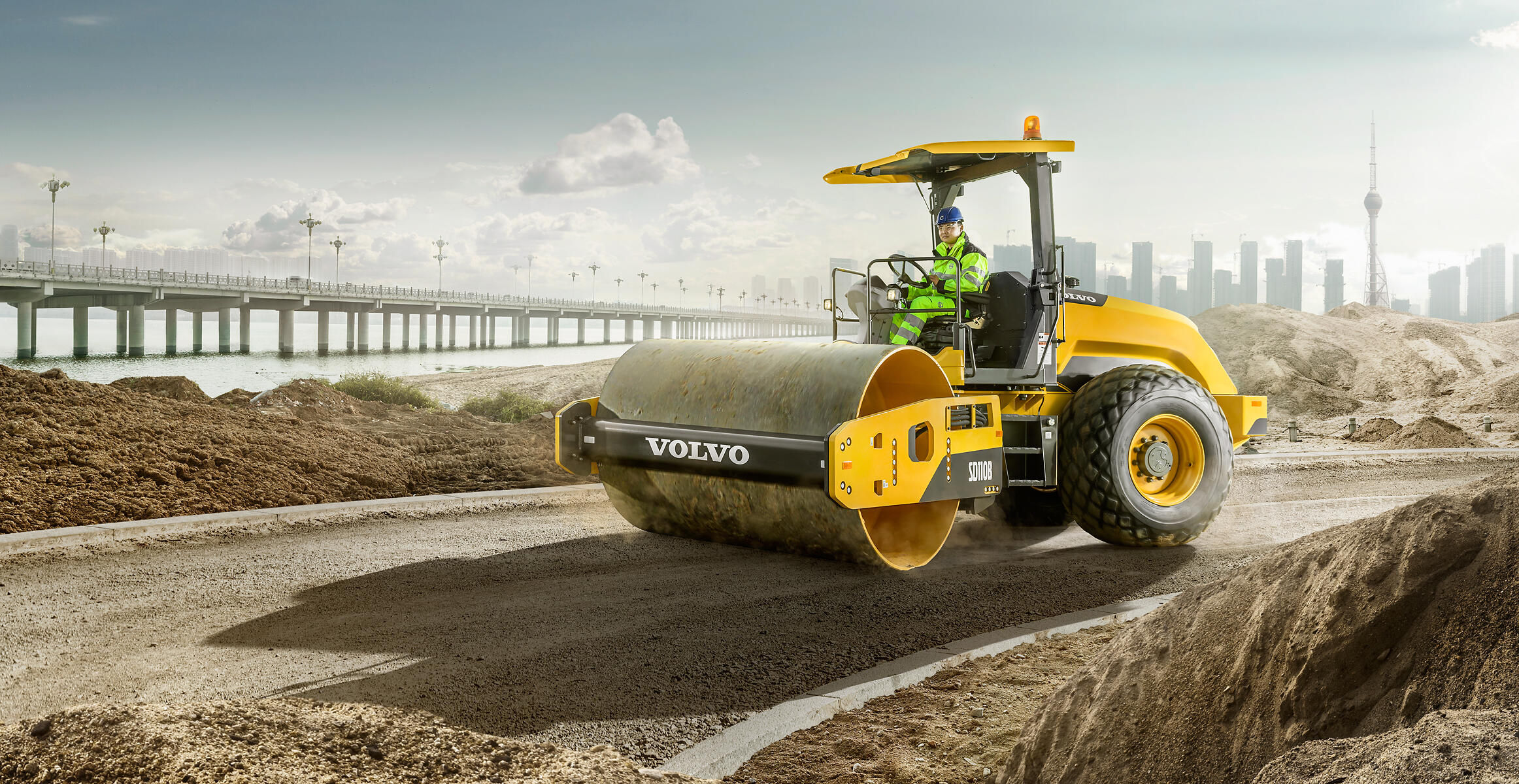

Soil Compactors SD110B

  • 10,700 kg Operating weight (with ROPS, fully ballasted)
  • 99 kW Rated engine power
  • 208/258 kN Centrifugal force
Quality Volvo components ensure that the SD110B soil compactor is built to last. This durable compactor features a robust steel structure, a resilient drum and frame, and excellent hydraulics that work together to make sure you can tackle tougher jobs for longer.
Contact us

Ultimate comfort and productivity

Quality Volvo components ensure that the SD110B soil compactor is built to last. This durable compactor features a robust steel structure, a resilient drum and frame, and excellent hydraulics that work together to make sure you can tackle tougher jobs for longer.
Ultimate comfort and productivity

Technical specifications for SD110B

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
Operating weight (with ROPS, fully ballasted) 10,700 kg
Operating weight (with ROPS, inc. Cab & inside scraper) 11,100 kg
Centrifugal force 208/258 kN
Vibration frequency 34/31 hz
Gradeability 61.5 %
Rated engine power 99 kW
Amplitude 1.97/1.36 mm
Drum width 2,134 mm
Articulation angle +/-38 degree
Oscillation angle +/-15 degree
Image illustration only. Production machines may differ in appearance and features vary between markets and models. Check the availability of this product and service with your Distributor.
More specifications and competitor comparison Download the SD110B brochure, with all the details and specifications. (PDF, 3.8MB)

Features & Benefits

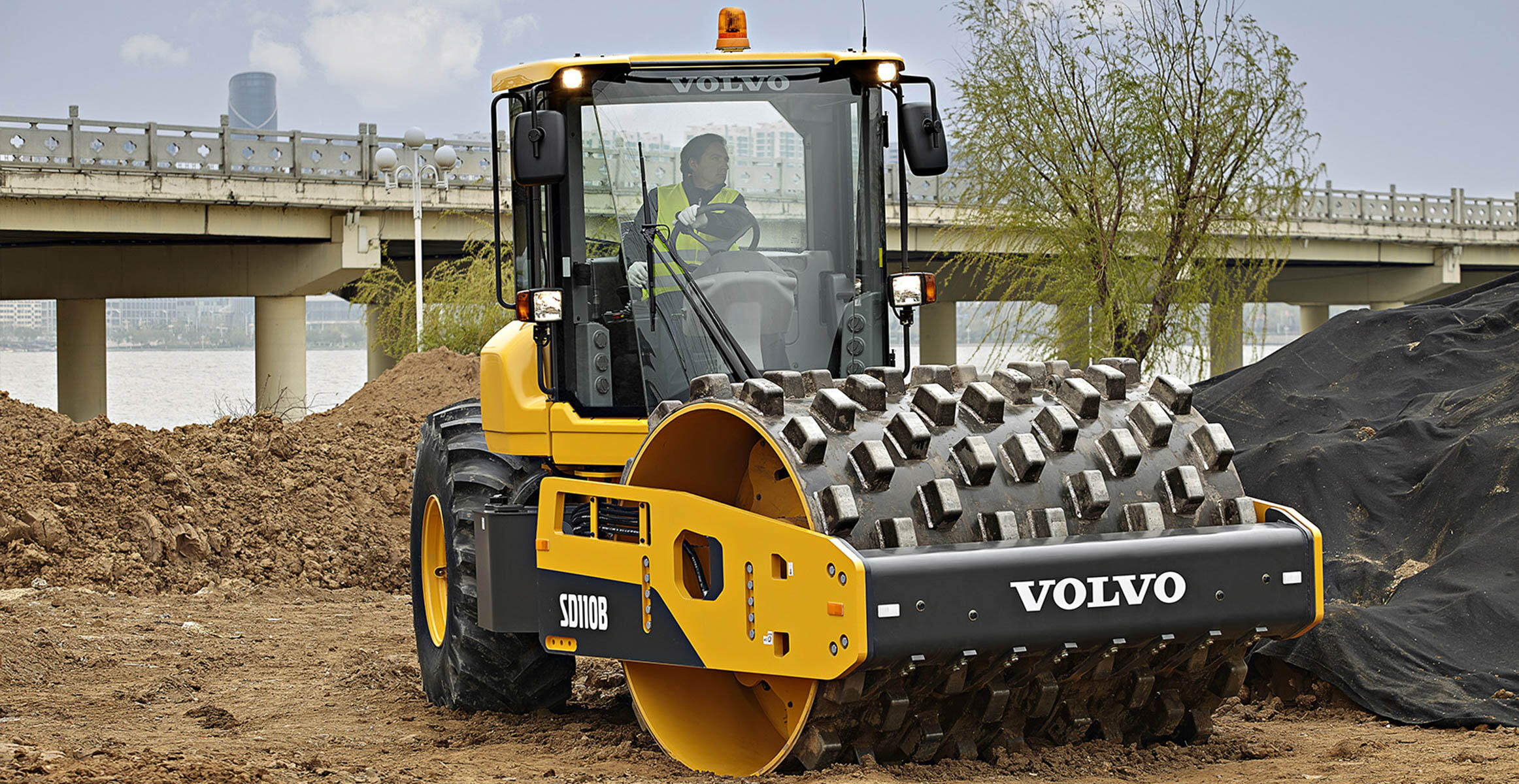

Drum performance
Drum performance Volvo delivers multiple frequencies, dual amplitude, and optimized centrifugal force – matching the drum’s performance to your application.
Drum performance

Roll with the best

The SD110B single drum compactor from Volvo is built to deliver a powerful performance. A choice of vibration frequencies gives you the flexibility you need to tackle a range of jobs, and with Volvo’s new padfoot design you can be sure to get more done, faster. This compactor is designed to increase your versatility for ultimate productivity.

Frequency and amplitude choices

Frequency and amplitude choices

Easily adjust the vibration frequency from the operator console to compensate for changing soil types and conditions. Change drum amplitude according to material depth – increasing productivity. Multiple drum settings give you even greater performance and versatility.

New padfoot drum

New padfoot drum

Volvo’s new padfoot shape allows the drum to adapt to the ground conditions, providing high coverage on softer surfaces and applying more pressure on stiffer materials. An additional row of padfeet lets you compact more surface area with every turn of your drum, and the padfeet have been repositioned closer together to ensure a smoother performance.

Great gradeability

Great gradeability

The Volvo traction system provides excellent climbing and traction capabilities in difficult applications such as steep inclines or slippery surfaces. The system prevents tire or drum spin, improving gradeability, performance and productivity.

Volvo engine
Volvo engine The SD110B comes from a long line of high quality compactors with premium features as standard. Thanks to a tough steel frame, robust drum design and Volvo’s superior components, you can experience the very best in powerful, efficient compaction. This machine is also equipped with a perfectly optimized Volvo engine that ensures outstanding performance whatever your job, giving you excellent efficiency while keeping emissions down.
Volvo engine

Performance, quality, efficiency

The SD110B comes from a long line of high quality compactors with premium features as standard. Thanks to a tough steel frame, robust drum design and Volvo’s superior components, you can experience the very best in powerful, efficient compaction. This machine is also equipped with a perfectly optimized Volvo engine that ensures outstanding performance whatever your job, giving you excellent efficiency while keeping emissions down.

High quality components

High quality components

This compactor features the highest quality components, clever routing and clean design. The engine, hydraulics and electronics work in harmony, delivering superior performance and increased machine life

ECO mode

ECO mode

Volvo’s ECO mode adjusts the engine speed offering up to 20% reduced fuel consumption.

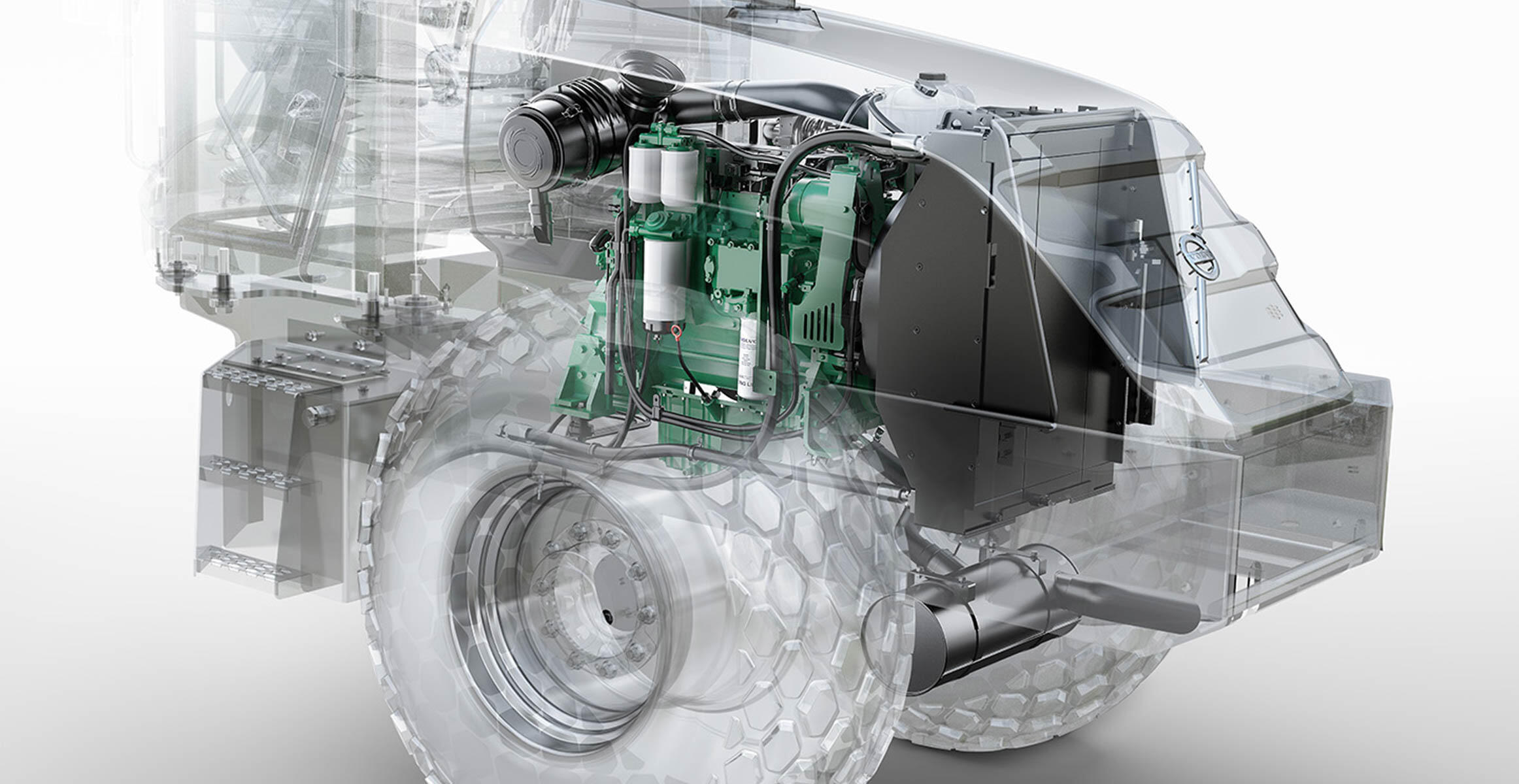

Efficient cooling system

Efficient cooling system

The cooling fan draws reduced power from the engine. Heat exchangers for hydraulic oil, engine coolant and charge-air are optimized for operation at high ambient temperatures. The engine package lowers total cost of ownership and reduces noise for greater operator comfort.

Heavy-duty drum and center joint

Heavy-duty drum and center joint

The heavy-duty drum is manufactured with durability in mind. The large diameter drum shell is engineered from high strength steel for longevity and performance. Frames are built with precision and consistency, ensuring a strong structure. The center joint oscillates and articulates for better stability and maneuverability.

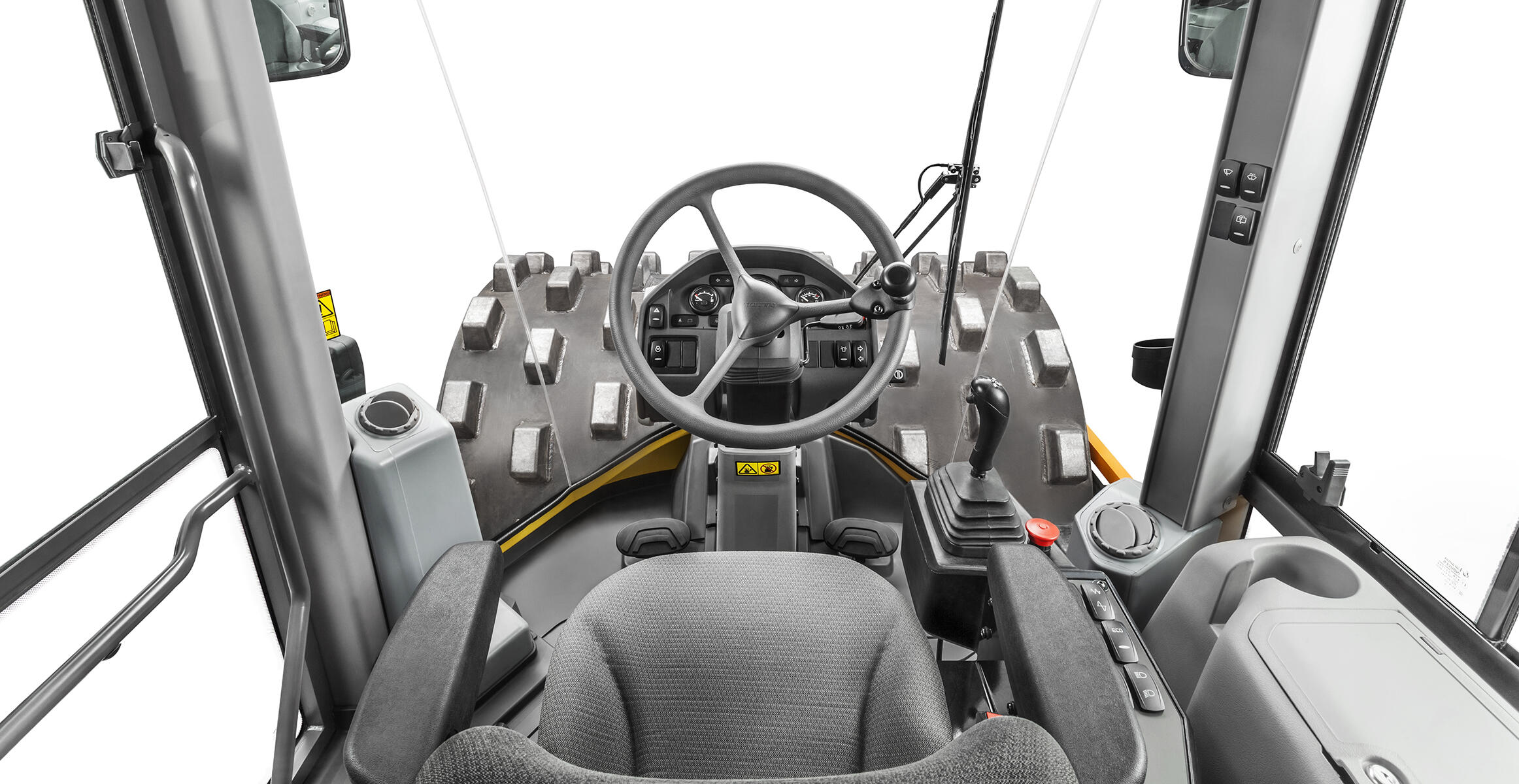

Operator environment
Operator environment The ROPS/FOPS certified cab provides a safe and comfortable working environment and all-around visibility from large glazed panels.
Operator environment

Safe and comfortable

The SD110B boasts an industry-leading operator environment – excellent all-round visibility as well as very low noise and vibration levels ensure ultimate comfort and productivity. The adjustable seat, effective heating and cooling system and newly designed operator controls make for an efficient, comfortable work shift.

Ergonomic operator controls

Ergonomic operator controls

The new operator control panel has been created for an improved operator experience. The single lever propulsion and vibration control is conveniently located within the operator’s zone of comfort and reach. All other controls are ergonomically positioned.

Comfortable seat

Comfortable seat

The optional fully adjustable seat slides and turns to enhance visibility and operator safety and comfort.

HVAC system

HVAC system

The new Volvo cab is equipped with industry-leading climate control to ensure a comfortable environment for the operator, whether heating or air conditioning is required. Elevated air intake and a pressurized cabin help to reduce the amount of dust entering the cab.

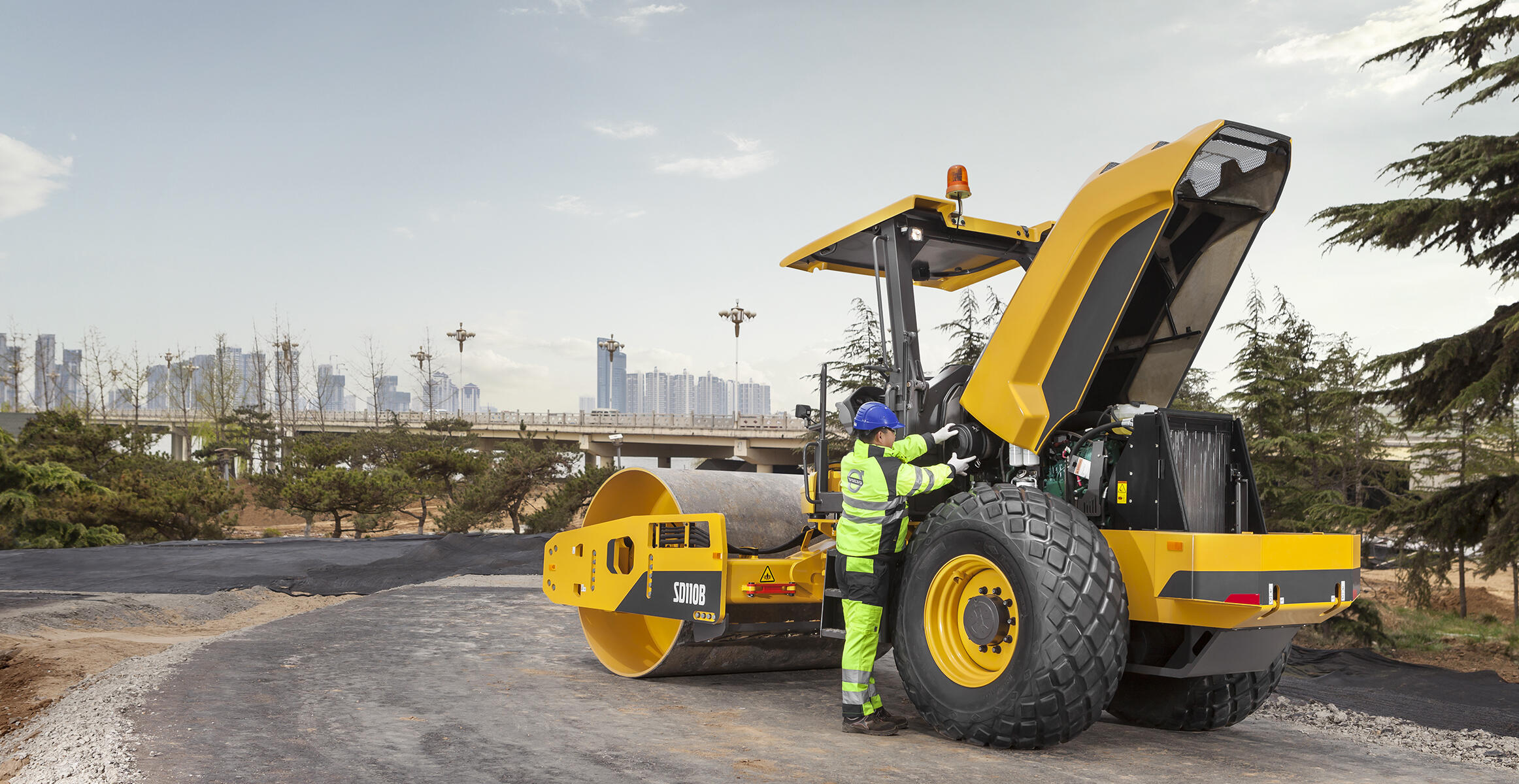

Easy service access
Easy service access Class-leading service access ensures regular maintenance and inspections can be conducted more efficiently for minimal downtime.
Easy service access

Quick and easy servicing

The SD110B is a robust and durable compactor that provides easy service access for quick regular maintenance checks. Capitalize on quality features that keep your downtime to a minimum and increase the longevity of your machine.

Customer Service agreements

Customer Service agreements

The range of Customer Support Agreements offer preventive maintenance, total repairs and a number of uptime services. Volvo uses the latest technology to monitor machine operation and status, giving you advice to increase your profitability. By having a Customer Support Agreement you are in control of your service costs.

Genuine Volvo Parts

Genuine Volvo Parts

Our attention to detail is what makes us stand out. This proven concept acts as a solid investment in your machine’s future. Parts are extensively tested and approved because every part is vital for uptime and performance. Only by using Genuine Volvo Parts, can you be sure that your machine retains the renowned Volvo quality.

Service Network

Service Network

In order to respond to your needs faster, a Volvo expert is on their way to your job site from one of our Volvo facilities. With our extensive infrastructure of technicians, workshops and dealers, Volvo has a comprehensive network to fully support you using local knowledge and global experience.
