EC550E | Excavators | Overview | Volvo Construction Equipment

Operating weight	54,500 - 56,300 kg
Gross power	320 kW
...at engine speed	1,600 rpm
Bucket capacity	2.4 - 4.2 m³
Lifting capacity, along undercarriage	21,670 kg
...at reach / height	6 / 1.5 m
Max. digging reach	11,450 mm
Max. digging depth	6,870 mm
Breakout force, SAE J1179 (Normal)	267 kN
Breakout force, SAE J1179 (Boost)	287 kN
Tear out force, SAE J1179 (Normal)	227 kN
Tear out force, SAE J1179 (Boost)	243 kN
Overall width	3,900 mm
Tail swing radius	3,880 mm

Features & Benefits

Boost productivity by up to 35% with the EC550E. Available with a range of optimum-sized buckets, the Volvo Crawler Excavator sets new standards for the industry.

Set new standards

Delivering levels of power and productivity more commonly expected from a 60-tonne crawler excavator, the Volvo EC550E truly punches above its weight.

Dig fast, load more

Shorten cycle times in the EC550E which delivers the digging forces and lifting capacity more commonly found in a 60-tonner. Featuring impressive engine power, this excavator delivers superior swing torque and speed.

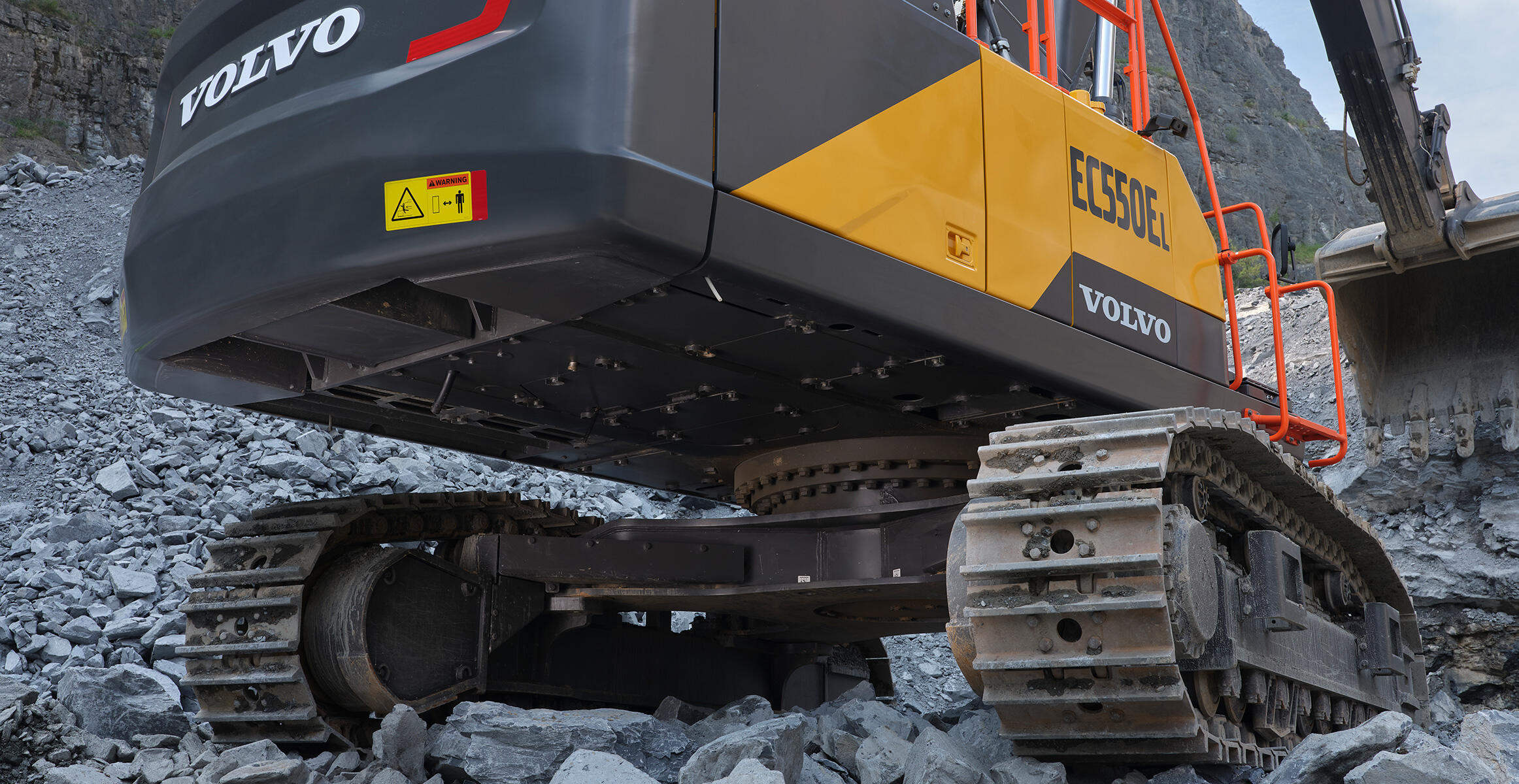

Built for the toughest tasks

The perfect choice for handling heavy loads in the toughest applications, the EC550E features an ultra-durable undercarriage with a long lower frame, a strong upper frame, and reinforced digging equipment with large pin size. The optional wider retractable lower frame provides further stability and higher ground clearance.

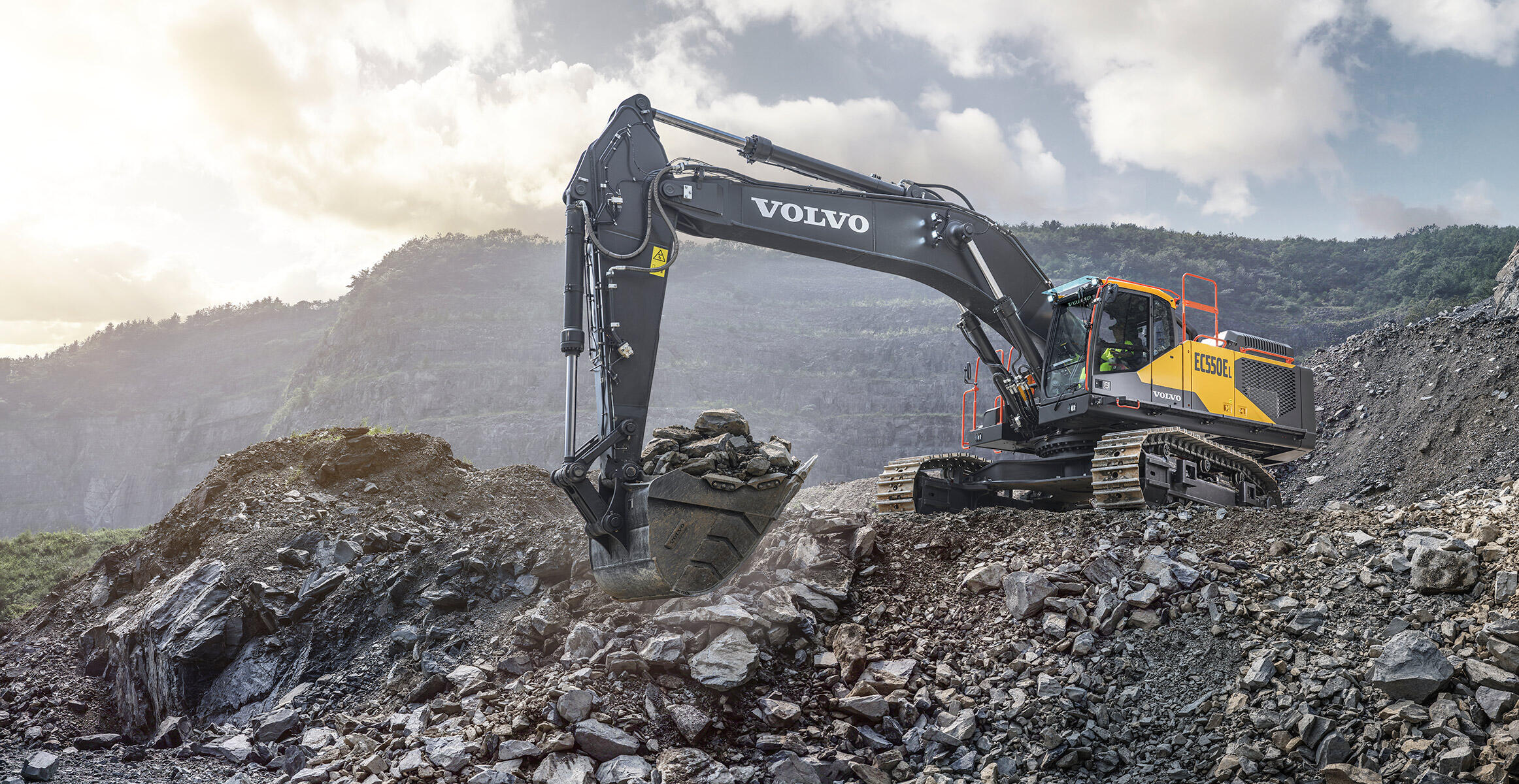

Less passes, more work

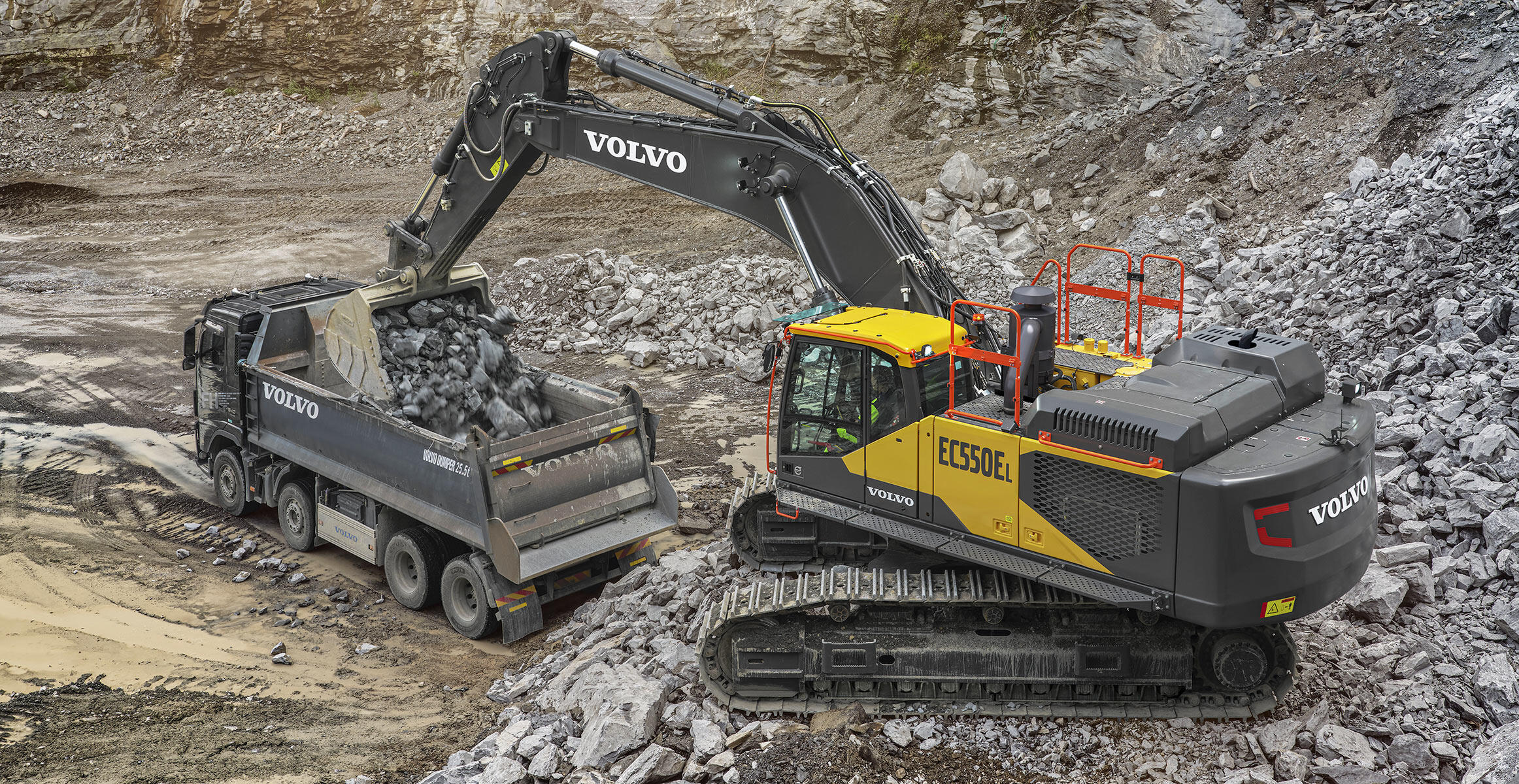

Optimize fleet use by up to 35%. The EC550E is the perfect partner to wide-body 38-40t hauling equipment, reducing the number of required passes – dramatically improving cycle times. .

Reduce costs and boost profits thanks to the new electro-hydraulic system with Independent Metering Valve Technology (IMVT) – the latest pioneering innovation from Volvo – and a host of Fuel Efficiency Services.

Up to 22% more fuel efficiency

Take fuel efficiency to new levels in the EC550E. The next generation electro-hydraulic system with Independent Metering Valve Technology produces up to a 22% improvement in fuel efficiency. Engine pump optimization, which lowers engine rpm while optimizing power, and optimized hydraulic piping and size routings, further contribute towards the incredible levels of fuel efficiency.

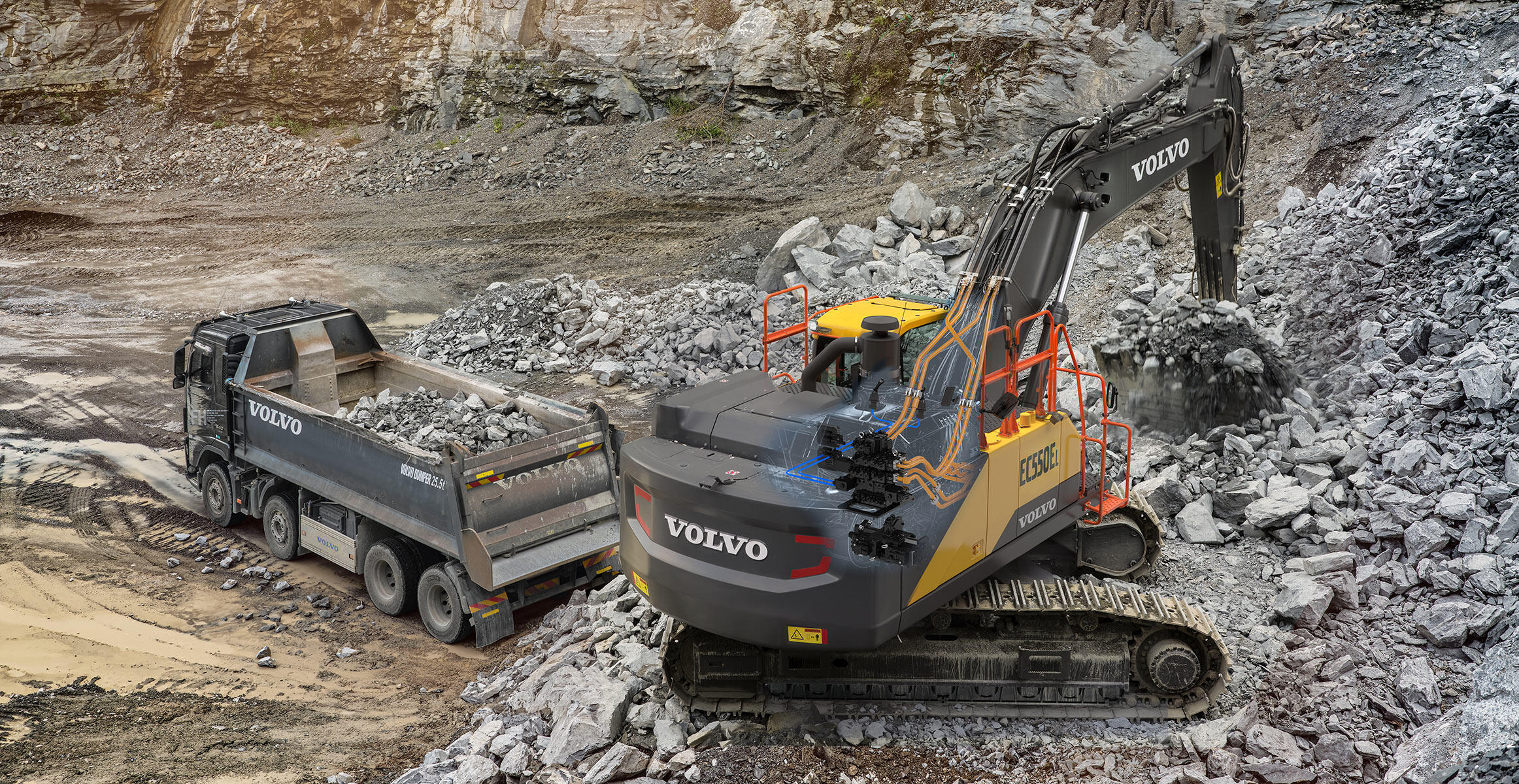

Unique Independent Metering Valve Technology

The latest pioneering innovation from Volvo, the next generation electro-hydraulic system with Independent Metering Valve Technology (IMVT) is the most advanced hydraulic system in the industry. IMVT provides intelligent electronic control with more control variable, compared to a conventional mechanically coupled hydraulic system. The result is maximum controllability and efficiency according to the specific application at hand.

Take your efficiency to the next level

While reliable and efficient machines of course play a vital role in reducing costs, enhancing safety and maximizing productivity, it is ultimately the performance of the operator that really makes the difference. We offer a range of training initiatives to help unlock the full capability of the Volvo machines, including EcoOperator Training – an advanced course for experienced operators which focuses on a more profitable and environmentally considerate operation.

Even more efficiency

Fuel is the industry’s number one operational cost and Fuel Efficiency Reports help to identify areas where efficiency improvements can be made, providing clear insights into the fuel performance of a fleet, site or individual machine. If you need further support putting insight into action, your Volvo dealer is on hand to help you develop a plan to deliver long-term efficiency gains.

Whether working inside or on the machine, you can be sure that the highest levels of control, comfort and safety have been considered in every design detail of the EC550E.

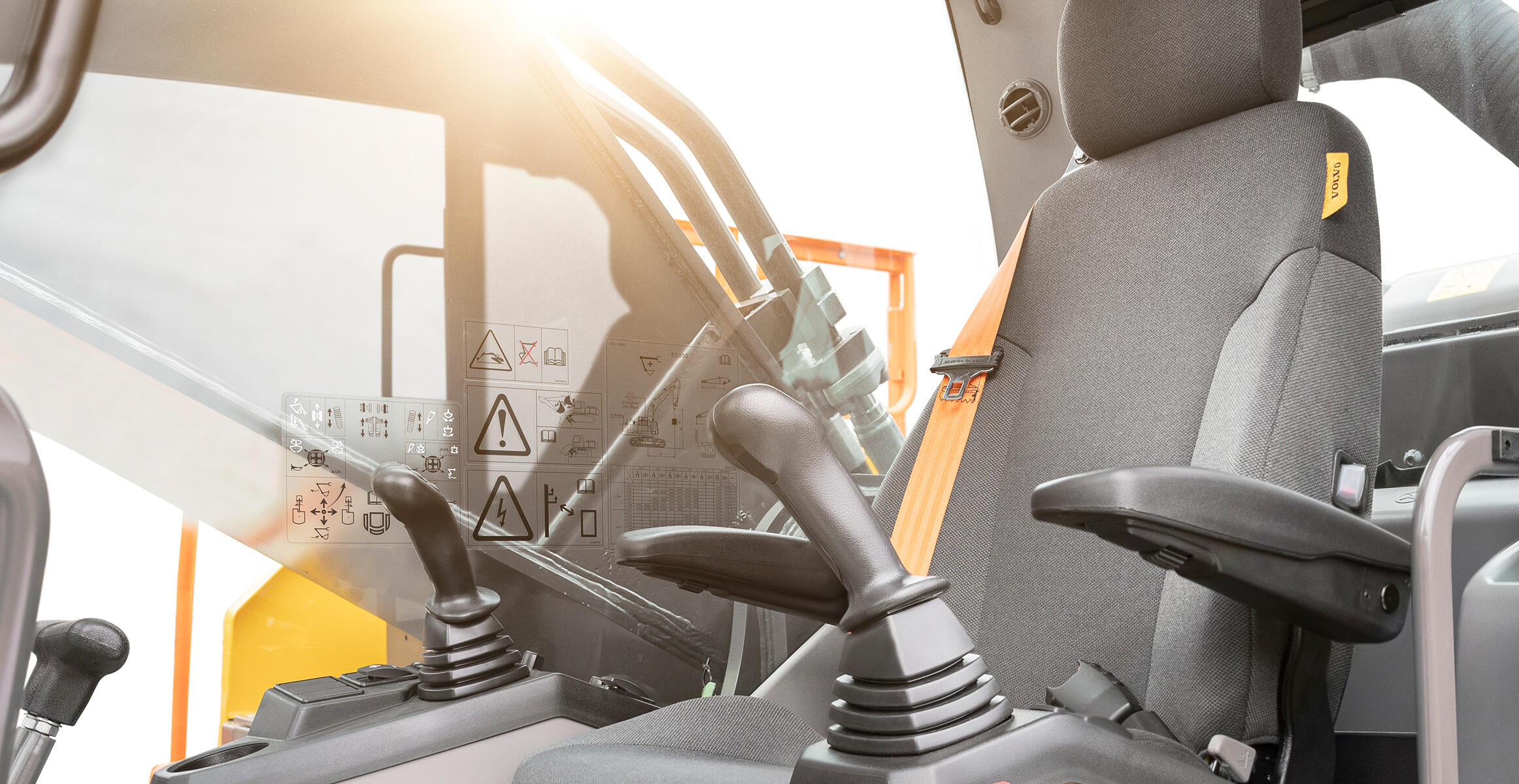

For your comfort and safety

Step inside the best cab on the market. The ROPS cab exceeds industry standards for this class of machine, thanks to features including a 14 air vent climate control system and ergonomic seat with 9 adjustment settings. Safety is further enhanced by a 3-point seatbelt with a reminder alarm which notifies the operator if they are not buckled up. A seatbelt cutter/hammer assists egress through the emergency exit.

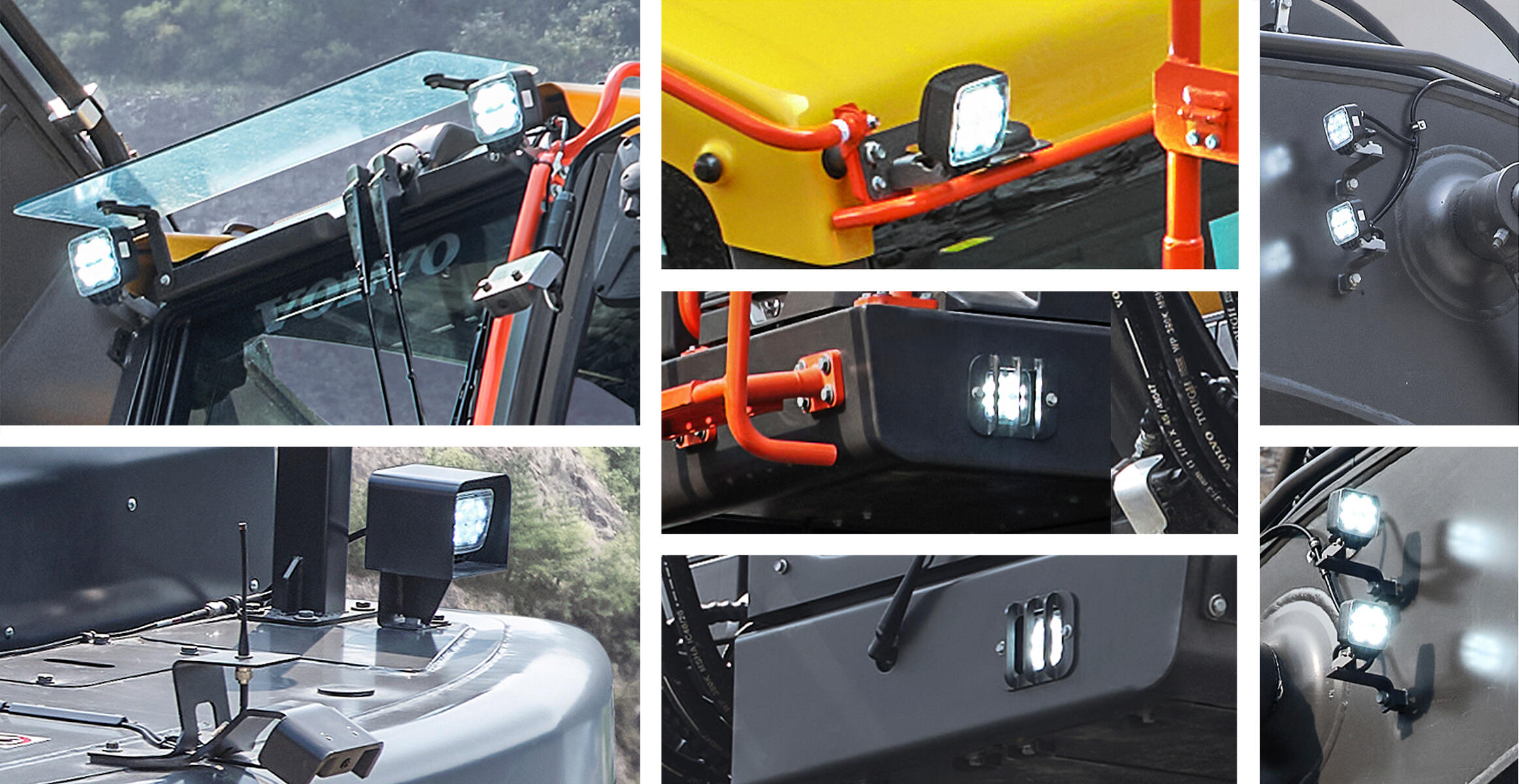

Best-in-class visibility

Operators benefit from outstanding visibility thanks to the rearview camera and 10 LED lights positioned throughout the machine, including the rear. Furthermore, the optional Volvo Smart View system gives operators a 360° birds-eye-view of the machine and working area.

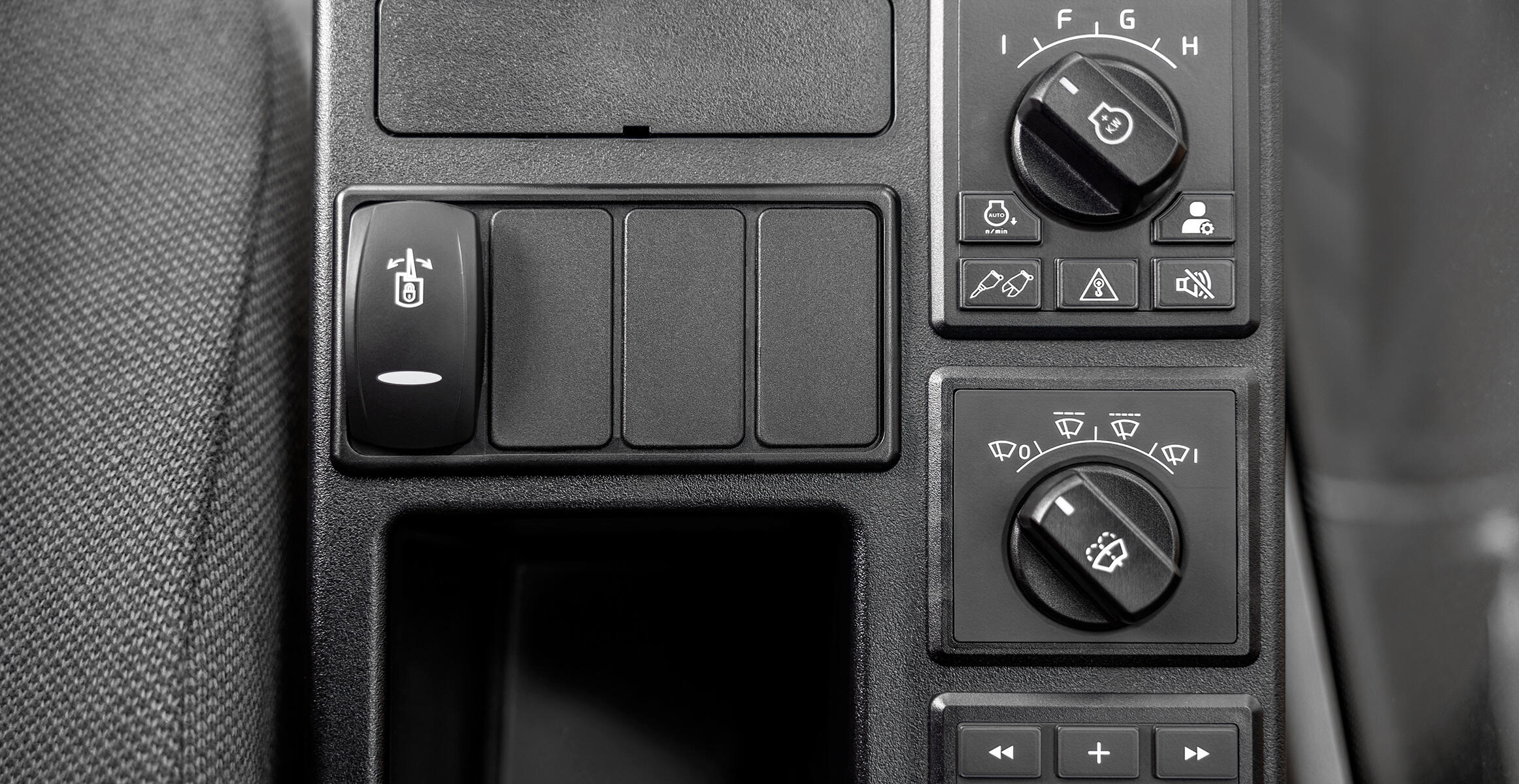

Work in confidence

A host of features combine to help operators work with confidence, including the travel alarm which alerts those around the machine when it is moving. Furthermore, a swing lock switch restricts the swing function while the machine is moving, and the hydraulic cut-off lever disables machine controls when lowered. Finally, an accumulator secures smooth boom lowering in case of emergency.

Ultimate control on the job

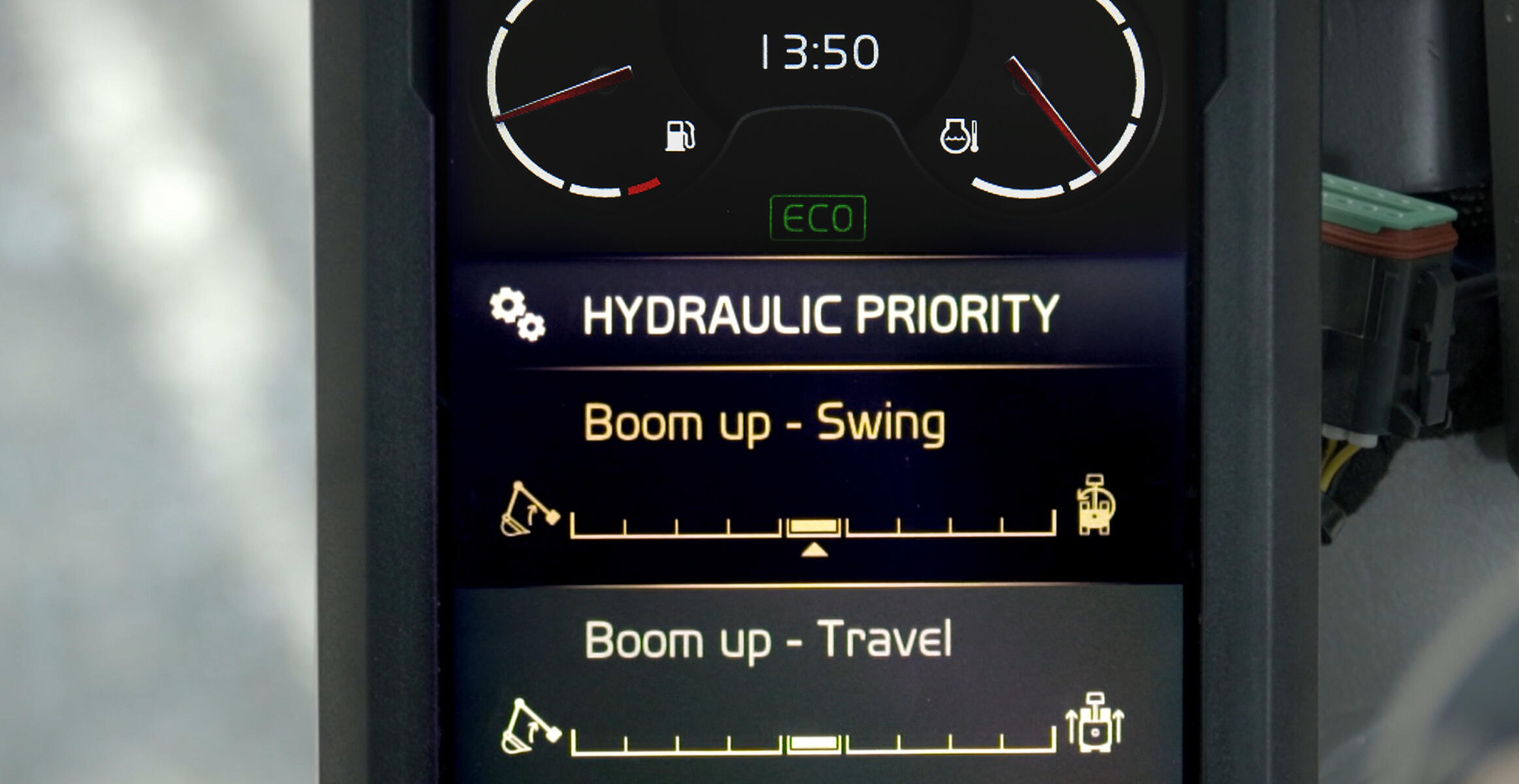

Welcome to the ultimate in operator control and convenience. The revolutionary new generation electro-hydraulics with IMVT enable a range of intelligent functions including Boom/Swing and Boom/Travel priority, adjustable boom down speed, as well as boom and arm bouncing reduction.

Straightforward servicing

Servicing is made quick and easy by grouped filters and a battery cut-off switch, which ensures complete disengagement of the equipment. Features such as high visibility guardrails and handrails, 3-point right-hand access to the upper structure, bolted anti-slip plates and optional walkway ensure the highest levels of convenience when negotiating the machine.

The EC550E is ready to rise to the challenge in the most demanding conditions, with a number of features and services which contribute to outstanding reliability, reduced maintenance requirement and maximum uptime.

Up to the challenge

Maximize machine uptime and reduce repair costs with the CareTrack telematic system. Choose to keep track of your machine yourself or let us take care of it with the optional ActiveCare. Our Volvo Uptime Center will provide 24/7 machine monitoring, supplying weekly reports and notifying you should preventive maintenance action be required.

Uptime you can count on

Hydraulic pilot lines have been removed in the EC550E, reducing the number of couplings required, for increased machine reliability. Electric connectors which exceed Ingress Protection 6K9K water-proofed standards also contribute to long component life.

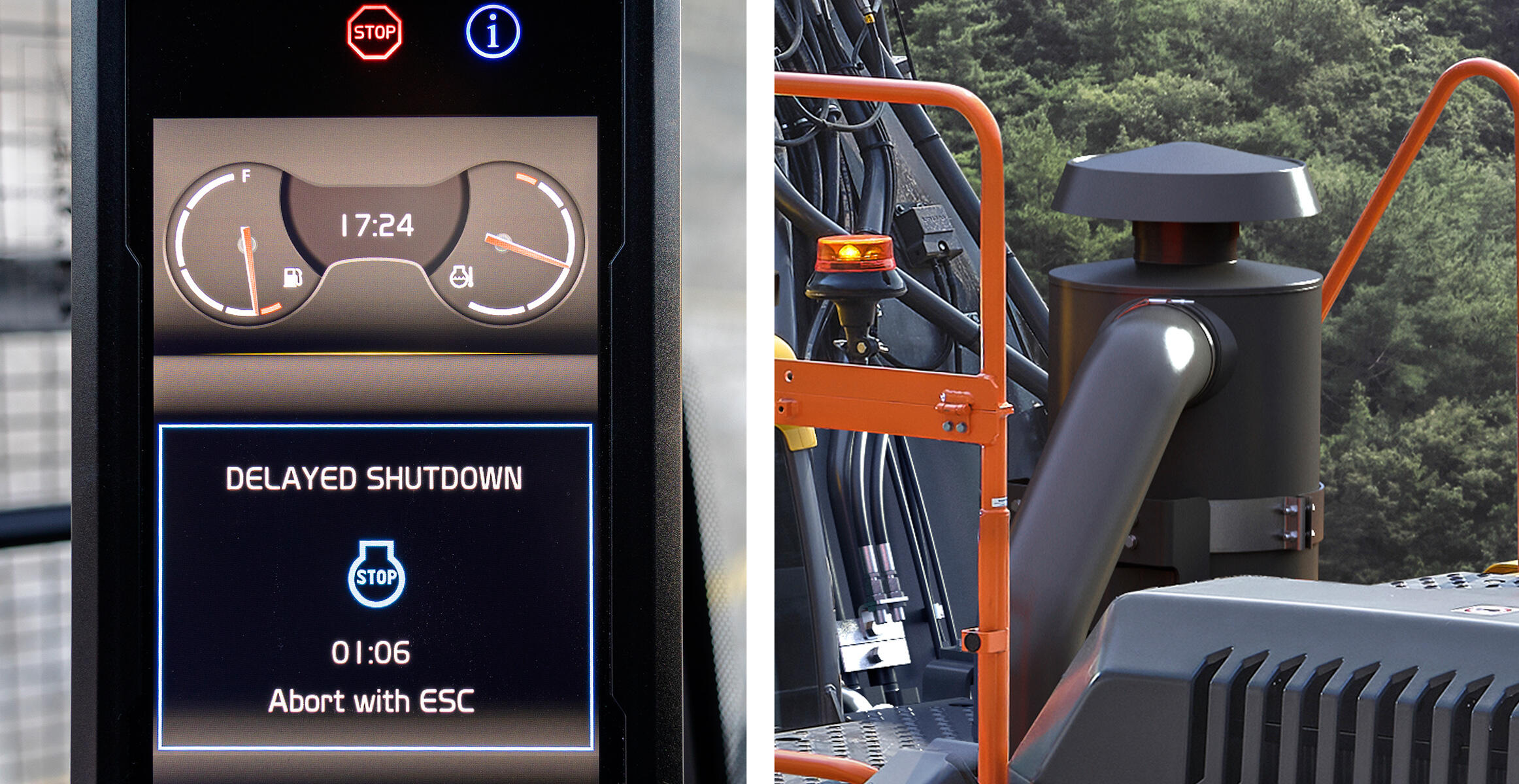

Engine protection

Keep the engine clean and performing at its best – especially when working in dusty conditions – with the oil bath pre-cleaner. What’s more, the delayed engine shutdown helps to keep the turbocharger in top condition by turning the engine off only after the turbocharger has cooled down to the appropriate temperature.

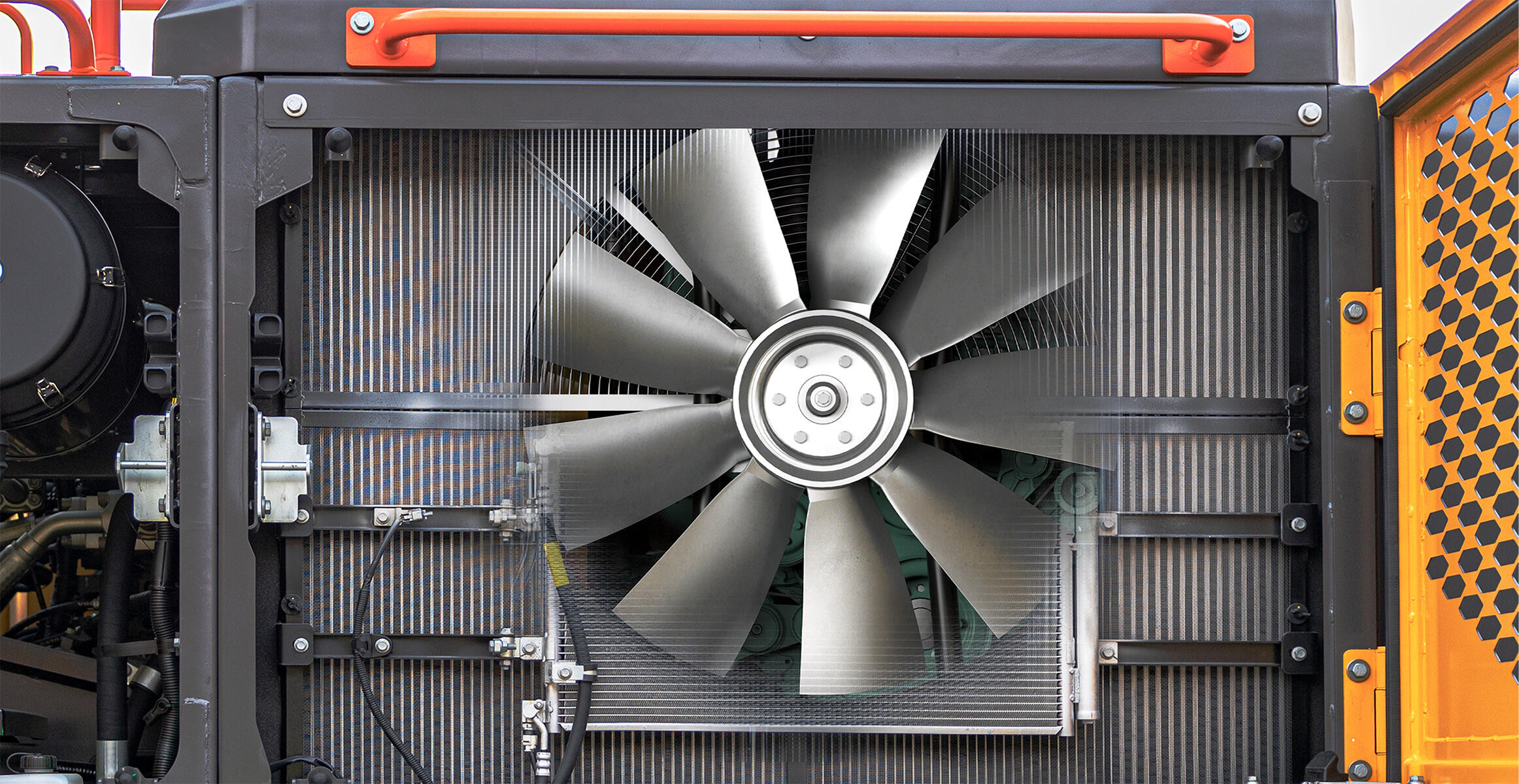

Take on the tropics

Handle the heat with the tropical cooling system, designed to regulate hydraulic oil temperature when working in tropical conditions.

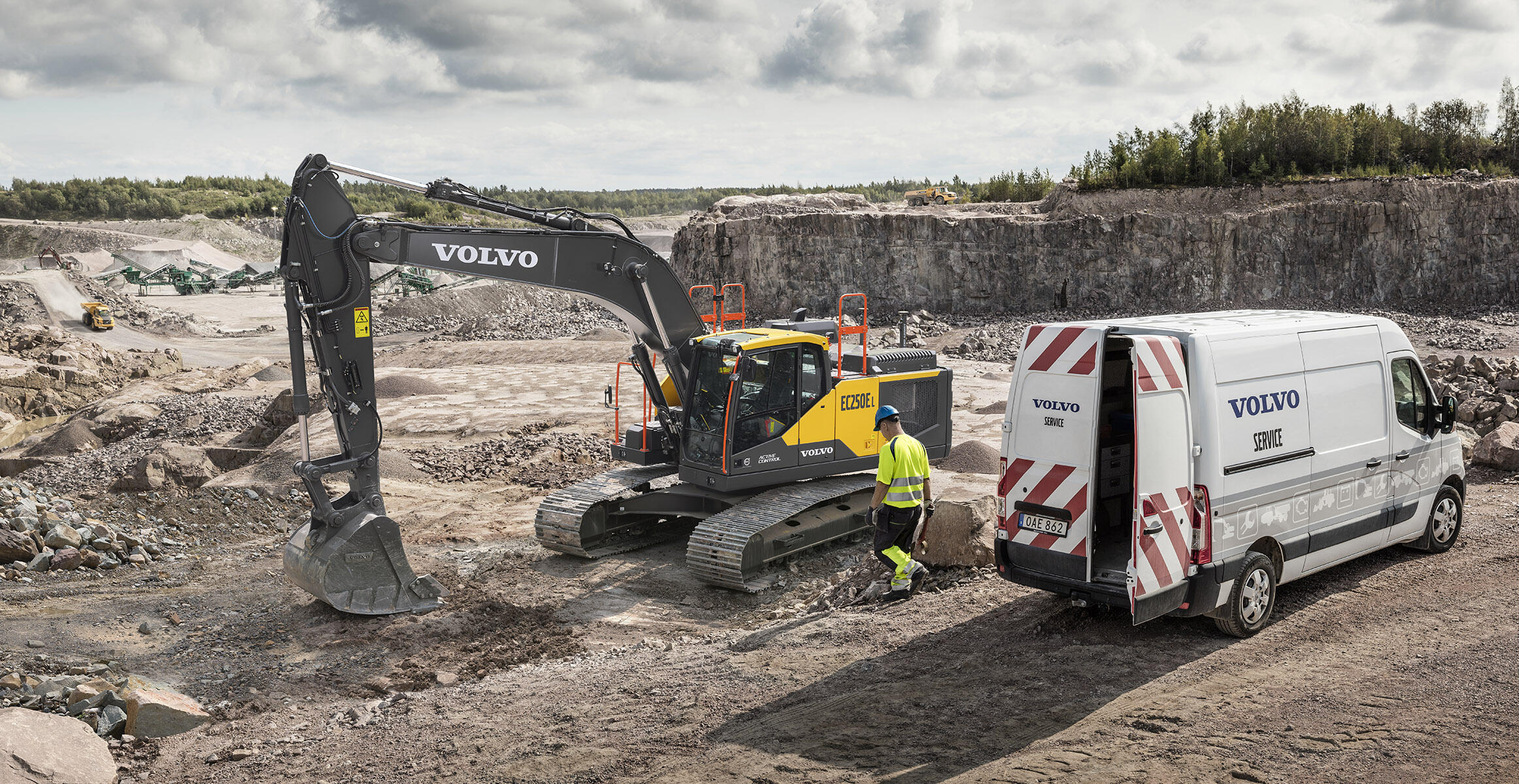

Keeping you moving

Maintain productivity and machine uptime with our range of widely available Genuine Volvo Parts – all backed by Volvo warranty. Your Volvo dealer can help you stay on track, offering flexible repair and maintenance options, as well as planned servicing.

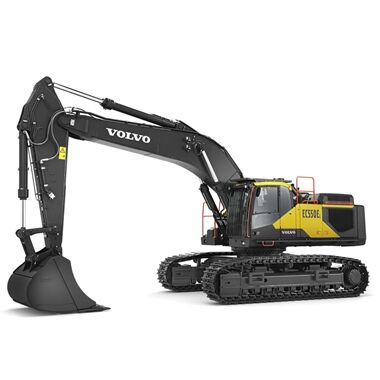

Large Crawler Excavators EC550E

Big on profitability

Technical specifications for EC550E
