Large Crawler Excavators

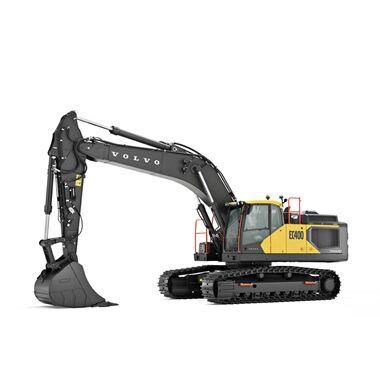

EC400 Hybrid
-
Stage V / Tier 4f Emission Standards -
39,370 - 41,550 kg Operating weight -
253 kW Gross power -
0.87 - 2.9 m³ Bucket capacity
Technical specifications for EC400 Hybrid
| Operating weight | 39,370 - 41,550 kg |
|---|---|
| Gross power | 253 kW |
| ...at engine speed | 1,600 rpm |
| Bucket capacity | 0.87 - 2.9 m³ |
| Lifting capacity, along undercarriage | 11,540 kg |
| ...at reach / height | 4.5 / 6 m |
| Max. digging reach | 11,220 mm |
| Max. digging depth | 7,590 mm |
| Breakout force, SAE J1179 (Normal) | 198 kN |
| Breakout force, SAE J1179 (Boost) | 216 kN |
| Tear out force, SAE J1179 (Normal) | 162 kN |
| Tear out force, SAE J1179 (Boost) | 177 kN |
| Overall width | 3,400 mm |
| Tail swing radius | 3,600 mm |
Features & Benefits
How does it work?
What makes a hybrid different from a regular excavator? Read here to find out.
Hybrid is the perfect combination
The Volvo hybrid crawler excavator combines pioneering Volvo hydraulic hybrid technology and your sustainability efforts into an efficient machine and environmental care. You will save fuel and reduce your emissions while not lose out in productivity- quite the contrary. With the fuel savings our hybrids offer, both you and the environment come out on top.
How does it work?
Featuring unique hydraulic hybrid Volvo technology, the excavator stores the boom down motion energy into the accumulator. The stored energy is regenerated to support Pump driving through the assist motor, which in turn powers the engine system. The result is up to 17% increase in fuel efficiency through digging and dumping operation on earth level while delivering all the power and performance you would expect from a conventional excavator.
Up to the challenge
Built to deliver outstanding strength and durability, this heavy-duty production machine features a robust undercarriage with reinforced idle frame, track links and bottom rollers. Reinforced bucket linkage with steel strip, optional heavy-duty superstructure undercover and easily replaced bolt-on wear plates at the arm end ensure the excavator succeeds even on the toughest of jobsites.
Why choose a hybrid?
Top three arguments for choosing a Volvo hybrid excavator.
Attract highly skilled operators
Volvo hybrid excavators are not only a quality product in the robust build and engine-wise but also when it comes to operator comfort. Hiring highly skilled operators will be easier when you have quality products. These operators can afford to be picky about what machine they work with, so make sure you are an attractive employer by choosing a Volvo hybrid.
Easier maintenance
The new electro-hydraulic system requires less hoses, therefore reducing the need for couplings, minimizing maintenance requirements and increasing reliability. Engine oil and filter change intervals have been doubled to 1000 hours, keeping time and cost spent on maintenance to a minimum.
Dig at any angle
Boost productivity and dig at any angle. Compatibility with Steelwrist®, Engcon® and Rototilt® tiltrotators provides the flexibility needed for precise construction jobs. The factory-fitted preparation system gives you the power to control both the excavator and tiltrotator using the original joysticks, with the information presented on the main display.
Service-friendly hybrids
Nothing is better for reducing downtime than no downtime at all. Volvo excavators boast some of the longest service intervals in the industry, with 1000-hour engine oil, hydraulic oil and fuel filter changes to mention a few. More synchronized service intervals further increase uptime and reduce costs.
Easier inspection
The swing out condenser makes the radiator and oil cooler easier to inspect, as well as easier refill of the air-con system when needed.
Oil drainage
For simple and environmentally friendly fluid draining, engine oil and hydraulic oil can be drained from the quick drain port using a common hose connection. Optional fast filling systems are available for hydraulic oil and engine oil (market dependent).
Fluid Analysis
Fluid Analysis can be an important contributor to monitoring the health and performance of your machines and this optional feature provides an environmentally safe method to collect small oil samples via a vacuum pump.
Shut-off valve
A convenient shut-off valve when changing fuel filters prevents oil leakage, helping to keep technicians and the environment cleaner. An optional ground-level quick oil change access port further supports cleaner and safer oil changes.
-
