Large Crawler ExcavatorsEC380E

  • 37,800 - 43,000 kg
  • 226 kW
  • 0.83 - 2.53

From quarries to mass excavation, the Volvo EC380E crawler excavator has been built to work on tough job sites. Featuring a robust, reinforced... Read more

Contact us Download the EC380E brochure, with all the details and specifications. (PDF, 5.1MB) More specifications and competitor comparison

Quality counts

From quarries to mass excavation, the Volvo EC380E crawler excavator has been built to work on tough job sites. Featuring a robust, reinforced structure and high quality welding, the EC380E boasts superior strength and durability. Experience reliability you can count on with Volvo.


Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight 37,800 - 43,000 kg
Gross power 226 kW engine speed 1,700 rpm
Bucket capacity 0.83 - 2.53
Lifting capacity, along undercarriage 15,940 kg reach / height 6 / 1.5 m
Max. digging reach 10,545 mm
Max. digging depth 6,785 mm
Breakout force, SAE J1179 (Normal) 198 kN
Breakout force, SAE J1179 (Boost) 215 kN
Tear out force, SAE J1179 (Normal) 195.9 kN
Overall width feet inches 3,540 mm
Tear out force, SAE J1179 (Boost) 212.9 kN
Tail swing radius 3,600 mm

Based on machine configuration: Long crawler, Boom 6.45m; Arm 2.6m; Shoe 800mm; CWT 6 700kg

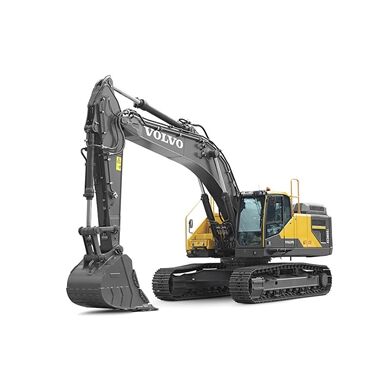

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

volvo excavator ec380e t4f

ECO mode

Volvo’s unique ECO mode improves fuel efficiency without any loss of performance in most operating conditions.
volvo excavator ec380e t4f

Human Machine Interface (HMI)

All machine interfaces are ergonomically positioned and designed for optimum control and efficiency.
volvo excavator ec380e t4f

Volvo engine

Volvo’s D13 Stage V engine boasts more power while reducing both fuel consumption and emissions and delivering superior quality, reliability and durability.
volvo excavator ec380e t4f

Reinforced undercarriage

The undercarriage components are reinforced to ensure long life, high uptime and ultimate durability in tough conditions.
volvo excavator ec380e t4f

Single module cooler

The radiator, charged air cooler and hydraulic oil cooler are situated side-byside on a single layer to maximize efficiency, reduce blockages and aid cleaning.

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
