Ground Engaging Tools

Superior performance, guaranteed

Volvo offers a full range of Ground Engaging Tools, developed to the highest standards, to meet the demands of all your applications. Whether you choose the patented Volvo Tooth System, edges, segments or breaker tools, our design and choice of material guarantees superior performance.

Volvo Tooth System

Benefit from unrivalled levels of performance and uptime, helping you get the most from your Volvo machine. Based on decades of experience and engineering expertise, we offer a full range of teeth and adapters for all wheel loaders, excavators, and compact machines. It is proven that with Volvo Tooth System your Volvo machines will dig faster and stay sharper for longer.

Aimed at Volvo’s larger Excavators and Wheel Loaders.

  • Volvo Wheel Loaders between L60 to L350.
  • Volvo Excavators from 14-ton capacity up to its largest 95-ton machine.

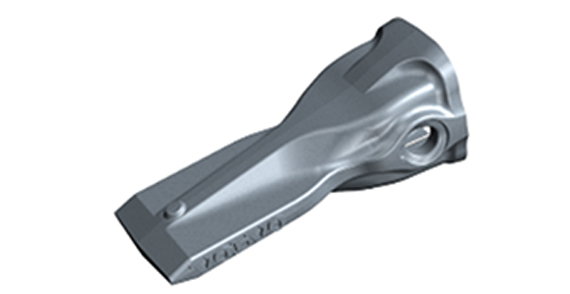

Tooth
  • Low profile for good penetration.
  • Stronger self-sharpening design.
  • Redesigned cross section areas for a more even wear.
  • Stronger ribs, resulting in excellent penetration and cycle times.

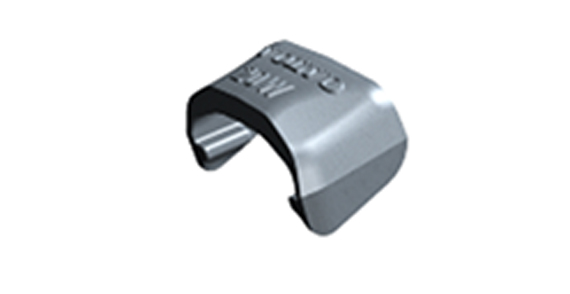

Wear Cap
  • Optional wear placement cap, fitted on the same adapter.
  • Can be used with or without wear cap (size 41 and up).

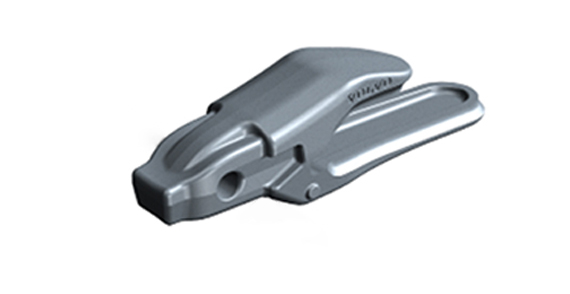

Adapter
  • Smart steel placement prevents early wear.
  • Slimmer adapter leg protects the welding.
  • Improved behavior against overloads.
  • Reusable pin, lockable from both sides (size 21 up to 126).
Locking System
  • Reusable pin, lockable from both sides (size 21 up to 126).
  • Steel retainer pre-mounted into the tooth box
  • The spring retainer and the tooth are assembled and supplied together
  • No spring replacement is necessary during the tooth life
  • The locking pin is made by steel
  • No need of a separate” Hot-slag” pin or retainer.
  • Only one looking system for both normal use and Hot–slag use.

Excavator parts system features & benefits

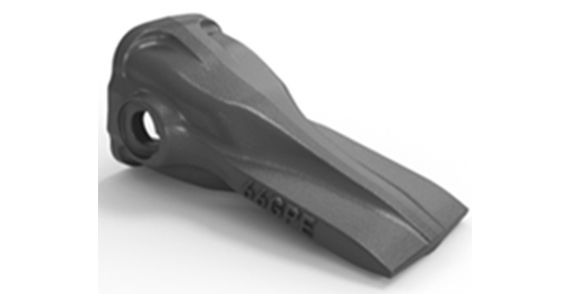

General Purpose Tooth:

For general purpose applications with a moderate level of abrasion. Good penetration. Long service life

Designation: GPE

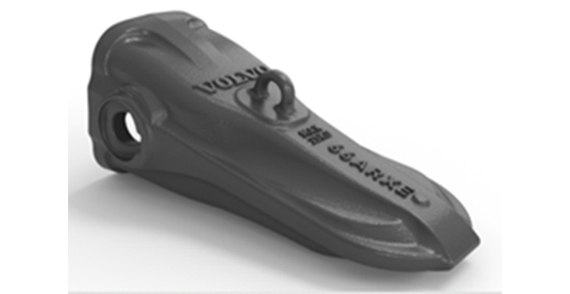

Abrasive material and rock Tooth:

Provides good penetration and longer service life in rock and abrasive material handling. For Rock material handling where extra wear life is needed.

Designation: ARXE

Top leg adapter:

Adapter with long top leg for welding to both sides of the cutting edge.

Designation: TL

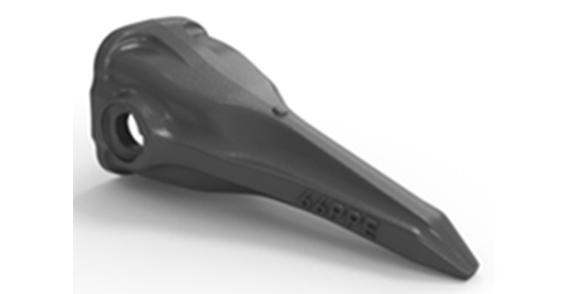

Pick Point Tooth:

The perfect choice for extremely compact material, such as hard clay and frozen ground, providing maximum penetration capability.

Can be used in combination with Twin Pick tooth. Long service life.

Designation: PPC / PPE

Twin Pick Point Tooth:

The perfect choice for extremely compact material, such as hard clay and frozen ground, providing maximum penetration capability.
Can be used in combination with Pick Point tooth. Long service life.

Designation: TPC / TPE

Spade Nose Tooth:

Works best for light-duty, low impact applications, such as levelling, cleaning, grading, and backfilling.

Designation: SNC / SNE

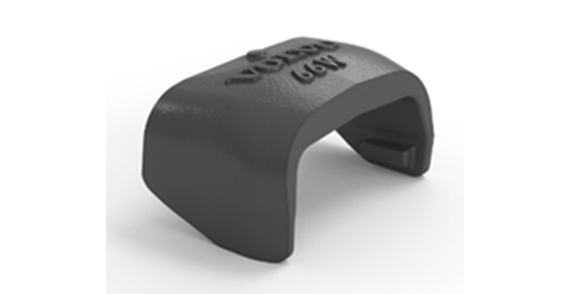

Wear Cap:

Protecting adapter.

Designation: W

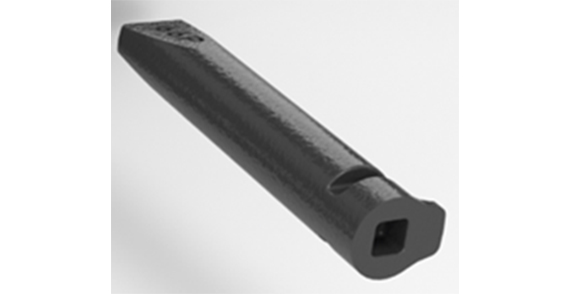

Locking Pin:

Designation: P

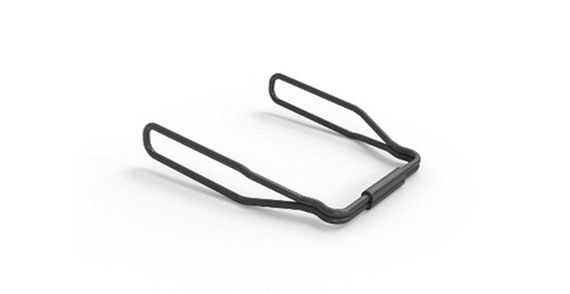

Retainer

Retainer as spare part.
Include in the tooth.

Designation: R

Wheel Loader parts system features & benefits

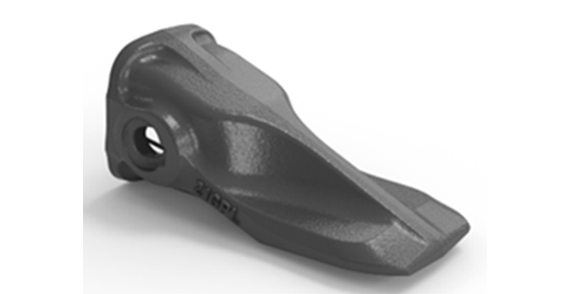

General Purpose Tooth:

An all-rounder suitable for material with a moderate level of abrasion, such as sand and gravel. Small undercut makes it suitable for cleaning work.

Designation: GPL

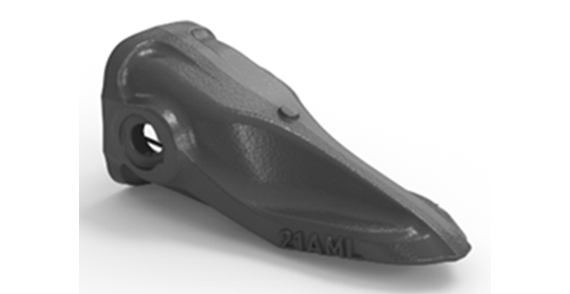

Abrasive material Tooth:

Designed to handle abrasive material, where extra penetration is required, such as crushed or blasted rock.

Designation: AML

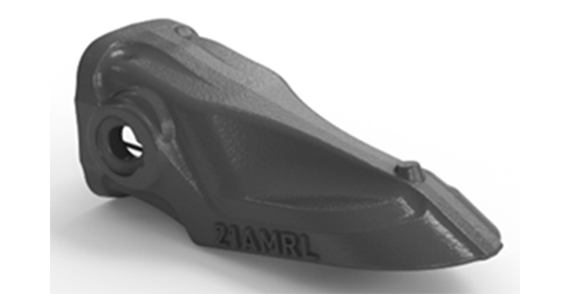

Abrasive material and Rock Tooth:

For heavy duty applications with a high level of abrasion, such as blasted rock or hot slag.

Designation: AMRL

Flush adapter:

Flush-mounting weld-on adapter.
For use where a smooth profile to the bucket is required (e.g. planning, levelling).

Designation: FC

Top leg adapter:

Adapter with long top leg for welding to both sides of the cutting edge.

Designation: TL

Bolt-on adapter:

Two leg adapter for bolting to the cutting edge.

Designation: BN

Locking Pin:

Designation: P

Retainer:

Retainer as spare part.
Include in the tooth.

Designation: R

Make no compromise on quality and choose the Volvo Tooth System, the best choice for Volvo buckets.

  • Patented teeth and adapters for all types of applications.
  • Self-sharpening teeth.
  • Maximum wear life.
  • Withstand high levels of force and stress.
  • Easy to mount and remove.
  • Wear Cap to prolong the adapter life in demanding conditions.

Did you know?

Volvo Bolt-on edges, Segments, Cutting edges, Side plates and other wear plates are made of 500 Brinell hard steel. Upgrading from 400 to 500 Brinell can increase service life by 70 %.

Segments

Improve bucket penetration, protect the cutting edge and increase service life with a range of casted segments for wheel loaders and excavators, and standard cut segments for wheel loaders. The result is more uptime and lower operating costs.

Bolt-on edges

Bolt-on edges are designed to protect the front cutting edge from wear, maintaining a smooth bucket floor and providing extra protection for a longer service life. Genuine Volvo Bolt-on edges are made of high-quality steel with consistent thickness over the full width and length of the component. What’s more, they are reversible for longer life. The result is an improved component lifespan – increasing uptime, boosting productivity, and lowering operating costs.

Heavy duty applications

Boost the durability of your bucket with a range of retrofit wear parts designed to enhance the strength and performance of your bucket in heavy duty applications, including:

  • Side Shrouds
  • Bottom Corner Shrouds
  • Kickers
  • Chocky bars
  • Inside Liners.
Volvo Breaker Tools

Specially designed and manufactured to be compatible with the tool bushings, tool retaining pins and piston, Volvo Breaker Tools are essential to achieving optimum performance from your Volvo breaker. Featuring optimized tool hardness according to the application at hand, our range of Volvo Breaker Tools includes:

  • Pyramid moil
  • Moil
  • Chisel
  • Blunt
  • Compacting plate
  • Spade.
