Large Wheel LoadersL90H

  • 2.7 - 9.2 yd³
  • 31,968 - 38,140 lbs
  • 22,620 lbs

Drive productivity up and operating costs down with the updated L90H, packed with innovative features. Offering 3% more tipping load and 75 mm (3 in)... Read more

Request Machine Information Download the L90H brochure, with all the details and specifications. (PDF, 20.2MB) More specifications and competitor comparison
Overview

Fully loaded for efficient operations

Drive productivity up and operating costs down with the updated L90H, packed with innovative features. Offering 3% more tipping load and 75 mm (3 in) greater lifting height, the L90H is versatile and fast, with an increased top speed of 50km/h (31 mph) - facilitated by the optional lock-up function. And with up to 20% greater fuel efficiency, the upgraded L90H is fully loaded to do more, while using less.

Specifications

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Static tipping load at full turn 22,620 lbs
Bucket capacity 2.7 - 9.2 yd³
Log grapples 1.55 - 2.9 yd²
Operating weight 31,968 - 38,140 lbs
Breakout force 28,430 lbf
Engine Volvo D6J
Max power at 1,900 rpm
...SAE J1995 gross 184 hp
...ISO 9249, SAE J1349 net 184 hp
Max torque at 1,400 rpm
...SAE J1995 gross 689 lbf ft
...ISO 9249, SAE J1349 net 689 lbf ft
Tires 20.5R25

Based on machine configuration: 2.8 m3 (3.7 yd3) STE HO BOE bucket

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Features
Volvo wheel loader L90H T4F

Loaded with versatility

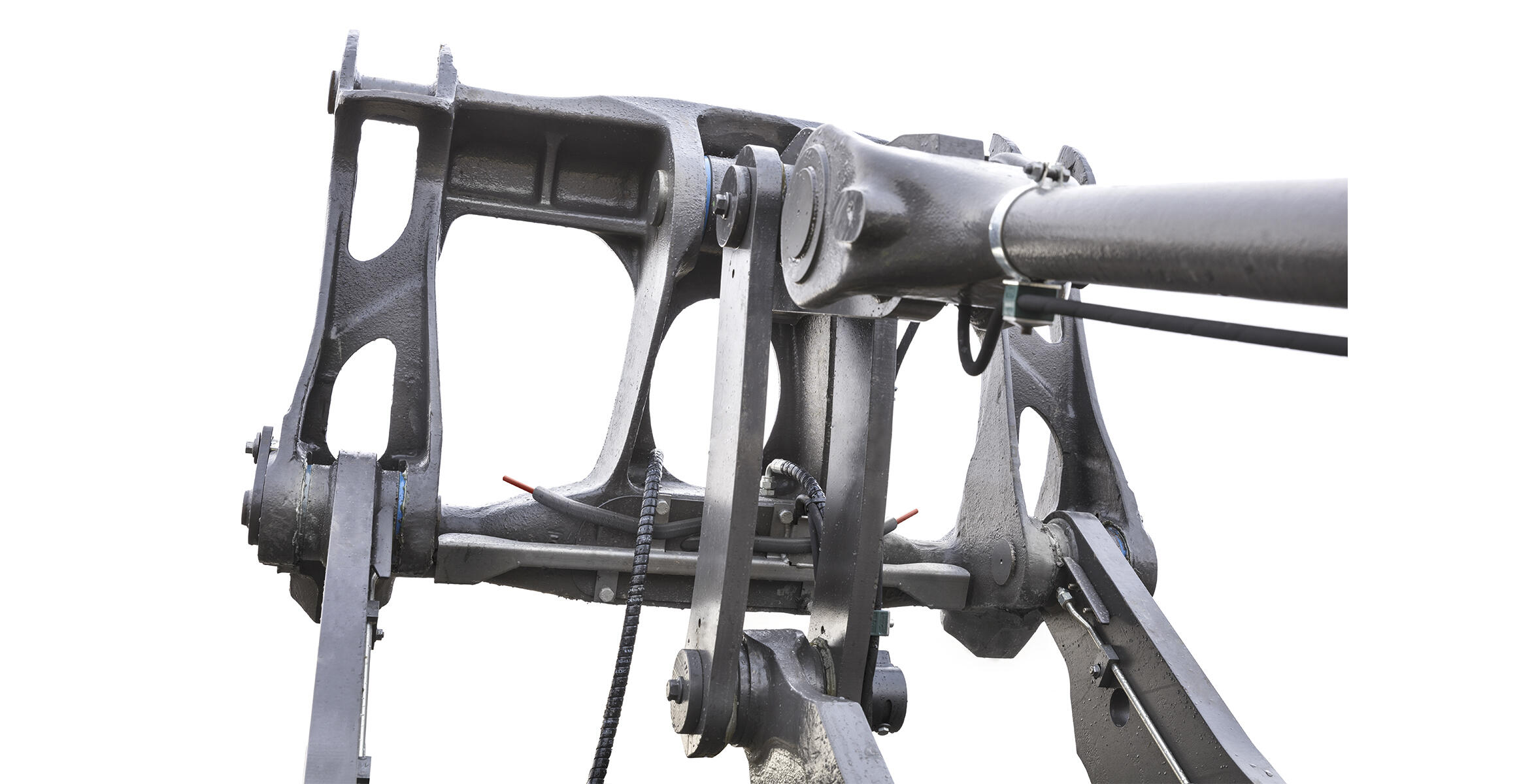

Take on any application with the H-Series wheel loaders, equipped with the Torque Parallel (TP) linkage for ultimate versatility. Not only does the TP linkage offer high breakout, tilt in and lifting forces, it keeps the attachments parallel throughout the lifting range for exceptional load stability and easy bucket filling. Change tools in a matter of seconds with the Volvo attachment bracket.
Volvo wheel loader L90H T4F

Up to 20% more efficient

Achieve up to 20% greater fuel efficiency thanks to advanced features, such as Eco pedal and the new optional lock-up function. The lock-up feature eliminates losses in the torque converter by creating a direct drive between the engine and transmission, which work in harmony with the axles. To improve cycle times and fuel use, customize the lock-up engagement of your machine.
Volvo wheel loader L90H T4F

No compromise on comfort

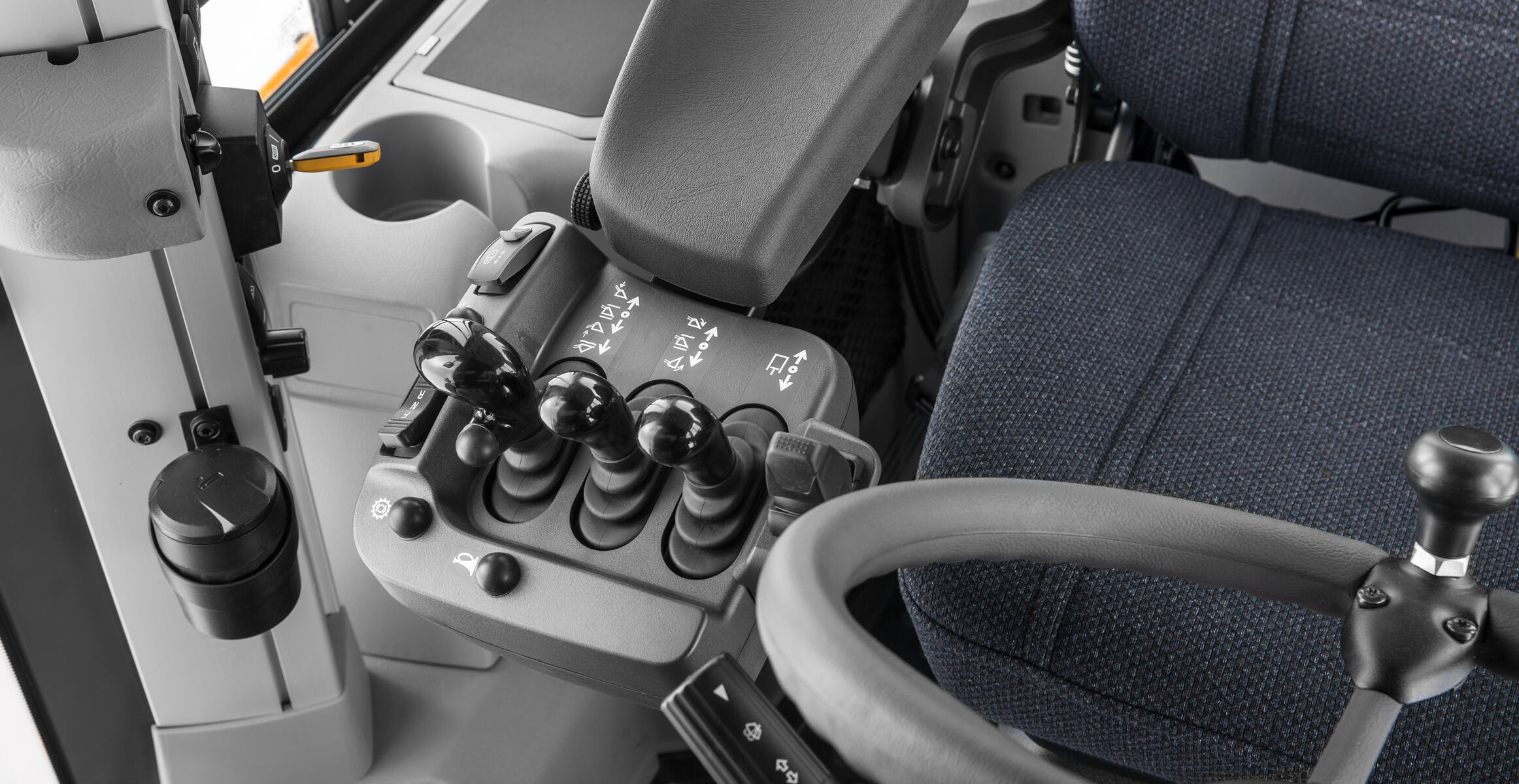

Hard work has never felt so easy from the spacious of the Volvo cab, featuring your choice of comfortable operator seat, as well as ergonomic controls. Perform basic configurations using the information panel, and keep an eye on the operation with the Contronic display.

Load Assist

Gain access to a set of smart apps and boost the efficiency of your operation with Load Assist, powered by the 10” Volvo Co-Pilot monitor.
Volvo wheel loader L90H T4F

Durable by design

Built by Volvo, for Volvo, you can count on the proven design of the latest wheel loaders to meet the demands of tough job sites. Renowned for their reliability, the next-generation H-Series wheel loaders are built with an industry-leading, strong frame, which, combined with the ideally-matched genuine Volvo drivetrain, achieves long-lasting performance.
Attachments

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
