New

Compact Wheel Loader L30

Stage V / Tier 4f Emission Standards
1.3 yd³ Bucket capacity
12,125 lbs Operating weight
74 hp Engine gross power

Download the L30 brochure, with all the details and specifications. (PDF, 555.4KB)

More specifications and competitor comparison

Flexibility. Speed. Ease of operation.

First launched in 1998, the Volvo L30 Compact Wheel Loader has established itself as a proven favourite in the industry with a reputation for class-leading ground clearance, powerful performance and the best cab in the industry. With excellent flexibility and compact dimensions, the L30 builds on this proud tradition with a host of upgrades to present customers with a Compact Wheel Loader ready to succeed when working in tight spaces and uneven terrain – designed for uptime and featuring the visibility, comfort and control operators need to achieve optimum results.

Awards, offers & campaigns

Rates as low as 0% for 60 months on new Volvo compact wheel loaders

Let’s Talk

Technical specifications for L30

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Engine	D3.3H
Engine gross power	74 hp
Bucket capacity	1.3 yd³
Tipping load (ISO/DIS 14397-1)	8,488 lbs
...at full turn	40 °
Breakout force	13,713 lbf
Hydraulic lifting capacity, max	12,814 lbf
Fork payload 80%	5,291 lbs
Operating weight	12,125 lbs
Maximum travel speed - Standard	12 mph
Maximum travel speed - High speed	19 mph

Based on L30H with cabin, 365/80 R20 tires and 1.1 m³ / 1.44 yd³ General purpose bucket.

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the L30 brochure, with all the details and specifications. (PDF, 555.4KB)

Features & Benefits

Discover the Volvo L30 Compact Wheel Loader, ready to take on uneven ground and tight spaces with high clearance, strong traction and fast cycles.

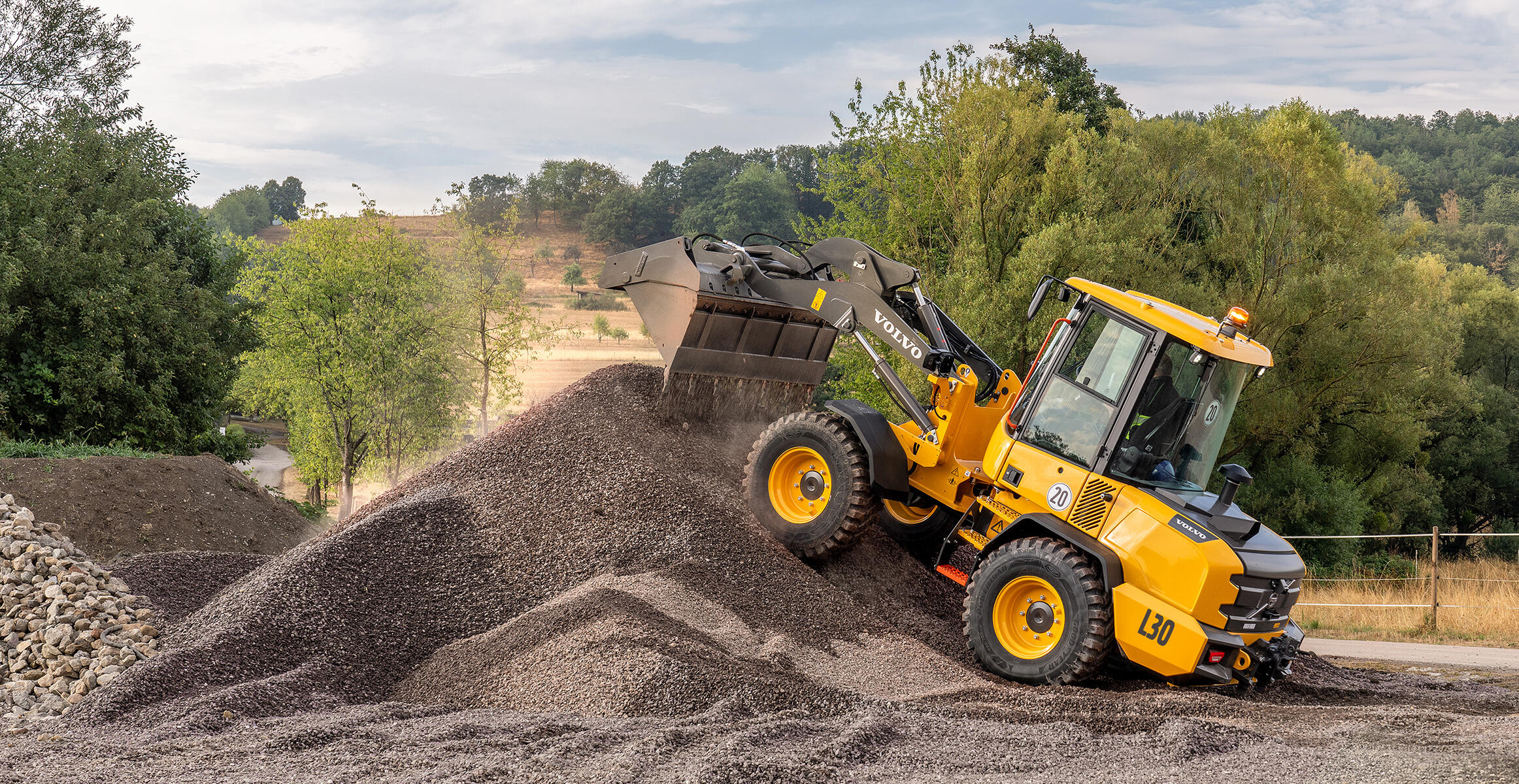

Volvo L30 Compact Wheel Loader driving over an aggregate pile on uneven terrain.

Highest ground clearance in its class

With the best ground clearance in its class, thanks to Volvo’s unique portal axles design, the L30 is especially suited to uneven ground conditions.

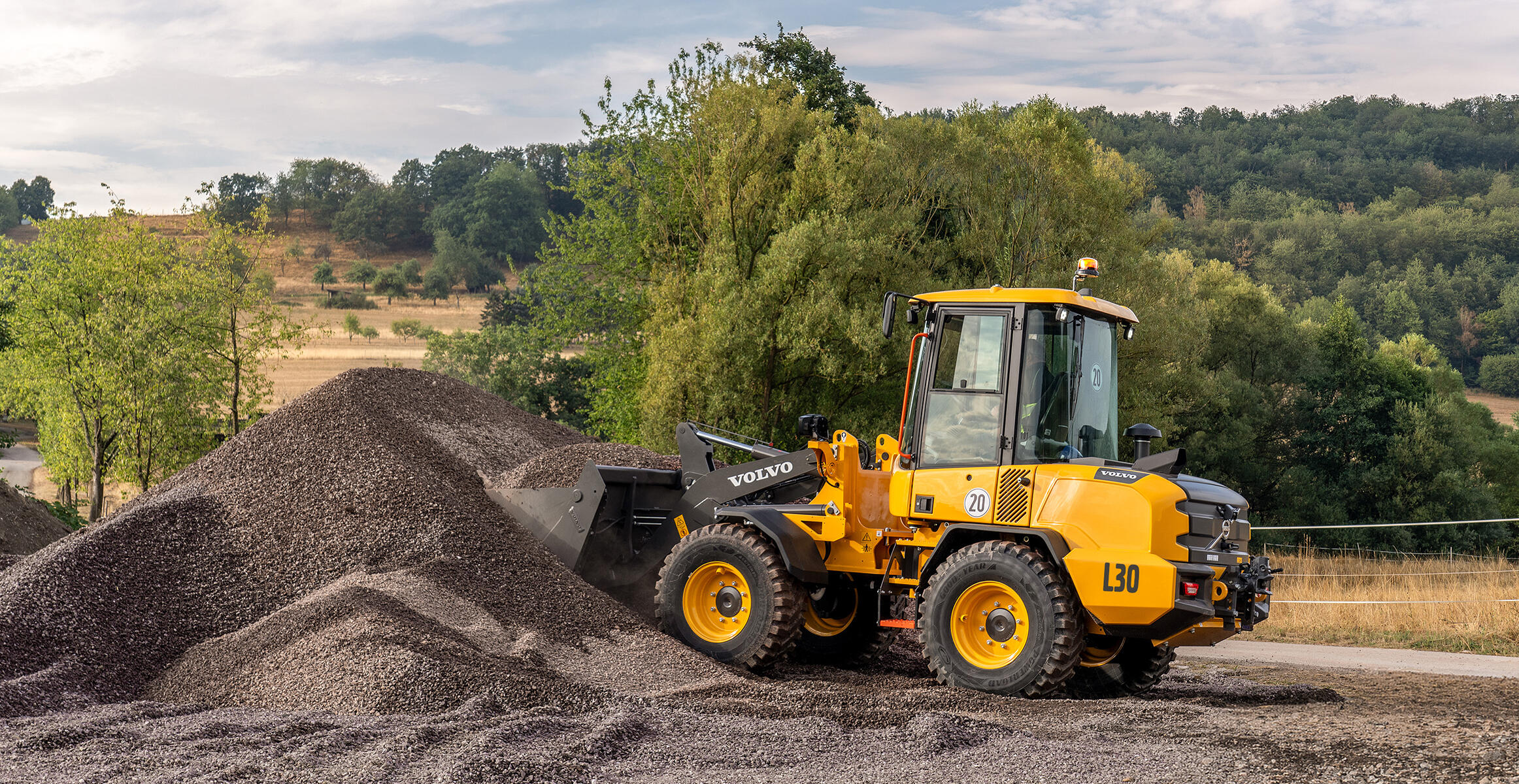

Volvo L30 Compact Wheel Loader working beside an aggregate pile on rough terrain.

Elite performance on difficult terrain

Built for working in tough conditions, the L30 compact wheel loader benefits from an articulated and oscillating joint which secures tires-to-ground contact – hence maximum traction. In addition, differential locks can be engaged to ensure that 100% power is distributed to every wheel, reducing tire slippage and wear.

Rear of the Volvo L30 L35 Compact Wheel Loader showing prepared mounting points for rear attachments.

Superb flexibility

The versatile L30 combines with a wide range of Volvo Attachments to bring outstanding flexibility to your operation – helping you to get the job done. What’s more, the rear frame design with pre-prepared rear mounting points enables direct mounting of rear equipment, enhancing the flexibility and versatility of the machine. Simple ‘plug & play’ installation of rear-mounted attachments facilitates quick and easy attachment changes and greater machine utilization across different tasks and applications.

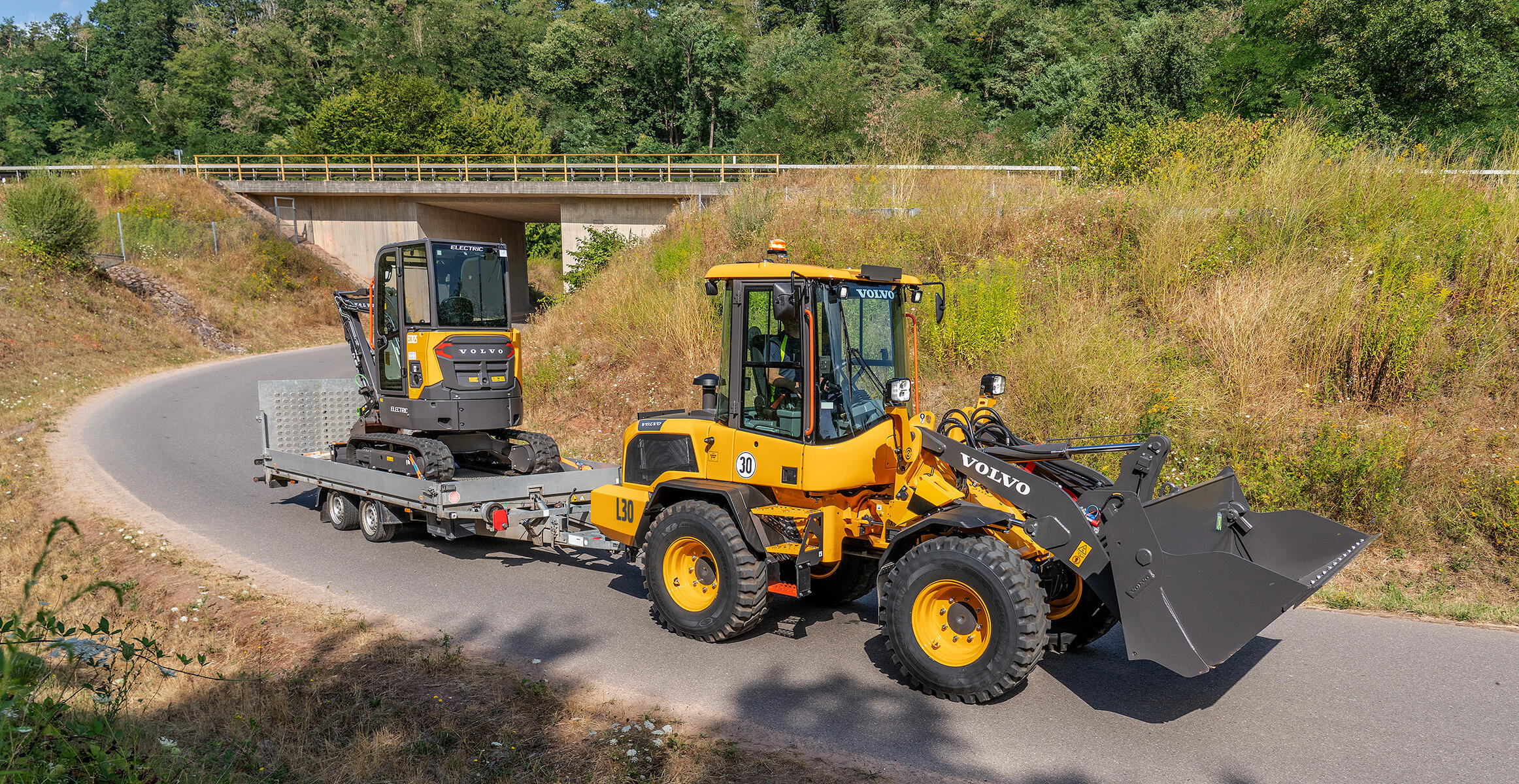

Volvo L30 Compact Wheel Loader towing a trailer carrying a compact excavator.

Small but powerful

The L30 is built to lift high loads in tight corners. It features a powerful linkage as well as superior rollback/dump angles to ensure excellent material retention and quick unloading. Lighter than the previous generation with no reduction in performance, the small but tough L30 delivers the tractive, breakout and lifting forces more commonly found on larger loaders.

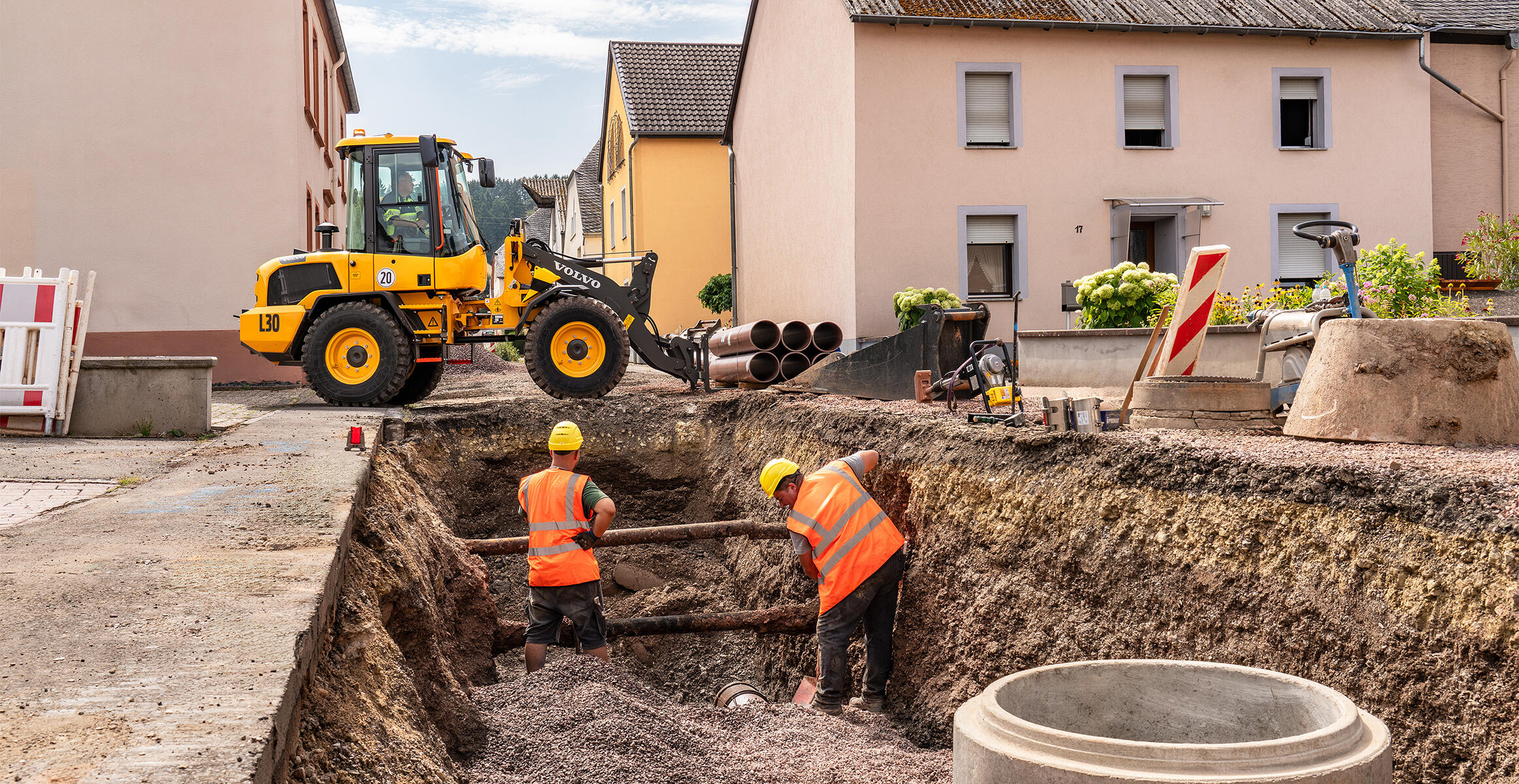

Volvo L30 Compact Wheel Loader working on a confined construction site beside a trench.

Responsive performance, faster cycles

The electro-hydraulic main control valve with flow share function and two independent hydraulic pumps enable smooth, simultaneous boom, steering and attachment movements with no impact on boom speed. Combined with compact dimensions for tight spaces and proportional third/fourth functions for quick attachment connection and excellent flexibility, the L30 helps deliver short, efficient work cycles.

Keep your L30 moving thanks to long service intervals, easy service and maintenance and enduring Volvo quality. Find out more.

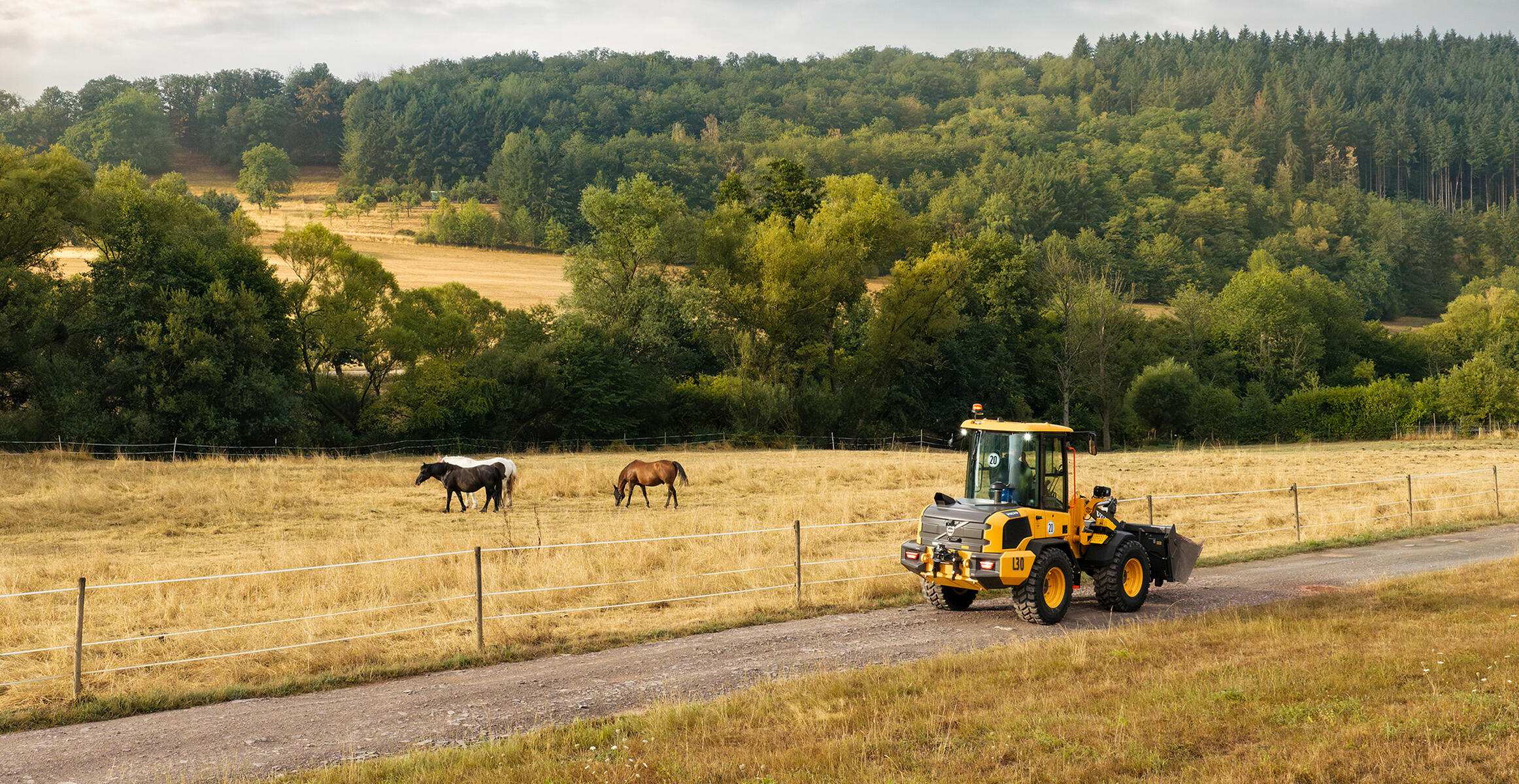

Volvo L30 Compact Wheel Loader operating on a rural jobsite beside a pasture.

Built for uptime

With long service intervals, easy in-cab machine monitoring, improved service access and connected services, the Volvo L30 Compact Wheel Loader is built to help minimize maintenance requirements and maximize uptime. Key machine conditions, including coolant and hydraulic temperatures, engine speed and fan speed, can be checked directly from the in-cab display, while telematics-based solutions help reduce the risk of unplanned downtime.

Close-up of protected connection points on the Volvo L30 and L35 Compact Wheel Loaders.

Durability and uptime built to last

Designed around a strong and stable machine platform, the robust frame and components of the L30 deliver the enduring Volvo quality for which Volvo Compact Wheel Loaders are renowned.

Volvo L30 L35 Compact Wheel Loader with its lifting arms raised for service access.

Excellent service access

When the time comes, service points are easily accessible from ground level for faster service and maintenance, contributing to higher uptime. Split, side-mounted counterweights allow easy access to key components; larger service openings provide improved access to main components, along with improved routing and access to hoses and cables.

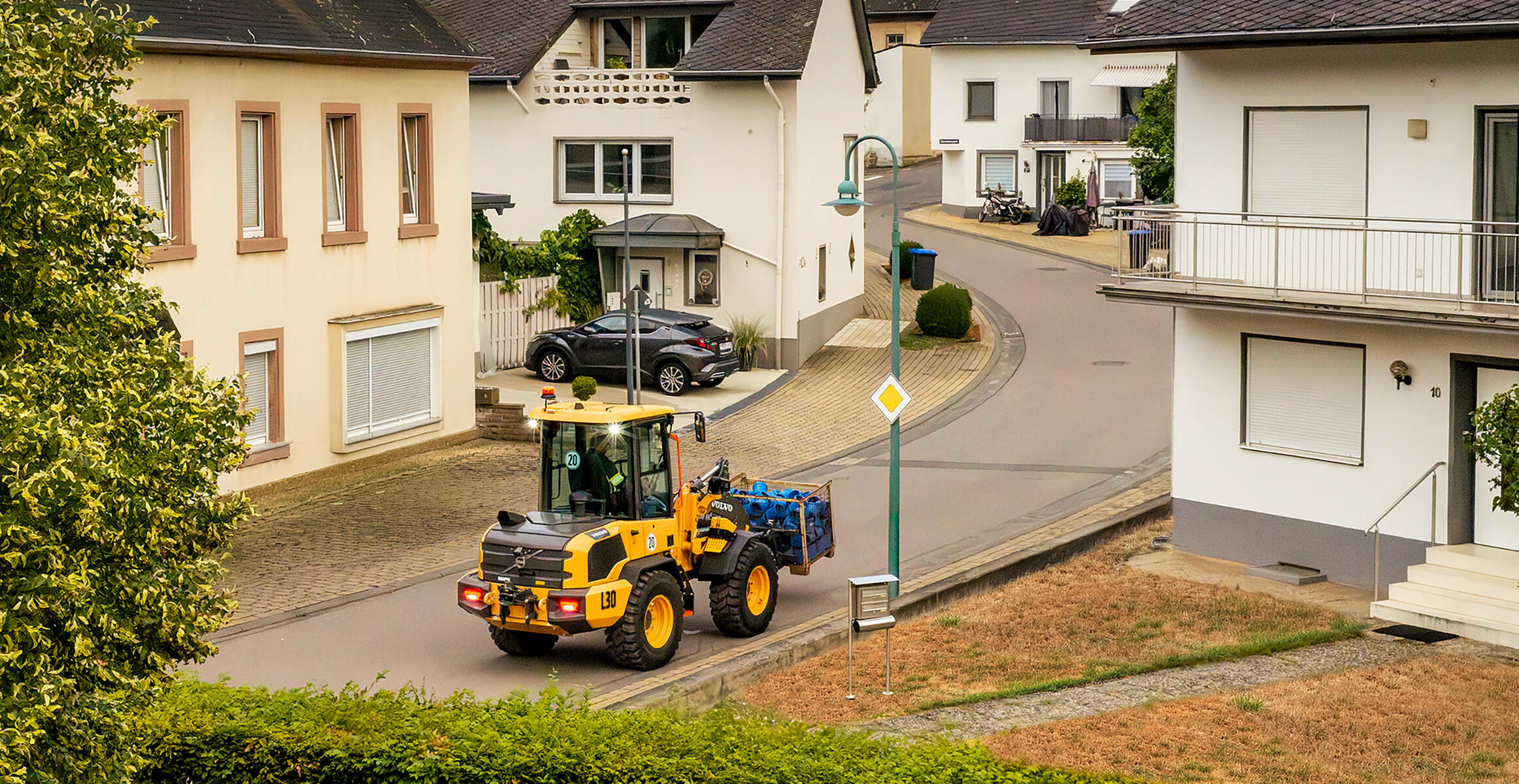

Volvo L30 Compact Wheel Loader working in a confined residential jobsite.

As versatile as your requirements

The L30 is prepared for additional hydraulic and electrical options, such as rear hydraulics and trailer socket, for quick and easy retrofitting as operational needs evolve. The result is a lower upgrade cost, reduced downtime and a broader range of business opportunities.

Find out how the L30 lets you work comfortably and confidently with easy cab access, clear visibility and intuitive control.

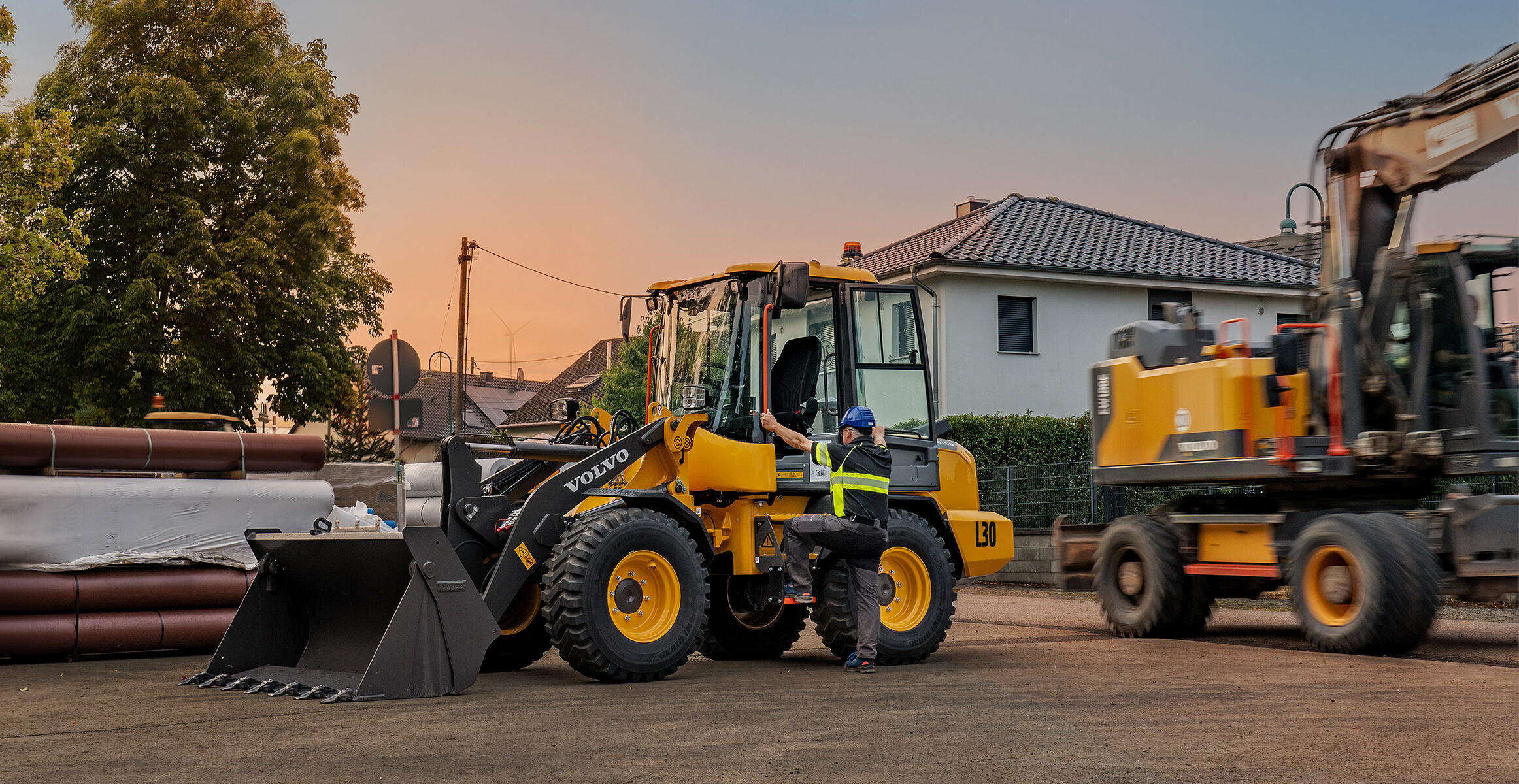

Volvo L30 Compact Wheel Loader operating in a construction yard with another loader nearby.

Industry-leading operator environment and visibility

The Volvo L30 Compact Wheel Loader is designed for operator comfort, starting with its easy cab access, ergonomic arrangement of controls and unrivalled view over the jobsite. Functions are easily set from the 5” display, including individual flow settings for 3rd and 4th functions, the automatic lift and tilt with boundary limits, and the lift and tilt speed limiter, which are unique options in this size class.

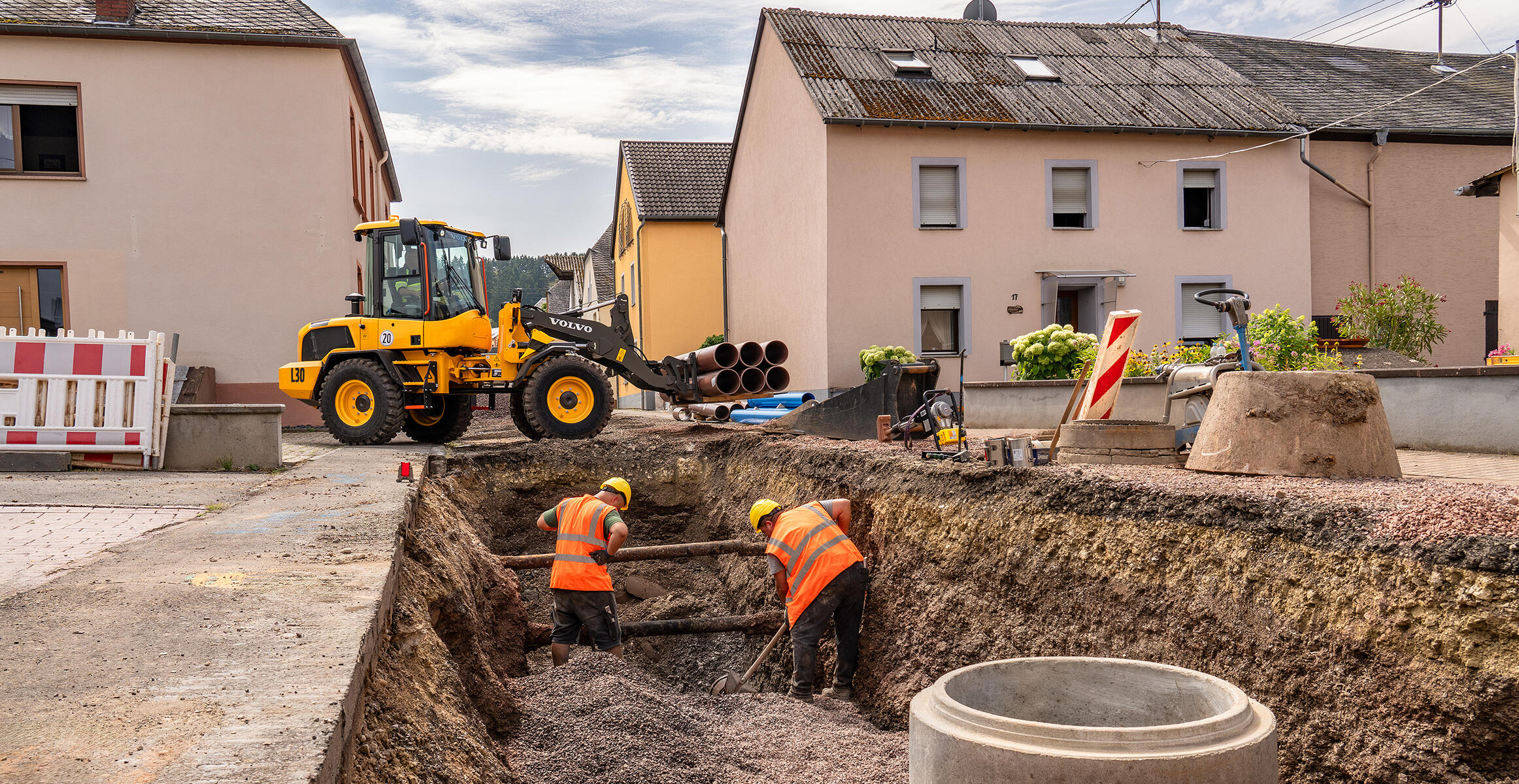

Volvo L30 Compact Wheel Loader working close to a trench on a confined construction site.

Work in comfort

The L30 cab combines easy access, low in-cab noise and excellent all-around visibility and intuitive controls together in a comfortable, modern environment, complete with a host of modern conveniences including comprehensive storage options and cupholder. With key functions set from the in-cab display, operators can work with greater confidence, precision and less fatigue throughout the day.

Volvo L30 L35 Compact Wheel Loader operating across an open rural jobsite.

Best-in-class visibility

With best-in-class visibility and a higher operator position than comparable machines, the L30 gives operators a clear view of the jobsite and the task at hand. Whether loading trucks, working in tight spaces or placing materials with precision, operators can stay in control and work more safely and efficiently.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
