Boost your efficiency with the EC350E excavator

Large Crawler Excavators EC350E

78,940 - 92,760 lbs Operating weight
303 hp Gross power
1.1 - 2.5 yd³ Bucket capacity

Introducing the new EC350E Excavator from Volvo Construction Equipment, these powerful production machines are designed to increase your productivity. Featuring a robust D13 Tier 4 Final engine, a new electro-hydraulic control system and Volvo's unique ECO mode, these heavy-duty excavators deliver... Read more

Request Machine Information

Download the EC350E brochure, with all the details and specifications. (PDF, 2.6MB)

More specifications and competitor comparison

Boost your efficiency with the EC350E excavator

Technical specifications for EC350E

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight	78,940 - 92,760 lbs
Gross power	303 hp
Engine speed at max engine torque	1,700 rpm
Bucket capacity	1.1 - 2.5 yd³
Lifting capacity, along undercarriage	23,990 lbs
...at reach / height	20 / 5 ft
Max. digging reach	36′ 10″ ft in
Max. digging depth	24′ 11″ ft in
Breakout force, SAE J1179 (Normal)	44,510 lbf
Breakout force, SAE J1179 (Boost)	48,335 lbf
Tear out force, SAE J1179 (Normal)	44,040 lbf
Tear out force, SAE J1179 (Boost)	47,860 lbf
Overall width feet inches	11′ 1″ ft in
Tail swing radius	11′ 10″ ft in

Based on machine configuration: 6.45m boom, 3.2m arm, long Crawler, 6700kg CWT

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the EC350E brochure, with all the details and specifications. (PDF, 2.6MB)

Features & Benefits

Volvo's D13 Tier 4 Final engine boasts more power while reducing both fuel consumption and emissions and delivering superior quality, reliability and durability.

NON-STOP PRODUCTIVITY

Experienced and skilled Volvo engineers have developed and rigorously tested Tier 4 Final engine systems that deliver the ultimate combination of high productivity and low fuel consumption. Benefit from Volvo's signature high torque at low rpm and experience superior performance and reduced fuel consumption.

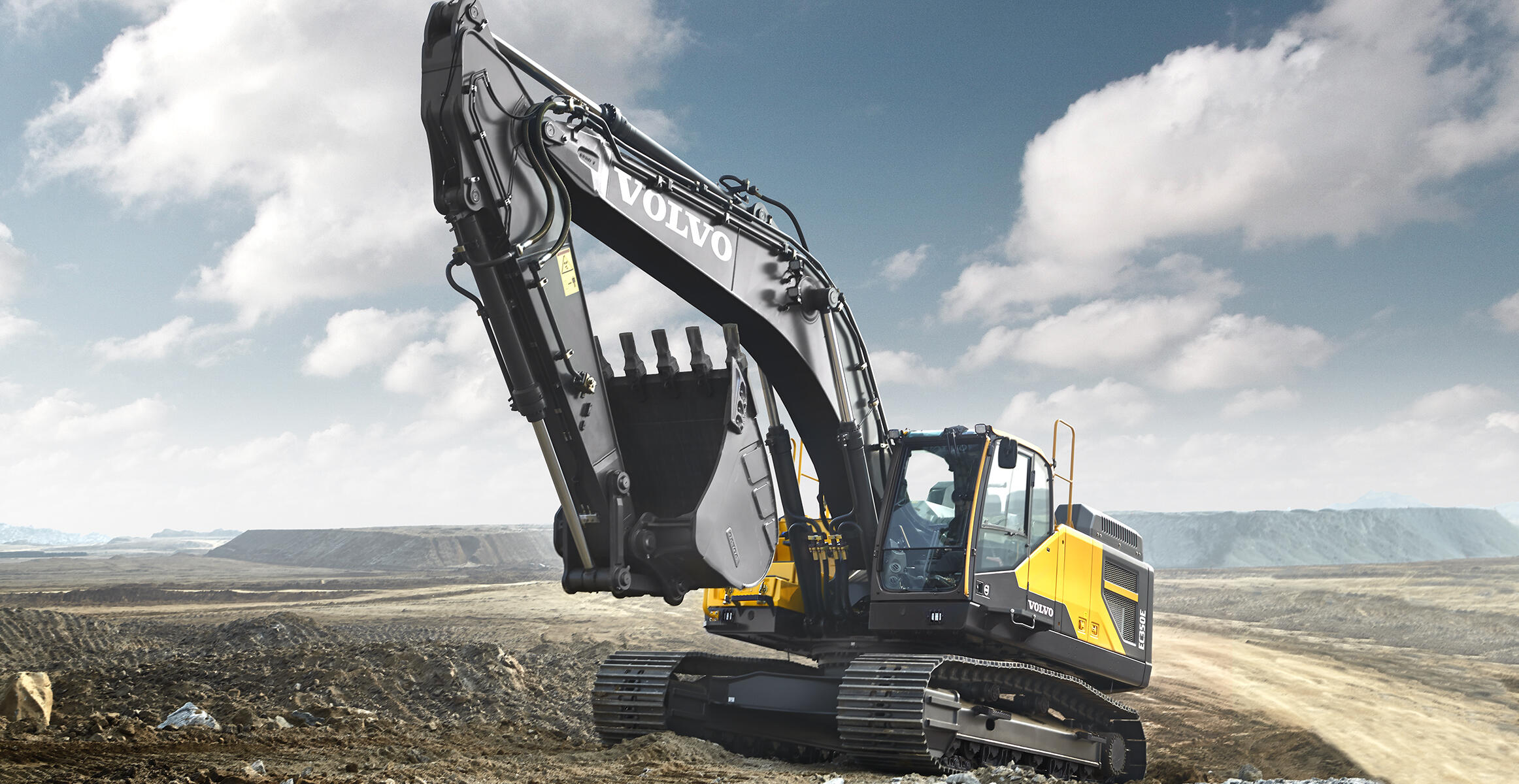

The undercarriage components are reinforced to ensure long life, high uptime and ultimate durability in tough conditions

BUILT TO LAST

From quarries to mass excavation, these heavy-duty production machines have been built to work on tough job sites. Featuring a robust, reinforced structure and high quality welding, the EC350E and EC380E boast superior strength and durability. Experience reliability you can count on with Volvo.

The radiator, charged air cooler and hydraulic oil cooler are situated side-by-side on a single layer to maximize efficiency, reduce blockages and aid cleaning.

UP YOUR UPTIME

At Volvo we believe that maintaining your machine should be as quick and easy as possible. That's why our designers and engineers have developed innovative methods to make maintenance easy. With large, wide opening compartment doors and grouped service points, checks will be carried out faster and you'll get the most out of every operating shift.

Volvo's durable attachments have been purpose-built to deliver maximum productivity and long service life in combination with Volvo machines.

THE PERFECT MATCH

Maximize your productivity and profitability with the EC350E and EC380E and Volvo's durable range of attachments. Increase your versatility, access more applications and effectively perform a variety of tasks – all while experiencing faster cycle times and excellent control. Get the most out of your excavator with Volvo.

Volvo's unique ECO mode improves fuel efficiency without any loss of performance in most operating conditions.

ELITE EFFICIENCY

Fuel efficiency is at the center of the EC350E and EC380E excavators. With advanced technology including Volvo's unique ECO mode and a new electro-hydraulic control system, these high production machines deliver up to 9% greater fuel efficiency. Experience efficient production at its best with Volvo.

All machine interfaces are ergonomically positioned and designed for optimum control and efficiency.

BOOST YOUR PRODUCTIVITY

It's a fact that operators work more efficiently when they're given the best tools for the job. That's why, on top of being a superior production machine, the EC350E and EC380E have an ergonomic design with ideally placed controls and switches. With built in comfort and optimized control, operators will work efficiently and productively all day long.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
