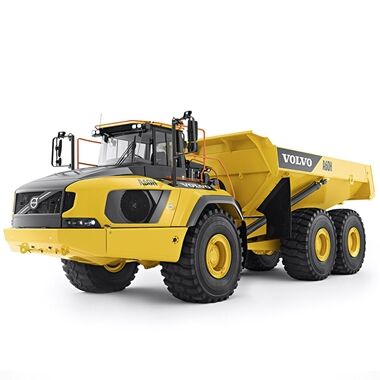

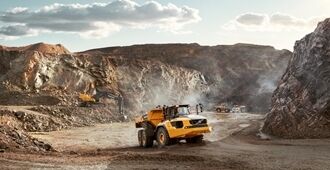

Articulated Hauler A60H

Stage V / Tier 4f Emission Standards
61 sh tn Payload capacity
630 hp Max engine gross power
43.9 yd³ Body volume, SAE 2:1 Heap

Download the A60H brochure, with all the details and specifications. (PDF, 841.6KB)

More specifications and competitor comparison

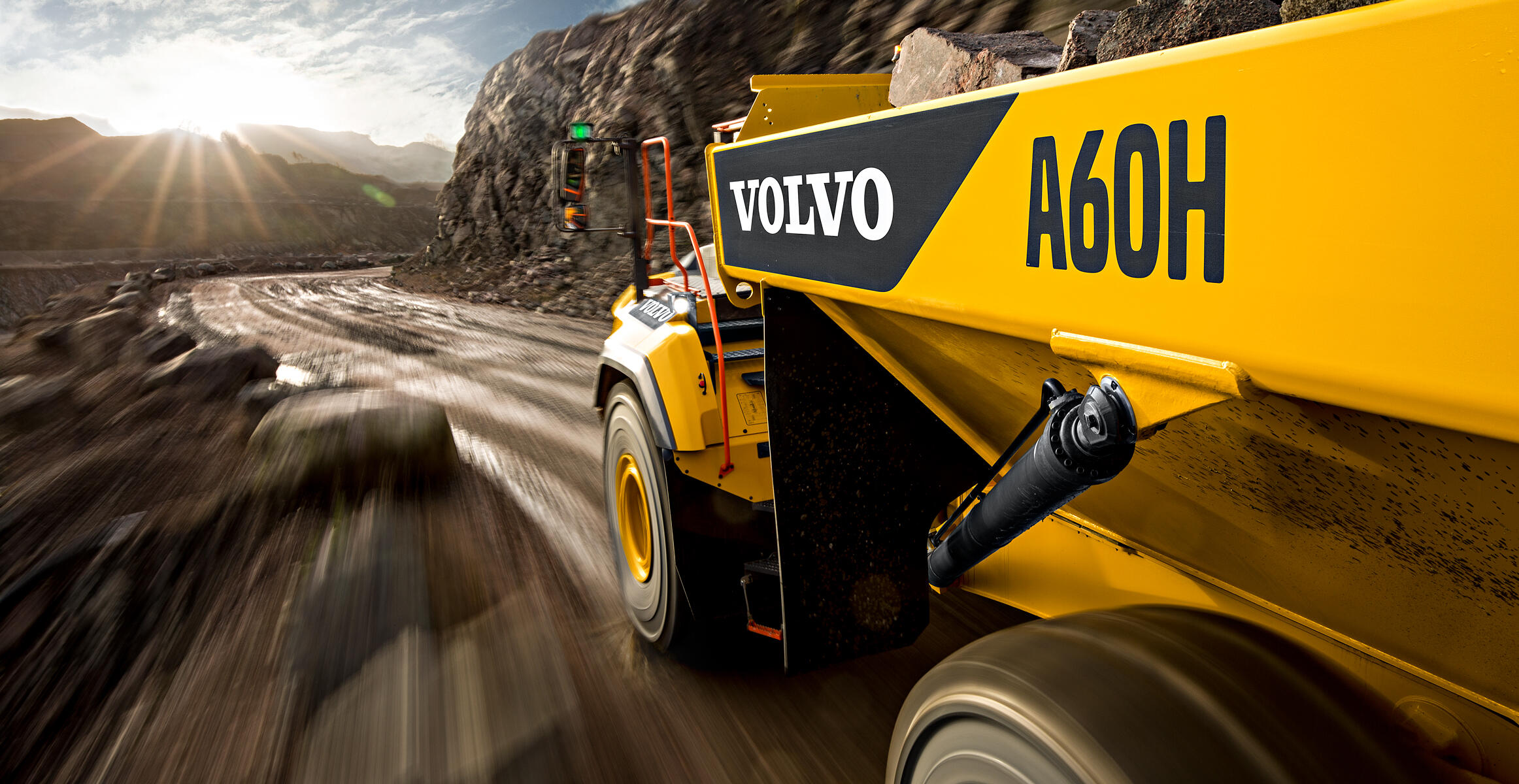

Simply the best and the biggest

Since introducing Gravel Charlie, the world’s first series manufactured articulated hauler, Volvo has consistently led the way when it comes to pioneering technology which delivers the ultimate in sustainable performance. The A60H – the largest articulated on the market – is the latest step on that journey and the newest addition to the Volvo Articulated Hauler range. With long service intervals, fast cycle times and an unrivalled operator experience, this is a machine which delivers the lowest possible cost per tonne.

Technical specifications for A60H

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Payload capacity	61 sh tn
Body volume, SAE 2:1 heap	43.9 yd³
Net weight	96,452 lbs
Gross weight	217,706 lbs
Engine	Volvo D16J
Max engine gross power	630 hp
...at engine speed	1,800 rpm
Max SAE J1349 gross torque	2,183 lbf ft
...at engine speed	1,050 rpm
Max speed	34 mph

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the A60H brochure, with all the details and specifications. (PDF, 841.6KB)

Features & Benefits

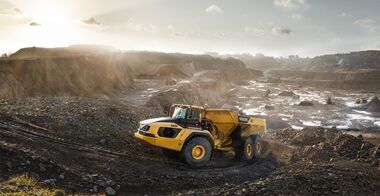

Increase uptime and reduce maintenance costs in the A60H, featuring extended service intervals, removed maintenance requirements and straightforward access to service points.

Keep on moving

Reduce your maintenance costs with the A60H. The Volvo Articulated Hauler requires greasing only every 250 hours – the best in the industry – for maximum uptime.

1,000hr engine service intervals

Take your uptime to 1000 thanks to Volvo Engine Oil and High Performance Filters, extending engine service intervals. The result is 50% less oil and filters, reducing maintenance requirements as well as your environmental impact.

Reduce oil volume by half

When measured over the lifetime of the machine, the A60H requires less than half the fluid volume compared to competition, benefitting both the environment and your operating costs.

Easy to service

Servicing your Volvo A60H is quick and easy thanks to industry leading service access and essential maintenance points accessible from the ground. The front grill swings down, opening a service platform with anti-slip steps and the electric hood opens to 90 degrees, allowing full access to the engine compartment.

Service alerts

Fluid levels are constantly monitored with timely service alerts displayed on the dashboard, helping you stay on top of maintenance requirements.

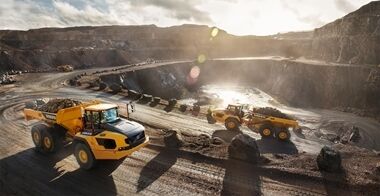

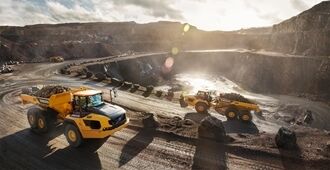

Reach your production targets faster and reduce your cost per tonne with the Volvo A60H.

Bigger and bolder

With 100% off-road performance, proven Volvo technology and impressive payload, count on the Volvo A60H to boost your profits / move more for less. The largest articulated hauler on the market offers up to 40% more productivity along with outstanding fuel efficiency.

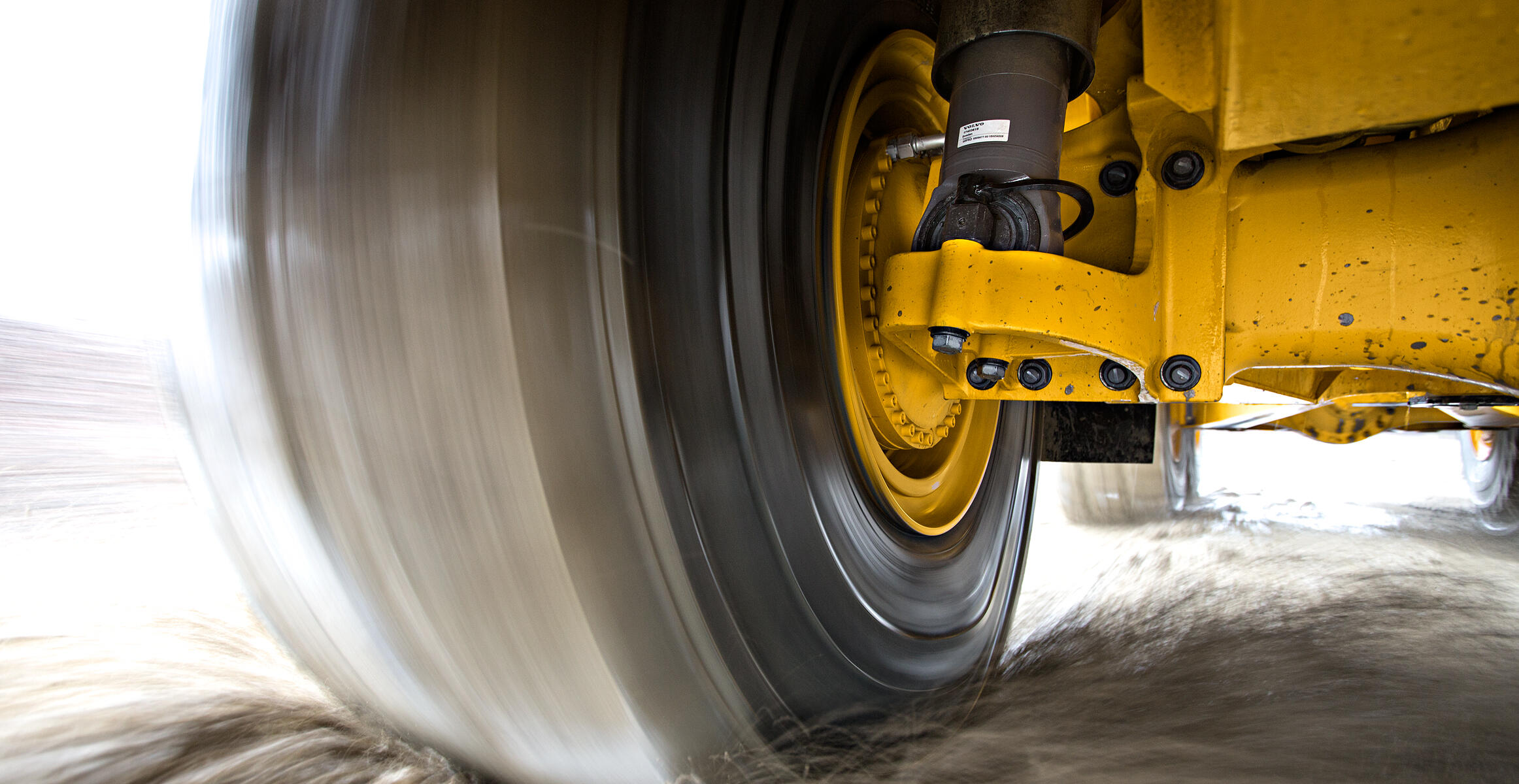

Comfort at speed

The A60H is fitted with active hydraulic front suspension – permitting high hauling speeds in tough conditions. This optimizes operator comfort and stability during travel.

Unbeatable off-road performance

The ground-breaking A60H is the best articulated hauler on the market. With matched drivetrain, automatic drive combinations including 100% differential locks, all-terrain bogie and hydro-mechanical steering, this machine is unbeatable.

Articulated hauler concept

Go where others can’t. The A60H embodies the full articulated hauler concept and provides total versatility so you can access the entire jobsite and climb steeper gradients. Work in all seasons, terrains and applications using tailored machine configurations and tires, optimized for this 60 tonne machine.

Its comfortable cab and ease of operation, even in adverse conditions, makes operators choose the Volvo A60H.

Operator's choice

The A60H is the number one operator’s choice because of its industry-leading spacious cab and comfortable work environment. Its superior comfort, control, ease of operation and safety appeals to operators, maintaining productivity all day, every day.

Total operator control

Stay in control at all times. The dump support system, dynamic Volvo engine brake, load and dump brake and hill assist, all help the operator to control the machine for extra productivity and safety.

Ease of operation

The ergonomic, comfortable and easy-to-understand controls are designed to suit all operators, combined with automatic functions for increased ease of operation.

Operator comfort

Feel comfortable and spend more time in the A60H. The centrally positioned operator, superior steering, excellent suspension, low noise levels, climate control, space and visibility reduce operator fatigue for more effective operations.

Safety first

Whether its operators, trainers, technicians or site workers – safety on site is of fundamental importance. In the A60H superior visibility and efficient lighting combine with features such as the brake test and dump support, helping to keep everyone working around the machine safe.

Size: 585.4KB | Resolution: 2324 x 1200 Download (585.4KB JPG)
Size: 581.6KB | Resolution: 2324 x 1200 Download (581.6KB JPG)
Size: 569.3KB | Resolution: 2324 x 1200 Download (569.3KB JPG)
Size: 518.9KB | Resolution: 2324 x 1200 Download (518.9KB JPG)
Volvo A60H articulated hauler: Unbeatable uptime

Keep costs low and uptime high in the A60H from Volvo. Equipped with heavy-duty front and rear frames, hitch and wet disc brakes, Volvo articulated haulers are built to work hard over a long service life. And with quick and easy access to servicing and routine maintenance checks, you can count on the A60H to get back to work as quickly as possible.
Volvo A60H articulated hauler: Operate comfortably

Maintain productivity all day, every day in the Volvo Care Cab, providing a spacious and comfortable work environment. Experience superior levels of comfort, control, ease of operation and safety with a centrally positioned adjustable seat, superb visibility, easy-to-use controls as well as noise and vibration insulation. Step inside and see for yourself why the Volvo Care Cab is operators' number one choice.
