CONSTRUCTION EQUIPMENT North America

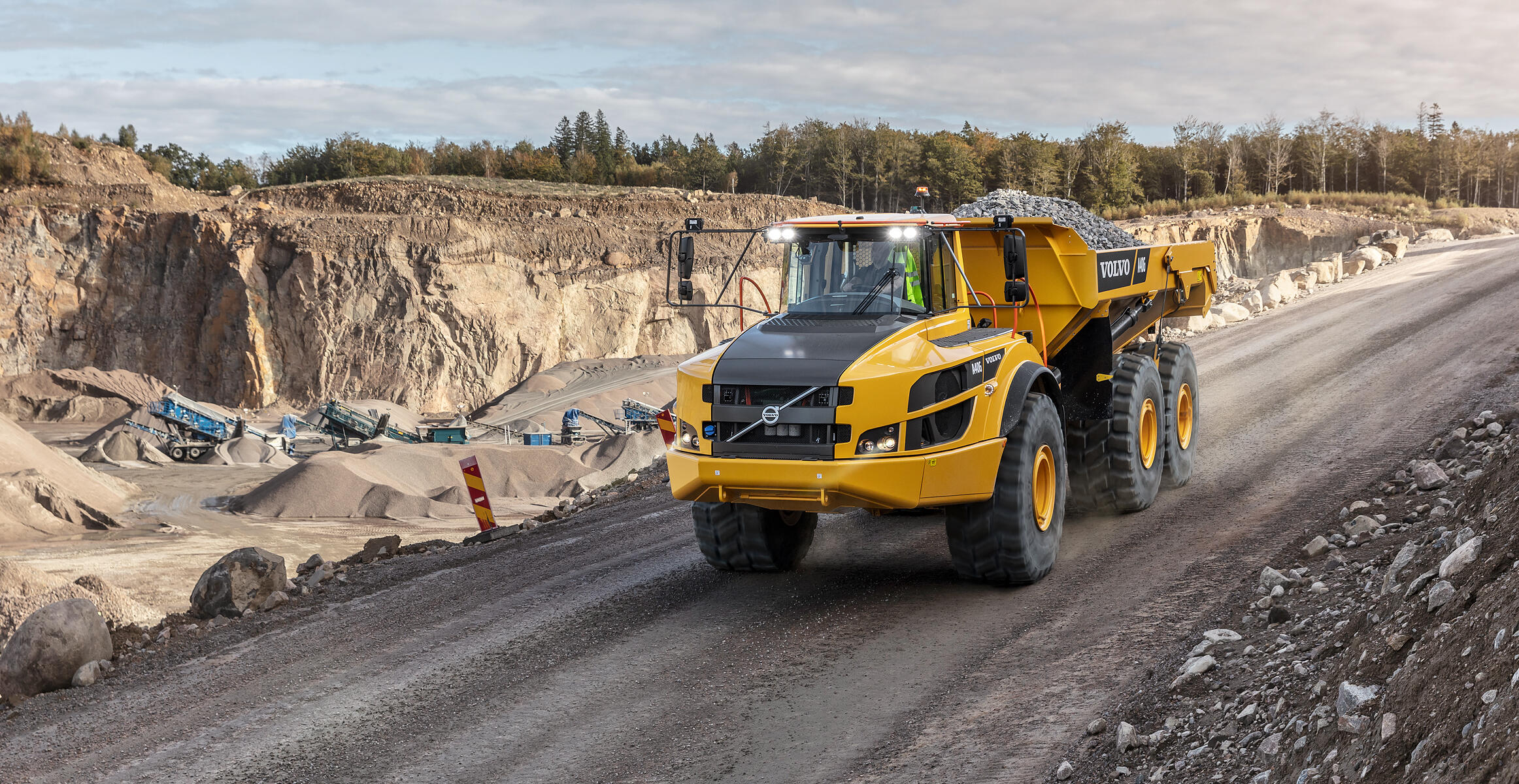

Articulated HaulersVolvo A35G

  • 38 sh tn
  • 26.8 yd³

With innovative features to help you tackle tough jobs, the A35G articulated truck provides the power, strength and reliability you need to maximize... Read more

Request Machine Information Download the A35G brochure, with all the details and specifications. (PDF, 1.4MB) More specifications and competitor comparison
Overview

Providing power

With innovative features to help you tackle tough jobs, the A35G articulated truck provides the power, strength and reliability you need to maximize your productivity.

Specifications

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Payload capacity 38 sh tn
Body volume, SAE 2:1 heap 26.8 yd³
Net weight 64,375 lbs
Gross weight 138,230 lbs
Engine Volvo D13J (Tier 4f / Stage IV)
Max engine gross power 447 hp
...at engine speed 1,902 rpm
Max SAE J1349 gross torque 1,741 lbf ft
...at engine speed 1,200 rpm
Max speed 35 mph

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Features
volvo dump truck a35g t4f

Articulation and oscillation joint

The connection between the tractor and the trailer unit has high ground clearance and a maintenance free rotating hitch design.
volvo dump truck a35g t4f

Volvo drivetrain

The ideally-matched, all-Volvo drivetrain with unique highground clearance inline dropbox, has been purposefully built for articulated trucks ensuring perfect harmony and optimized performance.
volvo dump truck a35g t4f

Operational data

Volvo offers machine owners, operators and service technicians access to a wealth of vital data that will control productivity and save money.
volvo dump truck a35g t4f

Service access

The front grill swings down, acting as a service platform with anti-slip steps. There is full, safe access to the engine compartment via the 90 degree tilting hood
volvo dump truck a35g t4f

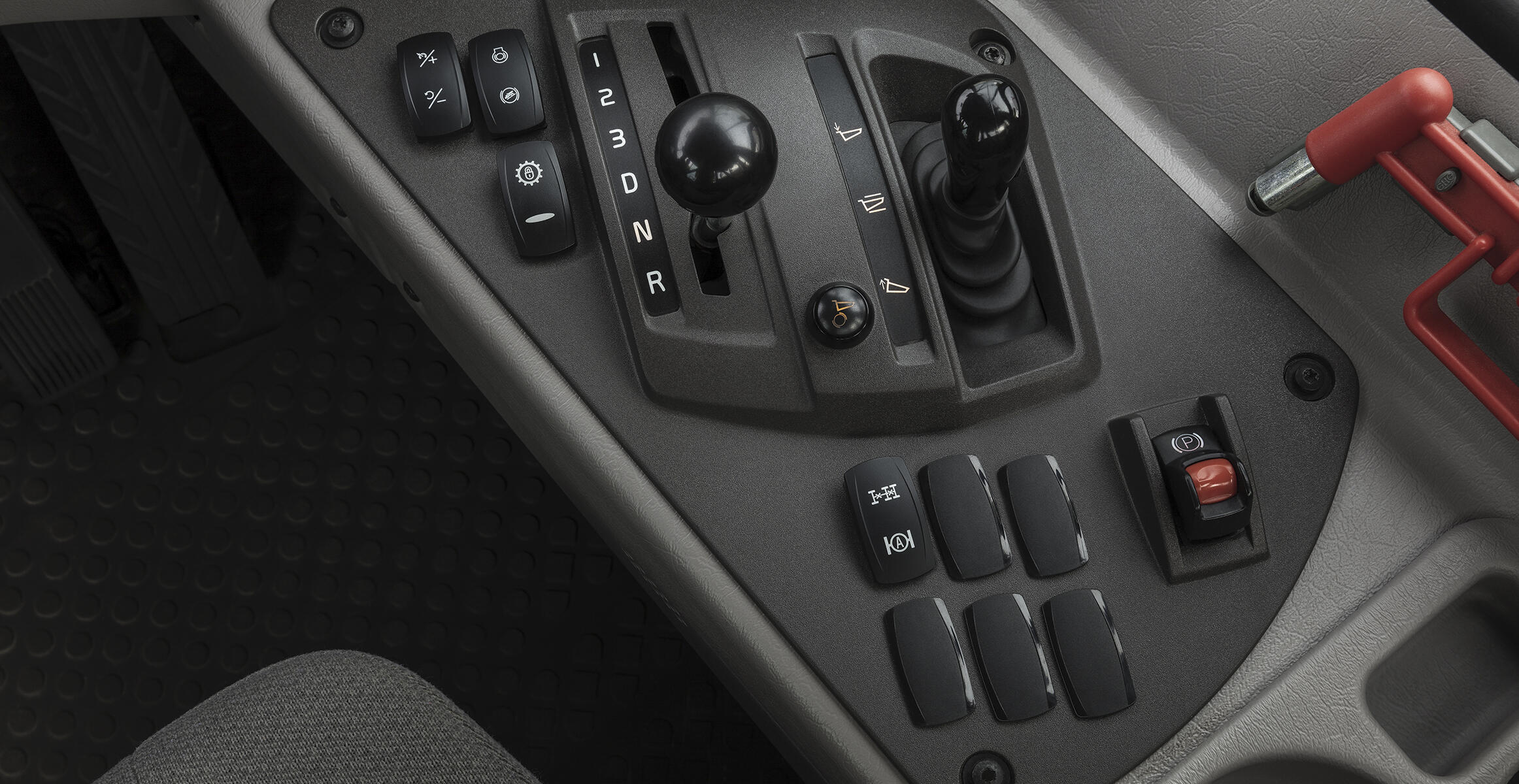

Volvo care cab

The centrally positioned operator station features ergonomically positioned controls, all-around visibility and low internal noise levels for high productivity throughout the shift.
