New

Compact Wheel Loader L35

Stage V / Tier 4f Emission Standards
1.2 m³ Bucket capacity
6,100 kg Operating weight
55.4 kW Engine gross power

With the best ground clearance in its class, thanks to Volvo’s unique portal axles design, the L35 is especially suited to uneven ground conditions.

More specifications and competitor comparison

Compact performance built for tough terrain

With the best ground clearance in its class, thanks to Volvo’s unique portal axles design, the L35 is especially suited to uneven ground conditions.

Technical specifications for L35

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Engine	D3.3H
Engine gross power	55.4 kW
Bucket capacity	1.2 m³
Tipping load (ISO/DIS 14397-1)	4,350 kg
...at full turn	40 degree
Breakout force	61 kN
Hydraulic lifting capacity, max	61.5 kN
Fork payload 80%	2,600 kg
Operating weight	6,100 kg
Maximum travel speed - Standard	20 km/h
Maximum travel speed - High speed	30 km/h

Based on L35H with cabin, 405/70 R20 tires Z-bar linkage and 1.2 m³ / 1.57 yd³ General purpose bucket and FEMIII forks.

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Features & Benefits

With the best ground clearance in its class, thanks to Volvo’s unique portal axles design, the L35 is especially suited to uneven ground conditions

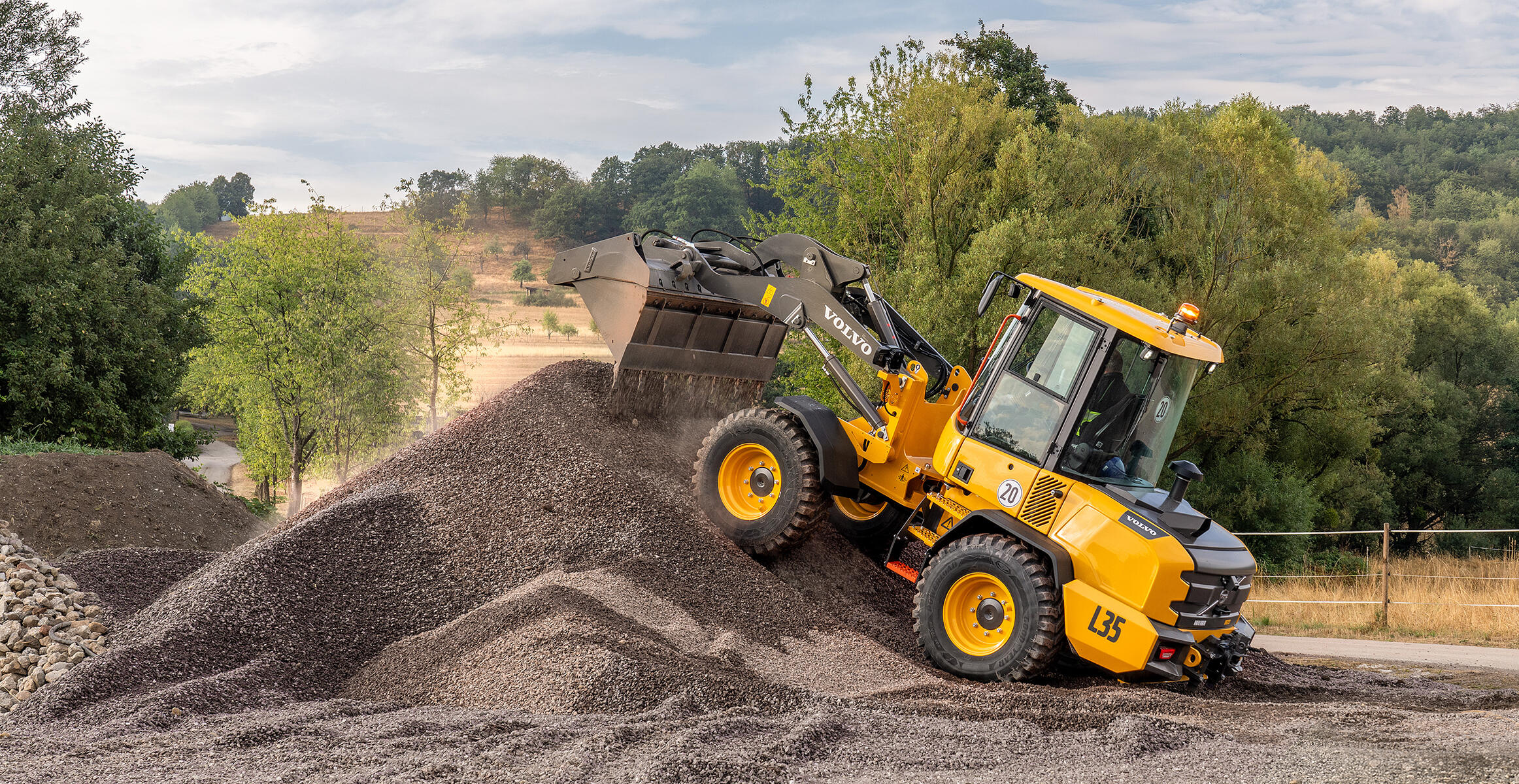

Volvo L35 Compact Wheel Loader driving over an aggregate pile on uneven terrain.

Best ground clearance in its class

Discover the Volvo L35 Compact Wheel Loader, ready to take on uneven ground and tight spaces with high clearance, strong traction and fast cycles.

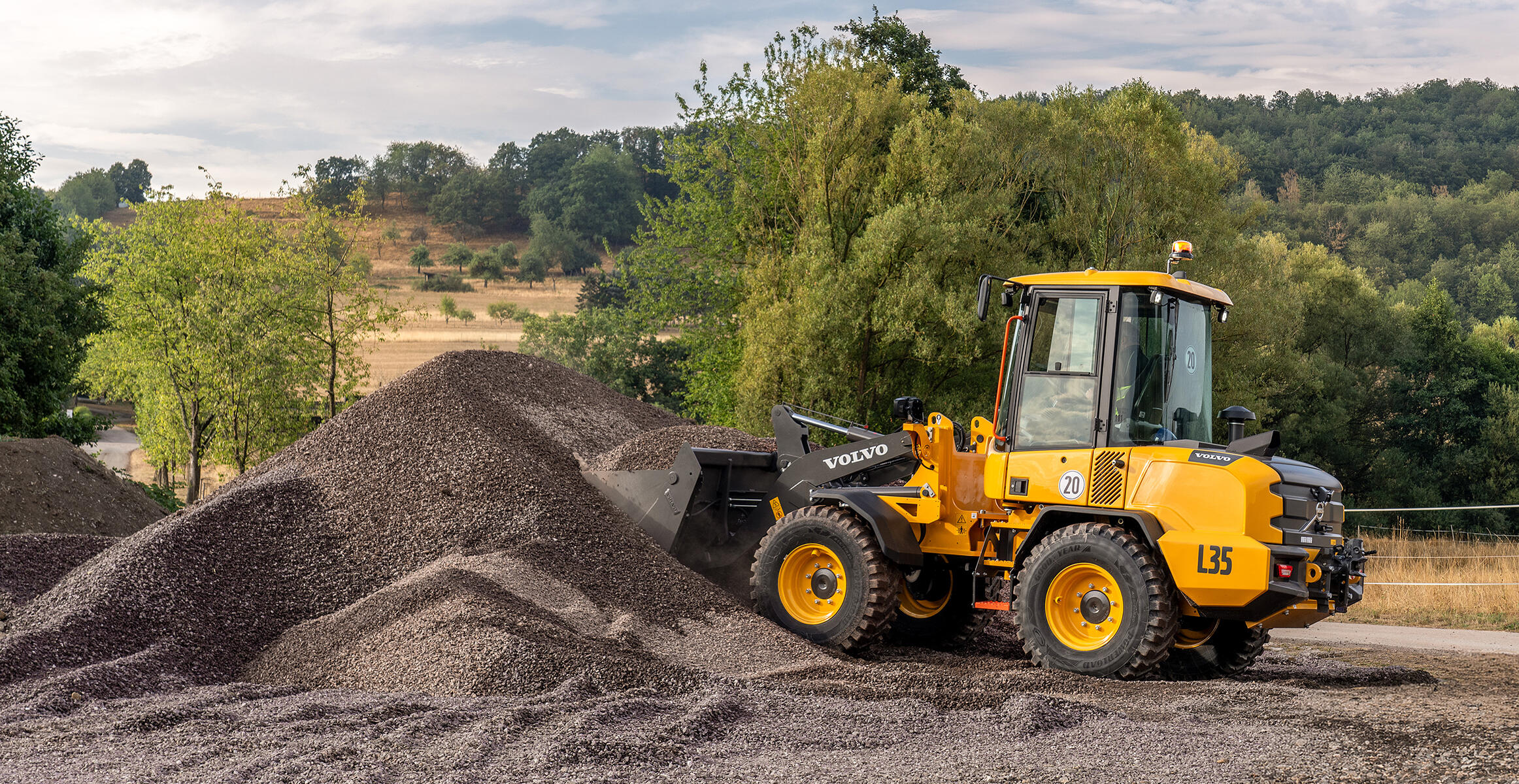

Volvo L35 Compact Wheel Loader working beside an aggregate pile on rough terrain.

Elite performance on difficult terrain

Built for working in tough conditions, the L35 compact wheel loader benefits from an articulated and oscillating joint which secures tires-to-ground contact – hence maximum traction. In addition, differential locks can be engaged to ensure that 100% power is distributed to every wheel, reducing tire slippage and wear.

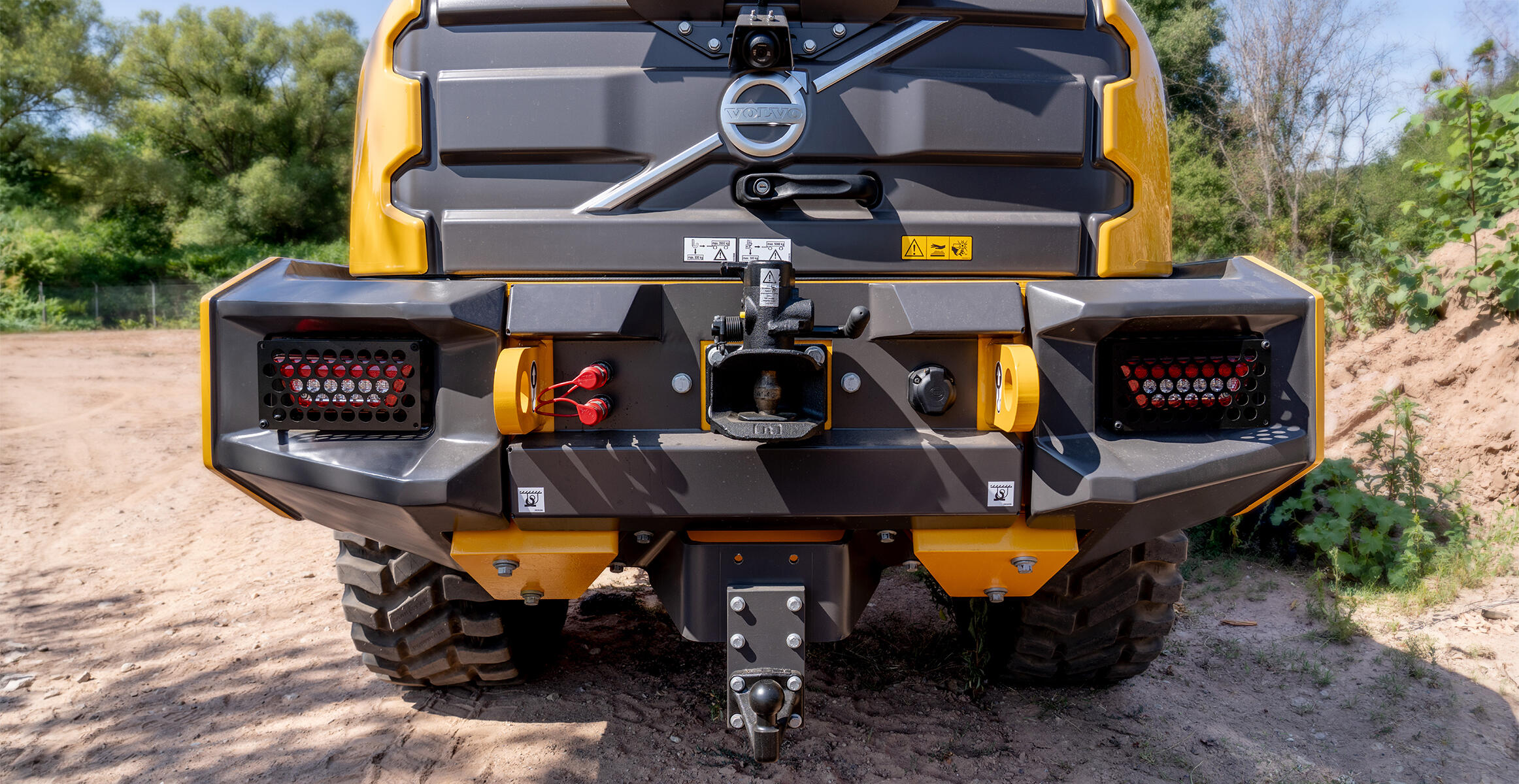

Superb flexibility

The versatile L35 combines with a wide range of Volvo Attachments to bring outstanding flexibility to your operation – helping you to get the job done. What’s more, the rear frame design with pre-prepared rear mounting points enables direct mounting of rear equipment, enhancing the flexibility and versatility of the machine. Simple ‘plug & play’ installation of rear-mounted attachments facilitates quick and easy attachment changes and greater machine utilization across different tasks and applications.

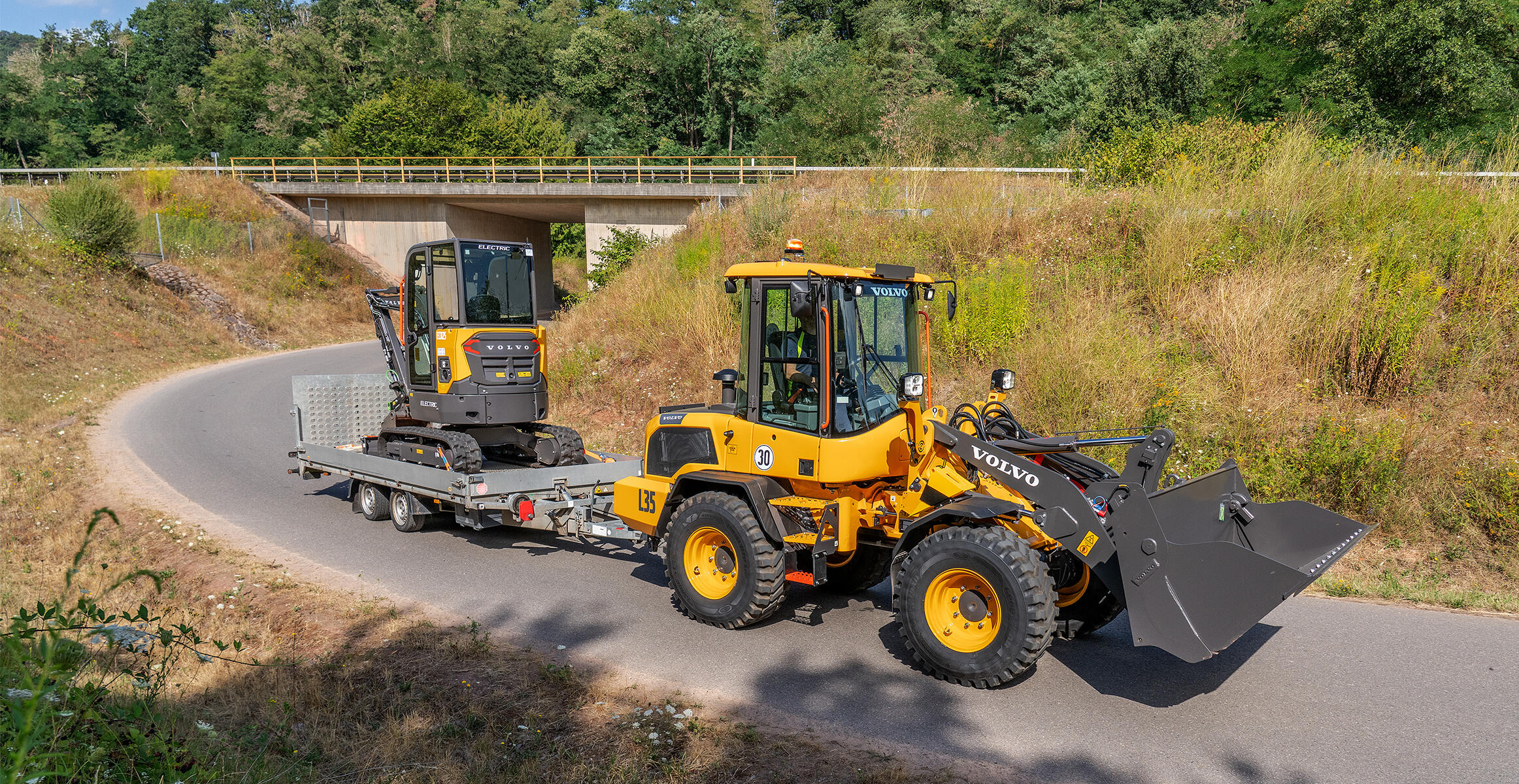

Volvo L35 Compact Wheel Loader towing a trailer carrying a compact excavator.

Small but powerful

The L35 is built to lift high loads in tight corners. It features a powerful linkage as well as superior rollback/dump angles to ensure excellent material retention and quick unloading. Small but tough, the L35 delivers the tractive, breakout and lifting forces more commonly found on larger loaders.

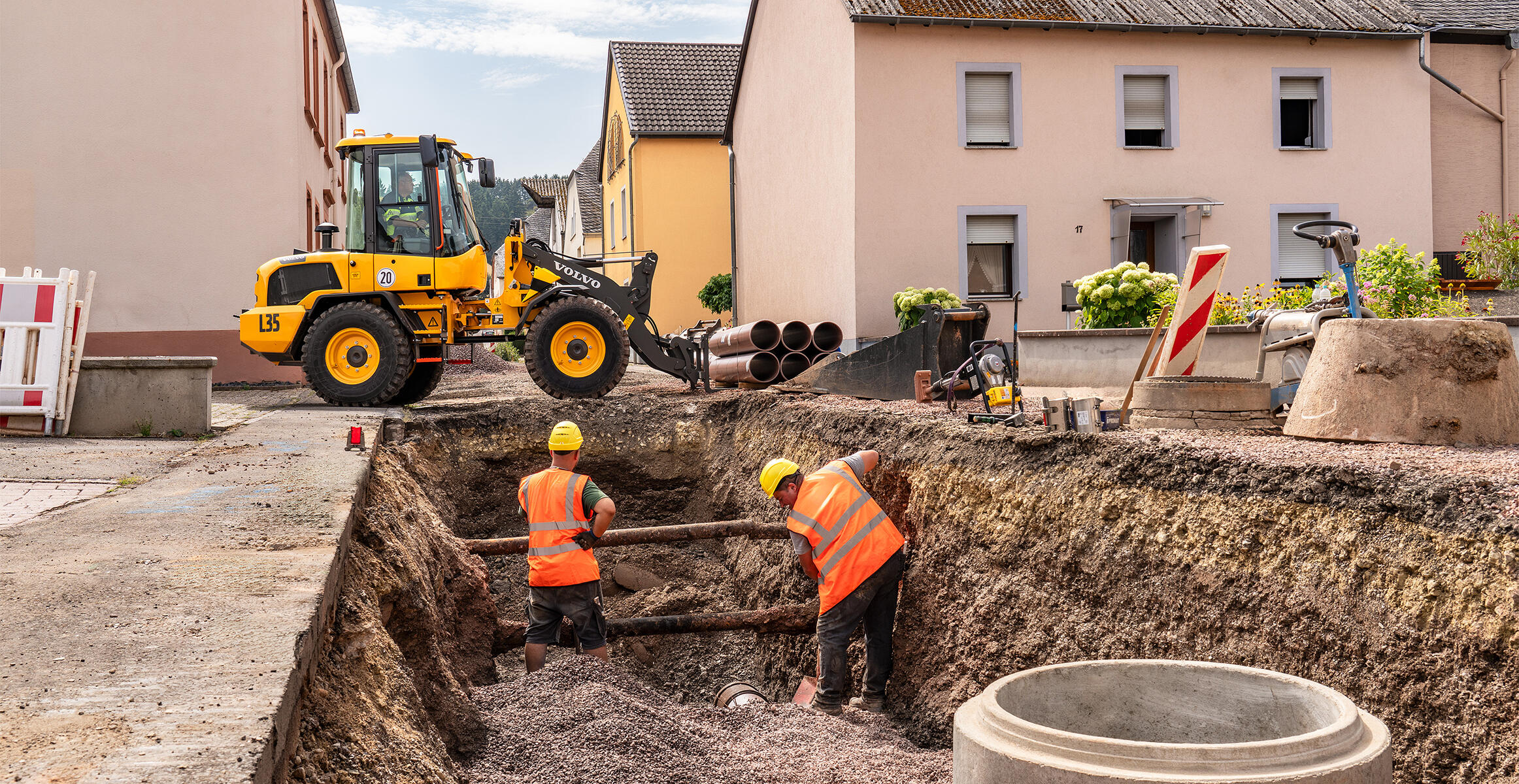

Volvo L35 Compact Wheel Loader working on a confined construction site beside a trench.

Responsive performance, faster cycles

The electro-hydraulic main control valve with flow share function and two independent hydraulic pumps enable smooth, simultaneous boom, steering and attachment movements with no impact on boom speed. Combined with compact dimensions for tight spaces and proportional third/fourth functions for quick attachment connection and excellent flexibility, the L35 helps deliver short, efficient work cycles.

Keep your L35 moving thanks to long service intervals, easy service and maintenance and enduring Volvo quality. Find out more.

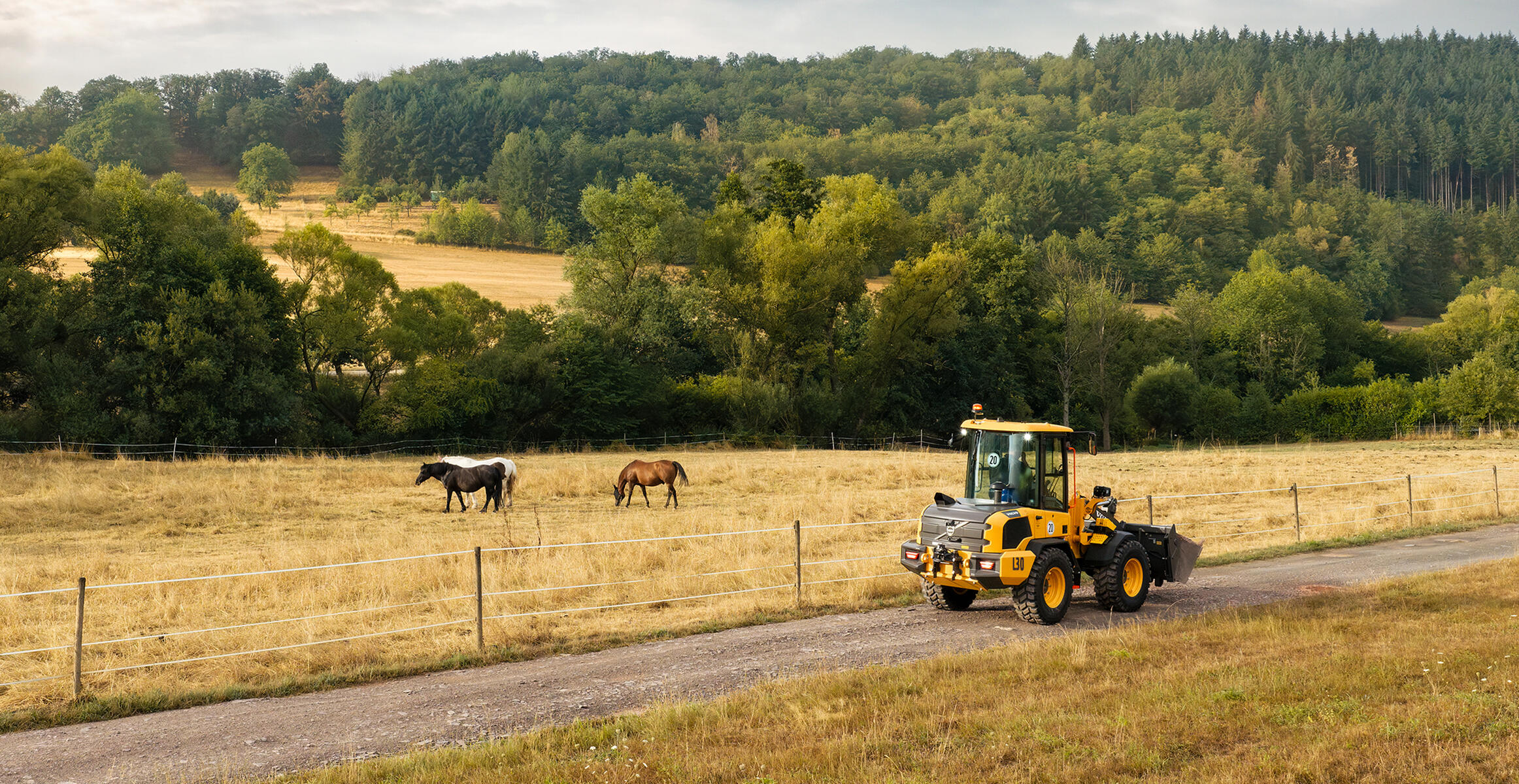

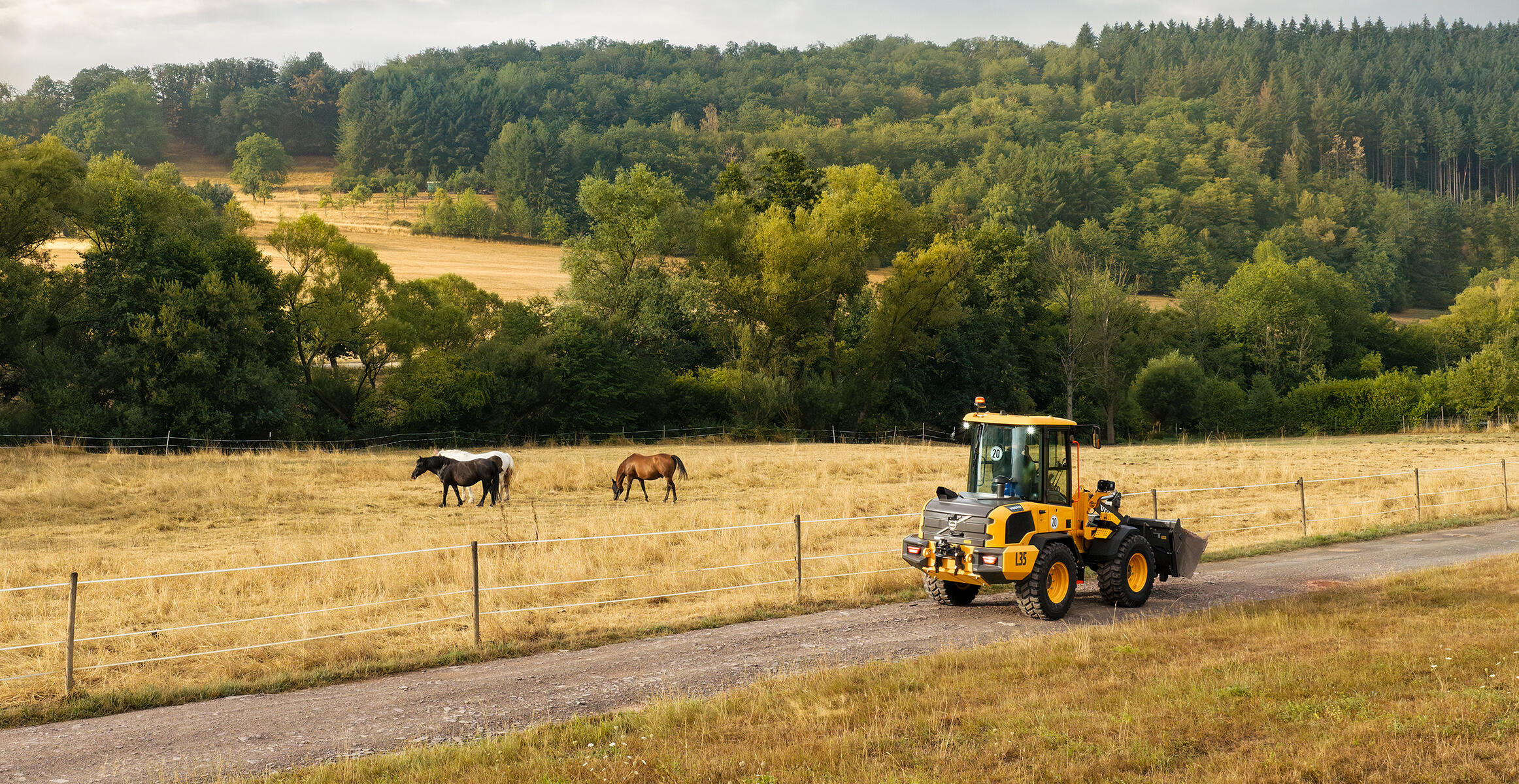

Volvo L35 Compact Wheel Loader operating on a rural jobsite beside a pasture.

Built to maximize uptime and reduce maintenance

With long service intervals, easy in-cab machine monitoring, improved serviceability and connected services, the Volvo L35 Compact Wheel Loader is built to help minimize maintenance requirements and maximize uptime. Key machine conditions, including coolant and hydraulic temperatures, engine speed and fan speed, can be checked directly from the in-cab display, while telematics-based solutions help reduce the risk of unplanned downtime.

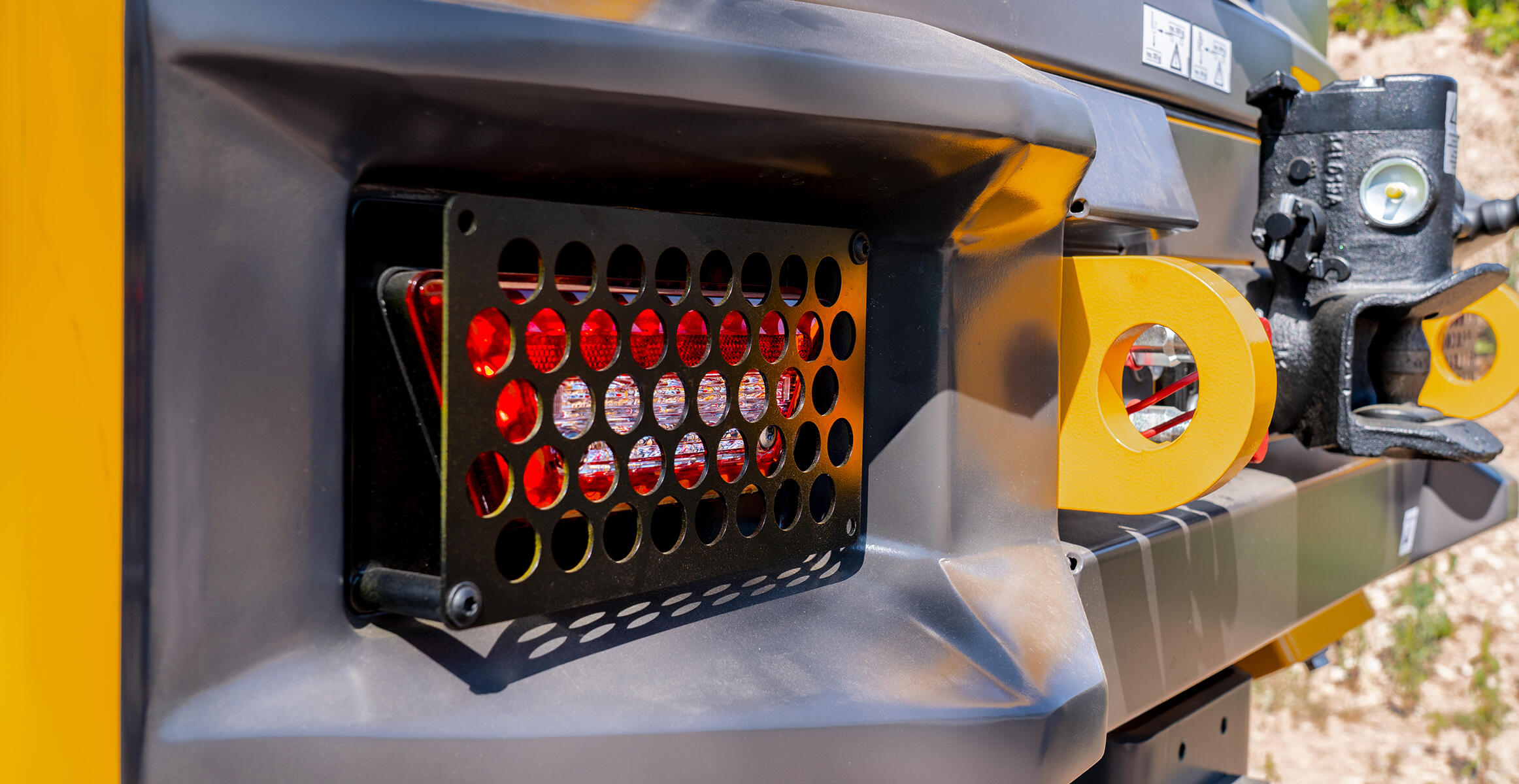

Durability and uptime built to last

Designed around a strong and stable machine platform, the robust frame and components of the L35 deliver the enduring Volvo quality for which Volvo Compact Wheel Loaders are renowned.

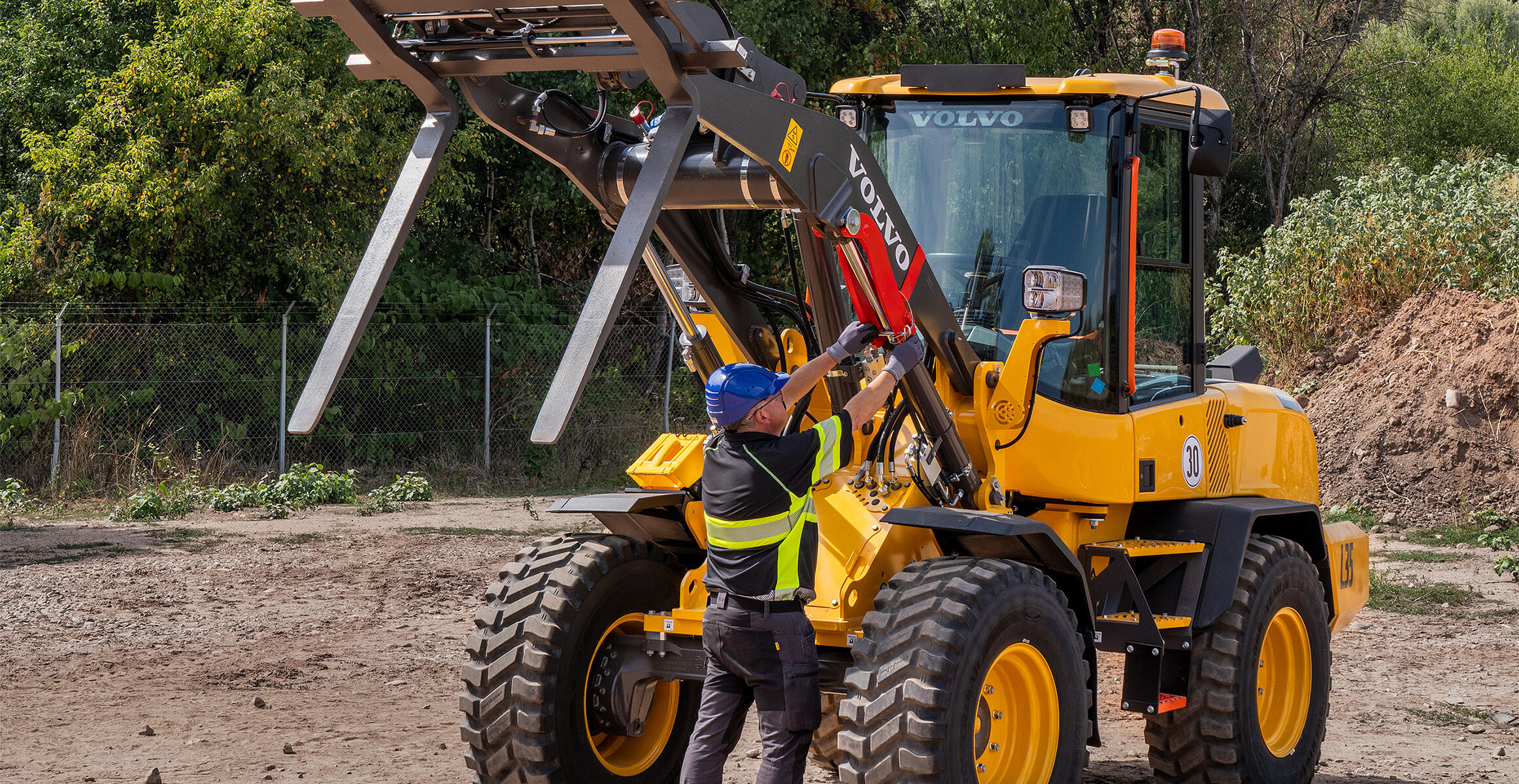

Excellent service access

When the time comes, service points are easily accessible from ground level for faster service and maintenance, contributing to higher uptime. Split, side-mounted counterweights allow easy access to key components; larger service openings provide improved access to main components, along with improved routing and access to hoses and cables.

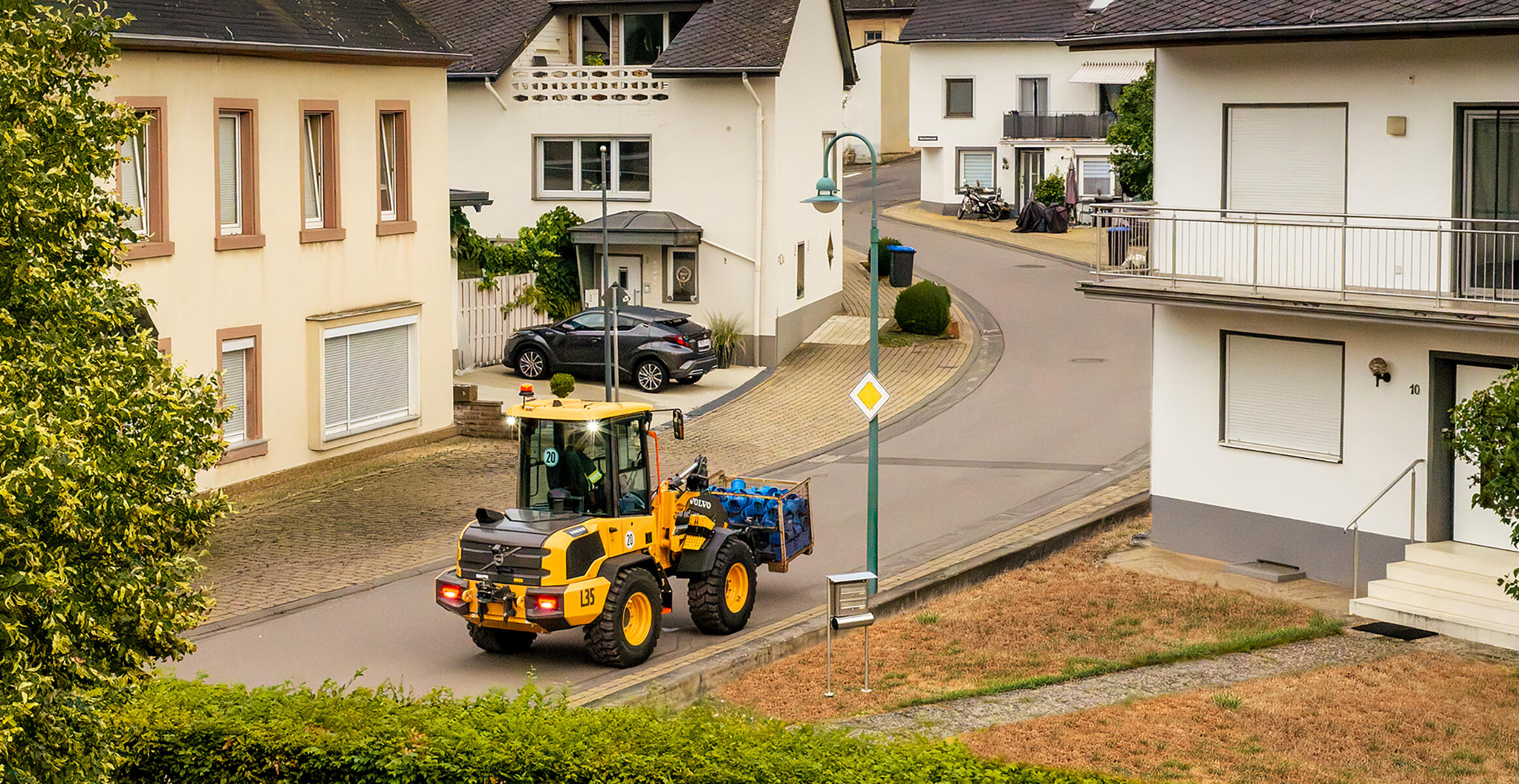

Volvo L35 Compact Wheel Loader working in a confined residential jobsite.

As versatile as your requirements

The L35 is prepared for additional hydraulic and electrical options, such as rear hydraulics and trailer socket, for quick and easy retrofitting as operational needs evolve. The result is a lower upgrade cost, reduced downtime and a broader range of business opportunities.

Industry-leading operator environment and visibility

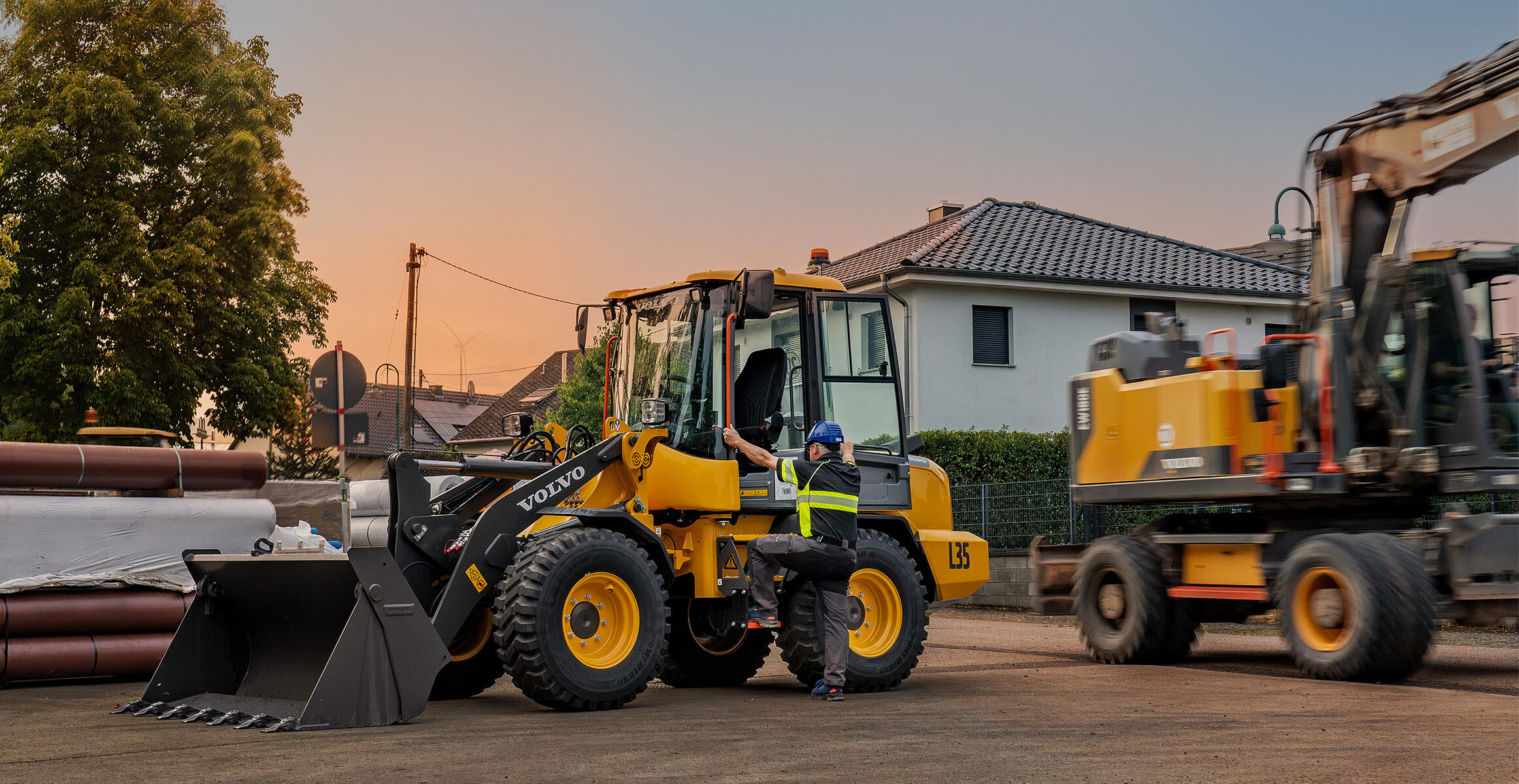

Volvo L35 Compact Wheel Loader operating in a construction yard with another loader nearby.

Industry-leading operator environment and visibility

The Volvo L35 Compact Wheel Loader is designed for operator comfort, starting with its easy cab access, ergonomic arrangement of controls and unrivalled view over the jobsite. Functions are easily set from the 5” display, including individual flow settings for 3rd and 4th functions, the automatic lift and tilt with boundary limits, and the lift and tilt speed limiter, which are unique options in this size class.

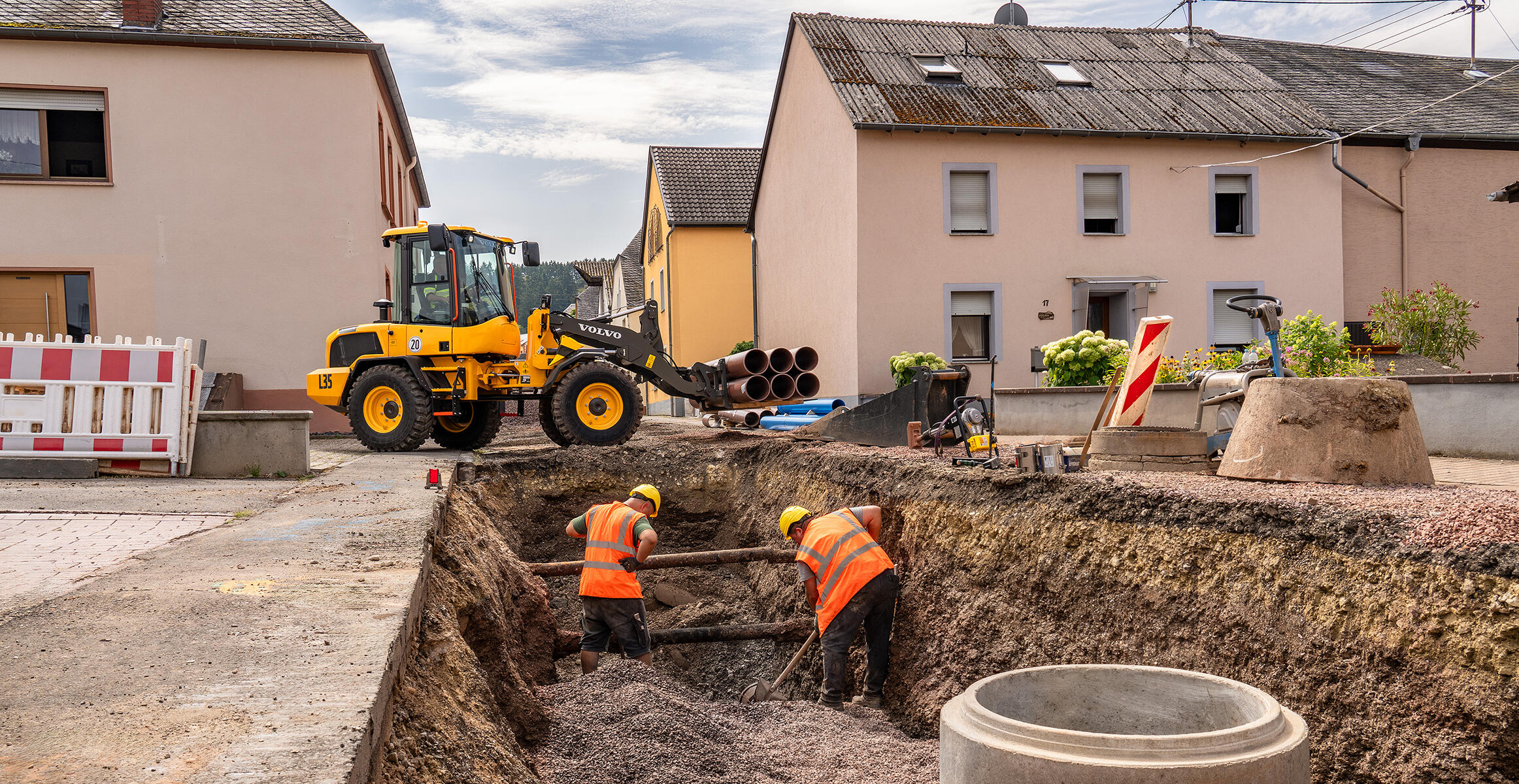

Volvo L35 Compact Wheel Loader working close to a trench on a confined construction site.

Work in comfort

The L35 cab combines easy access, low in-cab noise, excellent all-around visibility and intuitive controls together in a comfortable, modern environment, complete with a host of modern conveniences including comprehensive storage options, cupholder and mobile phone connectivity. With key functions set from the in-cab display, operators can work with greater confidence, precision and less fatigue throughout the day.

Best-in-class visibility

With best-in-class visibility and a higher operator position than comparable machines, the L35 gives operators a clear view of the jobsite and the task at hand. Whether loading trucks, working in tight spaces or placing materials with precision, operators can stay in control and work more safely and efficiently.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
