Large Wheel LoadersL120H

  • 2.6 - 9.5
  • 19,000 - 21,600 kg
  • 12,460 kg

The upgraded L120H may boast the same striking design as its predecessor, but this machine received the latest innovative technology. Ready to tackle... Read more

Contact us Download the L120H brochure, with all the details and specifications. (PDF, 864.3KB) More specifications and competitor comparison

A productivity-focused makeover

The upgraded L120H may boast the same striking design as its predecessor, but this machine received the latest innovative technology. Ready to tackle a range of applications, it still enjoys all benefits that has made the wheel loader so popular since 2014. Always productive and built with the convenience of operators and technicians alike, the latest package of upgrades makes the Volvo even more so.


Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Static tipping load at full turn 12,460 kg
Bucket capacity 2.6 - 9.5
Log grapples 1.3 - 2.4
Operating weight 19,000 - 21,600 kg
Breakout force 174 kN
Engine Volvo D8J
Max power at 1,500 rpm
...ISO 14396 gross 203 kW
...ISO 9249, SAE J1349 net 203 kW
Max torque at 1,350 rpm
...ISO 9249, SAE J1349 net 1,330 Nm
Tires 23.5 R25, 750/65 R25

Based on machine configuration: Based on 3.3 m³ (4.3 yd³) STE H T bucket

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

volvo loader l120h t4f

Top news

On-the-go engine regeneration, electric priming pump, new ignition strategy and standard LOTO feature are just some of the updates that make the L120H even better.
volvo loader l120h t4f

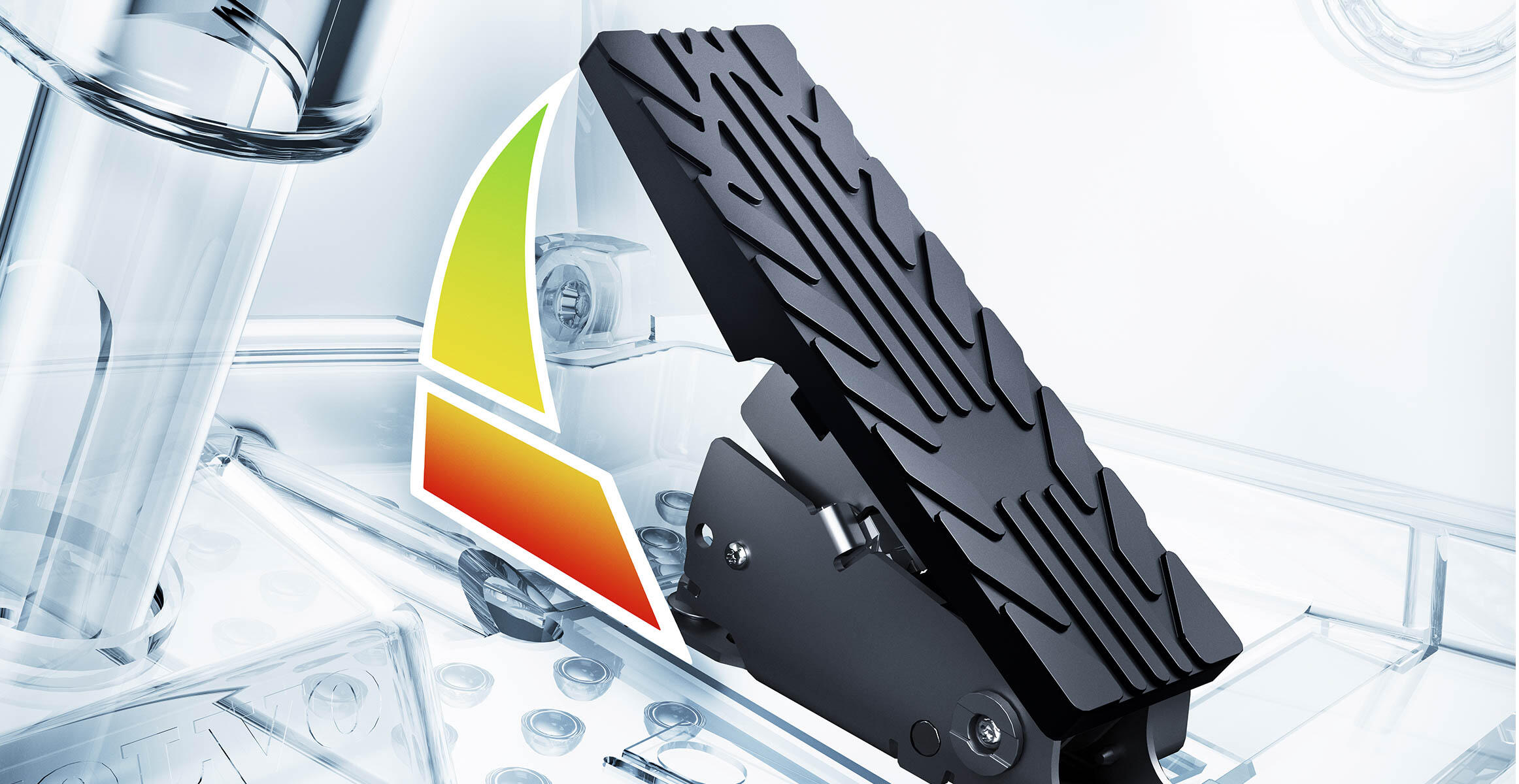

What makes the L120H fuel efficient?

High torque at low engine speeds, Eco pedal and optional OptiShift help reduce unnecessary fuel consumption and move more tons per liter.
volvo loader l110h l120h t4f

Load Assist

Optimize load cycles and boost your profits with the Load Assist suite of apps, accessed from the 12” Volvo Co-Pilot display and designed to help you get the most from your Volvo Wheel Loader.​
volvo loader l120h t4f

What applications is the L120H for?

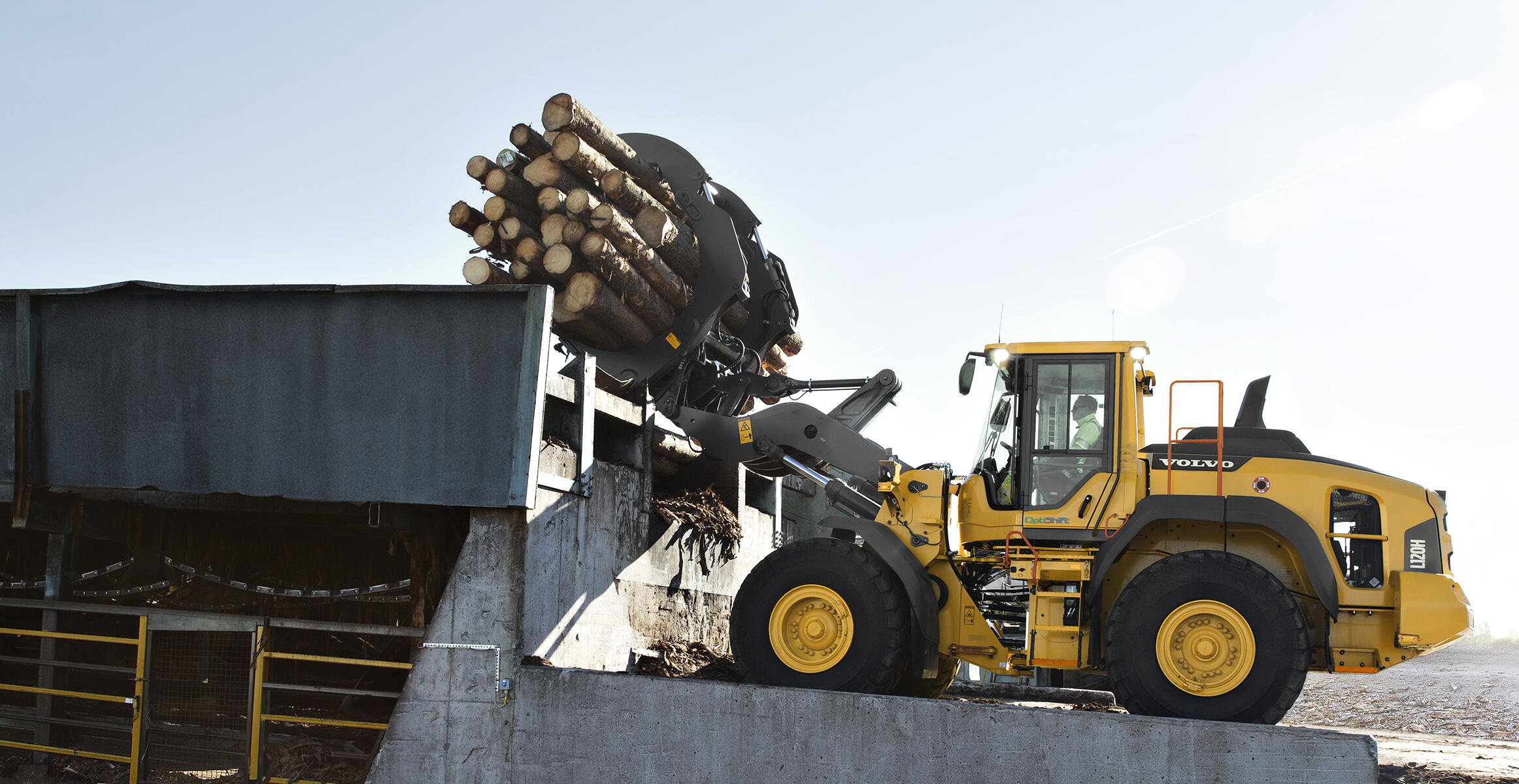

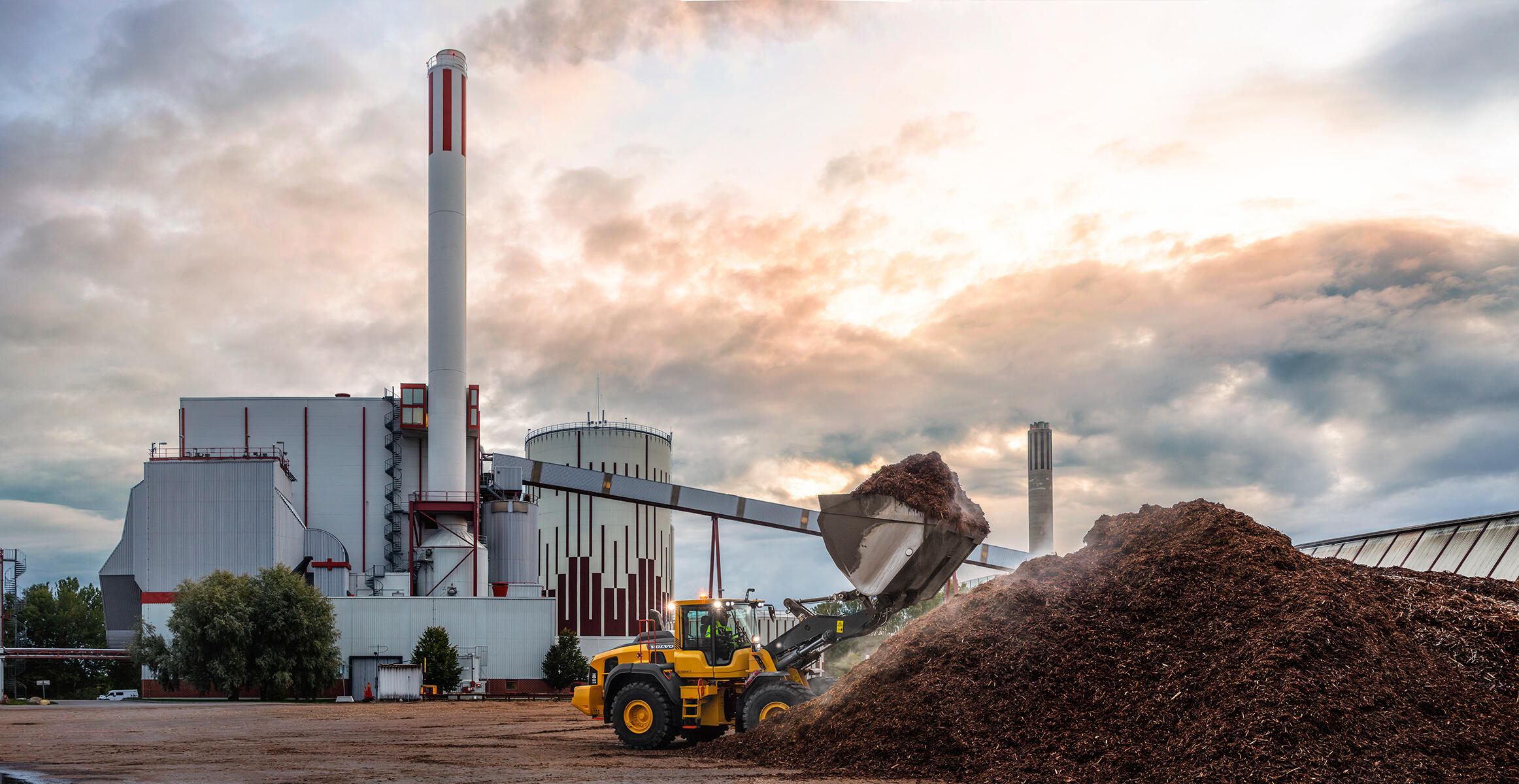

Fork applications, agriculture, rehandling, waste & recycling, log handling. The L120H is up for all – and more – with its unique Torque Parallel linkage and a range of specialist attachments.
volvo loader l110h l120h t4f

Is the L120H easy to operate?

Easy to access and comfortable, the cab is designed with the operator in mind. It features outstanding visibility, a fully adjustable operator station plus a set of functions to ease operation.
volvo loader l110h t4f

How about uptime?

Keep productive in the strong, durable and easy-to-service L120H. Built for long-lasting performance and reduced maintenance requirements.

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.

Attachment Brackets (1)
Buckets (16)
Forks (7)
Grapples (2)
Material Arm (1)
HOLMS Attachments (4)
