Construction Equipment
New Zealand
3,520 kg
18.5 kW
0.05 - 0.15 m³

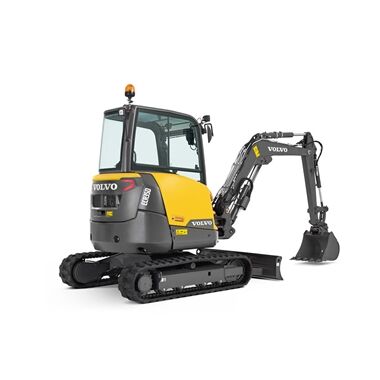

Perform with precision in the Volvo ECR35D compact excavator, featuring a comfortable cab, all-around visibility and advanced, easy-to-use controls to... Read more
Contact us Download the ECR35D brochure, with all the details and specifications. (PDF, 1.9MB) More specifications and competitor comparisonPerform with precision in the Volvo ECR35D compact excavator, featuring a comfortable cab, all-around visibility and advanced, easy-to-use controls to optimize operator productivity. Access tight job sites without compromising safety in the cleverly designed machine, equipped with a long list of standard features for efficient operations and long-lasting performance.
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
| Engine | Volvo D1.7A |
|---|---|
| Gross power | 18.5 kW |
| Net power | 17.2 kW |
| ...at engine speed | 2,200 rpm |
| Operating weight | 3,520 kg |
| Operating weight, canopy version | 3,385 - 4,090 kg |
| Bucket capacity | 0.05 - 0.15 m³ |
| Travel speed, low / high | 2.7 / 4.5 km/h |
| Slewing speed | 9 rpm |
| Breakout force | 30.7 kN |
| Tear out force (arm breakout force) | 20.7 kN |
| Overall width | 1,780 mm |
| Overall length | 4,660 mm |
| Main hydraulic pump max. flow | 103 l/min |
Based on machine configuration: With 300mm rubber tracks and short arm
Image illustration only. Production machines may differ in appearance and features vary between markets and models.

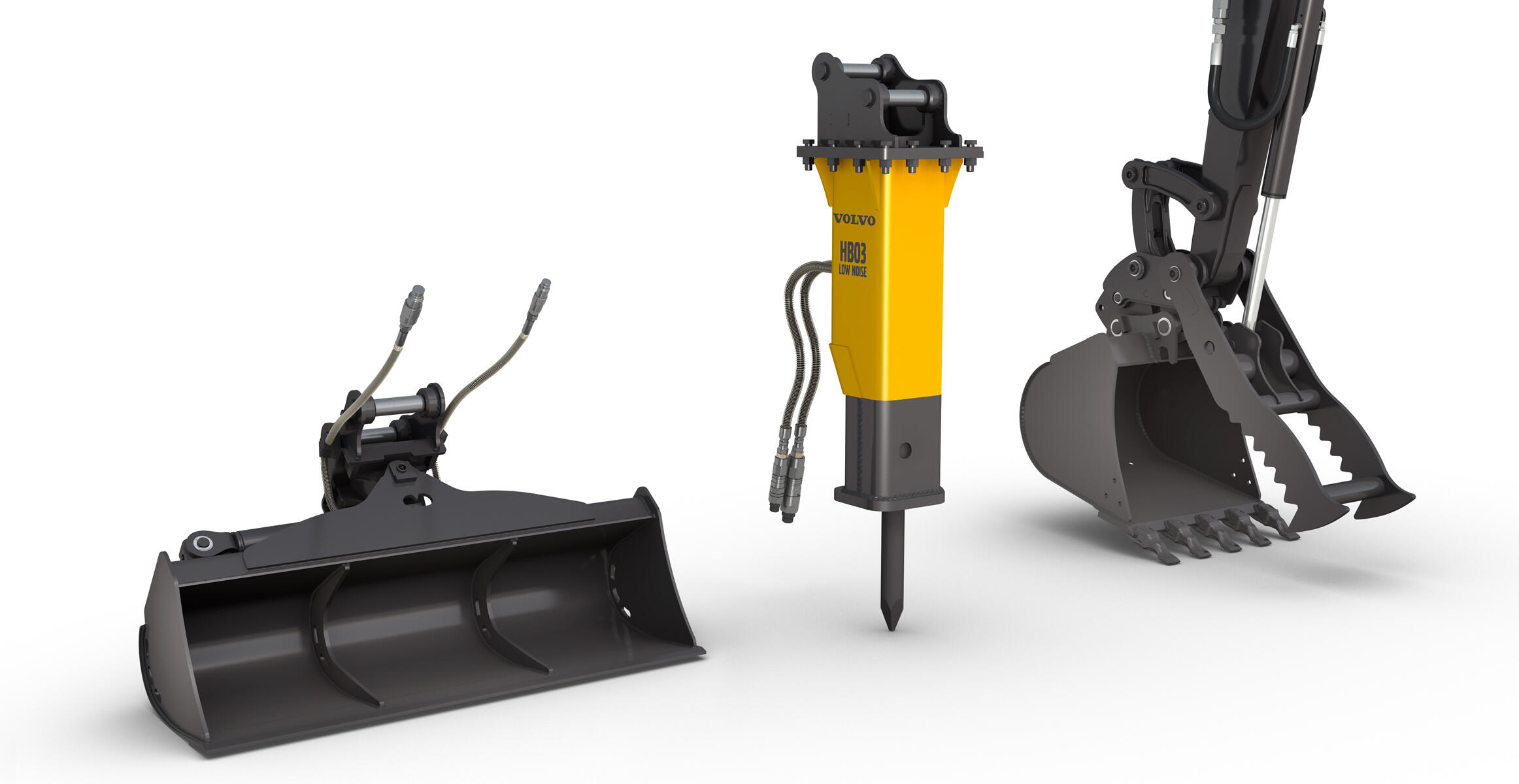

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
