Home Products Excavators EC200E
Purpose built performance View all images and videos

Medium Crawler Excavators EC200E

  • 20,440 - 24,670 kg Operating weight
  • 115 kW Gross power
  • 0.28 - 1.1 m³ Bucket capacity
The EC200E is a 20 ton size class excavator, purpose built to deliver outstanding results in medium duty applications. All the reliability and engineering excellence you expect from Volvo is built in to the EC200E and a durable design, long service intervals and easy routine maintenance help... Read more
Contact us

Purpose built performance

The EC200E is a 20 ton size class excavator, purpose built to deliver outstanding results in medium duty applications. All the reliability and engineering excellence you expect from Volvo is built in to the EC200E and a durable design, long service intervals and easy routine maintenance help maximize uptime and keep your machines on site and working their best. Available with a range of durable Volvo attachments, whether you are working in building, utilities, road construction and more, the EC200E will be the perfect addition to your in-house operation or as part of a rental fleet.

Technical specifications for EC200E

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
Operating weight 20,440 - 24,670 kg
Gross power 115 kW
...at engine speed 2,000 rpm
Bucket capacity 0.28 - 1.1
Lifting capacity, along undercarriage 7,320 kg
...at reach / height 6 / 1.5 m
Max. digging reach 9,993 mm
Max. digging depth 6,781 mm
Breakout force, SAE J1179 (Normal) 125 kN
Breakout force, SAE J1179 (Boost) 132 kN
Tear out force, SAE J1179 (Normal) 101 kN
Tear out force, SAE J1179 (Boost) 107 kN
Overall width feet inches 2,990 mm
Tail swing radius 2,850 mm
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
More specifications and competitor comparison Download the EC200E brochure, with all the details and specifications. (PDF, 1.8MB)

Features & Benefits

Down to business
Down to business Introducing the EC200E, a 20-tonne excavator from Volvo Construction Equipment, purpose built to deliver outstanding results in medium duty applications. Working in building, utilities, road construction and more, the EC200E will be the perfect addition to your in-house operation or as part of a rental fleet.
Down to business

A purpose built 20-tonner

In the EC200E Volvo has extended its excavator range to offer a 20-tonne machine which combines Volvo quality with exceptional value, to deliver performance and profitability in medium duty applications.

Optimized engine

Optimized engine

Built on decades of experience, the Tier 4 final certified D4 Volvo engine is perfectly optimized to get the best from your EC200E; providing the power, fuel-efficiency and reliability needed to succeed across a wide range of tasks.

Hydraulic harmony

Hydraulic harmony

The hydraulics system, combined with the fully electronic control system and advanced ECO mode, has been optimized to work in harmony to match the engine power, reduce power loss and improve controllability and response time.

Additional auxiliary hydraulic piping

Additional auxiliary hydraulic piping

The machine can be factory fitted with breaker and shear piping (X1). The state-of-the-art auxiliary line provides the correct flow and pressure for special attachments such as mowers and grinders, shears and crushers, boosting the versatility and productivity of your machine.

Keep track

Keep track

Stay in the know with CareTrack, providing real-time telematics data on your machine, including operating hours, location and service alerts. With geo fence and time fence functionality you can specify the location and time parameters your machine can operate within and receive alerts when these pre-defined rules are broken.

Keep on working
Keep on working All the reliability and engineering excellence you expect from Volvo is built in to the EC200E. A durable design, long service intervals and easy routine maintenance help maximize uptime and keep your machines on site and working their best.
Keep on working

Built to last

When it comes to successful operations uptime is key and you can count on the EC200E to work harder, for longer. The balanced machine design features a robust boom and arm, strong undercarriage, protected components and heavy counterweight to comfortably take on tough work in tough environments.

Easy servicing

Easy servicing

Complete routine servicing with speed and ease thanks to a range of features, including grouped filters accessed from the ground-level, foldable guard rails and real-time service alerts. To further improve serviceability the radiator, charged air cooler and hydraulic oil cooler are situated side-by-side on a single layer.

Work for longer

Work for longer

With long service intervals for oil and filter changes, the EC200E keeps working uninterrupted with fewer stops, lowering maintenance costs and minimizing disruption to your operation.

Proactive machine monitoring

Proactive machine monitoring

ActiveCare DirectTM is a revolutionary new telematics monitoring and fleet utilization reporting service offered directly from Volvo — free for a year on applicable new machine purchases. With 24/7/365 active machine monitoring and monthly fleet reports, ActiveCare Direct allows you to spend more time making informed fleet management decisions and less time sorting through data and alarm codes.

Do more
Do more Maximize productivity and profitability by combining the EC200E with a range of durable attachments. Increase your versatility, access more applications and perform a variety of tasks – all while experiencing faster cycle times and excellent control.
Do more

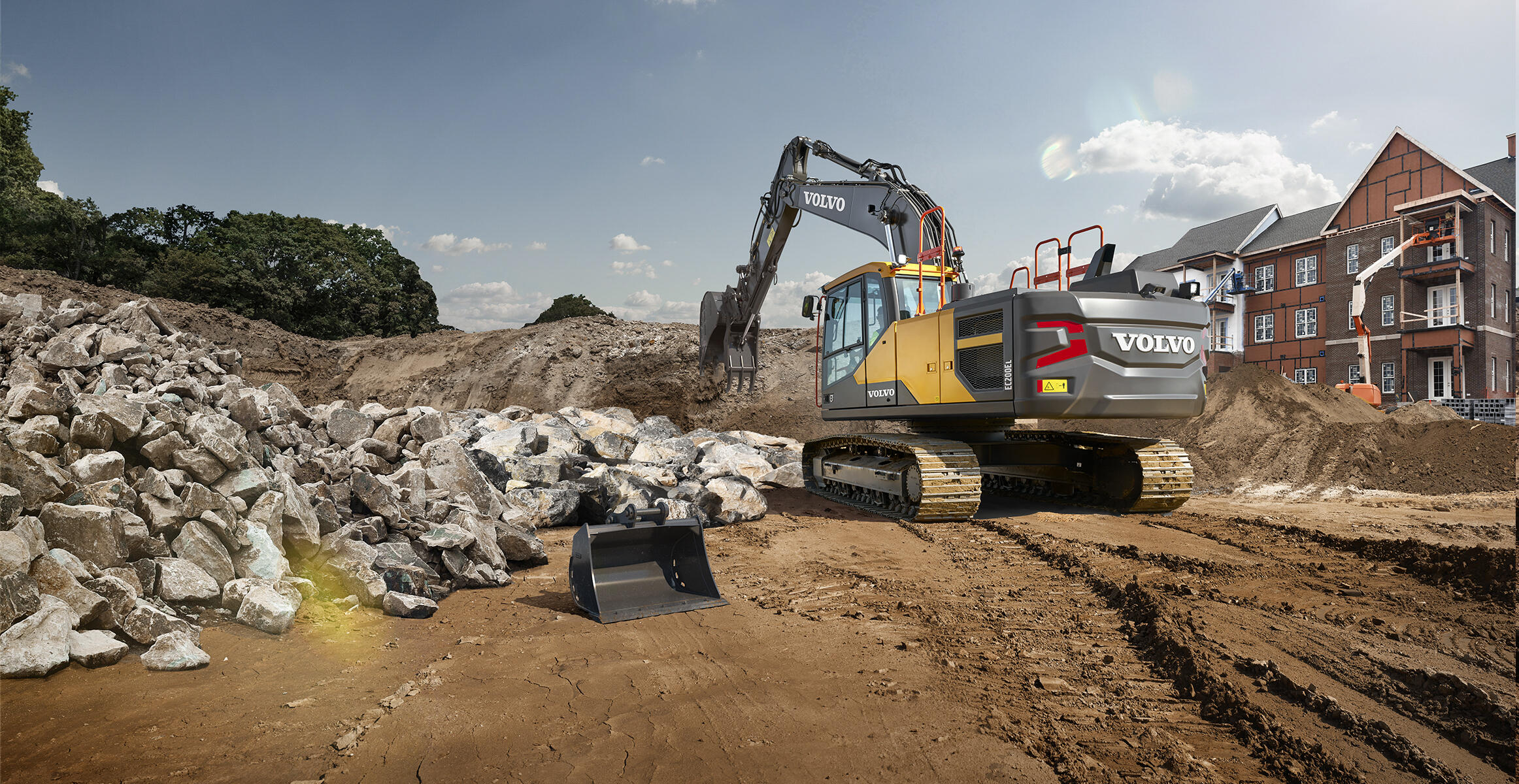

A true all-rounder

With one machine you can take on many tasks thanks to the outstanding versatility of the EC200E, compatible with a range of attachments and suitable for a host of applications. Mix and match between a wide variety of Volvo attachments, purpose-built to work in harmony with your Volvo machine.

Buckets

Buckets

Whether working with soft, medium or hard materials, Volvo buckets are the ideal tool for digging in all conditions. Volvo buckets provide maximum productivity and long life and feature original Volvo wear components.

Universal quick coupler

Universal quick coupler

The Volvo Universal Quick Coupler (pin grabber type) is designed to be a perfect fit with Volvo excavators, using the latest technology to give operators precise control in locking attachments without leaving the cab. The result is a more versatile and efficient machine, saving time and money.

Thumb

Thumb

The thumb can be the ideal attachment when working with rocks, debris and other irregular objects difficult to manage using only the bucket. Easy to work with thanks to the machine’s smooth and strong hydraulic system, the thumb can be easily retracted when the bucket is used for normal digging operations, yet quickly available at the flick of a switch from the cab when required.

Breaker

Breaker

When working in breaking applications Volvo can offer a range of proven hydraulic breakers, designed to deliver consistent power and performance – strike after strike. Durable by design, hydraulic breakers are available with a range of work tools to suit your operation.

Simply Volvo
Simply Volvo The EC200E features all the machine performance, operator comfort, environmental care and safety you expect from Volvo, combined with a comprehensive portfolio of services, to help you get the most from your operation.
Simply Volvo

Building tomorrow

Volvo is a company working today for a better tomorrow and we do that by putting customers at the heart of our organisation. It’s how we have worked for over 180 years and the EC200E continues that tradition, born out of a commitment to provide truly customer-focussed solutions.

Impressive performance

Impressive performance

Whether digging, lifting, swinging, grading or travelling, you can count on the EC200E for the machine performance your operation demands. With power boost, the already impressive lifting and digging forces are increased further, resulting in faster cycle times and optimum productivity.

The operator’s choice

The operator’s choice

Widely regarded as an industry favourite, the Volvo cab is designed in consultation with operators based on their direct feedback. The outcome is a comfortable low-noise cab, easy-to-use controls and ergonomic layout, helping to keep operators comfortable and productive throughout their entire working shift.

Safety first

Safety first

Every Volvo machine is designed with safety as a priority and the EC200E features a ROPS cab, high visibility handrails, anti-slip steps and easy access to the machine via the right-hand side. Excellent all-around visibility, side view camera and optional Volvo Smart View further help to enhance the safety of operators and those working around the machine.

At your service

At your service

More than machines, Volvo offers a comprehensive portfolio of services to complement your machine’s performance and boost your profitability. With a range of customer-focussed solutions, including fuel efficiency, productivity and uptime services, contact your local dealer to get started with Volvo Services.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
