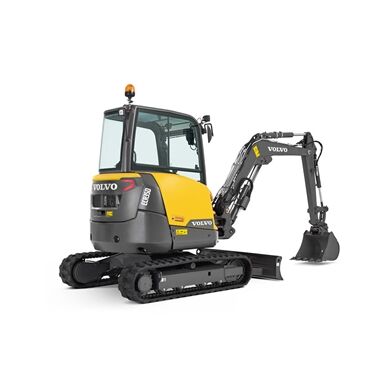

Compact Excavators ECR35D

Stage IIIA / Tier 3 Emission Standards
3,520 kg Operating weight
22.8 kW Gross power
0.05 - 0.15 m³ Bucket capacity

Perform with precision in the Volvo ECR35D compact excavator, featuring a comfortable cab, all-around visibility and advanced, easy-to-use controls to optimize operator productivity. Access tight job sites without compromising safety in the cleverly designed machine, equipped with a long list of... Read more

Download the ECR35D brochure, with all the details and specifications. (PDF, 1014.5KB)

More specifications and competitor comparison

A winning combination

Technical specifications for ECR35D

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Engine	Volvo D1.8A
Gross power	22.8 kW
Net power	21.5 kW
...at engine speed	2,200 rpm
Operating weight	3,520 kg
Operating weight, canopy version	3,385 - 4,090 kg
Bucket capacity	0.05 - 0.15 m³
Travel speed, low / high	2.7 / 4.5 km/h
Slewing speed	9 rpm
Breakout force	30.7 kN
Tear out force (arm breakout force)	20.7 kN
Overall width	1,780 mm
Overall length	4,660 mm
Main hydraulic pump max. flow	103 l/min

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the ECR35D brochure, with all the details and specifications. (PDF, 1014.5KB)

Features & Benefits

The industry-leading, spacious Volvo FOPS1 on top, TOPS and ROPS cab boasts all around visibility, ergonomically positioned controls and excellent vibration and noise insulation.

volvo-benefits-compact-excavator-ecr35d-siiia-t4f-operator-environment-2324x1200jpg

Short swing, big power

The ECR35D short swing radius machine is designed to work with power and precision in tight spaces, improving safety and performance in all applications. Featuring a comfortable cab, excellent hydraulics, easy-to-use controls and outstanding serviceability, you will achieve a lot with this small machine.

volvo-features-compact-excavator-ec35d-siiia-t4-low-total-cost-of-ownership-operator-environment-2324x1200

Optimized efficiency

For lower costs, increased productivity and maximum uptime a number of efficient features combine on the ECR35D. ECO mode allows you to choose the right machine setting for the job at hand for impressive fuel efficiency. Robust design and quality digging equipment delivers durability and long term machine value. Auto idle and auto engine shut down reduce noise disturbance, fuel consumption, maintenance costs and slow down depreciation of your machine.

volvo-features-compact-excavator-ec35d-siiia-t4-hydraulics-harmony-operator-environment-2324x1200

Easy to use

The machine’s state-of-the-art hydraulic system is perfectly matched to the Volvo engine delivering high performance, fast response times and smooth operation. The ergonomic, comfortable controls are easy to understand and make it simple to switch between operators. Responsive fingertip controls enhance ease of operation, reduce fatigue and improve fluency.

Volvo’s durable attachments have been purpose-built to deliver maximum productivity and long service life in combination with Volvo machines.

volvo-benefits-compact-excavator-ecr40d-t4f-built-ready-2324x1200

More than a machine

Tailored to your business and operations, choose from a wide range of Volvo attachments and Customer Solutions to improve your performance, productivity and versatility. Volvo offers a complete range of robust attachments for all working conditions and can offer a long-term partnership, protect your revenue and provide a full range of services using Genuine Volvo parts, delivered by passionate people.

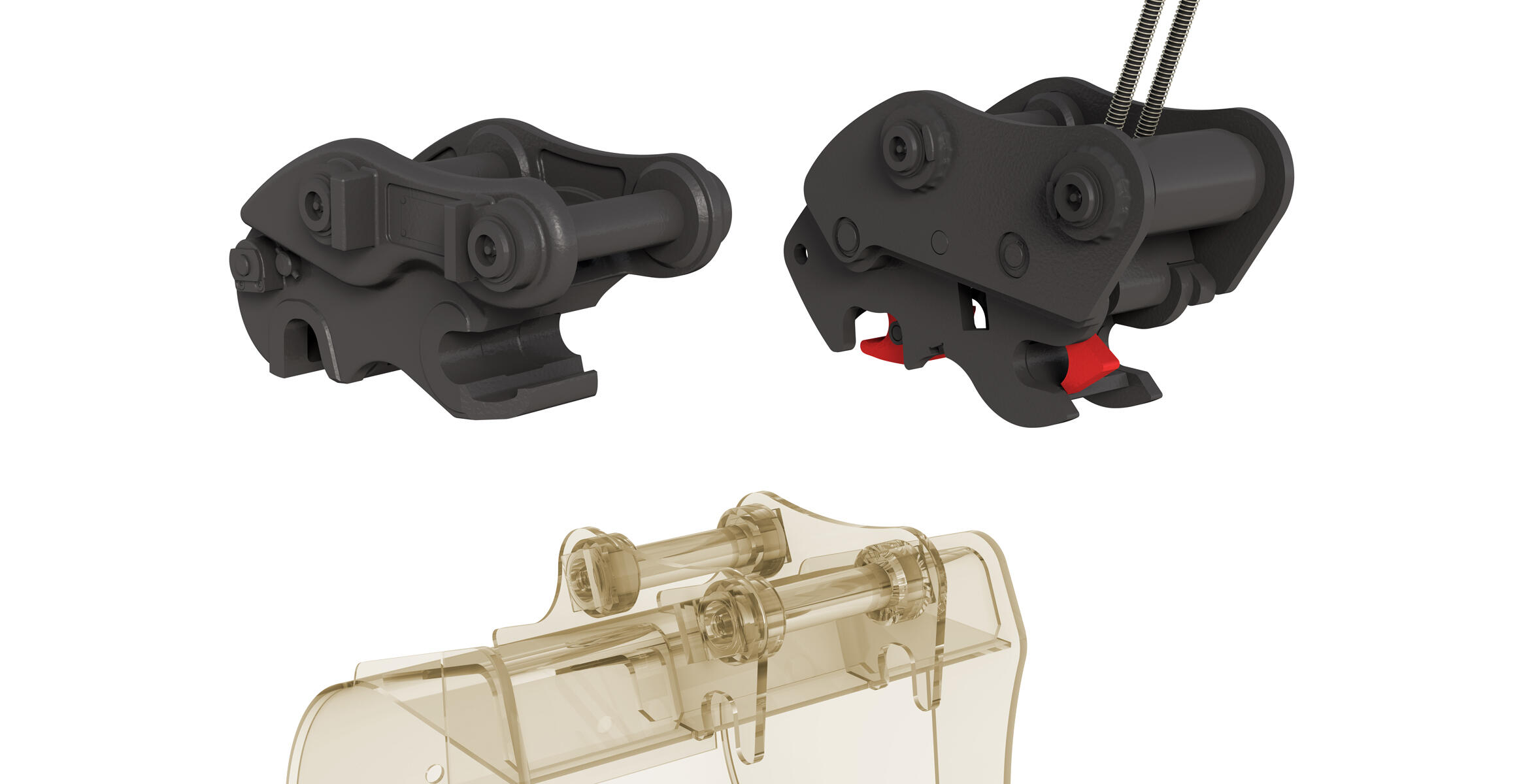

Quick couplers

The mechanical and hydraulic universal quick couplers allow attachments to be changed quickly and efficiently. The hydraulic quick coupler’s design allows it to be used for matched Volvo attachments as well as a broad range of offerings from different brands.

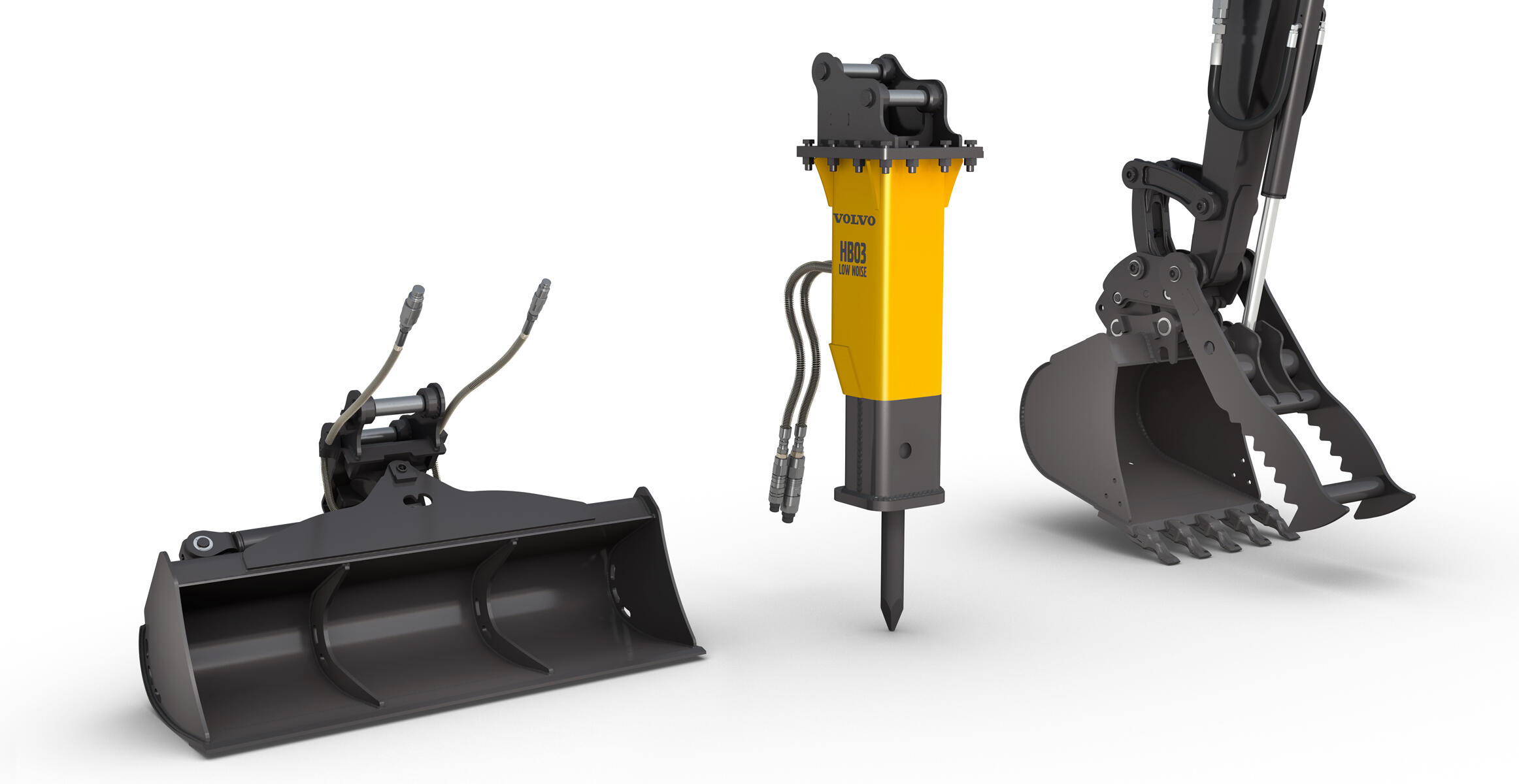

volvo-features-compact-excavator-ecr40d-t4f-hydraulic-attachments-2324x1200

Advanced attachment solutions

The machine is compatible with a range of hydraulic attachments, including thumb, breaker and tiltable ditching bucket for more advanced and specialist applications. Available from the factory or aftermarket, do not hesitate to contact your local Volvo dealer and benefit from leading expertise and advanced attachment solutions.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
