Compact Excavators EC35D

Stage IIIA / Tier 4f Emission Standards
3,530 kg Operating weight
22.8 kW Gross power
0.05 - 0.15 m³ Bucket capacity

Do more for less in the Volvo EC35D compact excavator, designed to work with power and precision in tight spaces. Based on a proven design, the EC35D delivers high levels of comfort, performance and versatility, enabling you to be more productive in a range of applications.

Download the EC35D brochure, with all the details and specifications. (PDF, 1.1MB)

More specifications and competitor comparison

Precise performance

Technical specifications for EC35D

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Engine	Volvo D1.7A
Gross power	22.8 kW
Net power	17.2 kW
...at engine speed	2,200 rpm
Operating weight	3,530 kg
Operating weight, canopy version	3,395 - 3,940 kg
Bucket capacity	0.05 - 0.15 m³
Travel speed, low / high	2.7 / 4.5 km/h
Slewing speed	9 rpm
Breakout force	32.9 kN
Tear out force (arm breakout force)	23.7 kN
Overall width	1,780 mm
Overall length	4,620 mm
Main hydraulic pump max. flow	103 l/min

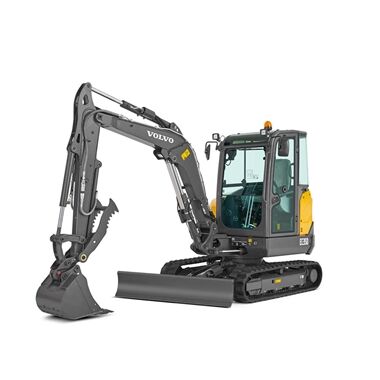

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the EC35D brochure, with all the details and specifications. (PDF, 1.1MB)

Features & Benefits

Volvo’s durable attachments have been purpose-built to deliver maximum productivity and long service life in combination with Volvo machines.

volvo-benefits-compact-excavator-ecr35d-siiia-t4f-built-ready-2324x1200

More than a machine

Tailored to your business and operations, choose from a wide range of Volvo attachments and Customer Solutions to improve your performance, productivity and versatility. Volvo offers a complete range of robust attachments for all working conditions and can offer a long-term partnership, protect your revenue and provide a full range of services using Genuine Volvo parts, delivered by passionate people.

The industry-leading, spacious Volvo FOPS1 on top, TOPS and ROPS cab boasts all around visibility, ergonomically positioned controls and excellent vibration and noise insulation.

volvo-benefits-compact-excavator-ecr35d-siiia-t4f-operator-environment-2324x1200jpg

Perform with precision

The EC35D features a comfortable cab and easy-to-use controls for high performance and precise operation. With its excellent hydraulic performance and easy serviceability you can do more for less in all applications.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
