Electric Crawler Excavators EC230 Electric

23,000 - 26,100 kg Operating weight
6,730 mm Max. digging depth
264 kWh Battery capacity

The EC230 Electric is built on the proven technology of the Volvo crawler excavator and combines all the power with the additional benefits that come from going electric. With EC230 Electric operators will benefit from low noise and lower vibration, more responsive hydraulics due to the electric... Read more

Overview

Specifications

Quiet, clean and comfortable

The EC230 Electric is built on the proven technology of the Volvo crawler excavator and combines all the power with the additional benefits that come from going electric. With EC230 Electric operators will benefit from low noise and lower vibration, more responsive hydraulics due to the electric motor. It leads to a better place to work, both in-cab and on site.

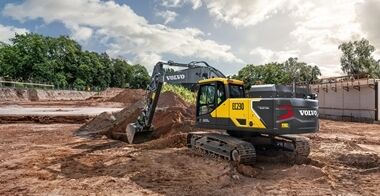

volvo-show-crawler-excavator-ec230-electric-2324x1200

Technical specifications for EC230 Electric

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight	23,000 - 26,100 kg
Gross power	160 kW
...at engine speed	1,600 rpm
Bucket capacity	0.48 - 1.44 m³
Lifting capacity, along undercarriage	0 kg
...at reach / height	6 / 1.5 m
Max. digging reach	9,930 mm
Max. digging depth	6,730 mm
Breakout force, SAE J1179 (Normal)	141 kN
Breakout force, SAE J1179 (Boost)	149 kN
Tear out force, SAE J1179 (Normal)	104 kN
Tear out force, SAE J1179 (Boost)	110 kN
Overall width	2,990 mm
Tail swing radius	2,850 mm
Battery voltage	600 V
Battery capacity	264 kWh
Indicative runtime (depending on application)	Up to 4~5 hours
