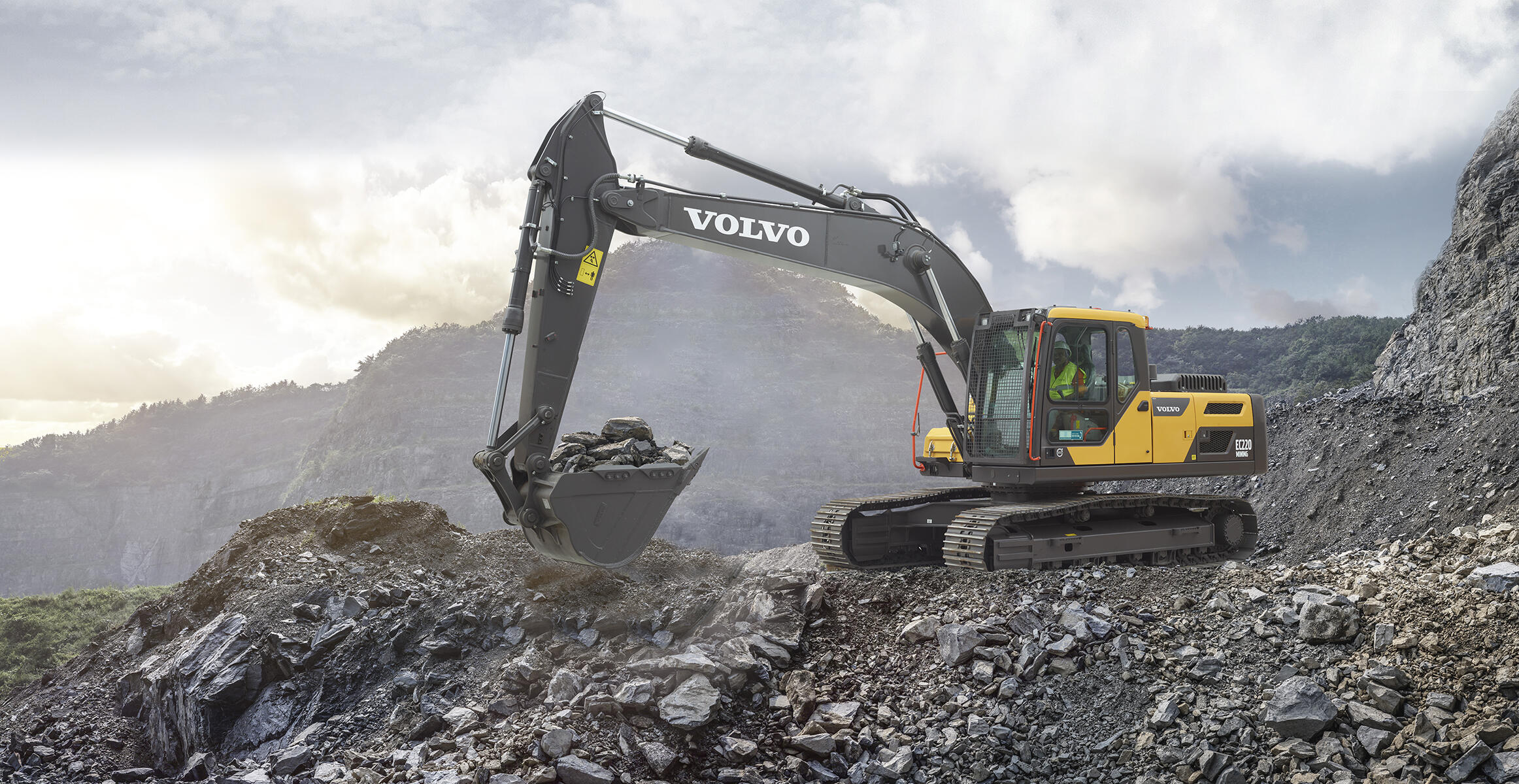

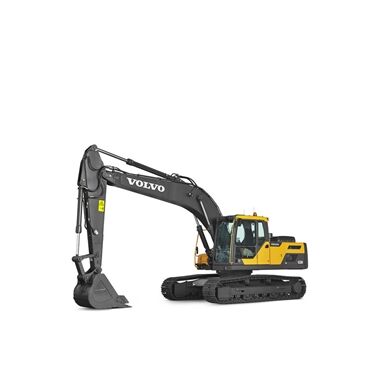

Medium Crawler Excavators
EC220
-
Stage IIIA / Tier 3 Emission Standards -
22,338 kg Operating weight -
123 kW Gross power -
1 - 1.22 m³ Bucket capacity
Technical specifications for EC220
| Operating weight | 22,338 kg |
|---|---|
| Gross power | 123 kW |
| Bucket capacity | 1 - 1.22 m³ |
| Lifting capacity, along undercarriage | 9,430 kg |
| ...at reach / height | 4,5 / 1,5 m |
| Max. digging reach | 9,410 mm |
| Max. digging depth | 6,360 mm |
| Breakout force, SAE J1179 (Normal) | 120 kN |
| Breakout force, SAE J1179 (Boost) | 127 kN |
| Tear out force, SAE J1179 (Normal) | 111 kN |
| Tear out force, SAE J1179 (Boost) | 118 kN |
| Overall width | 2,800 mm |
| Tail swing radius | 2,850 mm |
Features & Benefits

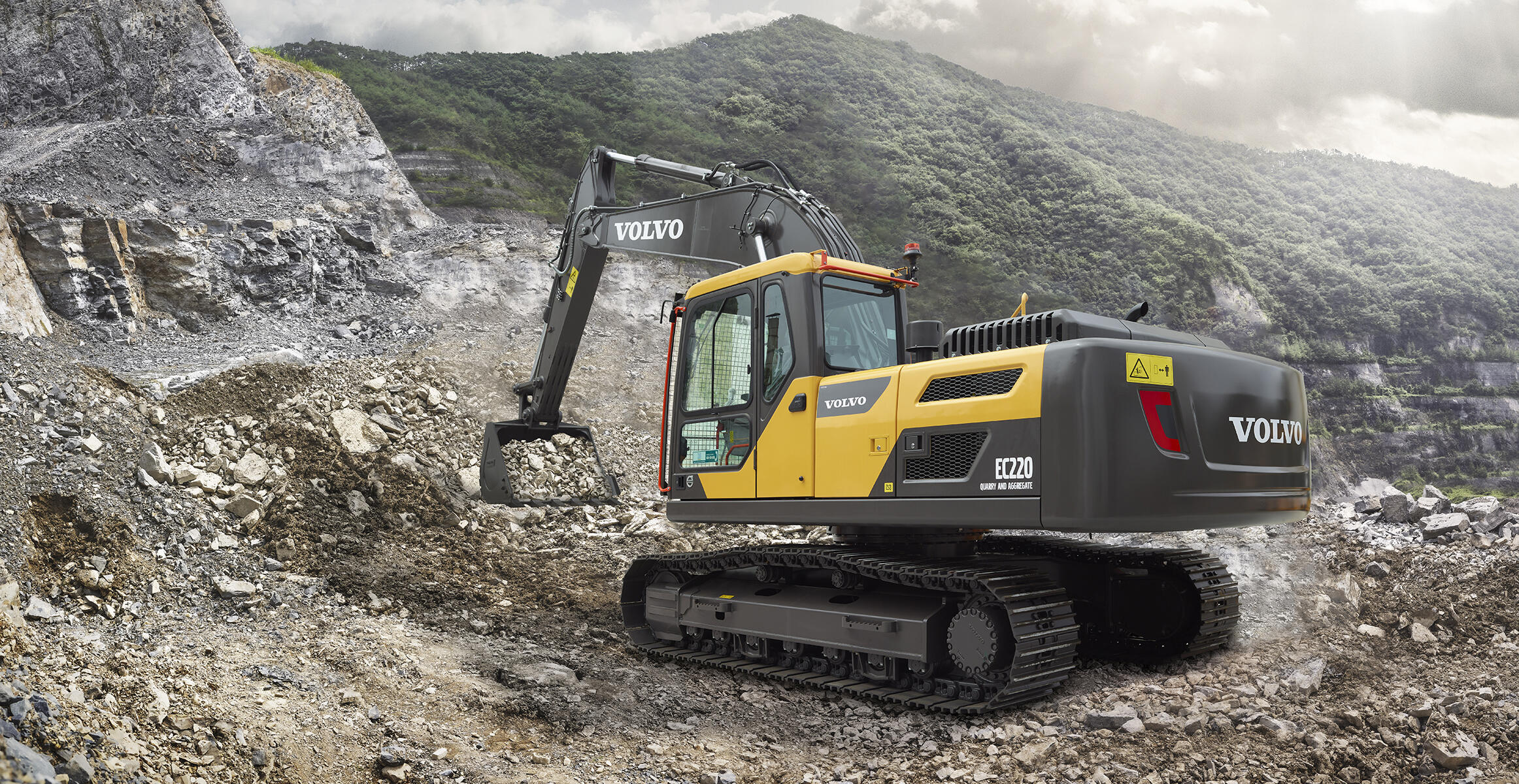

Get More done
Get the most out of your excavator in any application. The EC220 is equipped with a range of features to ensure a superior performance, shift after shift. Designed with Volvo’s extensive experience and expertise, this robust machine delivers ultimate productivity and efficient operation in a wide variety of tasks.
Powerful Volvo engine
Experience optimum power with the EC220’s robust Volvo engine. Working together with the machine’s proven hydraulics, this engine delivers high torque at low rpm for the ultimate combination of performance and improved fuel efficiency.
Enhanced operator performance
Operate in comfort for a more productive work shift. The EC220 is equipped with a spacious and safe operator environment offering enhanced all-around visibility, an adjustable seat and ergonomic controls. The improved cab interior features a new I-ECU monitor that displays a range of information for efficient operation.
Efficient work mode
For fast cycle times and optimum fuel consumption, the EC220 is equipped with the new G4 work mode. Operators can choose the best mode to suit the task at hand, selecting from I (Idle), F (Fine), G (General), H (Heavy) and P (Power max) mode. Choose the correct mode according to your working conditions for added versatility and increased productivity.
Excellent controllability
The EC220 features increased hydraulic flow for responsive, accurate control in grading and combined operations. Benefit from smoother and easier movement when traveling and lifting simultaneously as well as better grading quality from the harmonized boom and arm movement.
Outstanding fuel efficiency
The Volvo EC220 is a versatile machine that ensures optimum profitability. This excavator is designed to lower fuel consumption and reduce operating costs, featuring best-in-class fuel efficiency and Volvo’s intelligent ECO mode. Excellent service access and a durable design guarantee a long machine life and allow you to get the most out of your machine.
ECO mode
The EC220 is built to ensure servicing is safe, quick and easy, featuring anti-slip plates, grouped filters, ground-level service access and centralized lubrication points. Long service intervals enhance machine availability and increase uptime for maximum productivity.
Easy to service
Benefit from a robust performance, shift after shift. Built with durable components for outstanding results in all applications, the EC220 is designed to secure lasting machine value and an excellent return on investment.
A versatile machine
Make sure you are ready to tackle any job. Volvo CE offers a comprehensive range of attachments that let you handle a wide variety of tasks. The EC220 can be fitted with a selection of buckets and breakers that work in harmony with the machine to ensure optimal performance and profitability in any application.
Quality Volvo buckets
Access more applications and efficiently perform a variety of tasks with Volvo’s extensive attachment range. The EC220 is compatible with a selection of robust buckets, breakers and piping options that allow you to adapt to any job with ease. All attachment options ensure a quality performance, high productivity and fast cycle times.
Powerful breakers

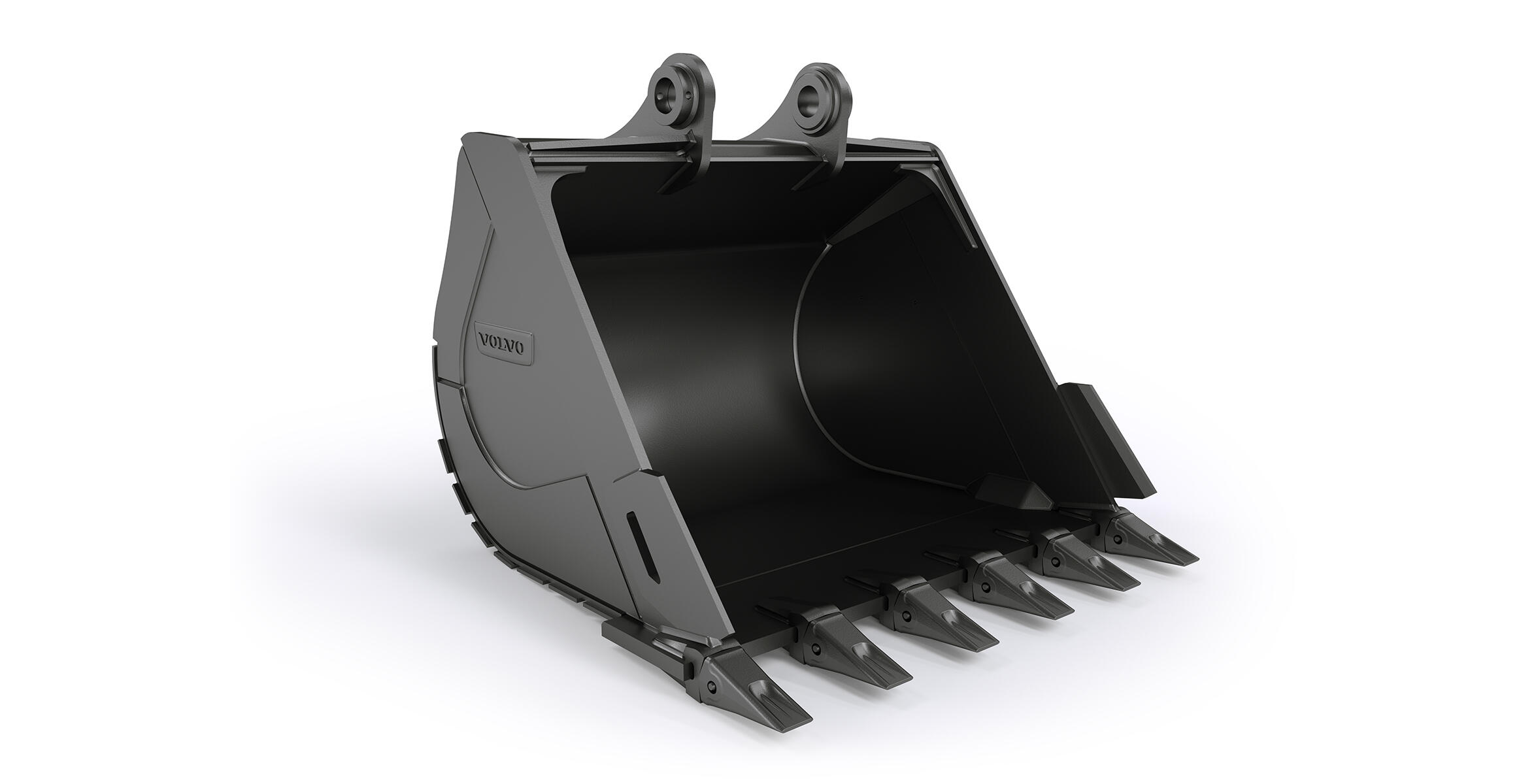

Volvo offers a range of high quality buckets designed to perform efficiently in a variety of materials. Featuring exceptional design and built-in durability, these buckets are equipped with Volvo teeth to handle the toughest applications.
Optional auxiliary piping

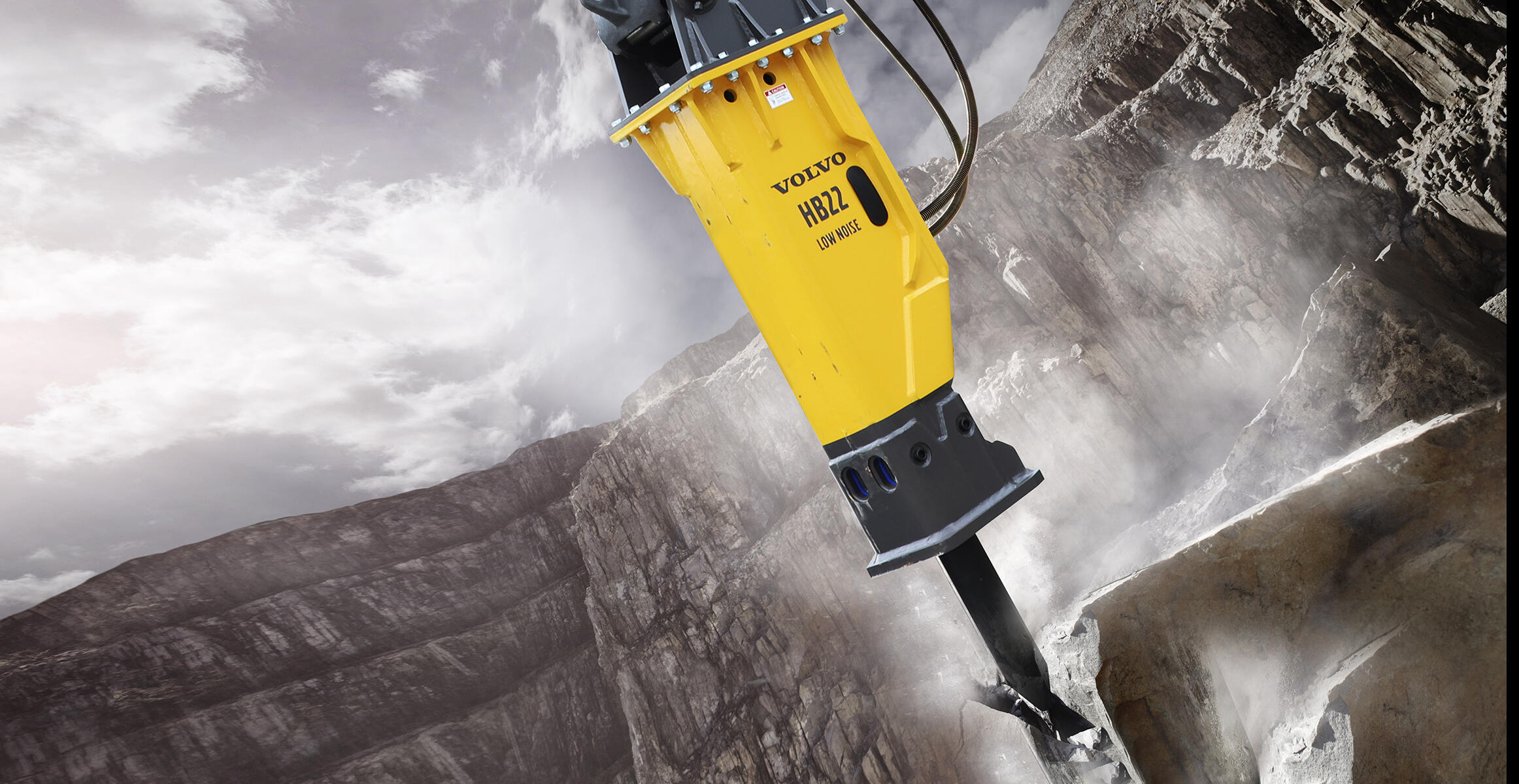

The EC220 can be equipped with either a top or side mounted Volvo hydraulic breaker built to break even most demanding materials. With consistent power and high breaking force you’ll benefit from maximum impact and durability. Set your Volvo breaker at the right frequency to suit your application needs.
Attachment management system
Pre-set and adjust hydraulic flow from the monitor inside the cab with this password-protected management system, providing storage for up to 20 different attachments for increased versatility. You can choose between one or two pump flow to maximize profits and productivity.
Customer Support Agreements
Being a Volvo customer means having a complete set of services at your fingertips. Volvo can offer you a long-term partnership, protect your revenue and provide a full range of customer solutions using high quality parts, delivered by passionate people. Volvo is committed to a positive return on your investment.
Complete solutions
Volvo has the right solution for you. So why not let us provide all your needs throughout the whole life cycle of your machine? By listening to your requirements, we can reduce your total cost of ownership and increase your revenue.
Genuine Volvo Parts
Our attention to detail is what makes us stand out. This proven concept acts as a solid investment in your machine’s future. Parts are extensively tested and approved because every part is vital for uptime and performance. Only by using Genuine Volvo Parts, can you be sure that your machine retains the renowned Volvo quality.
Service network
In order to respond to your needs faster, a Volvo expert is on their way to your job site from one of our Volvo facilities. With our extensive infrastructure of technicians, workshops and dealers, Volvo has a comprehensive network to fully support you using local knowledge and global experience.
CareTrack
CareTrack is the state-of-the-art Volvo telematics system that provides access to a wide range of machine monitoring information designed to save time and money. Proactively manage service and maintenance schedules, optimize machine and operator performance and reduce fuel costs with CareTrack.
-
