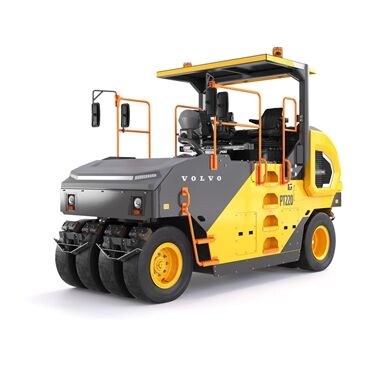

Volvo PT220 Electric

Operating weight (with ROPS, fully ballasted)	11,000 kg
Drum or rolling width	1,980 mm
Rated engine power	74 kW
Overall length	5,060 mm
Overall width	2,270 mm
Overall height	3,430 mm
Battery voltage	400 V
Battery capacity	134 kWh
Indicative runtime (depending on application)	4 to 5 hours
Motor power (Rated)	114 kW
Off-board DC Fast Charging	< 1 hour
On-board AC Slow Charging	< 13 hours

Features & Benefits

Operator safety and comfort while operating an electric machine is key. Read more about PT220 Electrics operator friendly features.

Operator friendly features

The PT220 Electric can be used on all types of asphalt mixes to provide a kneading effect to achieve the appropriate density and finish. It has been designed to operate for a full shift on a single charge. An electric machine is also more comfortable for the operator due to lower vibrations and noise.

Precision operation

The electro-proportional joystick contributes towards the smooth and precise machine control, enhancing operator comfort and productivity.

Comfortably productive

Operator comfort is kept to a maximum with features including a sliding console, outstanding visibility, suspension on both seats and USB charger.

Operator protection

The heavy-duty steel sunshade not only keeps operators sheltered from the sun, but also provides additional protection in the unlikely event of a machine roll-over and can be easily removed for transportation. Additional safety features include the operator seatbelt and seat presence sensor.

A few highlighted technical features that makes Volvo PT220 Electric a great pneumatic tire compactor.

Get more from your electric compactor

PT220 Electric combines the reliable and recognized Volvo pneumatic tyre compactor platform with battery power. It allows you to gain 30% more power than the conventional machine resulting in improved on-grade performance and operation at high altitudes where naturally aspirated diesel engines lose power.

Reliable charging

PT220 Electric is designed to operate for a full shift on a single charge, depending on the type of job and intensity. Integrated on-board charger allows for overnight charging from 0 to 100%, depending on AC power level. Optional off-board DC fast charger enables charging from 0 to 100% in less than 1.5 hours.

Smoothly does it

Achieve fast cycle times and optimum output with maintenance free, hydrostatic transmission which enables smooth transmission between forward and reverse without scuffing the material surface. The hydraulic steering system provides the ultimate in precision for maximum surface coverage.

The knead you need

Experience the perfect kneading effect required to achieve uniform material density in no time at all. Four wide front and rear tires overlap by 50mm to provide full width coverage, while the isostatic levelling cylinders secure consistent contact with the material for excellent surface sealing.

Productivity on tap

The pressurized, rust-proof 550-liter LDPE water system features an adjustable flowrate which can be used by the operator as needed to help eliminate material build up on the tire surface, maintain mat surface temperature and reduce water refills. The water storage tank level indicator is clearly in view, allowing the operator to easily monitor the water level.

Here are four reasons why we think you ought to consider an electric pneumatic tire compactor from Volvo.

Why an electric compactor?

Our electric machines have the power to change the way you do business. You get high performance delivered with less noise, less vibrations and no exhaust fumes. You can work in sensitive environments or work at night in urban environment in a sustainable and efficient ways.

Less maintenance. More up-time

With no traditional engine-related parts that need maintenance you will spend less time servicing your Volvo electric machine. Less service means more up-time, which means you increase your productivity.

Save money by going electric

Not only do you have less time spent on maintenance but there are more you will benefit from. With an electric machine from Volvo there is no idling and wasting fuel while not working thanks to the auto idling feature. It all adds up, making the total cost of ownership lower.

Proven Volvo technology

Our electric range is built on proven technology of the Volvo compactors and combines it with the additional benefits that come from going electric. Operators will benefit from low noise and lower vibration, as well as more responsive hydraulics due to the electric motor. An electric machine offers a better place to work, both on machine and on site.

Less vibrations in electric machines

Vibrations are often connected to health issues like headaches, back pain and fatigue. Fortunately, vibrations are at a minimum in Volvo’s electric construction machines, so you will feel better when you get home from work.

More power at less cost

Technical specifications for Volvo PT220 Electric
