DD90 | Compactors | Overview | Volvo Construction Equipment

Operating weight (with ROPS)	8,700 kg
Drum or rolling width	1,676 mm
Rated engine power	55 kW
Vibration frequency	36/50 hz
Amplitude	0.36/1 mm
Overall length	4,970 mm
Overall width	1,835 mm
Overall height	3,070 mm
Configuration	Vibratory

Features & Benefits

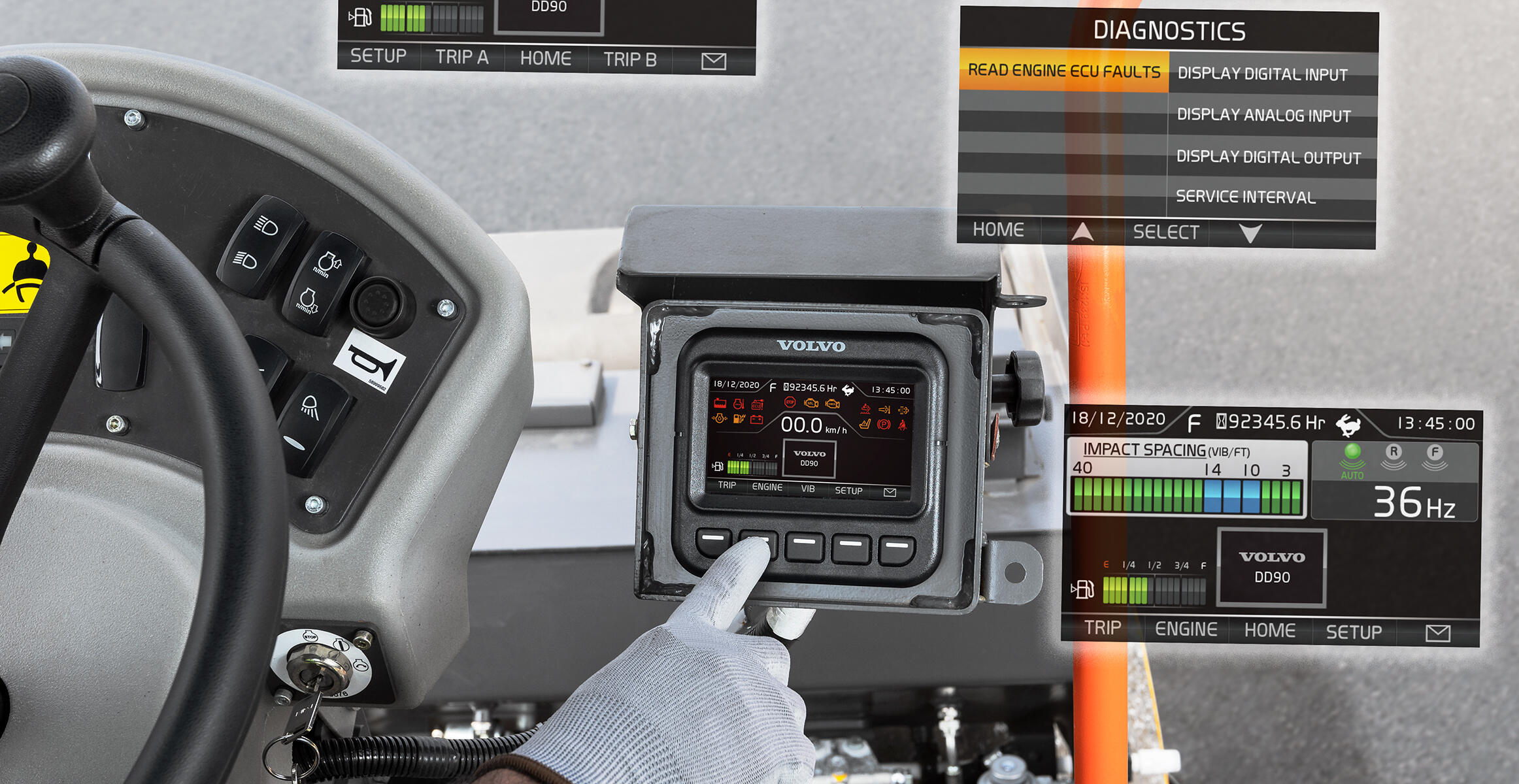

Unlock the full potential of your machine with the new 4.3” display. Available information via the display includes travel speed, impact spacing meter, trip meter, total working hours, engine rpm and high coolant temperature indicator. Service notifications as well as information regarding battery condition and DEF/fuel levels help to maximize uptime.

Take control

Rely on the DD90 to deliver a high quality mat in fewer passes. A new generation asphalt compactor from Volvo, the DD90 is built on the success of its predecessor along with a host of upgrades. Utilizing our decades of experience in the Indian market, the asphalt compactor is packed with productivity-enhancing features and ready to tackle the most challenging projects.

Productive perfection

Experience the ultimate in productivity and mat quality. Dual amplitudes and frequencies allow the machine to adjust to the type of material at hand, combined with a 50hz high frequency for fast rolling speeds. Chamfered drum edges and automatic vibration start, further contribute to the perfect mat.

Optimum water use

Optimize water use with the automatic spraying system, which provides variable flow proportional to the machine speed, delivering consistent drum coverage and preventing material pick-up.

See more, do more

Count on operators to produce the highest quality rolling results, thanks to superb all-round visibility. This combined with the adjustable suspended seat means they can work with greater precision, comfort and safety. A heavy-duty steel sunshade protects operators against the elements and in the unlikely event of a machine roll-over. The sunshade can be easily removed for transportation.

Made in India, for India

Based on decades of experience supplying high performing machines to the Indian market, the DD90 has been designed specifically for compaction applications in India.

The fuel efficient and reliable VECV engine helps to secure the highest levels of performance and a low cost of operation. Both the engine and machine can be serviced by your Volvo dealer, providing a one-stop-shop maintenance solution for further convenience and reduced downtime.

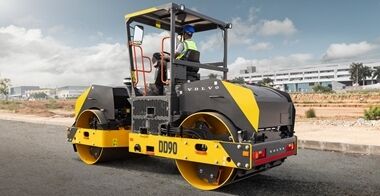

Powered to Perform

With the highest levels of Volvo quality built into every component, the DD90 is a reliable and durable machine designed to work harder for longer. Machine quality is complemented by a range of Volvo Services, to keep your machine working at its best and get the maximum return on your investment.

Retain Volvo Quality

Only by using Genuine Volvo Parts can you be sure that your machine retains its renowned Volvo quality. Every part is vital for uptime and Genuine Volvo Parts are extensively tested and approved to provide the same levels of component quality as the day you bought your machine.

Round the Clock Support

Get your machine back to work without delay with 24/7 access to the Volvo dealer support network. Simply call the support number, which will automatically direct you to your local dealership, where a dedicated team will take care of your individual needs.

Plan for success

Including preventive maintenance and total repairs, with a Customer Support Agreement you are in control of your service costs. Customer Support Agreements are part of an extensive portfolio of Volvo Services designed to help you get the maximum return on your Volvo machine from purchase to disposal.

Asphalt Compactors DD90

Quality results

Technical specifications for DD90
