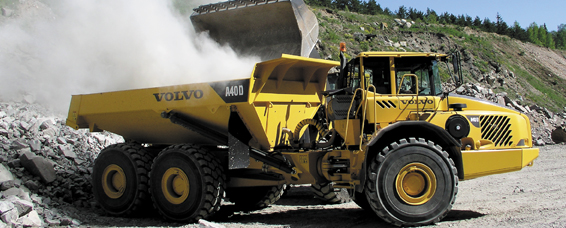

Volvo A40D

As a preparation for coming emissions regulations the D12D engine was introduced for A35D and A40D. The D12D engine met US (EPA) step 2, California (CARB) step 2 and Europe (EU) step 2 emission standards. Basic specifications such as power and torque are the same for D12C and D12D engines. The production started in November 2004.

In order to meet the Tier 3 / Stage IIIA legislative demands concerning exhaust emissions, a new version of the Volvo D12 engine was developed for A35D and A40D.

The new engine met US (EPA) Tier 3, California (CARB) Tier 3 and Europe (EU) stage IIIA emission standards.
V-ACT (Volvo Advanced Combustions Technology) was implemented on the D12D engines for the US market only as from April 2005 and the EU market started from January 2006. The Tier 2/Step II compliant D12D engine continued to be available for affected markets.

A40D 2006 specifications
Engine Volvo D12D AD E3
Rated output at, r/s (r/min) 30 (1 800)
...SAE J1349 gross, kW (hp) 313 (426)
...SAE J1349 net, kW (hp) 309 (420)
Max torque at, r/s (r/min) 20 (1 200)
...SAE J1349 gross, Nm 2 100
...SAE J1349 net, Nm 2 056
Max speed, km/h 55
Load capacity SAE struck, m3 16,9
Load capacity SAE 2:1 heap, m3 22,5
Payload, t 37
Net weight, t 31,3
Gross weight, t 68,3
Production year 2000–2007
