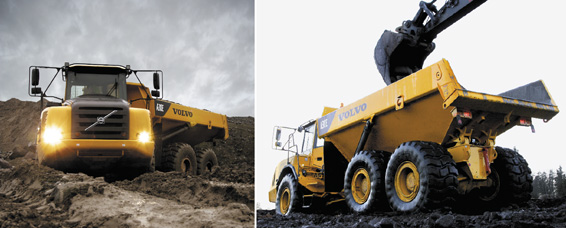

Volvo A30E

Volvo's in-house engines provided A30E both power and rimpull. The D9-engine was equipped with Volvo Advanced Combustion Technology which was designed to efficiently use every drop of fuel. Several important features made the machine and operator a highly productive unit: the well proven brake system, the effective retardation system, the powerful and exact dumping system, and the superior steering system.

Production year 2007-2010

A30E 2010 specifications
Engine Volvo D9B AC E3
Rated output at, r/s (r/min) 31,7 (1 900)
...SAE J1349 gross, kW (hp) 252 (343)
...SAE J1349 net, kW (hp) 251 (341)
Max torque at, r/s (r/min) 20 (1 200)
...SAE J1349 gross, Nm 1 700
...SAE J1349 net, Nm 1 689
Max speed, km/h 53
Load capacity SAE struck, m3 13,6
Load capacity SAE 2:1 heap, m3 17,5
Payload, t 28
Net weight, t 23,1
Gross weight, t 51,1
Production year 2007–2010
