A20 6x4

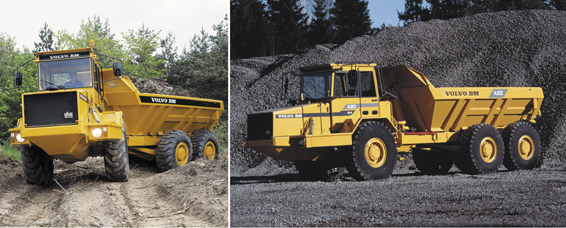

Volvo BM A20 6x4

The Volvo A20 BM 6x4 offered reliable haulage under difficult conditions and could be used on public roads. Its payload capacity was 18 500 kg (20 sh tons) and its top speed was 34 km/h (21.2 mph). It had articulated steering/all-terrain bogie and 4-wheel drive.

Production year 1986–1991

A20 6x4 1991 specifications
Engine Volvo TD 71 G
Rated output at, r/s (r/min) 36,7 (2 200)
...SAE J1349 gross, kW (hp) 148 (201)
...SAE J1349 net, kW (hp) 137 (186)
Max torque at, r/s (r/min) 28 (1 700)
...SAE J1349 gross, Nm 680
...SAE J1349 net, Nm 640
Max speed, km/h 30
Load capacity SAE struck, m3 8,7
Payload, t 18,5
Net weight, t 14,85
Gross weight, t 33,35
Production year 1986–1991
