Locked on securely with Volvo’s latest hydraulic quick coupler

With its universal pin grabber, a new hydraulic quick coupler from Volvo is the perfect fit for maximizing productivity for the EC35D compact excavator and reduced radius ECR35D and ECR40D compact excavators.
Locked on securely with Volvo’s latest hydraulic quick coupler

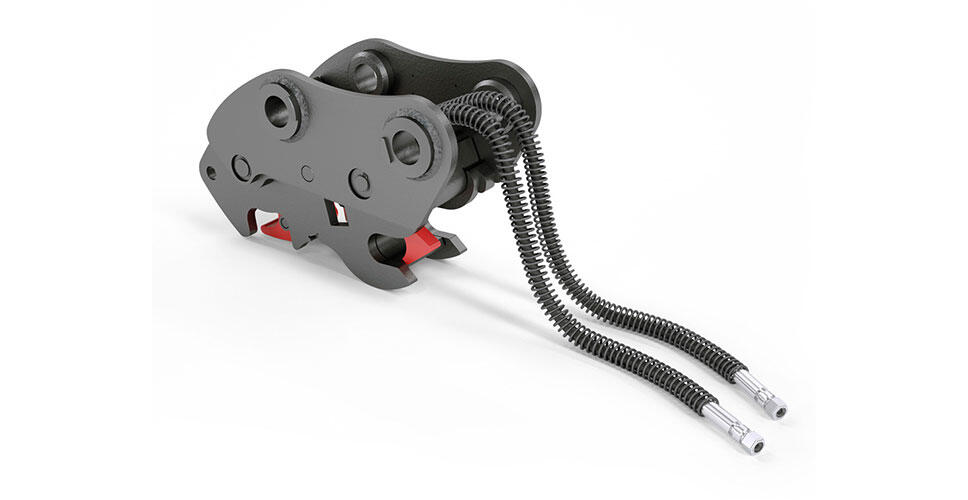

The Volvo hydraulic quick coupler with universal pin-type grabber is designed for use on Volvo’s EC35D compact excavator and ECR35D and ECR40D reduced radius compact excavators, creating a more versatile and efficient machine, one that is in line with the latest safety CE regulations and ISO standards.

Locked on securely with Volvo’s latest hydraulic quick couplerThe quick coupler allows the operator to quickly and easily connect to a full range of compatible Volvo attachments without needing to leave the cab, as well as alternating between regular and front-shoveling positions. The red locking indication gives the operator a clear visual reassurance that the attachment has been locked. It is securely fastened with front and rear pin locking and a hydraulic safety valve to maintain pressure.

Maintaining a competitive break-out force, the Volvo hydraulic quick coupler helps to achieve high levels of productivity. Designed with a low building height in mind and a lifting eye, the coupler helps to ensure the utilization of the full capacity of the compact excavator.

 The selection of compatible buckets includes Volvo digging buckets, fixed ditch buckets, tilt-able ditch buckets, breakers and hydraulic thumb.


Tiffany Cheng

Head of Brand, Marketing and Corporate Communication
Regions Asia and China
Volvo Construction Equipment

Åsa Alström

Head of Strategic Communications
Volvo Construction Equipment

Key specifications:

Hydraulic quick coupler model U04
Machine EC35D ECR35D ECR40D
Building height mm in 155 6.1
Weight (no pins) kg lb 38 84
Pin diameter (from-to) mm in 35 40 1,.38 1,.57
Min - Max pin distance mm in 173-218 178-218 6.81-8.58 7.01-8.58
Base width mm in 120 4,.72
Space between the lugs mm in 124 4,.88
Top pin distance mm in 200 7,.87
Front pin locking Auto
Rear pin locking x
Hoses included x
Lifting eye x
Front-shoveling position  x
Volvo Thumb compatible x
Volvo Breaker compatible x
Volvo Buckets compatible  x
ISO 13031  x
EN474-1  x
