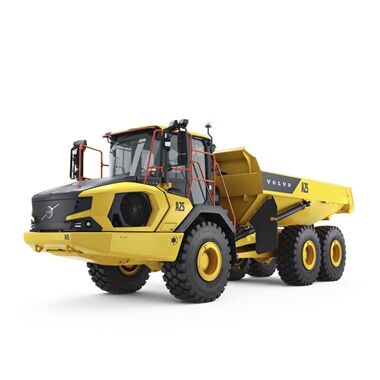

Articulated Hauler
A25
-
Stage V / Tier 4f Emission Standards -
25,000 kg Payload capacity -
235 kW Max engine gross power -
15.3 m³ Body volume, SAE 2:1 Heap
Technical specifications for A25
| Payload capacity | 25,000 kg |
|---|---|
| Body volume, SAE 2:1 heap | 15.3 m³ |
| Net weight | 22,450 kg |
| Gross weight | 47,400 kg |
| Engine | Volvo D11M |
| Max engine gross power | 235 kW |
| ...at engine speed | 2,100 rpm |
| Max SAE J1349 gross torque | 2,040 Nm |
| ...at engine speed | 1,100 rpm |
| Max speed | 53 km/h |
Features & Benefits

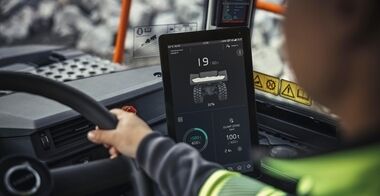

Intuitive operator interface
Operators can stay in-the-know and focussed on the task at hand thanks to all essential in-cab information conveniently displayed on two screens. The interactive, integrated Volvo Co-Pilot display offers easy control over essential functions such as media, camera settings, climate control, and machine status. This is combined with the dynamic instrument cluster, positioned in front of the steering wheel, which provides essential vehicle data at a glance.
In and out with ease
Enter and exit with safety and ease thanks to the repositioned door entrance, which allows the door to be comfortably opened while standing on the robust platform. Railings on both sides of the machine further add to the safe access, while the new entrance light guides operators up the stairs without glare or discomfort. Focused lighting further ensures clear visibility on both the stairs and platform.
A new level in comfort
Experience a new level of operator comfort and convenience when you step inside the comfortable, customizable and low-noise cab. With more storage, a cool/heat box, new premium seat options and enhanced connectivity – including Bluetooth connection, USB sockets, four speakers and a microphone – operators will enjoy an in-cab experience like no other. Simplify cleaning with hanging pedals and rear drainage for effortless dirt and debris removal, while the redesigned floor mat, now in three separate pieces, facilitates easier handling and cleaning.
Durable, smooth suspension
The durable gas-hydraulic suspension provides a smooth ride on rough haul roads, providing versatility, performance and comfort across diverse operational scenarios.
Ergonomic gear lever
The new ergonomic gear lever effortlessly returns to the center position after use. The result is a smoother operation, reducing operator strain and enhancing comfort and operator productivity during long work shifts.
Designed for operator performance
Features including hill assist, cruise control, downhill speed control, load and dump brake and dynamic Volvo Engine Brake help operators achieve optimum results all day, every day. With the new dump support system, an angle sensor for side inclination has been added to the trailer unit and a visible alarm level can be set. This enables the operator to see what side tilt the trailer has before unloading, further supporting the operator and enhancing safety.
Haul Assist with On-Board Weighing
Haul Assist, powered by the integrated Volvo Co-Pilot, is a set of tools designed to help you get even more productivity and efficiency from your Volvo Articulated Hauler. A key feature of Haul Assist is On-Board Weighing, which provides real-time payload information which can help to eliminate carry-back and overloading. The result is peak productivity, reduced fuel consumption and less machine wear.
Enhanced visibility
With redesigned hood and cab panels, and wider wiper coverage, operators benefit from a direct field of vision which exceeds industry standards. Visibility is further enhanced by the optional front and rear cameras, and standard entrance camera. Camera views are easily managed using Volvo Co-Pilot, with options for both automatic and manual control of displays.
Safer working in low light conditions
Ambient lighting surrounding the exterior of the machine enhances visibility, particularly in low-light conditions and during nighttime operations. The result is enhanced safety and accessibility for those working in the machine’s service areas. A new entrance light guides operators up the stairs, for a safer machine entrance/exit.
Light the way
For even more visibility when working in low light conditions, optional work lights activated via the integrated Volvo Co-Pilot are now located on the pillars, providing increased illumination ranging from 1800 to 2000 lumens per light.
Operator Training Program
Unlock the full potential of your Volvo Articulated Hauler with a range of operator training initiatives designed to help operators get the most from their Volvo machine. Contact your local Volvo dealer to find out more about operator training opportunities.
Productive and efficient performance
The Volvo Articulated Hauler delivers best-in-class off-road performance with features including the proven Volvo drivetrain, automatic drive combinations (including 100% differential locks), all-terrain bogie and hydro-mechanical steering for unmatched traction, stability and precision control. With Volvo Dynamic Drive, dynamic and predictive gear selection adapts to the operating conditions at hand, for improved comfort and fuel efficiency.
Volvo DNA throughout the powertrain
Experience superb fuel efficiency without compromising on power and performance thanks to the world-renowned Volvo drivetrain, complete with Automatic Traction Control (ATC), including Terrain Memory*. The intelligent function identifies and remembers slippery road segments to ensure optimized traction control and outstanding off-road mobility.
Smooth descent with best in class braking and retarder systems
Make your daily job easier with downhill speed control. The function automatically maintains a constant speed when operating on downward gradients and is the perfect alternative to the retarder pedal for a more efficient and comfortable shift. Further optimize safety and performance with our best in class braking and retarder systems, including the Volvo Engine Brake, downhill speed control function and wet brakes on all wheels.

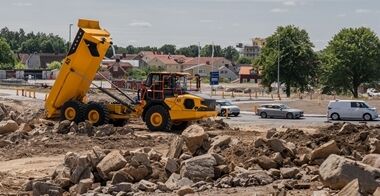

Productivity, efficiency and stability
Move more for less thanks to the intelligent design, which is optimized for maximum efficiency in high payload applications, and work safely and productively thanks to the outstanding tipping stability.
Connected Map and Performance Indicator
Connected Map improves traffic flow and safety by providing real-time equipment locations, while Performance Indicator helps reduce fuel consumption and idle time by monitoring vehicle performance. Combined, these digital solutions increase productivity, promote efficient decision-making, and ensure smoother, safer operations.

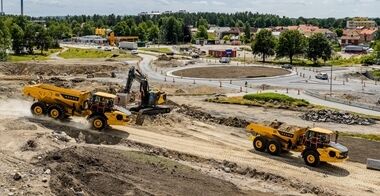

Lower maintenance costs
Keep service costs to a minimum thanks to simplified servicing, longer change intervals and easy component access. Servicing your machine is quick and easy thanks to industry leading service access and essential maintenance points accessible from the ground. What’s more, eliminate daily or weekly greasing thanks to industry leading greasing intervals of 250 hours for maximum uptime.
1000-hour engine service intervals
Volvo Engine Oil and High Performance Filters offer 1000 hour engine service intervals. The result is 50% less oil and filters required over the lifetime of the machine – reducing maintenance requirements as well as your environmental impact.
Efficient fluid management
When measured over the lifetime of the machine, Volvo Articulated Haulers require less fluid volume compared to the competition, benefitting the environment and reducing operating costs. Fluid levels are constantly monitored with timely service alerts displayed on the operator displays, helping you stay on top of your maintenance requirements.
Service contracts
Maximize uptime, reduced unexpected repair costs and keep your machine operating in top condition with a Volvo service contract. With a service contract your Volvo dealer provides scheduled servicing, proactive diagnostics and expert support, to keep your operation running to its full potential. Choose from a range of flexible options designed to suit your requirements.
Designed for uptime
Take on the toughest of projects in the durable and robust A25, ready to withstand heavy loads and high levels of torque and stress. The strong and stable articulated hauler contributes towards outstanding reliability, reduced wear and lower maintenance costs.
Enhanced electrical service center
Conveniently located at the ground level, the electrical service center features a service switch (including Lock Out Tag Out) and provides easy access to check, charge, or jump start the batteries, and it includes a power down switch for system shutdown.
Enhanced fuel filter water separator system
An electric priming pump eliminates manual pumping, along with a larger water bowl, which reduces the need for frequent draining. The pre-filter and main filter are grouped for easy access, reducing service points from two to one, shortening service time.
Harness anchor points
The cab now includes harness anchor points on the cab to ensure safety, withstanding a force of at least 22kN (2,268kg – 5,000lbs). This new safety feature aligns with WorkSafeBC OHS Regulation Part 11, ISO 14567:1999, and OSHA 1919.140(c) standards, optimizing safety and meeting regulatory requirements.
Smarter solutions start here
Discover a world of smart solutions designed to help you improve uptime, boost productivity and reduce costs.
Haul Assist with On-Board Weighing
Haul Assist, powered by the integrated Volvo Co-Pilot, is a set of tools designed to help you get even more productivity and efficiency from your Volvo Articulated Hauler. A key feature of Haul Assist is On-Board Weighing, which provides real-time payload information which can help to eliminate carry-back and overloading. The result is peak productivity, reduced fuel consumption and less machine wear.
Connected Map and Performance Indicator
Connected Map improves traffic flow and safety by providing real-time equipment locations, while Performance Indicator helps reduce fuel consumption and idle time by monitoring machine performance. Combined, these digital solutions increase productivity, promote efficient decision-making, and ensure smoother, safer operations.
Future proofed
With the machine’s new software architecture, you can adapt to changing needs and seamlessly incorporate future upgrades and new smart solutions. Our new electronic platform is not just an upgrade, it's a future enabler, ensuring your equipment stays up-to-date with cutting-edge technology.
Connected to Uptime 24/7
Maximize machine uptime and reduce repair costs with the CareTrack telematic system. Choose to keep track of your machine yourself or let us take care of it with ActiveCare. Our Volvo Uptime Center will provide 24/7 machine monitoring, supplying weekly reports and notifying you should preventive maintenance action be required. Easily connect, locate and monitor your Volvo construction machines anywhere, on any device, using the My Equipment app by Volvo CE.
Site Optimization
Make on-site logistics more efficient and lower your cost per tonne with the Site Optimization consultancy service. Our experts will visit your site and collect the data needed to assess the current situation and to find areas for further improvements. Simulations and reports will give insights to help you become more profitable while reducing your carbon footprint, while also improving accuracy in planning, forecasts and budgets with projections of your total haulage cost.
-
