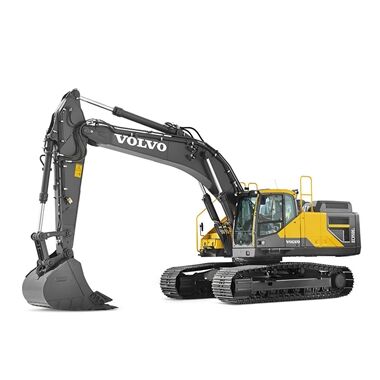

Boost your efficiency with the EC350E excavator

Introducing the new EC350E Excavator from Volvo Construction Equipment, these powerful production machines are designed to increase your productivity. Featuring a robust D13 Tier 4 Final engine, a new electro-hydraulic control system and Volvo's unique ECO mode, these heavy-duty excavators deliver up to 9% greater fuel efficiency.

Technical specifications for EC350E

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Metric

Imperial

Operating weight	78,940 - 92,760 lbs
Gross power	303 hp
Engine speed at max engine torque	1,700 rpm
Bucket capacity	1.1 - 2.5 yd³
Lifting capacity, along undercarriage	23,990 lbs
...at reach / height	20 / 5 ft
Max. digging reach	36′ 10″ ft in
Max. digging depth	24′ 11″ ft in
Breakout force, SAE J1179 (Normal)	44,510 lbf
Breakout force, SAE J1179 (Boost)	48,335 lbf
Tear out force, SAE J1179 (Normal)	44,040 lbf
Tear out force, SAE J1179 (Boost)	47,860 lbf
Overall width feet inches	11′ 1″ ft in
Tail swing radius	11′ 10″ ft in

Based on machine configuration: 6.45m boom, 3.2m arm, long Crawler, 6700kg CWT

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison Download the EC350E brochure, with all the details and specifications. (PDF, 2.6MB)

Features & Benefits

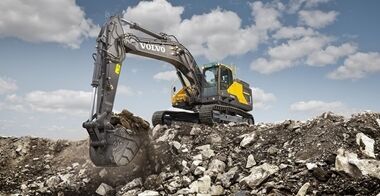

Volvo engine

Volvo's D13 Tier 4 Final engine boasts more power while reducing both fuel consumption and emissions and delivering superior quality, reliability and durability.

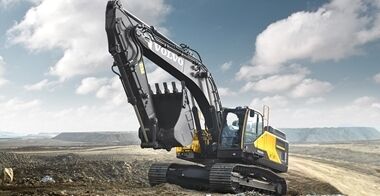

Reinforced undercarriage

The undercarriage components are reinforced to ensure long life, high uptime and ultimate durability in tough conditions

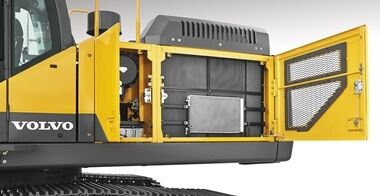

Single module cooler

The radiator, charged air cooler and hydraulic oil cooler are situated side-by-side on a single layer to maximize efficiency, reduce blockages and aid cleaning.

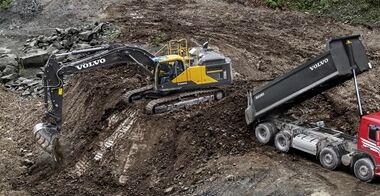

Attachments

Volvo's durable attachments have been purpose-built to deliver maximum productivity and long service life in combination with Volvo machines.

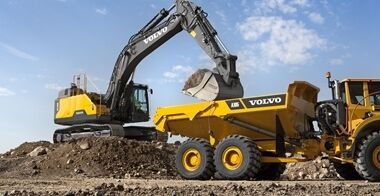

Eco mode

Volvo's unique ECO mode improves fuel efficiency without any loss of performance in most operating conditions.

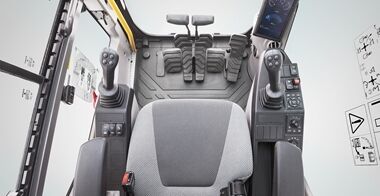

Human machine interface (hmi)

All machine interfaces are ergonomically positioned and designed for optimum control and efficiency.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.

Buckets (5)

General purpose bucket - Universal cut General purpose bucket GPX - Aggressive cut Heavy duty bucket - Universal cut Fixed Ditching bucket Extreme duty bucket - Universal cut
