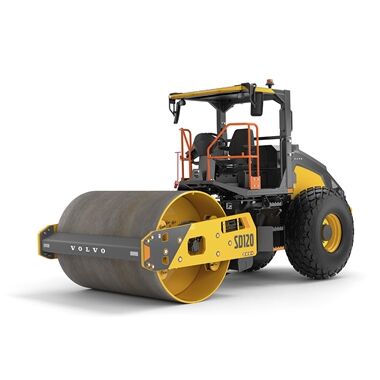

SD120 | Compactors | Overview | Volvo Construction Equipment

Operating weight (with ROPS)	11,400 kg
Centrifugal force	130/242 kN
Vibration frequency	30 hz
Rated engine power	99 kW
Amplitude	1.0/1.9 mm
Articulation angle	±39 °
Oscillation angle	±17 °

Features & Benefits

Experience a new level in soil drum compaction productivity.

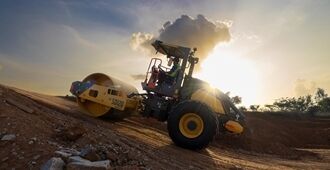

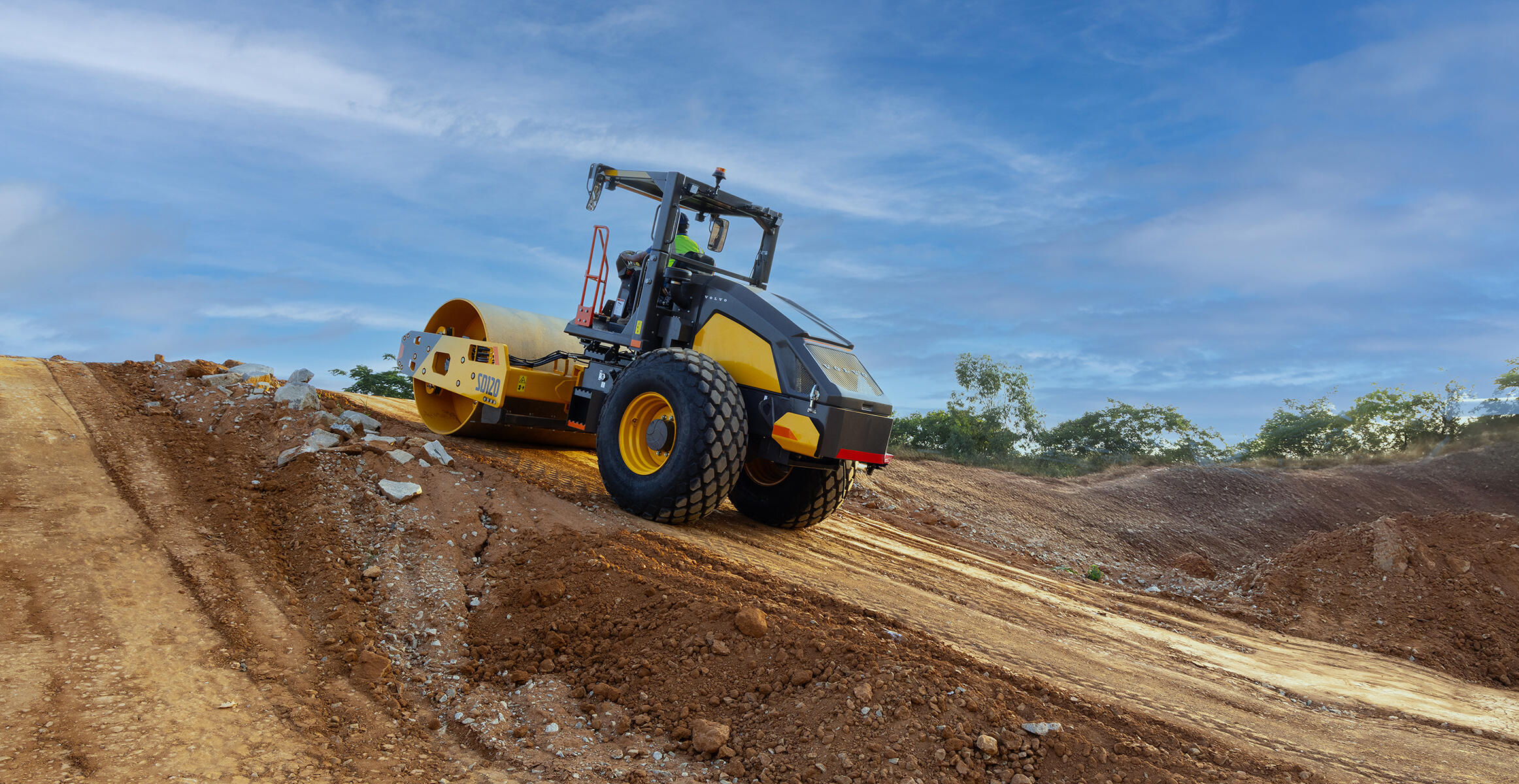

An SD120 from Volvo compacting the soil on a slope

A new level in productivity

The already outstanding productivity of the previous generation is taken to new heights in the SD120 thanks to the powerful 99kW D5 engine, matched hydraulics and new optional traction enhancement, delivering optimum performance in challenging ground conditions. Optional R1 tyres further enhance performance when working in clay environments.

The SD120 picture represent the 2 vibration amplitudes for compacting different type of Soils.

Forces and amplitudes

Achieve the desired compaction density, in different soil conditions, in fewer passes thanks to the high centrifugal forces of the SD120. With dual amplitudes 1.9/1 operators can adapt to different soil conditions for the right level of force according to desired layer thickness and the stage of compaction.

SD120 operator using the 43” LED color display to setup a new project with compact assist feature.

Compaction gauge and Compaction assist

With a basic compaction gauge as an option, operators can easily see if the correct compaction is achieved compared to the target on the digital colour display. The new optional digital compaction gauge is integrated into the display providing instant compaction status compared to target. To further enhance productivity, quality and accuracy, the new Compaction assist as an option helps optimize compaction and achieve the preset compaction by evenly compacting the entire working area and avoid unnecessary fuel consumption. Downloadable reports on compaction quality and results also minimise the need for compaction testing.

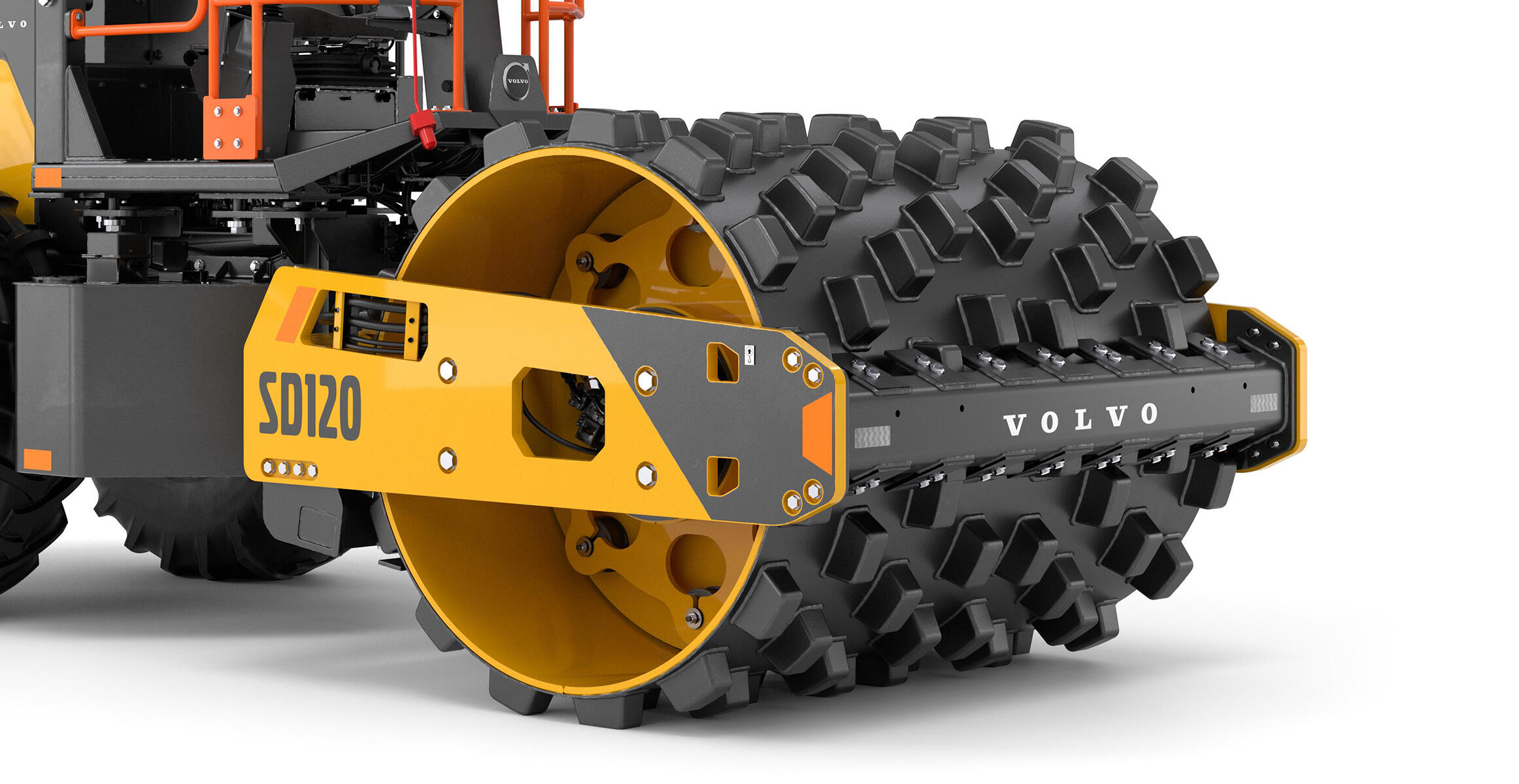

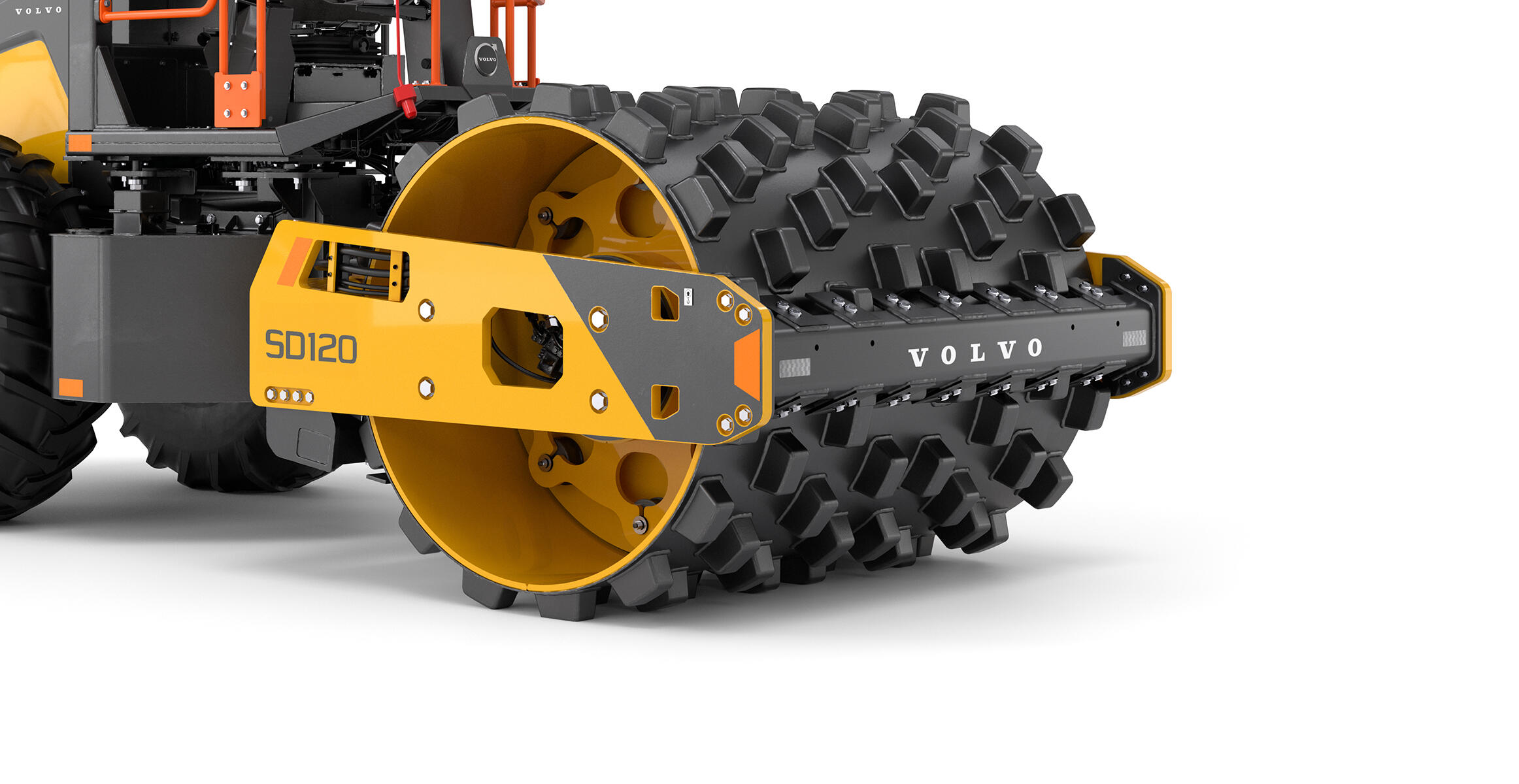

side view of the roller with the metal padfoot option to get better traction and gradeability.

Padfoot drum

In addition to the existing bolt-on padfoot, which is still available and contributes to the overall versatility of the SD120, customers can now also choose a new padfoot drum. The padfoot drum features pads welded to the drum, enabling better traction and making it the perfect choice for excellent gradeability and compaction results when working in clay environments.

Benefit from an 8% improvement in fuel economy and lower operating costs.

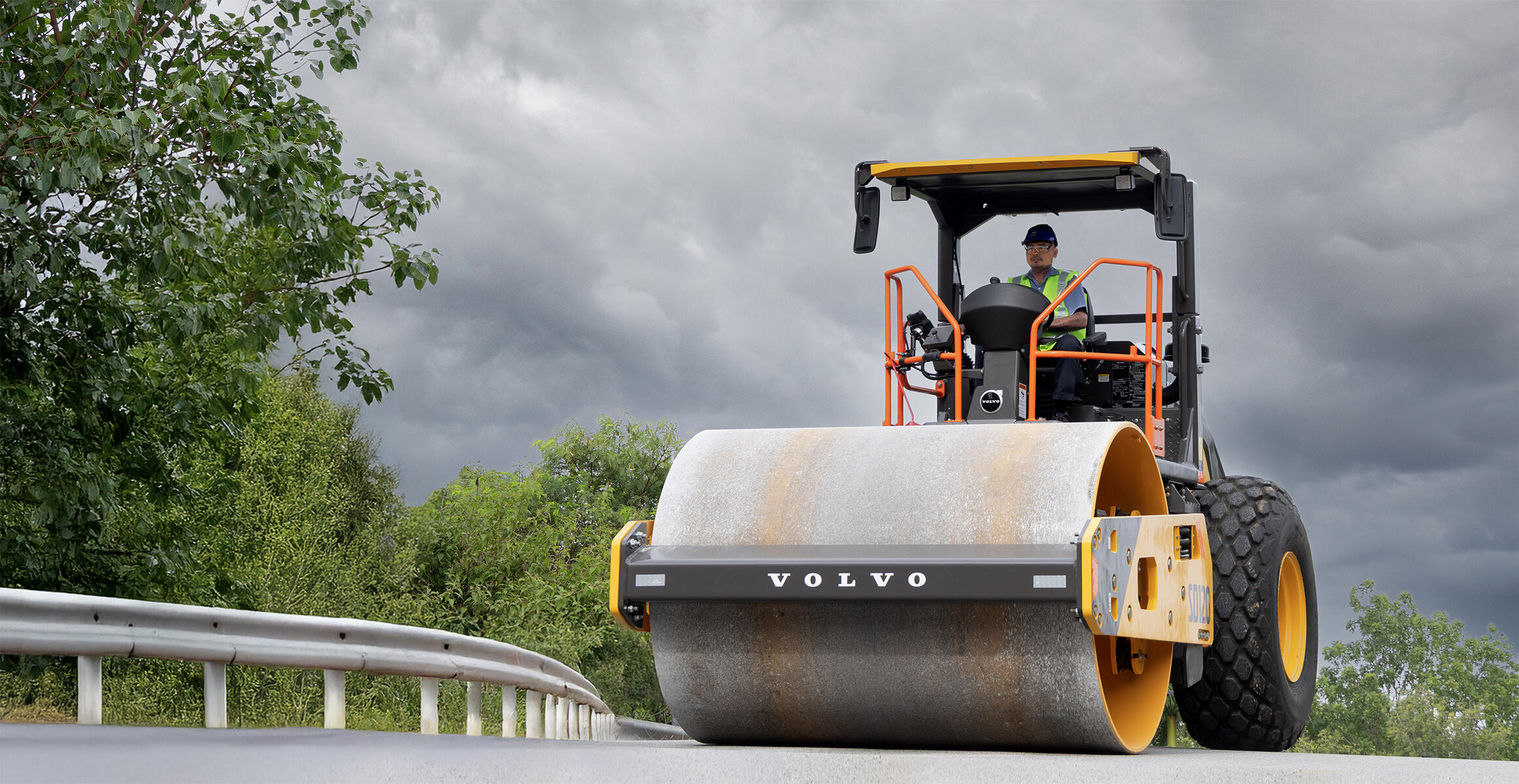

Front view of Volvo SD120 soil compactor on a flat road somewhere in Asia.

8% improvement in fuel economy

Benefit from up to 8% better fuel economy compared to the previous generation thanks to the powerful 99kW Volvo D5 engine, which combines with a new hydraulic pump designed to optimize flow and speed. This is complemented by a host of further fuel economy boosting

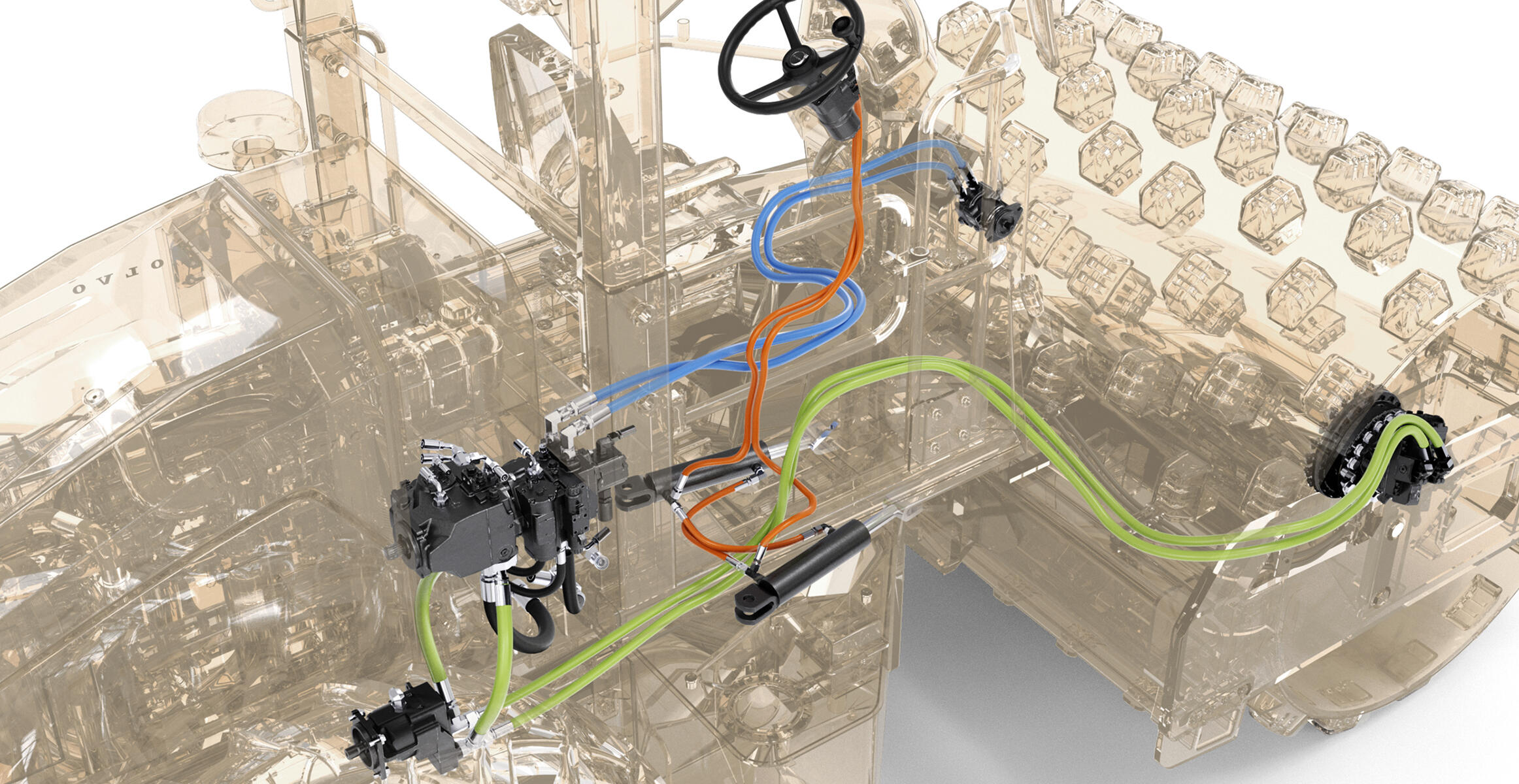

Here, the image schematically represents the hydraulic circuit of an SD120 soil compactor.

New efficient hydraulic system

The proven new generation hydraulic system reduces losses and is ideally matched to the Volvo D5 engine helping to deliver more performance and less fuel consumption.

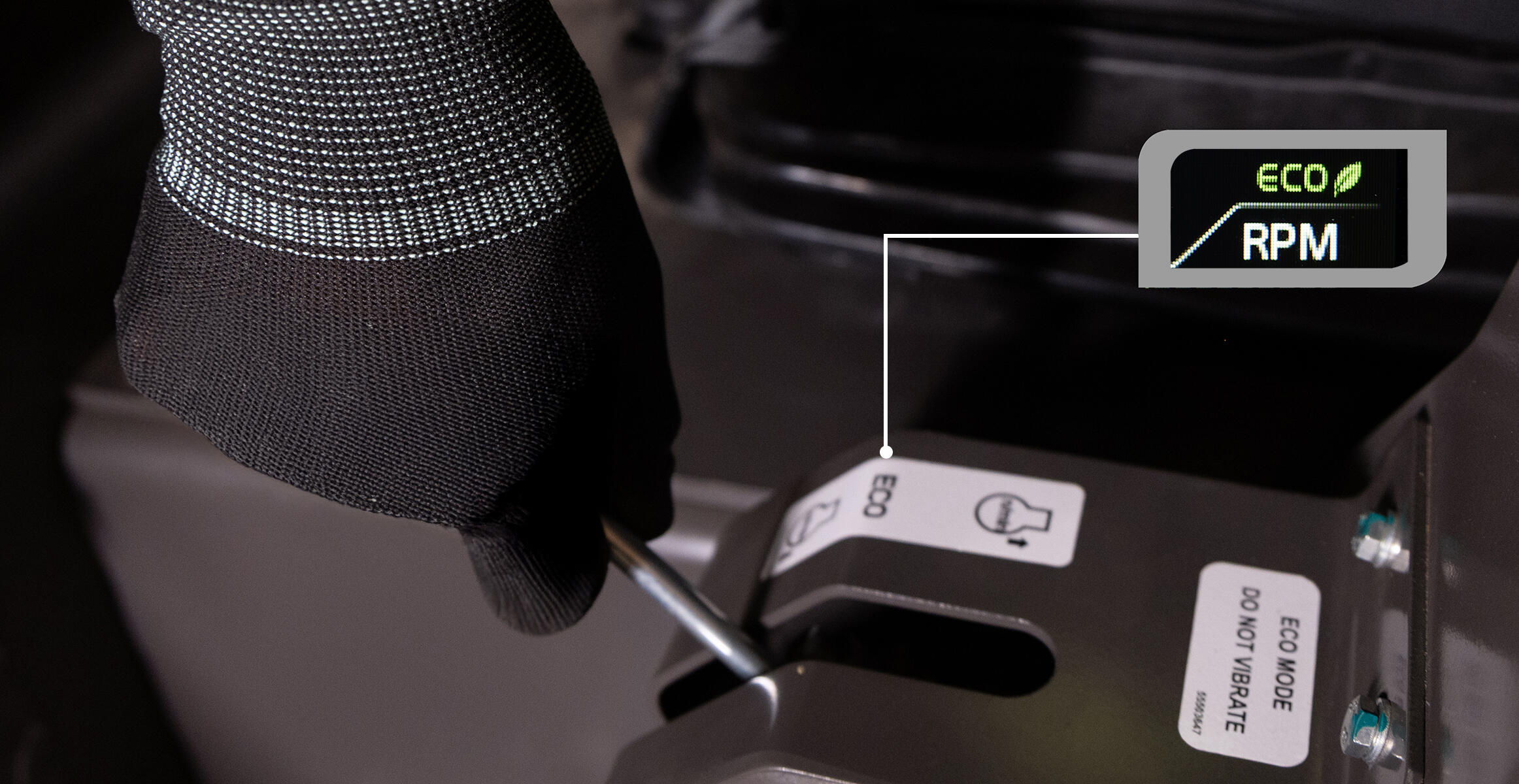

Close-up view of an operator switching to Eco mode using the selector lever on a Volvo SD120.

ECO mode for travelling

The new ECO mode feature when travelling leverages the engine performance curves to deliver excellent fuel economy, and with virtually no change in performance when not compacting.

Intuitive display

Operators are guided by an alert to switch to ECO mode or 'low idle’ thanks to the smart detection, further helping to save fuel.

Climb aboard the most comfortable operator environment in its class.

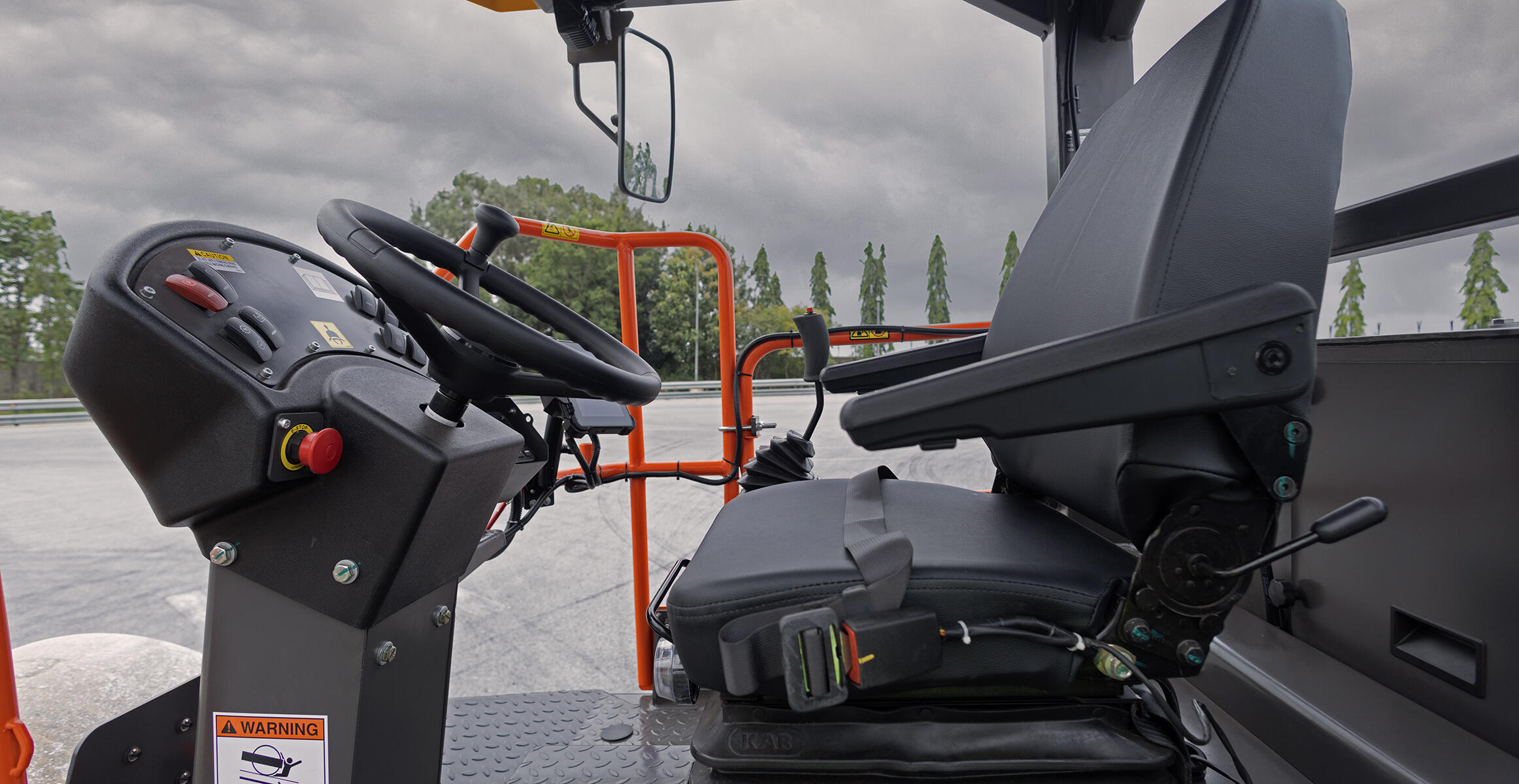

Work in comfort

The vibration-resistant, comfortable seat with arm rests, a new intuitive interface, ergonomic controls and a spacious platform with new shock mounts help reduce operator fatigue during long shifts.

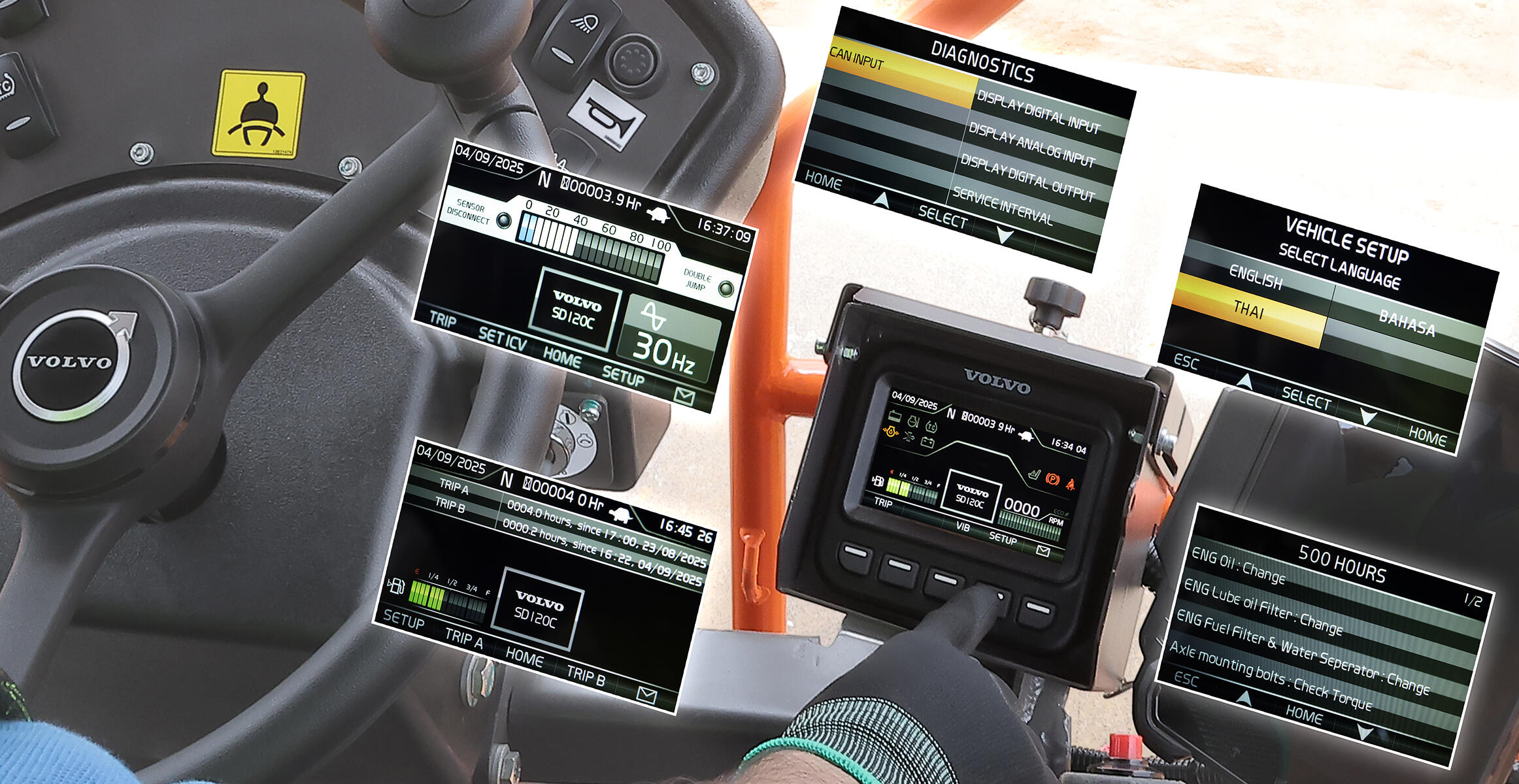

Exploded view showing the different interfaces available for example changing easily the interface language: English, Thai, Bahasa

New intuitive interface

In the SD120 operators will be working with the all-new 4.3” LED color display. This intuitive interface puts vital information and diagnostics at the operator’s fingertips along with 2-trip meters for recording hours (day/week or week/month).

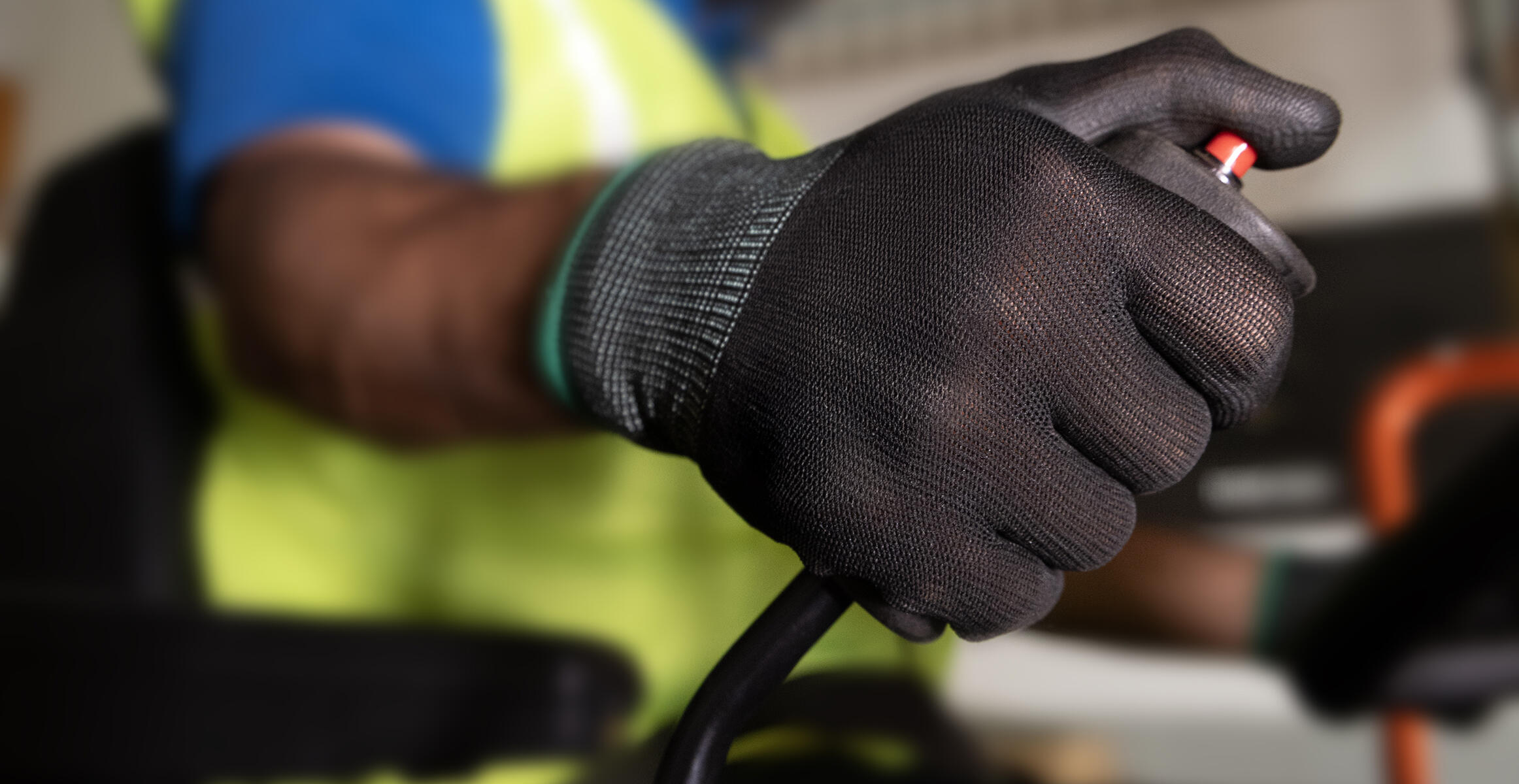

The updated throttle offers three speed settings, compared to two in the previous generation, giving operators greater control, improved performance and fuel economy.

Take control

Machine control is improved with the introduction of a new, robust propulsion lever and an ergonomically repositioned throttle lever. The updated throttle offers three speed settings, compared to two in the previous generation, giving operators greater control, improved performance and fuel economy.

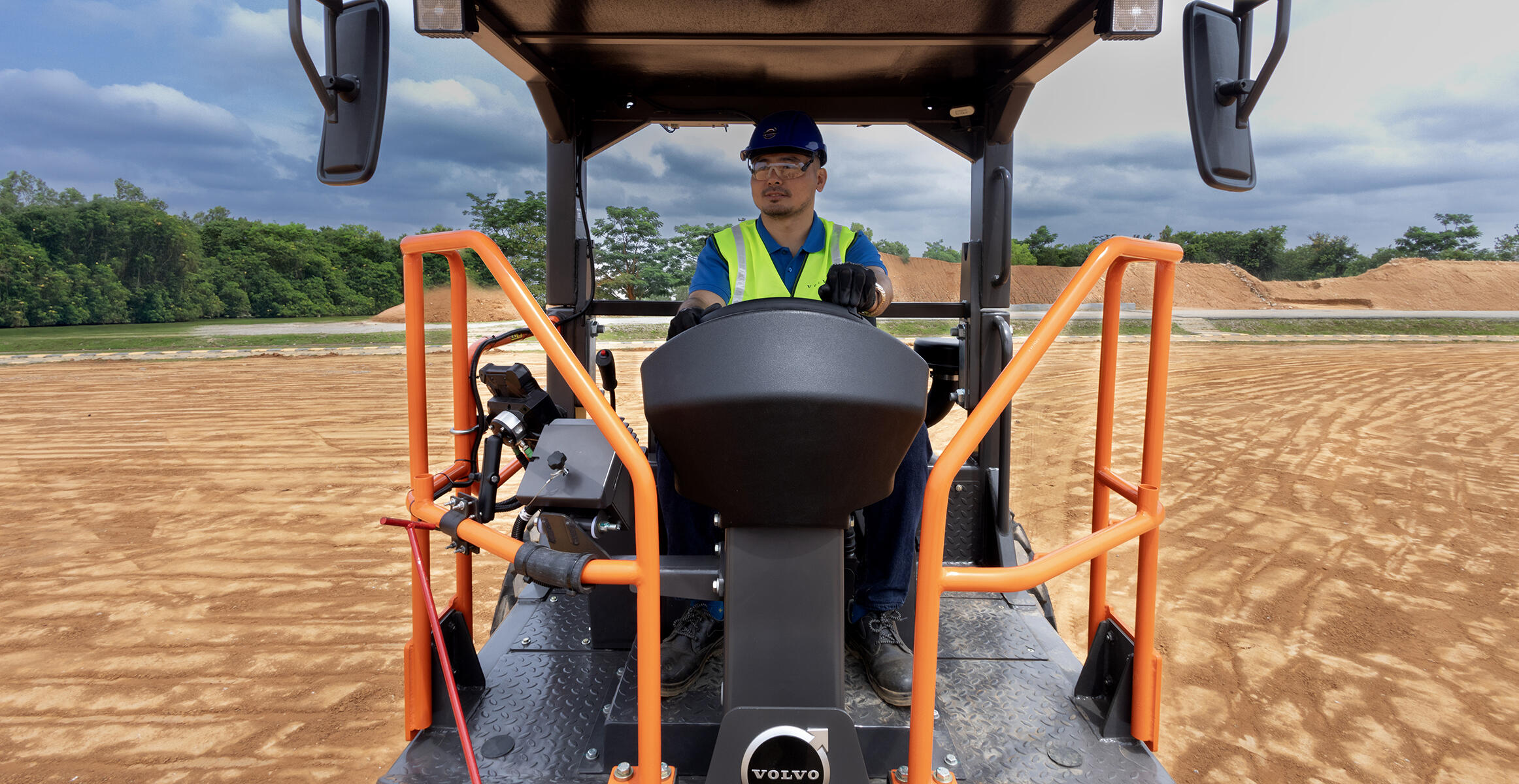

Close view of the large orange handrails and rops protection on a SD120 Volvo soil compactor.

Safety

The new ROPS canopy with bolt-on sunshade enhances onsite safety by offering improved sun and weather protection, while allowing easy dismantling for transport. Existing key features like 3-point access, seat belt reminder, operator presence switch, emergency stop switch and outstanding all-around visibility ensure optimum safety for the operator.

Easy to service, durable and reliable – the SD120 is designed to keep uptime to a maximum.

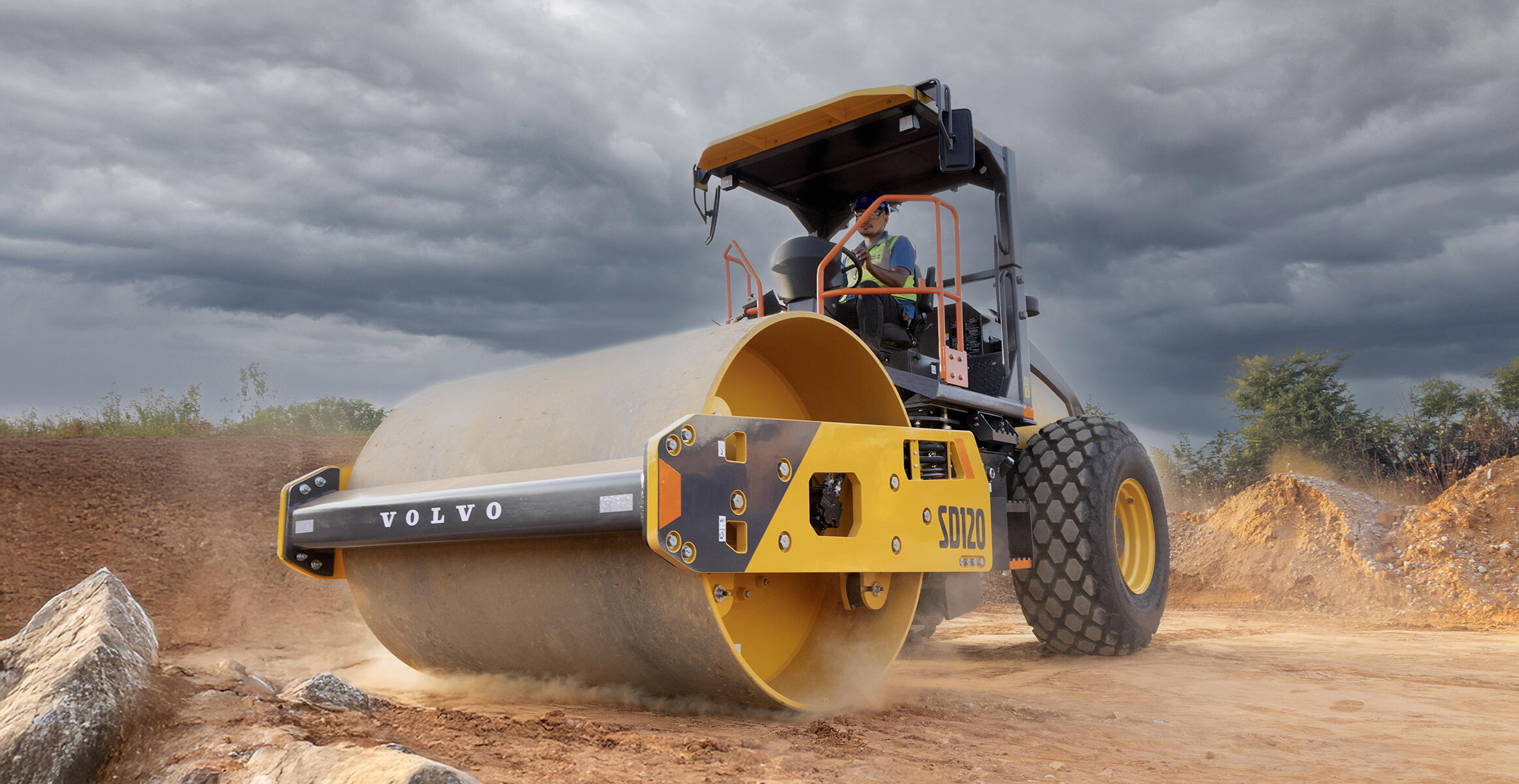

Front view of Volvo SD120 soil compactor using vibrations to compact better the soil.

Built for hard work

The SD120 is a true heavy-duty compactor and a long-lasting partner for your business, and with Volvo axles (with no spin differential), gearbox and engine, Volvo quality runs throughout the machine. No matter the application this is a compactor designed to excel across a wide range of segments thanks to the proven Volvo D5 engine and robust machine design. The cooler is now mounted separately from the engine, improving durability and providing better vibration isolation. With engine cooling in ambient temperatures up to 50°C, the machine can keep working in hot environments without any drop in performance.

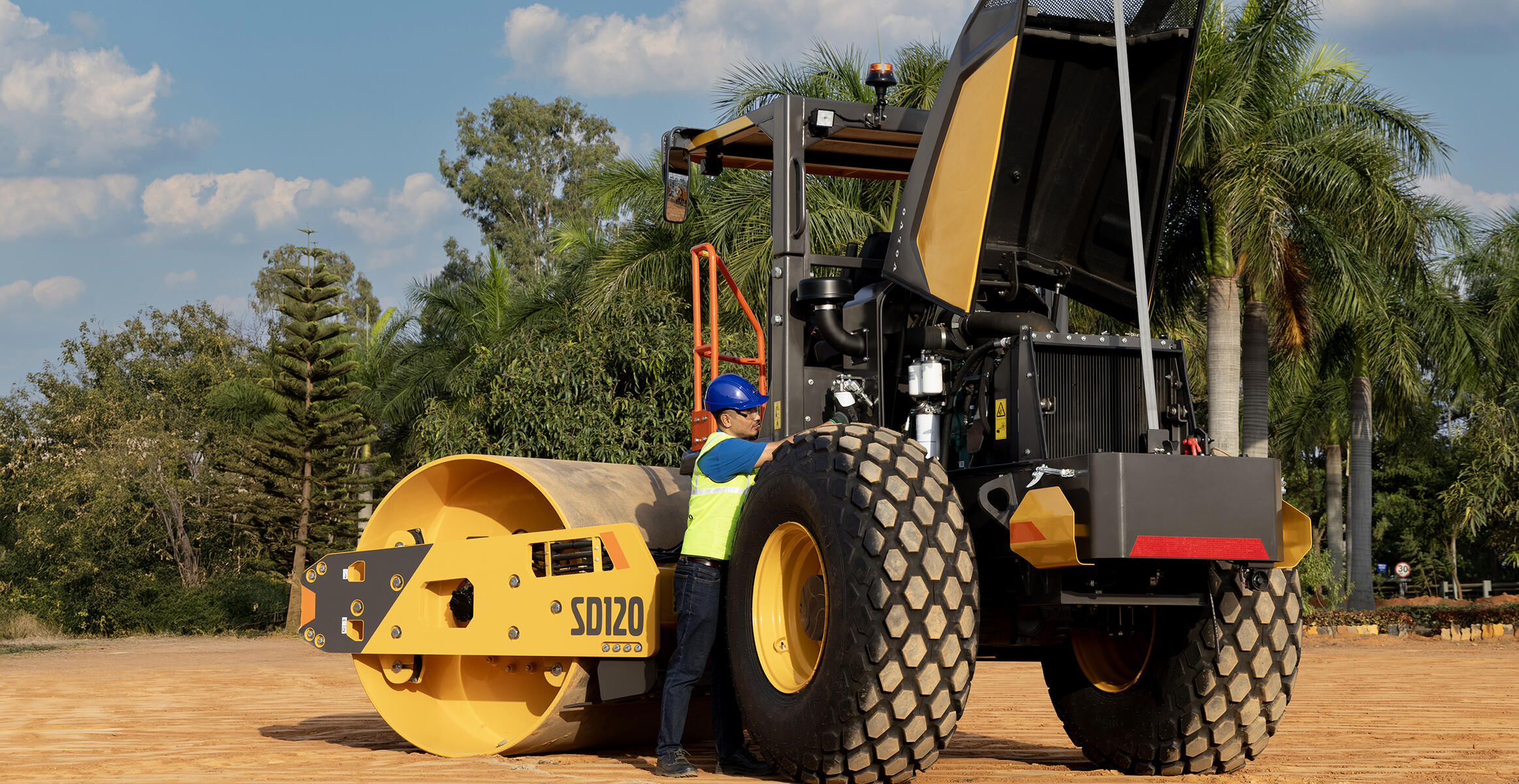

An operator controlling the SD120 checkpoints from ground level.

Easy to service

Keep uptime to a maximum thanks to the excellent serviceability of the SD120. Features such as best-in-class access to essential maintenance points, grouped filters and other optimized service point locations boost machine availability and protect your return on investment. A new optional tow valve allows brake release in the event of an unplanned breakdown, allowing the vehicle to be towed to a safe location without the need for an external device to release the brakes.

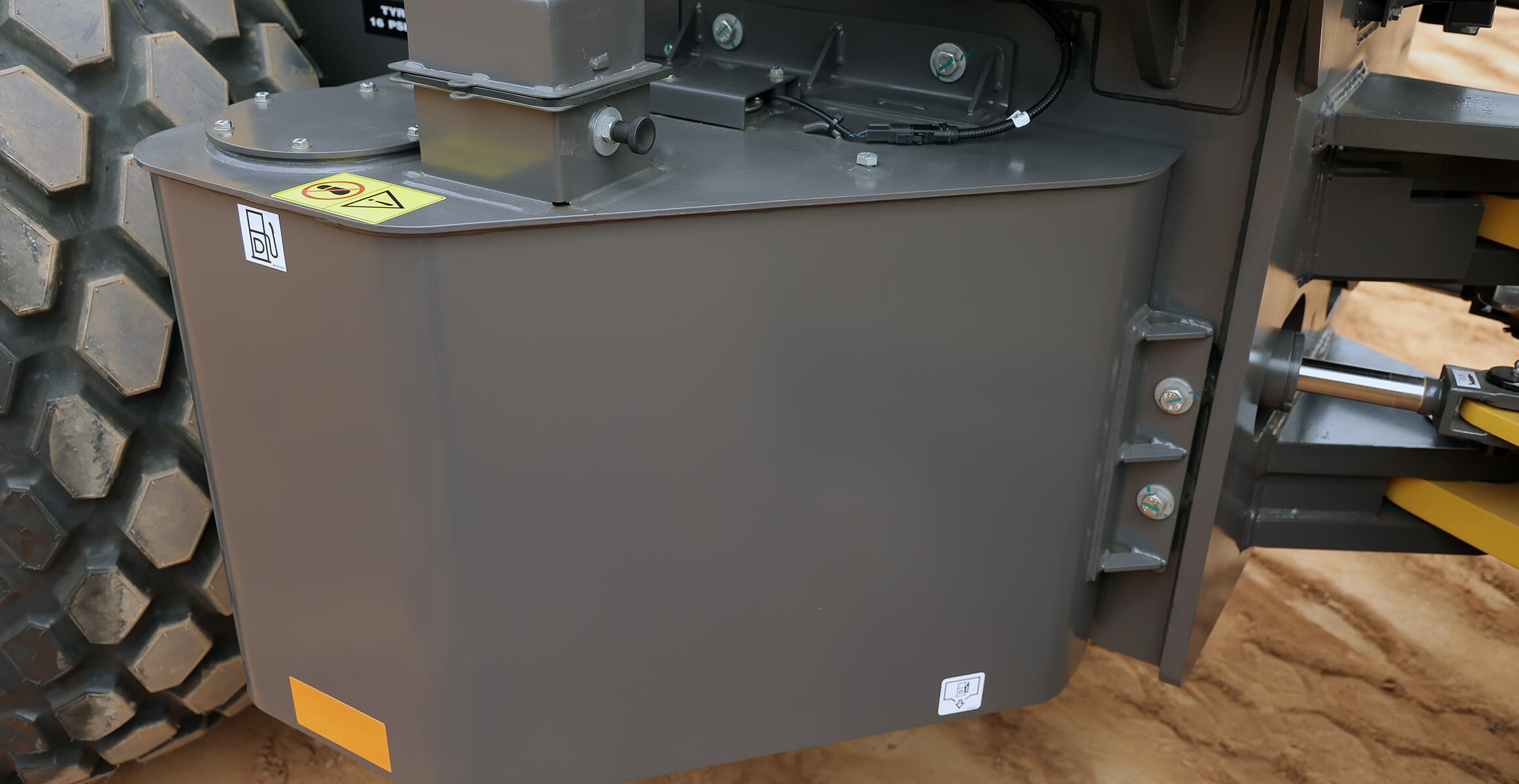

Close view of the hydraulic tank on a SD120 Volvo soil compactor.

Fuel and hydraulic tank capacity

The new and improved fuel tank provides more durability along with sufficient capacity for a full day’s work and more. The new optimized 70l hydraulic tank results in 45% less hydraulic oil required for the new powertrain, dramatically reducing oil replacement costs.

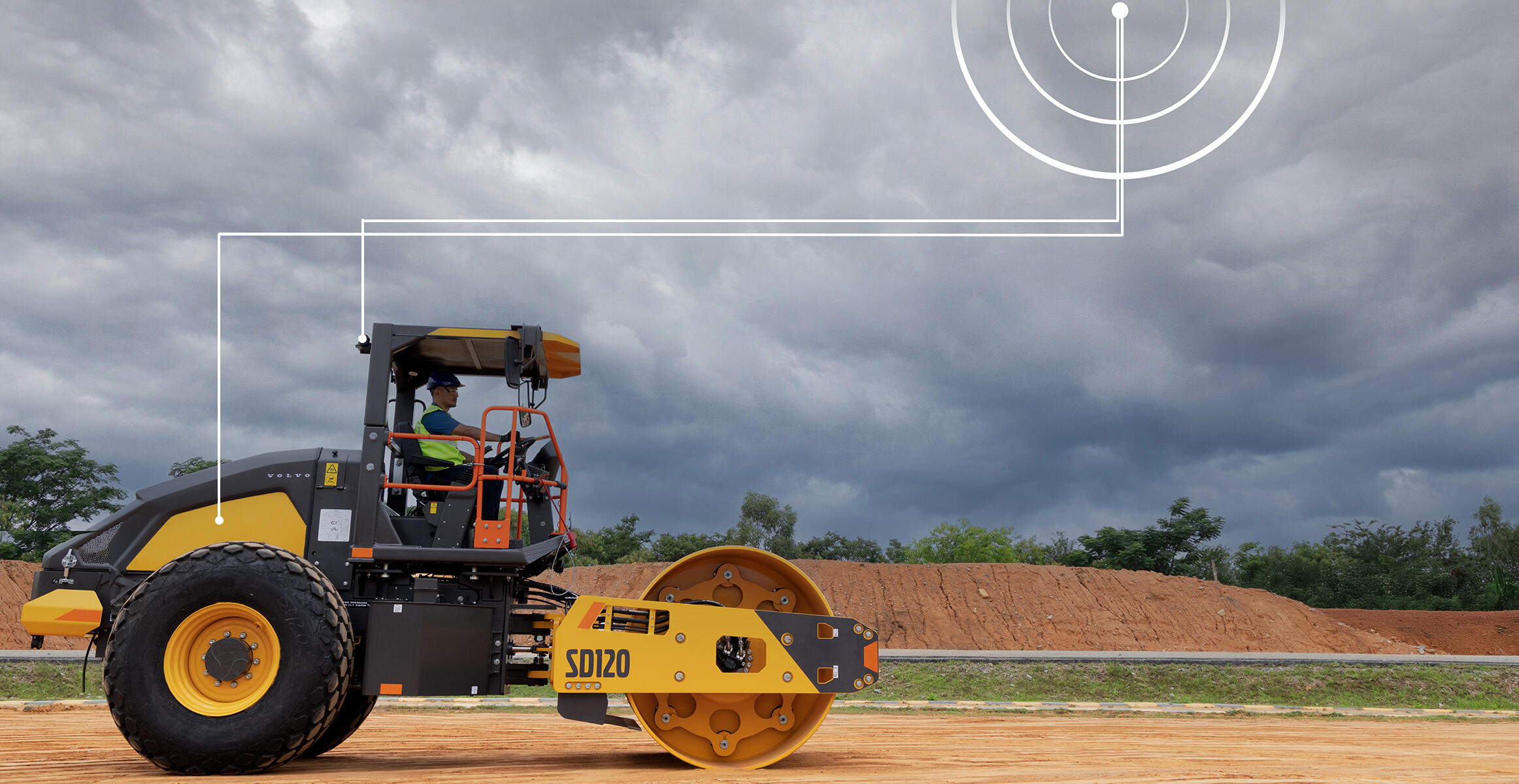

CareTrack telematics

With CareTrack, the Volvo telematics system, you can get remote access to essential information regarding the location and operating hours of your machine, as well as geofencing, to help you stay informed, make better decisions and stay ahead of unscheduled downtime.

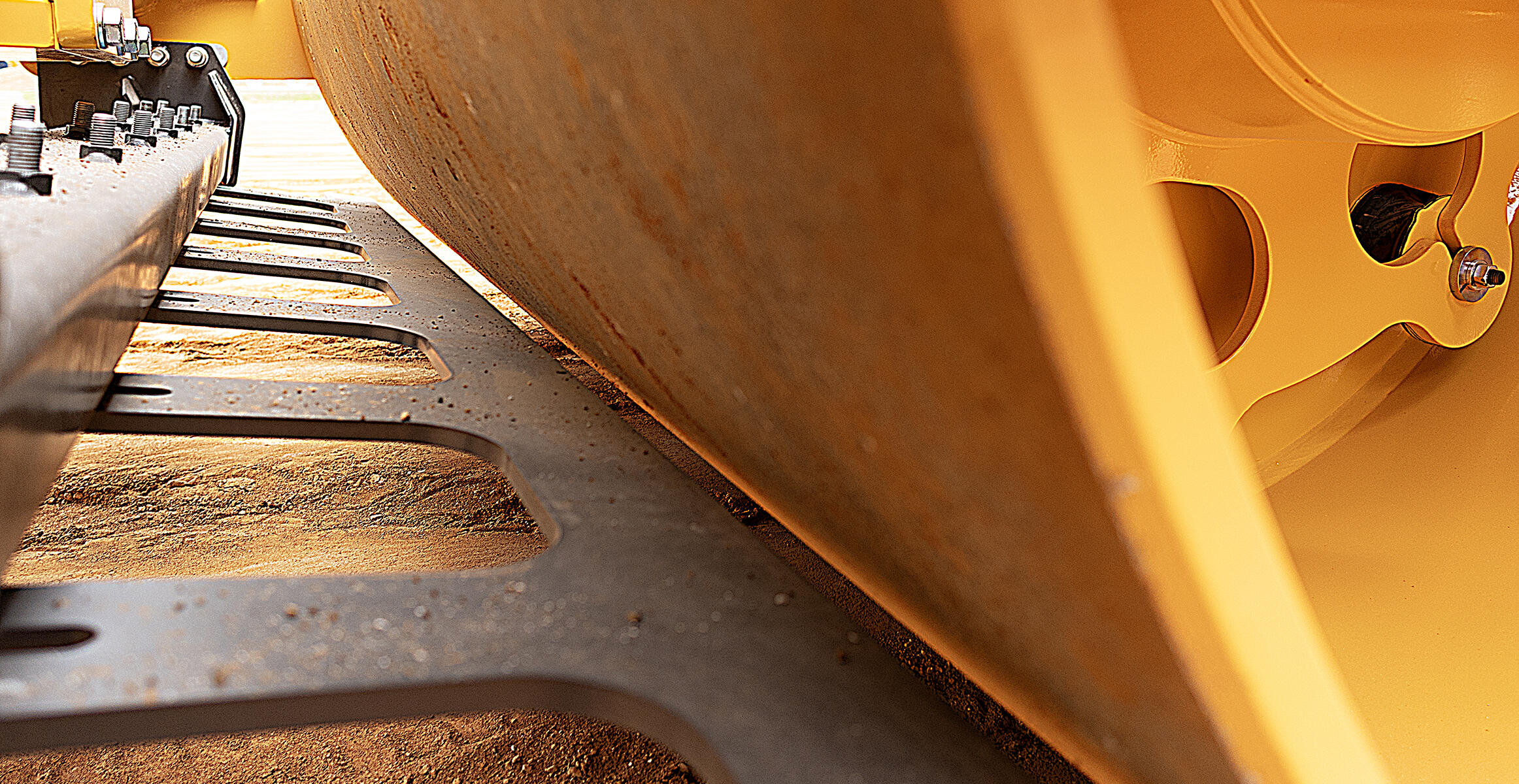

close-up view of the scraper blade that can be installed on an SD120 compactor to maintain drum surface cleanliness by scraping debris

Scraper options

A new optional inside scraper helps maintain drum surface cleanliness by scraping debris and preventing soil build up on the outside scraper. Alternatively, choose the modular scraper which adjusts between blade and teeth for smooth or padfoot drums; this removes the need to swap scrapers when changing drum types – saving time and boosting efficiency.
