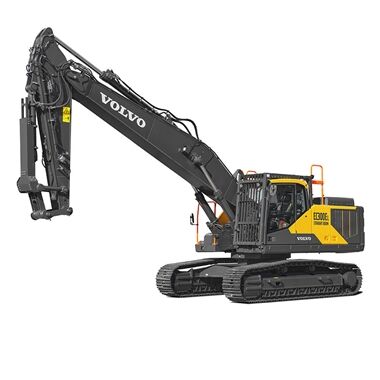

High Reach Demolition Excavator EC300E Straight Boom

Stage V / Tier 4f Emission Standards
77,792 lbs Operating weight
256 hp Engine gross power
6,834 lbs Max. allowable tool weight

For superior performance and safety when working in the demolition segment, look no further than the Volvo EC300E Straight Boom. The machine boasts all the quality and comfort you would expect from a standard excavator, combined with a significant height advantage. The result is a clear view of the... Read more

Request Machine Information

Download the EC300E Straight Boom brochure, with all the details and specifications. (PDF, 980KB)

More specifications and competitor comparison

Technical specifications for EC300E Straight Boom

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight	77,792 lbs
Engine gross power	256 hp
…at engine speed	1,400 rpm
Max. allowable tool weight	6,834 lbs
Max. pin height	37′ 9″ ft in
Max. pin reach	33′ 2″ ft in
Track Gauge	102 in

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the EC300E Straight Boom brochure, with all the details and specifications. (PDF, 980KB)

Features & Benefits

The already industry leading Volvo Care Cab delivers even more safety and visibility thanks to a range of additional features.

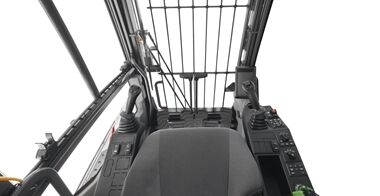

High visibility, protected cab

When it comes to comfort, the Volvo Care Cab is already the best around with features including Frame-mounted Falling Object Guards, ISO 12117-2:2008 compliant Roll-Over Protection Structure, and EN356 standard P5A grade single-piece front and roof window boost safety and visibility even more. Cleaning is easy thanks to the wide opening front guard, and the standard washer and wiper on the front and roof windows adds further comfort and convenience for the operator.

Secure your long-term performance with the ultimate in protection.

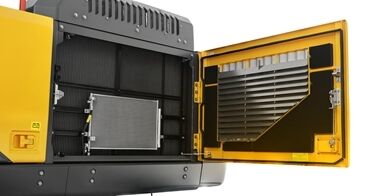

Heavy duty protection

Damage and debris can present daily challenges for machines operating in demolition applications, but the EC300E Straight Boom has got you covered. Keep uptime and long-term performance at a maximum with features such as boom and bucket cylinder protection, full track guard, heavy-duty undercover and belly cover, Side Impact Protection Structure, reversible cooling fan, and much more.

There is no need for a separate truck for pumping water – the integrated unique Volvo dust suppression system takes care of it.

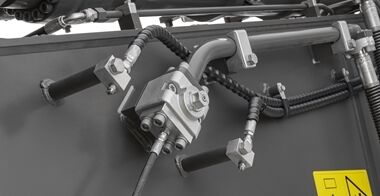

Dust suppression system

Water is sprayed in a fine mist by four nozzles on the arm. The water is distributed from the engine compartment by a hydraulic pump. You only need to supply a water source equivalent to a garden hose. Dust suppression can be distributed using either Auto or Manual mode. Manual sprays continuously and Auto mode only sprays when the attachment is operating. A high-pressure water gun is also provided for machine cleaning and other operations.

Outstanding stability.

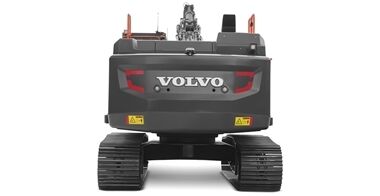

Heavy counterweight

The heavy counterweight contributes to the superb machine stability.

7.0 meter straight boom and dedicated arm come ready for action.

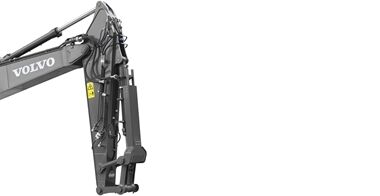

Tailor-made boom and arm

When you order straight boom you can be confident it comes ready to work. Features include X1 and X3 auxiliary piping, oil drain and quick fit line, water lines for the dust suppression system, as well as LED lights. Complemented with optional dedicated arm.
