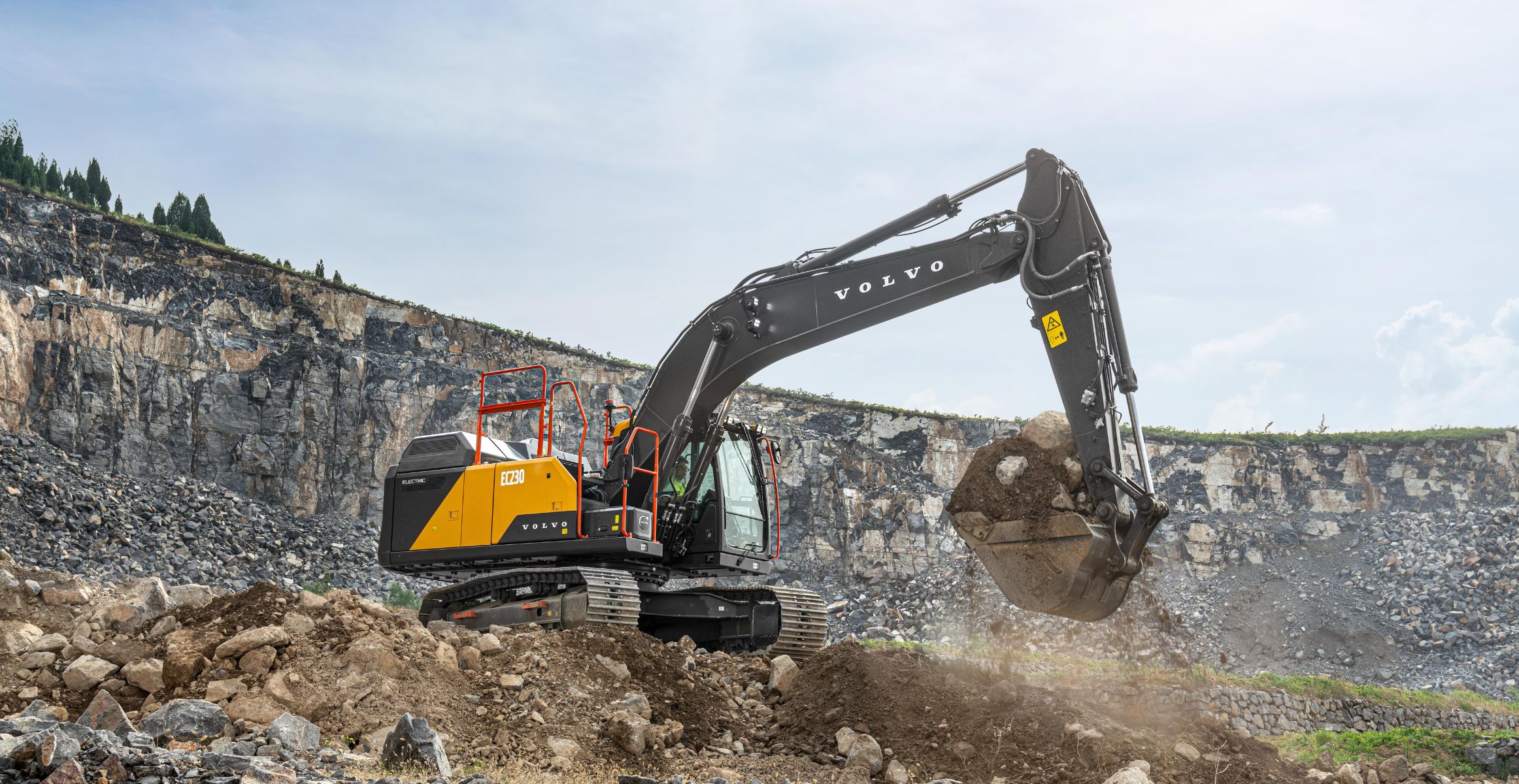

EC230 Electric
-
47,010 - 57,690 lbs Operating weight -
0.6 - 1.88 yd³ Bucket capacity -
450 kWh Battery capacity
Technical specifications for EC230 Electric
| Operating weight | 47,010 - 57,690 lbs |
|---|---|
| Gross power | 215 hp |
| ...at engine speed | 1,600 rpm |
| Bucket capacity | 0.6 - 1.88 yd³ |
| Lifting capacity, along undercarriage | 11,177 lbs |
| ...at reach / height | 24'7" / 19'8" ft |
| Max. digging reach | 32'10" ft in |
| Max. digging depth | 268.7 in |
| Breakout force, SAE J1179 (Normal) | 28,100 lbf |
| Breakout force, SAE J1179 (Boost) | 29,670 lbf |
| Tear out force, SAE J1179 (Normal) | 22,710 lbf |
| Tear out force, SAE J1179 (Boost) | 24,050 lbf |
| Overall width | 9'10" ft in |
| Tail swing radius | 9'7" ft in |
| Battery voltage | 650 V |
| Battery capacity | 450 kWh |
| Indicative runtime (depending on application) | Up to 7-8 |
Features & Benefits
Clean and comfortable
Experience a better place to work, both in-cab and on site, due to the significant reduction in noise, dust, vibration and heat. The EC230 Electric is a more responsive machine and being electric means an absence of exhaust fumes. These factors are helping operators and site workers to remain alert and productive throughout the working day.
At home in the city
The noise levels offered by the EC230 Electric enable work anytime, anywhere – even at night in populated areas. It also makes the work environment more pleasant for you and your colleagues, with whom you can now communicate clearly during work, so that they can guide you while maintaining a safe working distance from the machine.
Proven Volvo technology
With a typical stop-start working pattern, the EC230 Electric can operate for up to a full eight-hour workday on a single charge, depending on application and work intensity. Featuring industry-leading battery technology, the EC230 Electric can be recharged in as little as 100-minutes.
A full working day
With a typical stop-start working pattern, the EC230 Electric can operate for up to a full eight-hour workday on a single charge, depending on application and work intensity. Featuring industry-leading battery technology, the EC230 Electric can be recharged in as little as 100-minutes.
Serviceability
Lower your maintenance costs and give uptime a boost with the maintenance-free electric motor, and absence of any engine-related components.
Performing for your business
A move to an electric machine can reduce energy costs. What’s more, the electric motor is around 99% efficient and no energy is used when the machine is not moving and working, further saving on energy consumption and wear.
New business horizons
Open up new opportunities for your business with a low noise and zero-tailpipe emissions machine. Noise sensitive areas, indoors, low carbon zones, unsociable hours – these are all places an electric machine can work, where a diesel alternative cannot. The EC230 Electric is delivered with a charging cable with the power level of 22 kW, which enables battery charging via a CEE socket
Serviceability
Lower your maintenance costs and give uptime a boost with the maintenance-free electric motor, and less engine-related components.
Ready to Run
Whatever the weather, ensure your machine is prepared for immediate operation in all climates with the Ready to Run option. The system automatically pre-heats or cools the batteries and cab to an optimal operating temperature of around +25°C, waking up the machine up to one hour before scheduled operation. What’s more, when plugged in during overnight charging the Ready to Run option utilizes the charging gun as the primary power source to wake the machine, helping to maintain battery power. Available as a software update on already shipped machines, Ready to Run helps to ensure maximum uptime and maintain battery energy for reliable, uninterrupted performance.
Counterweight LED Bar
The LED light bar integrated within the counterweight provides a clear and intuitive visual indicator of machine status and safety items. An animated light sequences provide visual status updates of a host of machine functions including wake-up, operation and shutdown, as well as a visual display of battery status during charging. The LED bar also helps to enhancing jobsite awareness and safety by integrating with the People and Obstacle Detection system, providing a visual and audible warning when people are detected which intensifies as they get closer.
Get the complete solution
Transitioning to electric operations is about much more than simply electric machines; it’s about having the right partner. Wherever you are on your electrification journey, Volvo Construction Equipment is by your side with expert guidance, tailored support and a complete portfolio of charging solutions to help you plan and successfully implement electric equipment into your operation.
Flexibility with standard connector
The EC230 Electric is equipped with CCS1 connector which is a standard connector in most of the European countries. This means you can connect this unit pretty much everywhere. It gives you the flexibility to use the EC230 Electric anywhere and use all available chargers on the market. The EC230 Electric is delivered with a cable charger with the power level of 22 kW, which enables battery charging via a CEE socket.
A range of charging solutions
A DC charger of at least 60kW is required. You can also use a 250 kW DC fast charger with CCS1 connector, which takes about 90 minutes from empty to full, utilizing a 480V 3-phase 400amp. If you are using a 60kW (480V 3-phase 100 amp) portable charger it will take 6.5 hours to charge from empty to full.
-
