Soil Compactors

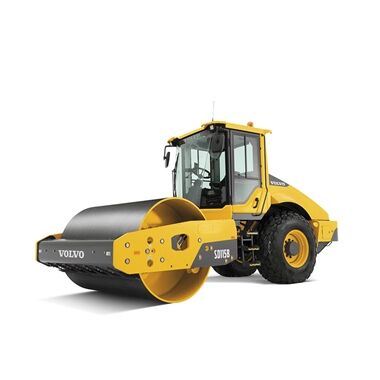

SD115B
-
25,614 lbs Operating weight (with ROPS, fully ballasted) -
147.5 hp Rated engine power -
46,800/58,050 lbf Centrifugal force
Technical specifications for SD115B
| Operating weight (with ROPS, fully ballasted) | 25,614 lbs |
|---|---|
| Operating weight (with ROPS, inc. Cab & inside scraper) | 25,865 lbs |
| Centrifugal force | 46,800/58,050 lbf |
| Vibration frequency | 1,850/2,025 v/min |
| Optional 5x frequency (High Amplitude) | 1,400/2,025 v/min |
| Gradeability | 65 % |
| Rated engine power | 147.5 hp |
| Amplitude | 0.076/0.051 in |
| Drum width | 84 in |
| Articulation angle | +/-35 degree |
| Oscillation angle | +/-12 degree |
Features & Benefits
Versatile performance
The new Volvo soil compactors SD75B and SD115B are packed with advanced technology. The drum is configured with ease while the engine controls itself. The compactors adapt to your application and jobsite to provide maximum versatility and performance.
Frequency and amplitude choices
Easily adjust the vibration frequency from the operator console to compensate for changing soil types and conditions. Two frequency settings are standard and for even greater versatility, five frequency option is available. High and low amplitudes can also be selected.
Adaptive power
Adaptive power tailors machine performance by adjusting engine and hydraulic systems to individual job site requirements, providing the exact amount of power needed for increased efficiency. It's designed to run the machine at the optimal level needed for the job.
Application versatility
The machine can be set up in three different configurations and is available with smooth or padfoot drum. The compactor is quickly and easily converted from a smooth drum by clamping on a padfoot shell. The padfoot shell kit allows the machine to work in different applications and increases versatility.
Gradeability
The Volvo traction system provides excellent climbing and traction capabilities in difficult applications, such as steep inclines or slippery surfaces. The system prevents wheel or drum spin, improving gradeability, performance and productivity.
Power up, fuel down
The perfectly optimized Volvo Tier 4 Final engine delivers high torque at low rpm for superior performance and low fuel consumption. The compactor's engine has been developed to offer greater fuel efficiency, increasing uptime and reducing costs.
Efficient cooling system
The hydraulically-driven fan with variable speed draws power only when needed. Lower fan speeds reduce noise, resulting in greater operator comfort and a lower total cost of ownership.
Passive regeneration
The new passive regeneration provides continuous and simplified operation. Volvo's passive regeneration cleans the filters automatically during normal operation without any input from the operator or effect on performance.
ECO mode
ECO mode is now standard and always on by default. It adjusts the engine speed to match the operation mode and achieves up to a 40% reduction in fuel consumption.
Eccentric design
The eccentric design delivers more efficiency while using less power. Matching the required performance to suit your application, the eccentric is designed for faster ramp up speeds at lower pressure for increased fuel efficiency.
Control in comfort
Step up to the Volvo designed cab and experience industry-leading low noise levels, ultimate comfort and a productive working environment. Safe, spacious and with improved all-around visibility, operators will work efficiently with less fatigue in a Volvo compactor.
Seat
The fully adjustable seat now rotates and slides to enhance front and rear visibility for increased safety and comfort.
Operator display
The new high-tech color operator display presents operational information and key diagnostics, reducing the need for regular physical checks. Easy to see in direct sunlight, further functions include service interval information and machine operating conditions. The control keypad is conveniently located on the operator's side console and controls are grouped together for comfort and efficiency.
HVAC system
The cab is equipped with industry-leading climate control to ensure a comfortable environment inside the cab, whether heating or air conditioning is required. High air intake and positive cabin pressure helps to reduce dust from entering the cab.
Impact meter
Integrated into the display, the impact meter ensures you travel at the right speed for target compaction. The impact meter measures impacts per meter for a uniformed smooth finish.
Robust and reliable
Volvo Construction Equipment produces the most robust and durable compactors on the market. The SD75B and SD115B machines provide easy service access for increased uptime and quick maintenance.
Service Access
The tilting cab is standard, providing access to all hydraulic components. For class-leading access, the electric engine hood lifts up giving extensive ground level access to the engine compartment. Maintenance and inspections can be conducted more efficiently with minimal downtime – increasing overall productivity and reliability.
CareTrack
CareTrack is the state-of-the-art telematics system designed for Volvo Construction Equipment. Stay informed, receive reports, alarms and information such as fuel status, machine location and hours so you can plan your service more efficiently. Stay ahead of unscheduled downtime and check that your machine is being operated efficiently.
Sealed electronics
All components and electronics have been moved into the cab and mounted on the rear wall, protecting them from the elements. Fuses are accessible behind the fuse panel for improved accessibility.
Heavy-duty
The heavy-duty drum, center joint and front frame components are designed and manufactured with durability in mind. The thick steel drum shell is engineered for longevity and performance. Frames are robotically welded and built from high quality steel with precise and consistent welds guaranteeing a strong structure.
-
