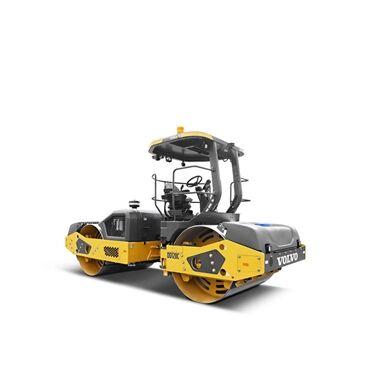

DD128C | Compactors | Overview | Volvo Construction Equipment

Operating weight (with ROPS, fully ballasted)	27,700 lbs
Drum or rolling width	79 in
Rated engine power	148 hp
Vibration frequency	3,000/4,800 v/min
Amplitude	0.0033/0.03 in
Overall length	19′ 7.2″ ft in
Overall width	6′ 7″ ft in
Overall height	125.1 in
Configuration	8 amplitudes

Features & Benefits

Introducing the DD128C double drum compactor. This 12t machine offers outstanding versatility and performance, based on an ultra-high frequency of 4800vpm and drum amplitudes from a super-low 0.003”, up to a high of 0.030”. The compactor is designed to handle thin lift applications better than any other machine on the market but can comfortably take on traditional work as well. When ultimate performance is needed – look no further than the DD128C.

Industry-leading performer

Simply put, the DD128C is the most productive machine in its class. The ultra-high frequency of 4800vpm is the highest in the industry, offering the fastest possible rolling speeds while still maintaining optimum impact spacing. The patent-pending Ultra-Pac technology automatically sets the highest possible vibration frequency according to the selected amplitude, further optimizing performance and efficiency.

Compact it all

The DD128C offers the widest drum amplitude range from 0.003” up to 0.030”, letting you take on a wide range of applications, whether working with thick or thin layers. The double drum compactor features eight different amplitude settings with five unique frequencies; including new low amplitude settings for improved productivity on ultra-thin lifts and other applications where static rolling and oscillation are used.

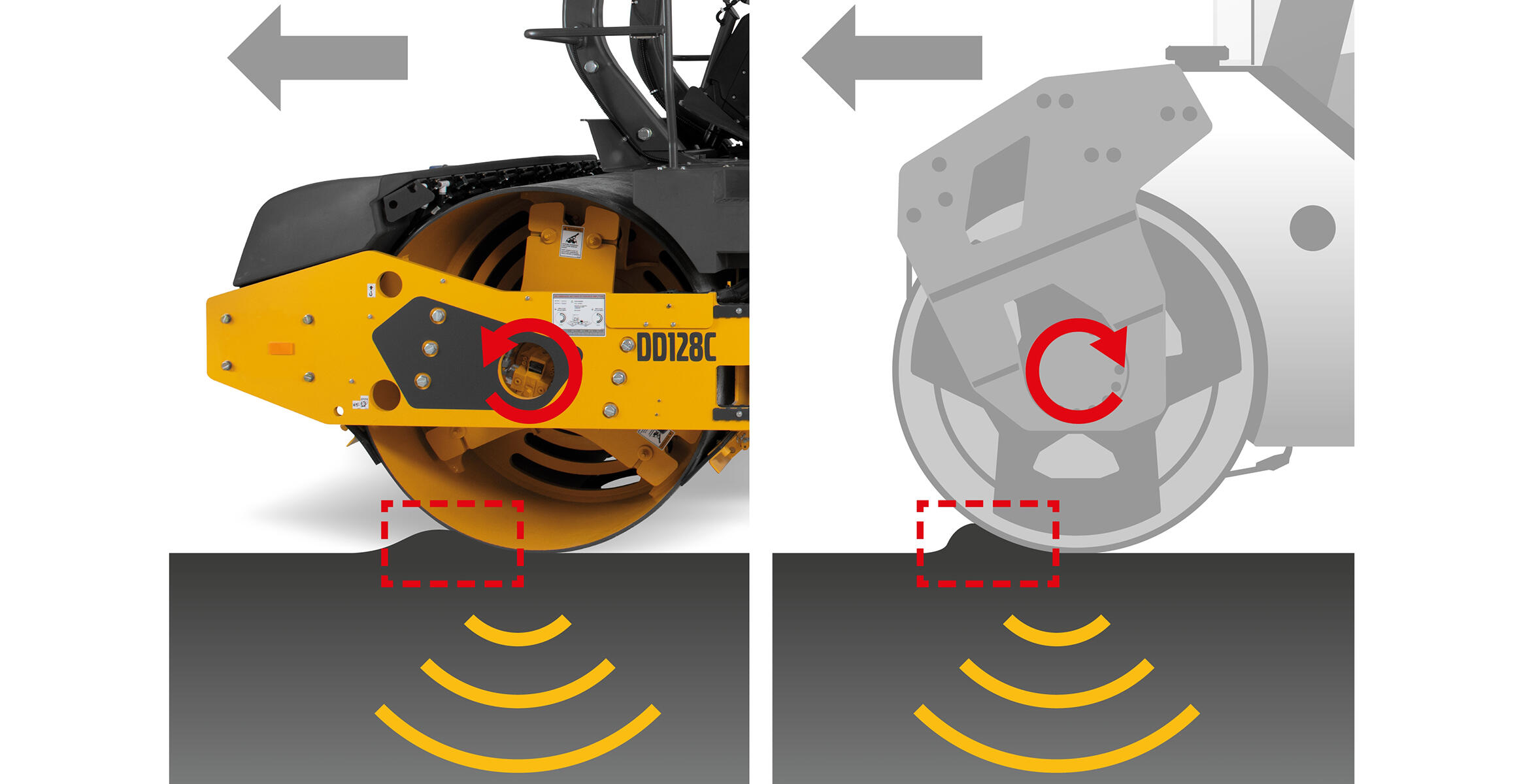

Superior smoothness

The unique Volvo eight amplitude drum design enables auto-reversing eccentric rotation, which matches eccentric weight rotation with machine travel direction. The result is optimum smoothness, even with tender mixes, providing a level of control over the compaction process not possible with traditional two amplitude machines.

Optimum water use

Optimize water use with the automatic spraying system, which provides variable flow proportional to machine speed, delivering consistent drum coverage and preventing material pick-up. The system also features a ‘pre-wet’ function which sprays both drums using primary and back-up spray bars for two full drum rotations (or 10 seconds). With the industry-leading fully redundant water system, operators can concentrate on rolling knowing a completely separate water system is available if needed.

An efficient performer

Powered by the highly efficient Volvo 110 kW T4f engine, the DD128C has been designed to operate at a lower engine speed, minimizing both noise levels and fuel consumption. Fuel consumption can be further reduced by the engine’s auto-idle and auto-shutdown features. Automatic regeneration requires no operator intervention.

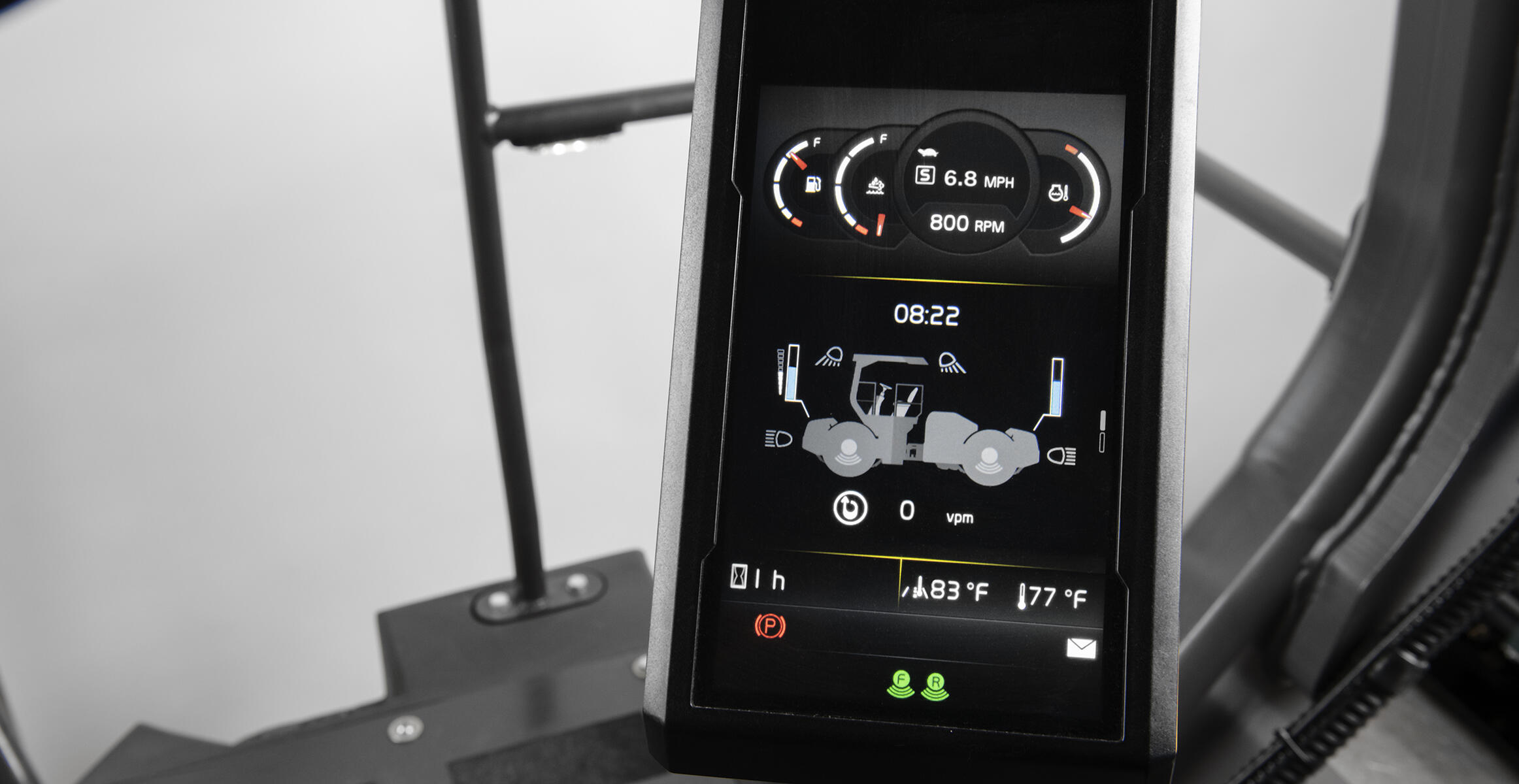

Unlock the full productivity potential of your DD128C with the optional Compact Assist. Powered by Volvo Co-Pilot, the revolutionary in-cab 10” display, Compact Assist is a collection of functions designed to enhance the efficiency and profitability of your compactor. Functions are bundled into a range of packages, designed to make the operator’s life easier and boost the success of your paving projects.

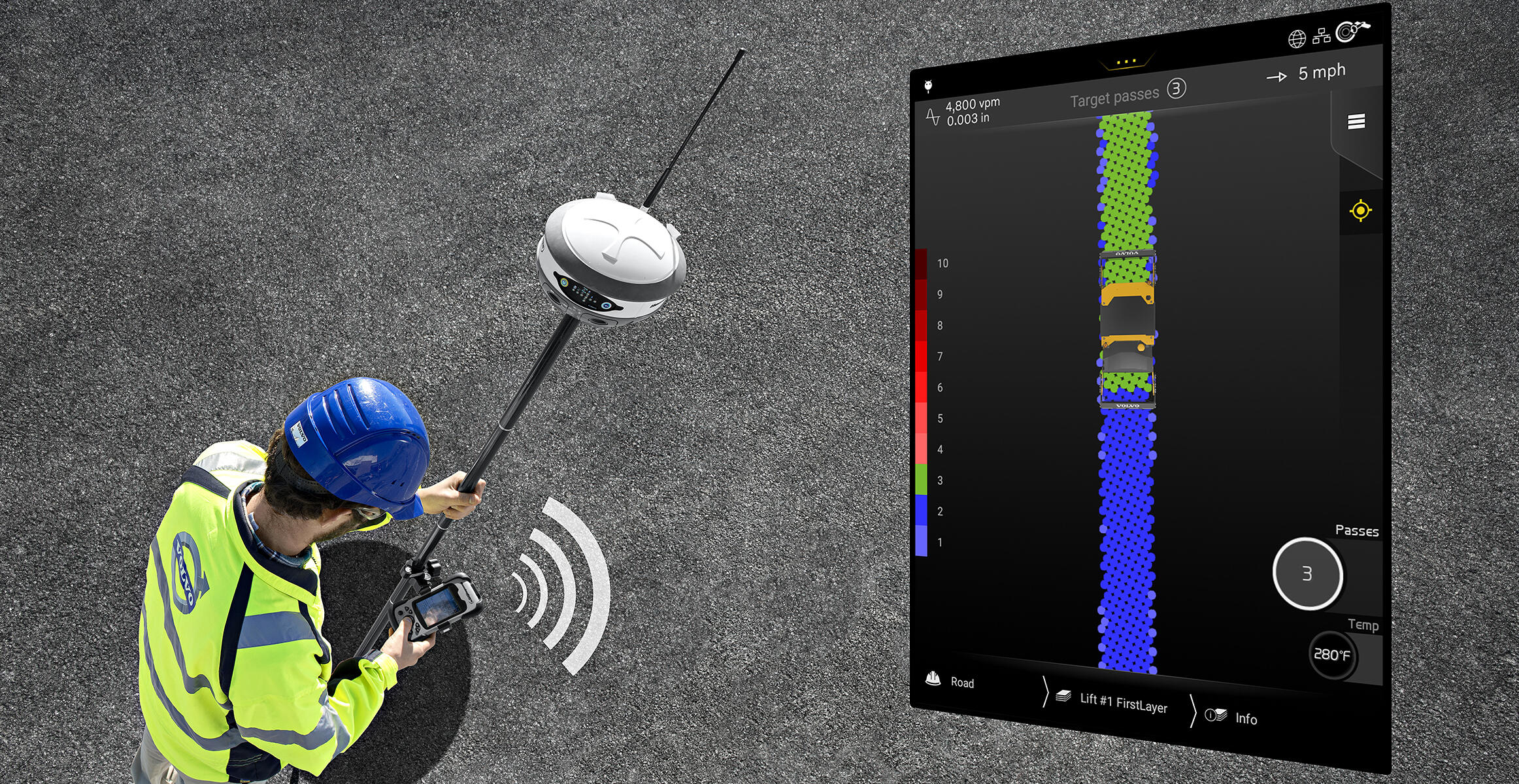

Compact Assist

Achieve higher quality compaction, in less time and with less effort thanks to the real-time information Compact Assist (option) provides operators. Using the 10” Volvo Co-Pilot, operators can confidently monitor the progress of their work, and eliminate under-compaction and over-compaction.

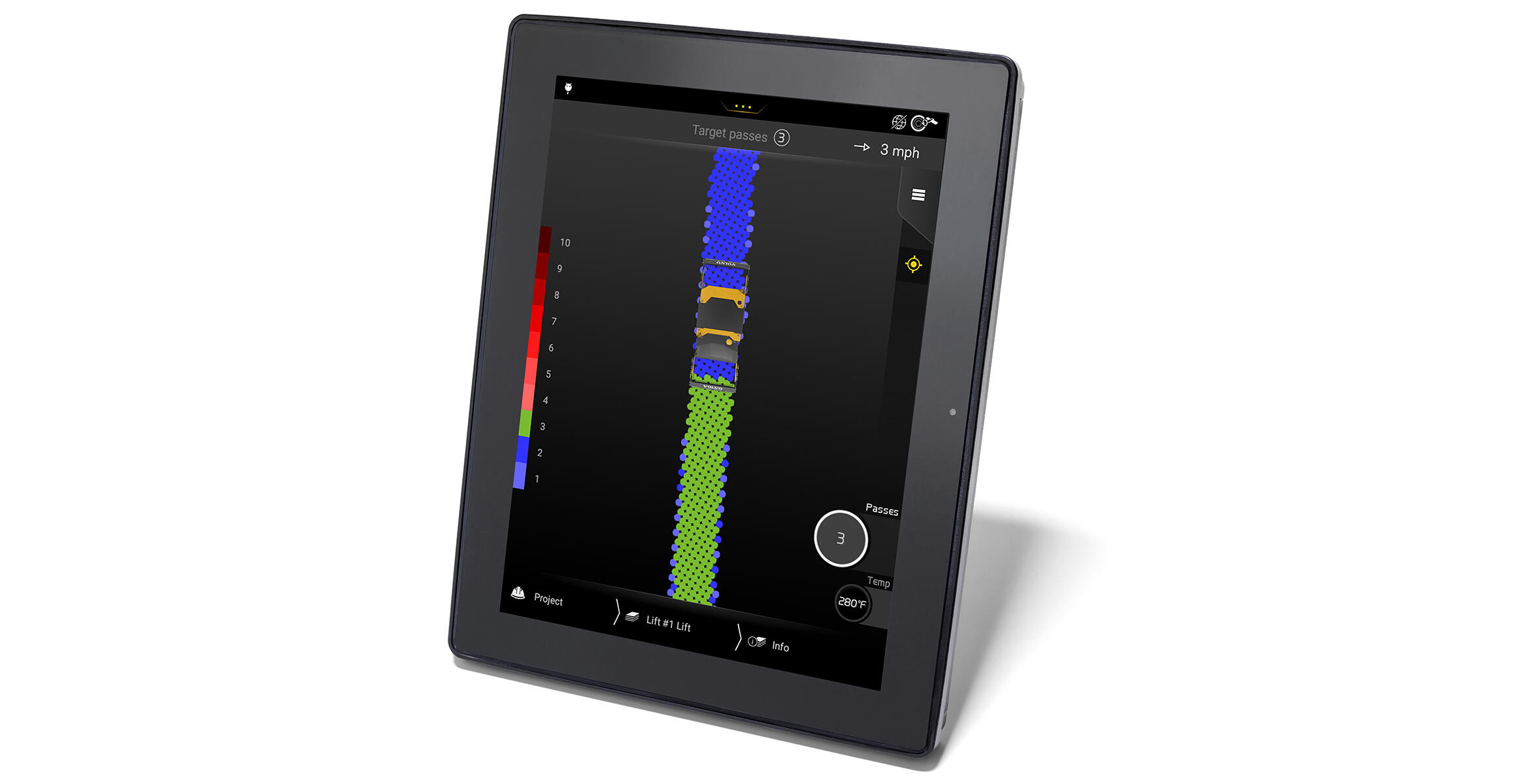

Compact Assist Start

Includes Pass count mapping, Temperature mapping and makes it simple to upgrade to Compact Assist or Compact Assist with Density Direct in the future.

Compact Assist

This package includes the functions from Compact Assist Start, plus high accuracy location, data recording and Real Time Kinematic (RTK) compatibility, offering millimeter-precision location accuracy.

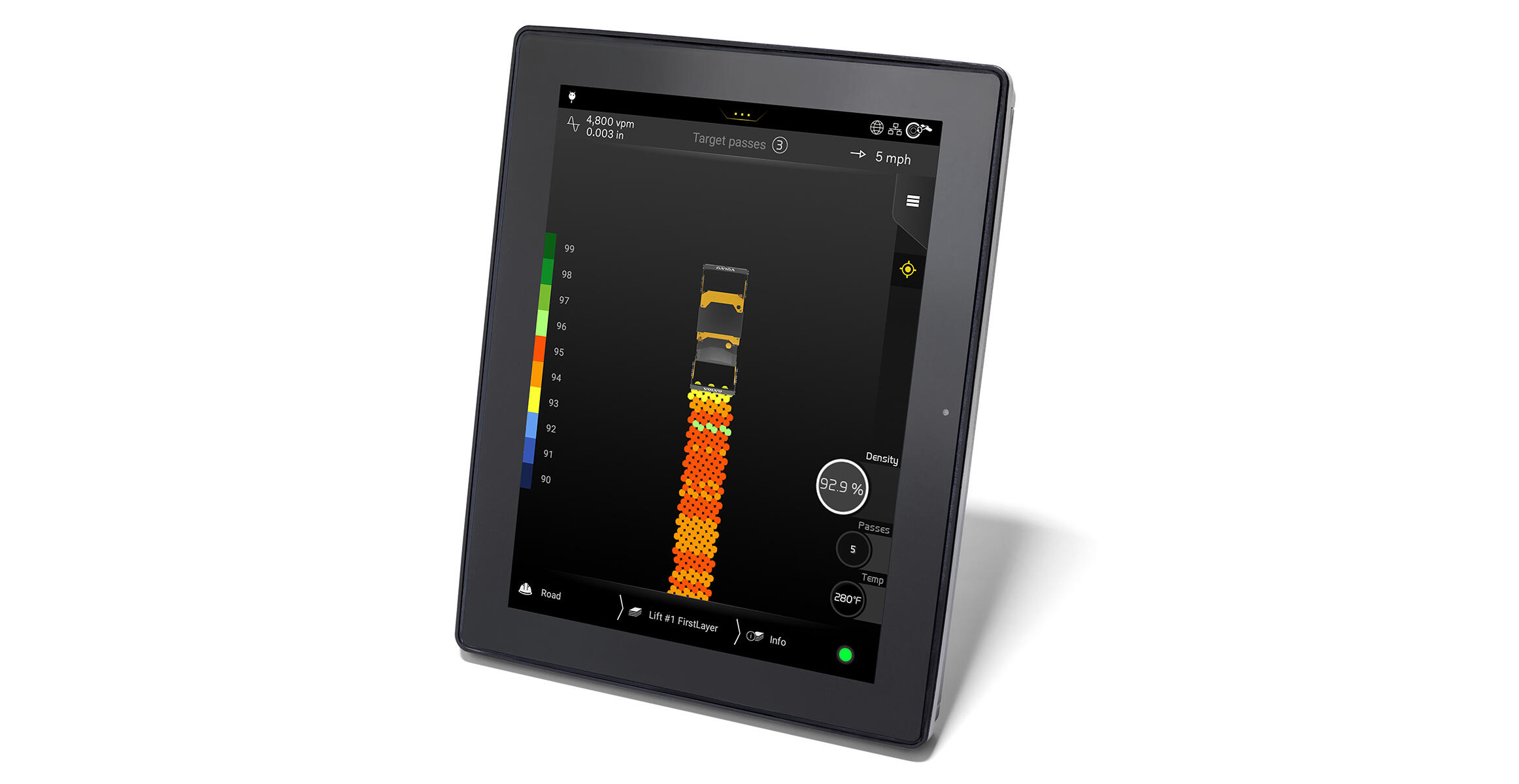

Compact Assist with Density Direct

Includes all functions from Compact Assist package, plus compaction measurement, including Compaction Measurement Value (CMV) mapping and Density Direct mapping. Local, state, and federal requirements as well as specific job specifications vary greatly. Please verify that the selected package will meet your IC requirements.

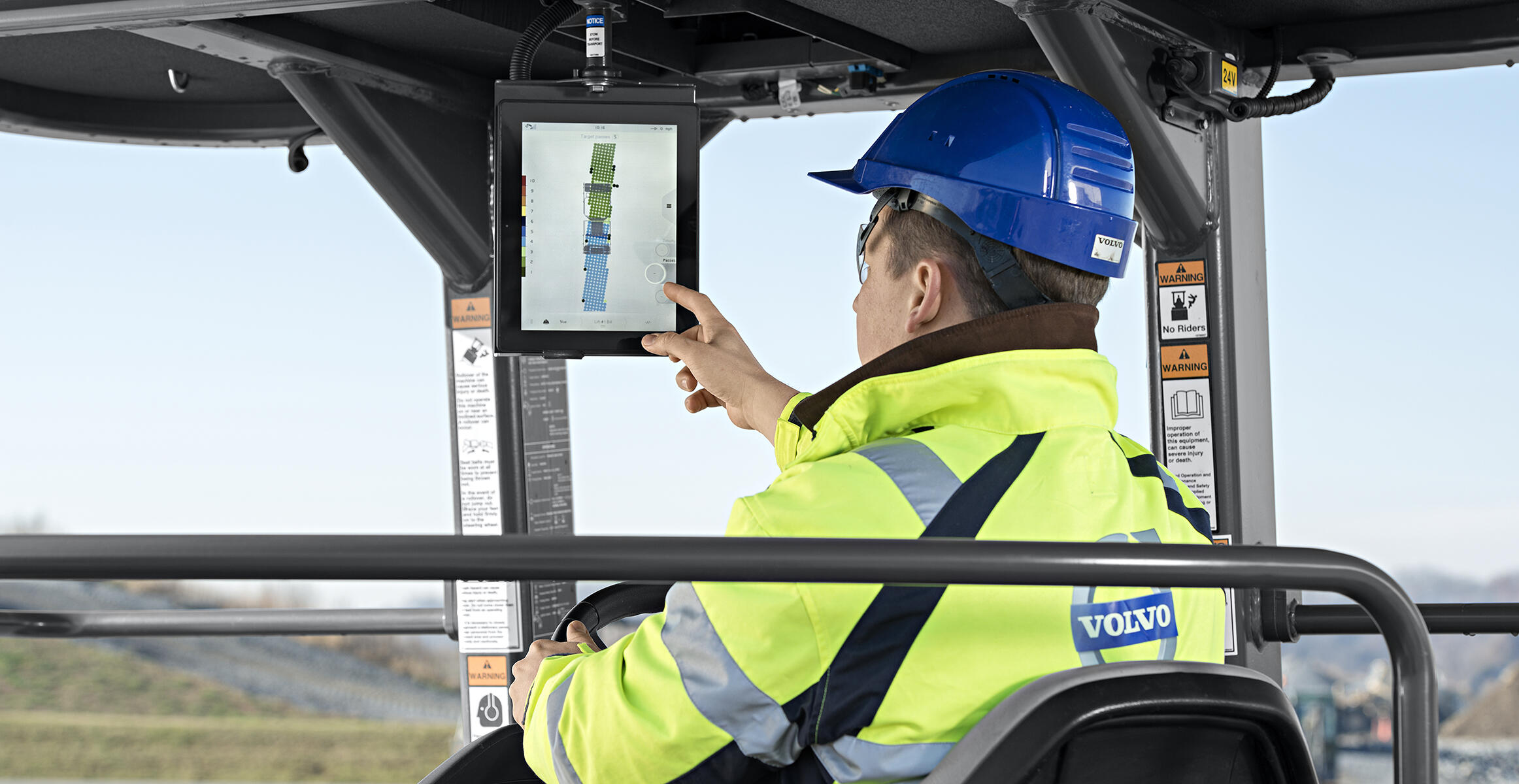

Easy upgrades

Your machine will come factory fitted with the necessary wiring needed to easily upgrade your machine to add Intelligent Compaction packages in the field.

The DD128C is designed to provide operators with the highest levels of comfort and safety, helping them work to their full potential shift after shift. With easy to use controls, outstanding visibility and extensive safety features the DD128C offers the best operator environment on the market.

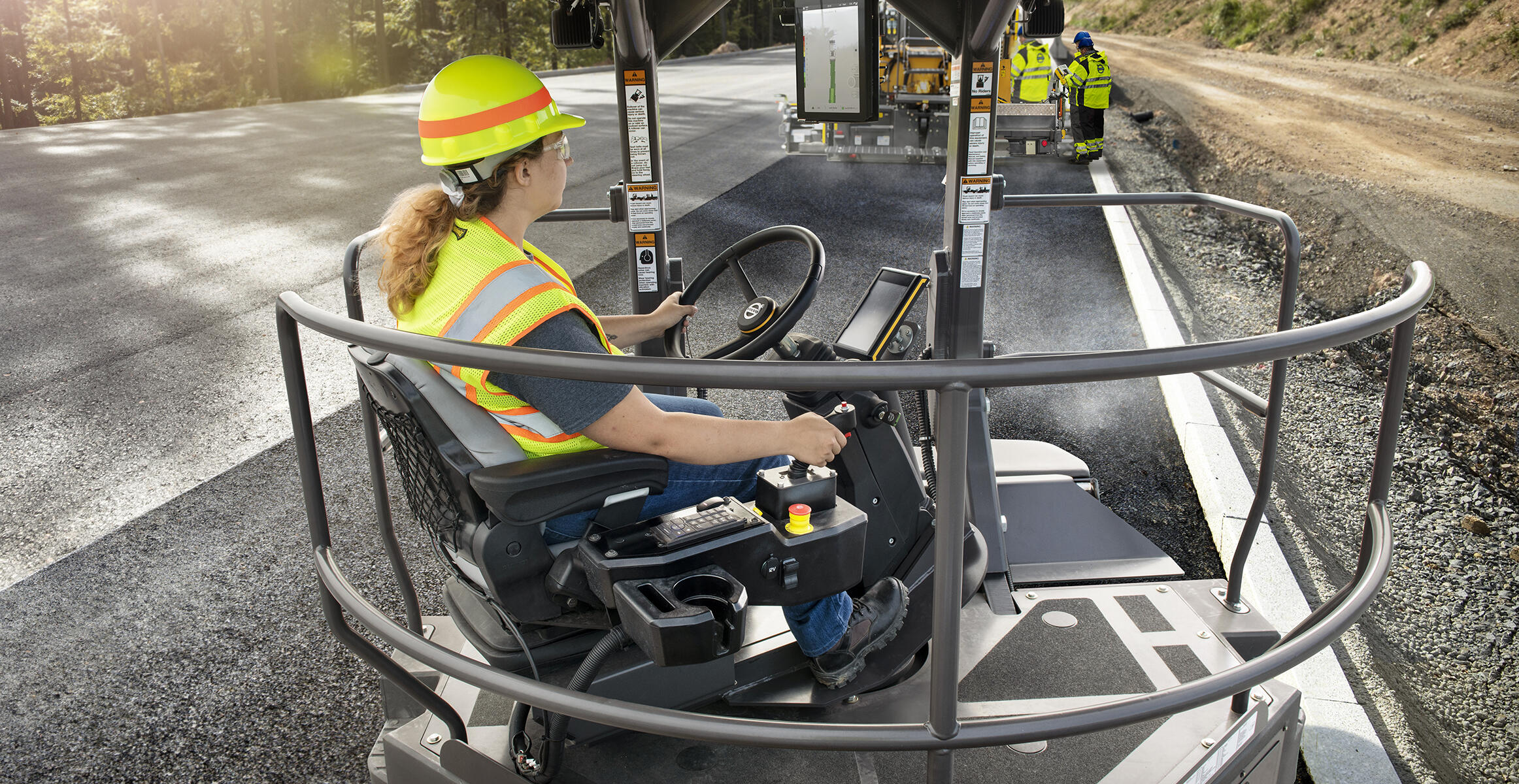

The operator’s choice

Operators will feel right at home with the intuitive and ergonomically positioned controls, including the new electronic Propulsion Control Lever. The automatic impact spacing control further enhances ease of operation. With the cruise control function operators can set a desired working speed, boosting productivity, consistency and operator comfort.

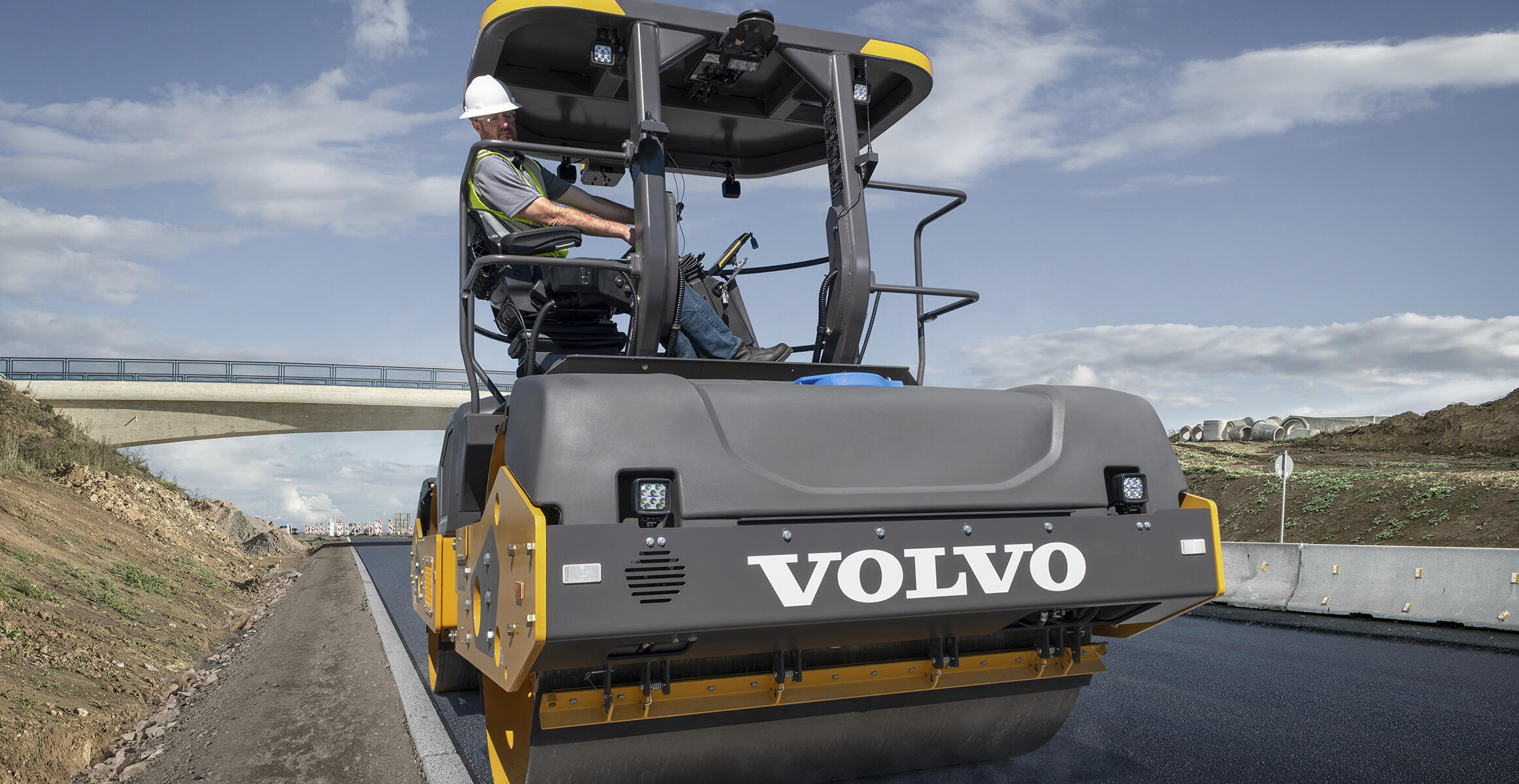

Ultimate comfort

Enjoy the ultimate in operator comfort thanks to the 5-position console which rotates 180°, new fully-adjustable reclining seat, USB ports on the console and weatherproof manual storage case. Noise and vibration isolation further add to the outstanding comfort levels.

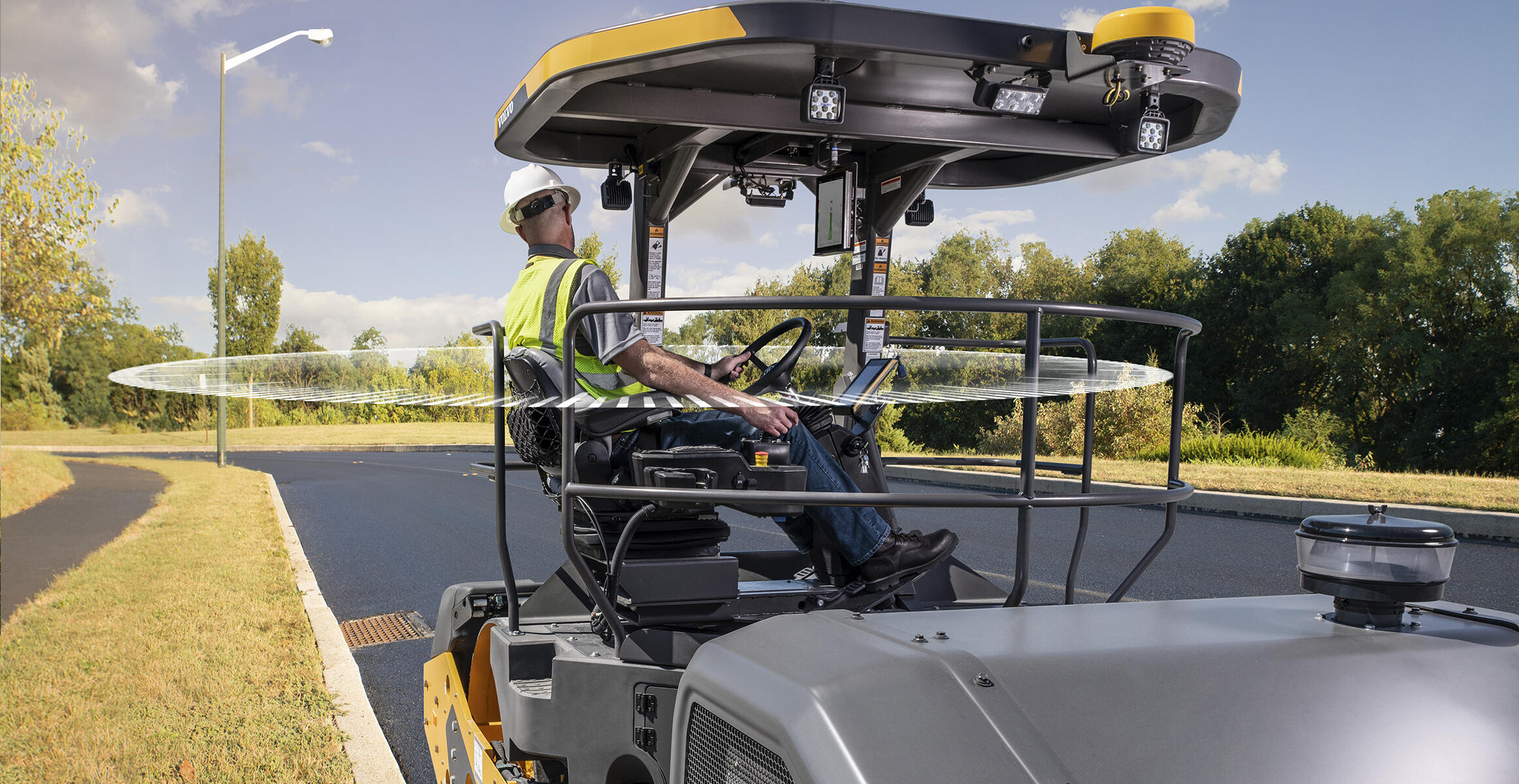

Every angle in view

Operators benefit from unobstructed visibility all around the machine, including a clear view of the spray bars, nozzles and clear sight of the drum edges. The drum edge view is also enhanced due to the adjustable and reclining seat. The result is a confident, safer and higher quality machine operation.

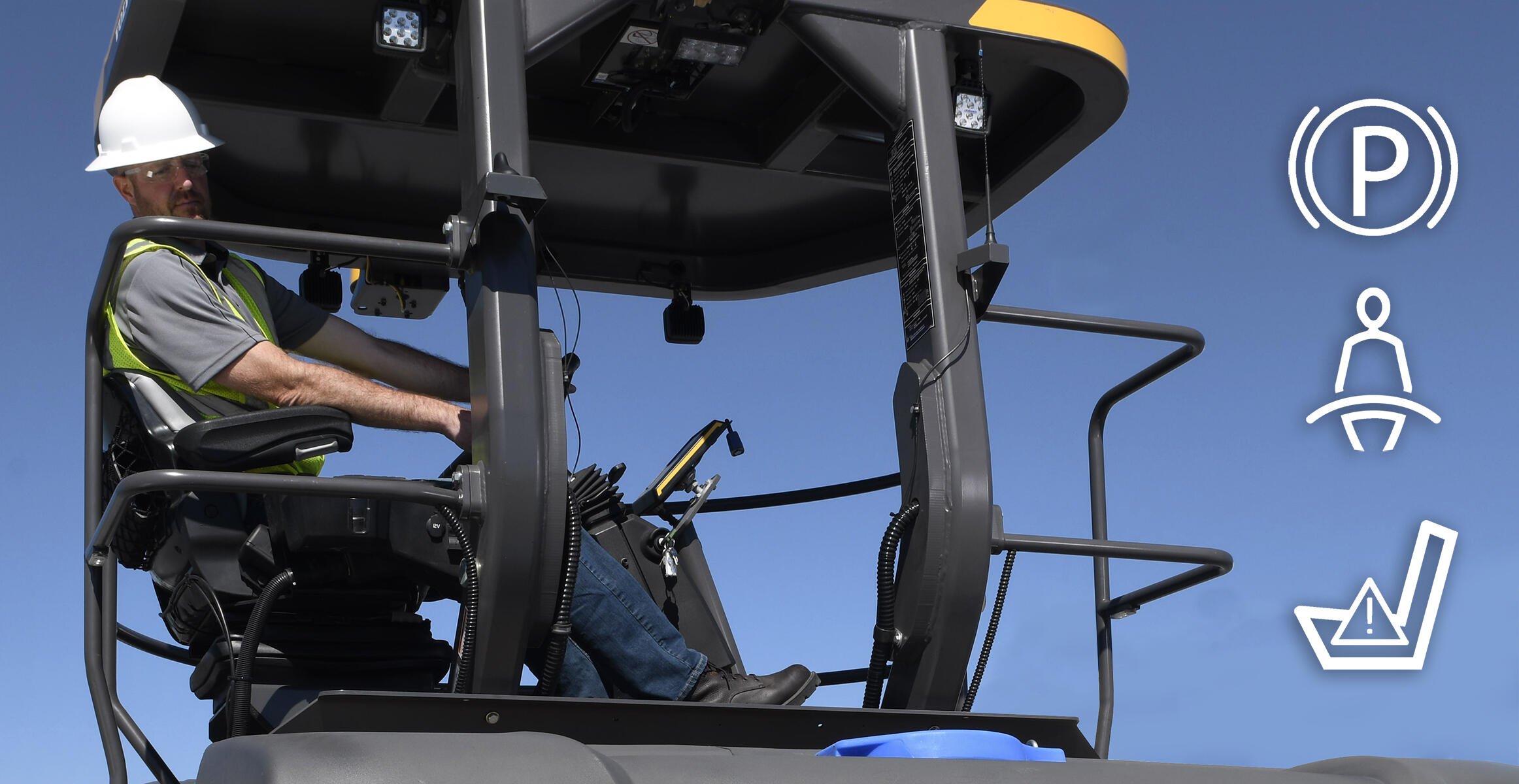

Safety first

Features including the ROPS/FOPS certified platform, seat belt alarm, operator presence switch and brake test functionality all contribute towards enhanced safety for the operator and others on the jobsite.

See more, do more

Roll with precision day or night with a range of lighting packages available, offering increased visibility, safety and convenience. LED lights consume less power and are longer-lasting for an efficient and durable solution in low-light conditions.

Designing a best-in-class compactor which is durable and easy to service is just the start of how we strive to maximize uptime for our customers. Our range of Volvo Services, including Lifetime Frame and Structure Warranty, 24-hour parts delivery guarantee and proactive machine monitoring, are designed to help you get the maximum return on your investment.

Keep on rolling

When it comes to servicing, the DD128C keeps things simple, ensuring maximum uptime. The full width engine hood swings up and is held open by powerful gas springs to provide unobstructed access to all engine and hydraulic components, combined with a single access key to service hatches. Fuses and relays are grouped inside a sealed, lockable compartment for improved reliability and serviceability. Both water tanks are separately filled from ground level.

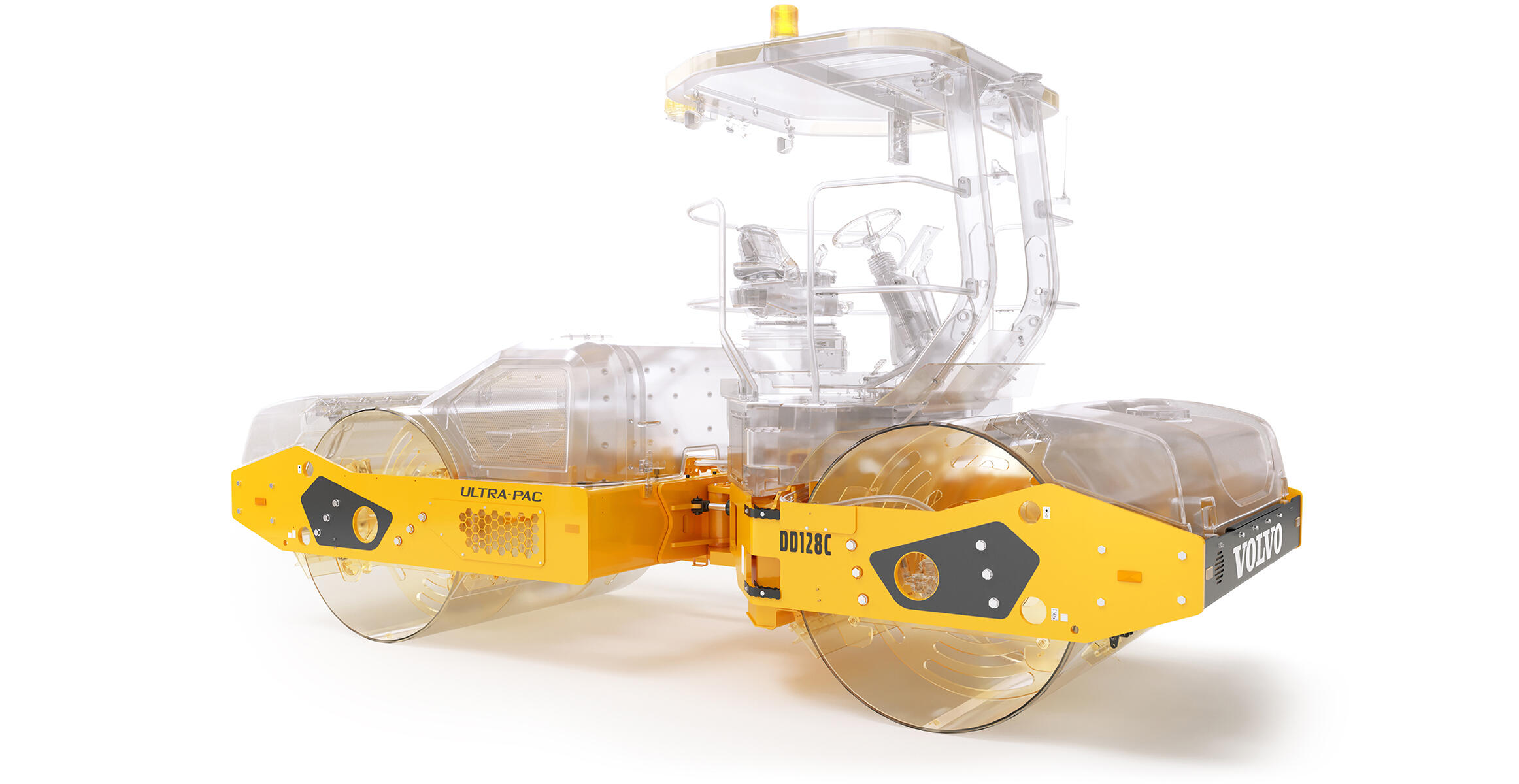

Quality you can count on

Quality has long been a hallmark of the Volvo brand, built on decades of experience both in the field and the laboratory, which today contributes to our unrivalled frame and structure durability. Testament to the confidence we have in our products is our Lifetime Frame and Structure Warranty, which covers the frame and articulation joint.

Machine monitoring made easy

Maximize machine uptime and reduce repair costs with the CareTrack telematic system. Choose to keep track of your machine yourself or let us take care of it with ActiveCare Direct. Our Volvo Uptime Center will provide 24/7 machine monitoring, supplying weekly reports and notifying you should preventive maintenance action be required.

Keeping you moving

Maintain productivity and machine uptime with our range of Genuine Volvo Parts, and with a 24-hour parts delivery guarantee, you can count on getting the parts you need – when you need them. Stay on track with planned servicing and keep your asset covered with our range of flexible maintenance and repair options.
