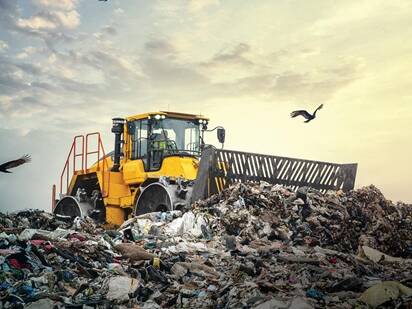

Volvo LC450H Landfill Compactor

Volvo LC450H

Landfill compactor

Purpose-built for waste

Built on decades of experience in providing solutions to the waste and recycling industry, we have combined our expertise to work in partnership with Terra Compactor Wheel Corp., a leading manufacturer of landfill compaction wheels, cleats, rolling wire guards, and machine parts. Through our range of products, we have long been committed to producing machines which are up to the challenges of waste applications. In the LC450H we have created a landfill compactor designed to deliver outstanding performance and maximum uptime in the toughest environments.

Volvo LC450H Landfill Compactor

The Volvo LC450H Landfill Compactor is the company’s first purpose-built landfill compactor for the North American market. See it in action.

Main specifications

Maximum operating weight 90,000 lbs (40,825 kg)
Engine Volvo D13J
Max. power at 25 r/s (1,500 r/min)
SAE J1995 gross 416 hp (310 kW)
ISO 9249, SAE J1349 net  414 hp (309 kW)
Max. torque at 18.3 r/s (1,100 r/min)
SAE J1995 gross  1,728 ft lbf (2,343 Nm)
ISO 9249, SAE J1349 net  1,717 ft lbf (2,328 Nm)
Displacement 782 in (12.8 l)
Blade Capacity
Semi-U 21.3 yd3 (16.3 m³)
Straight 19.5 yd3 (14.9 m³)
Wheel Dimensions
Wheel Dimensions 61.5 in (1,562 mm)
Drum Width  47.5 in (1,207 mm)
Overall Diameter 8.5" Cleat 78.5 in (1,994 mm)
Width over wheels 13' 1.75" (4,007 mm)



Features and benefits

Volvo Landfill Compactor LC450H
Up to the challenge

The LC450H makes easy work of difficult conditions. A 100% dog clutch differential lock in the front, and limited slip at the rear, contribute towards outstanding machine traction. With a 26.5 inch ground clearance, the LC450H can easily travel across high obstacles.

Unrivalled performance

With a powerful engine that works in harmony with the axles and the transmission, the LC450H delivers an unrivalled level of performance. With superior traction, high ground clearance and a choice of blade, the specialized landfill compactor is the perfect partner in waste applications.

Power up, fuel down

The 90,000lb LC450H is powered by a 416 horsepower Volvo D13J Tier 4 Final engine, featuring passive and automatic regeneration. The engine and axles work in perfect harmony with the HTL310 transmission with lock-up converter, delivering high torque output and excellent fuel efficiency.

Choice of blade

The LC450H can be equipped with a Terra semi-U or straight blade, allowing operators to select the option which best fits their needs.

Volvo Landfill Compactor LC450H
Keeping you safe

Operators can feel safe thanks to the ROPS/FOPS protected cab and windshield guard, and breathe easy thanks to the RESPA cab filtration system, including a powered pre-cleaner, filter and pressurizer in one unit.

The operator's choice

When an operator enters the LC450H, they are stepping inside the industry-leading Volvo cab, boasting a range of features to keep operators safe, comfortable and working at their best.

Easy cab access

Climb into the LC450H with ease, with high-visibility steps and handrails supporting convenient entry and egress to the machine.

Comfortably productive

To reduce fatigue and improve productivity, Comfort Drive Control lets operators steer the machine from a small lever. The machine’s single lever blade control, with integrated forward/neutral/reverse, gives the operator the choice to control the transmission with their left or right hand.

All-around visibility

The LC450H is equipped with a range of features to give the operator a clear and unobstructed view of the worksite. A rear-view camera, electronically adjusted heated external rear-view mirrors, and LED work lights to the front, rear and side, all contribute towards excellent visibility.

Volvo Landfill Compactor LC450H
Heavy-duty guarding

Maximize performance and minimize machine wear with extensive protection throughout the LC450H, including radiator grill guard, center pin guard, swing down belly pans, front and rear differential guards, and axle seal guards. Two striker bars cover both the front and rear wheels to keep potentially damaging material away from the machine.

Unrivalled performance

With a powerful engine that works in harmony with the axles and the transmission, the LC450H delivers an unrivalled level of performance. With superior traction, high ground clearance and a choice of blade, the specialized landfill compactor is the perfect partner in waste applications.

Power up, fuel down

The 90,000lb LC450H is powered by a 416 horsepower Volvo D13J Tier 4 Final engine, featuring passive and automatic regeneration. The engine and axles work in perfect harmony with the HTL310 transmission with lock-up converter, delivering high torque output and excellent fuel efficiency.

Choice of blade

The LC450H can be equipped with a Terra semi-U or straight blade, allowing operators to select the option which best fits their needs.

Volvo Landfill Compactor LC450H
Industry-leading serviceability

For simple servicability, the Volvo cab can be tilted to either a 30° or 70° angle, and the engine hood is operated electronically. A swing down belly guards to the front, center and rear, further support convenient servicing.

Simple servicing

Regular service and maintenance is a vital part of keeping your machine in top condition and performing at its best. The LC450H is designed to make servicing simple, supporting quick and easy maintenance to keep uptime to a maximum.

Unrestricted access

Complete routine checks with speed and ease, from the ground level or machine platform. Grouped filters are accessed by removable side panels, and the remote oil drain also provides easy maintenance access. The engine oil check and fill are accessed without needing to remove any panels.

Maintenance-free components

Minimize machine downtime and increase components life thanks to maintenance-free rear axle trunnion bearings.

Download

Get the product brochure

Download the LC450H brochure, with all the details and specifications.

Download (PDF, 4.3MB)
