Compact Excavator ECR35D
-
Stage IIIA / Tier 3
Emission Standards -
3,520 kg
Operating weight -
22.8 kW
Gross power -
0.05 - 0.15 m³
Bucket capacity
A winning combination
Features and benefits for ECR35D
Short swing, big power
The ECR35D short swing radius machine is designed to work with power and precision in tight spaces, improving safety and performance in all applications. Featuring a comfortable cab, excellent hydraulics, easy-to-use controls and outstanding serviceability, you will achieve a lot with this small machine.
Optimized efficiency
For lower costs, increased productivity and maximum uptime a number of efficient features combine on the ECR35D. ECO mode allows you to choose the right machine setting for the job at hand for impressive fuel efficiency. Robust design and quality digging equipment delivers durability and long term machine value. Auto idle and auto engine shut down reduce noise disturbance, fuel consumption, maintenance costs and slow down depreciation of your machine.
Easy to use

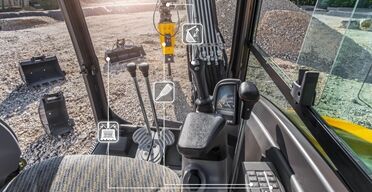

The machine’s state-of-the-art hydraulic system is perfectly matched to the Volvo engine delivering high performance, fast response times and smooth operation. The ergonomic, comfortable controls are easy to understand and make it simple to switch between operators. Responsive fingertip controls enhance ease of operation, reduce fatigue and improve fluency.
More than a machine
Tailored to your business and operations, choose from a wide range of Volvo attachments and Customer Solutions to improve your performance, productivity and versatility. Volvo offers a complete range of robust attachments for all working conditions and can offer a long-term partnership, protect your revenue and provide a full range of services using Genuine Volvo parts, delivered by passionate people.
Quick couplers
The mechanical and hydraulic universal quick couplers allow attachments to be changed quickly and efficiently. The hydraulic quick coupler’s design allows it to be used for matched Volvo attachments as well as a broad range of offerings from different brands.
Advanced attachment solutions
The machine is compatible with a range of hydraulic attachments, including thumb, breaker and tiltable ditching bucket for more advanced and specialist applications. Available from the factory or aftermarket, do not hesitate to contact your local Volvo dealer and benefit from leading expertise and advanced attachment solutions.
Specifications for ECR35D
| Engine | Volvo D1.8A |
|---|---|
| Gross power | 22.8 kW |
| Net power | 21.5 kW |
| ...at engine speed | 2,200 rpm |
| Operating weight | 3,520 kg |
| Operating weight, canopy version | 3,385 - 4,090 kg |
| Bucket capacity | 0.05 - 0.15 m³ |
| Travel speed, low / high | 2.7 / 4.5 km/h |
| Slewing speed | 9 rpm |
| Breakout force | 30.7 kN |
| Tear out force (arm breakout force) | 20.7 kN |
| Overall width | 1,780 mm |
| Overall length | 4,660 mm |
| Main hydraulic pump max. flow | 103 l/min |
