EC35D
Compact Excavator EC35D
-
Stage IIIA / Tier 4f
Emission Standards -
3,530 kg
Operating weight -
22.8 kW
Gross power -
0.05 - 0.15 m³
Bucket capacity
Do more for less in the Volvo EC35D compact excavator, designed to work with power and precision in tight spaces. Based on a...
More
Precise performance
Do more for less in the Volvo EC35D compact excavator, designed to work with power and precision in tight spaces. Based on a proven design, the EC35D delivers high levels of comfort, performance and versatility, enabling you to be more productive in a range of applications.
Features and benefits for EC35D
Explore what sets the EC35D apart

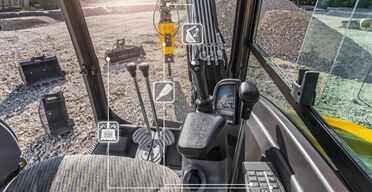

Built ready
Volvo’s durable attachments have been purpose-built to deliver maximum productivity and long service life in combination with Volvo machines.
EC35D
More than a machine
Tailored to your business and operations, choose from a wide range of Volvo attachments and Customer Solutions to improve your performance, productivity and versatility. Volvo offers a complete range of robust attachments for all working conditions and can offer a long-term partnership, protect your revenue and provide a full range of services using Genuine Volvo parts, delivered by passionate people.

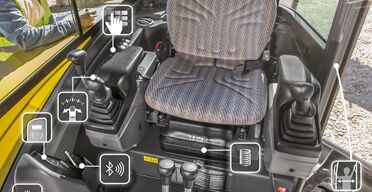

Operator environment
The industry-leading, spacious Volvo FOPS1 on top, TOPS and ROPS cab boasts all around visibility, ergonomically positioned controls and excellent vibration and noise insulation.
EC35D
Perform with precision
The EC35D features a comfortable cab and easy-to-use controls for high performance and precise operation. With its excellent hydraulic performance and easy serviceability you can do more for less in all applications.
Specifications for EC35D
Explore key specifications and download the brochure for more detailed information.
| Engine | Volvo D1.7A |
|---|---|
| Gross power | 22.8 kW |
| Net power | 17.2 kW |
| ...at engine speed | 2,200 rpm |
| Operating weight | 3,530 kg |
| Operating weight, canopy version | 3,395 - 3,940 kg |
| Bucket capacity | 0.05 - 0.15 m³ |
| Travel speed, low / high | 2.7 / 4.5 km/h |
| Slewing speed | 9 rpm |
| Breakout force | 32.9 kN |
| Tear out force (arm breakout force) | 23.7 kN |
| Overall width | 1,780 mm |
| Overall length | 4,620 mm |
| Main hydraulic pump max. flow | 103 l/min |
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
