EC230 Electric
Crawler Excavator EC230 Electric
-
23,000 - 26,100 kg
Operating weight -
0.48 - 1.44 m³
Bucket capacity -
264 kWh
Battery capacity -
Type 2
Connector Type
The EC230 Electric is built on the proven technology of the Volvo crawler excavator and combines all the power with the additional...
More
Quiet, clean and comfortable
The EC230 Electric is built on the proven technology of the Volvo crawler excavator and combines all the power with the additional benefits that come from going electric. With EC230 Electric operators will benefit from low noise and lower vibration, more responsive hydraulics due to the electric motor. It leads to a better place to work, both in-cab and on site.
Features and benefits for EC230 Electric
Explore what sets the EC230 Electric apart
Specifications for EC230 Electric
Explore key specifications and download the brochure for more detailed information.
| Operating weight | 23,000 - 26,100 kg |
|---|---|
| Gross power | 160 kW |
| ...at engine speed | 1,600 rpm |
| Bucket capacity | 0.48 - 1.44 m³ |
| Lifting capacity, along undercarriage | 0 kg |
| ...at reach / height | 6 / 1.5 m |
| Max. digging reach | 9,930 mm |
| Max. digging depth | 6,730 mm |
| Breakout force, SAE J1179 (Normal) | 141 kN |
| Breakout force, SAE J1179 (Boost) | 149 kN |
| Tear out force, SAE J1179 (Normal) | 104 kN |
| Tear out force, SAE J1179 (Boost) | 110 kN |
| Overall width | 2,990 mm |
| Tail swing radius | 2,850 mm |
| Battery voltage | 600 V |
| Battery capacity | 264 kWh |
| Indicative runtime (depending on application) | Up to 4~5 hours |

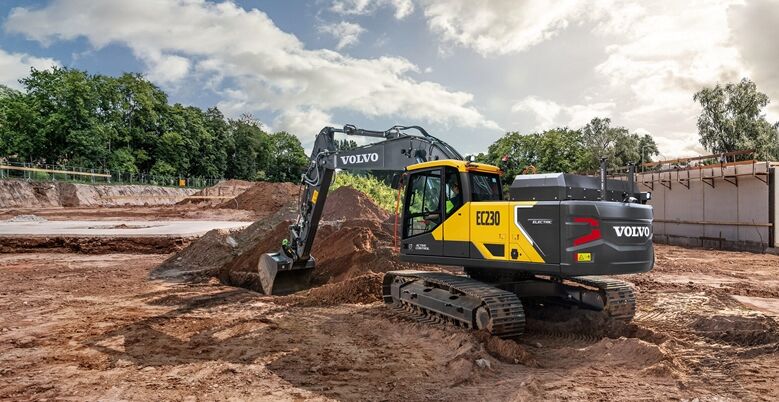

Image illustration only. Production machines may differ in appearance and features vary between markets and models.
